TEFCOLD Galaxy+ GP14FGD White Multideck With Doors

£3,529.00

+vat

Brand:

SKU: 45305

Energy Arrow

Product summary

  • Fully automatic, fan assisted cooling
  • Internal vertical & horizontal LED light
  • Solid 40 mm endwalls with mirrored interior
  • Frameless hinged double glazed self closing doors
  • 5 Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • EPOS Ticket strips & shelf risers
  • Suitable for fresh meat
  • Can be multiplexed with kit (POA)
  • Door widths match on G14 & G26 & on G10 & G20
  • Delivered without handles and rear stand-offs attached, will fit through 750mm door

Product description

The TEFCOLD Galaxy+ FGD (Full Glass Door) range are part of our popular range of plug-in multidecks. We’ve combined an expanded display area and optimised cabinet efficiency with frameless, full-vision glass doors, offering enhanced product visibility that captures customers’ attention. The ultra-low front and slim top canopy provide an extra 100mm of internal height, accommodating up to 5 shelves (plus base) as standard. With a standard depth, the unit fits through most doors for easy installation, yet has deep shelves for maximum stock capacity. Thanks to the carefully designed refrigeration system and optimal airflow throughout the cabinets, all sizes in this range are rated B for energy efficiency. Each unit comes with heavy-duty adjustable shelves that can be tilted if needed, as well as EPOS ticket strips and shelf risers as standard. Optional extras include glass end-walls and multiplexing kits.

The TEFCOLD Galaxy+ GP14FGD is a white glass-door multideck fridge holding -1 to +5 °C across 1.91 m² of display on five adjustable shelves behind two hinged glass doors, measuring 1330 × 750 × 2040 mm with 1443 litres gross capacity.

SPECIFICATION 47 facts · tap for all External W × D × H1330 x 750 x 2005 mmWidth1330 mmDepth750 mmGross / net weight369 / 285 kgGross weight369 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181720360site
Product code 45305site
Sub title Multideck With Doorscatalogue
Type Glass Door Multideck Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 750 mmsite
External (W×D×H) 1330 × 750 × 2005 mmcatalogue
External W × D × H 1330 x 750 x 2005 mmsite
Gross / net weight 369 / 285 kgsite
Gross weight 369 kgcatalogue
Height 2005 mmsite
Internal (W×D×H) 1250 × 544 × 1562 mmcatalogue
Internal W × D × H 1250 x 544 x 1562 mmsite
Packed (W×D×H) 1350 × 770 × 2320 mmcatalogue
Packed W × D × H 1350 x 770 x 2320 mmsite
Width 1330 mmsite

Capacity4

Display area 1.91 m²site
Doors 2catalogue
Gross volume 1443 litrescatalogue
Shelves 5catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 140 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 1336 kWh/yearsite
Energy consumption 3.66 kWh/24hsite
Energy efficiency index 12 %site
Input power 308 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Exterior finish White RAL9003site
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 160site
Reversible doors Nosite
Shelf dimensions 1250x400mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this glass door multideck fridge earns its place

The Galaxy+ GP14FGD is a glass-door multideck display fridge finished in white RAL9003 inside and out, built to merchandise chilled grab-and-go lines at height. Five adjustable shelves span 1.91 m² of display area, and two hinged glass doors present stock behind glass rather than through an open front. Gross capacity is 1443 litres, with 629 litres of net usable volume.

It holds a -1 to +5 °C band under an electronic controller, with automatic defrost handling ice clearance. Cooling runs on R290 refrigerant with a 140 g charge, and the cabinet is rated climate class 3 at 55 dB. The doors help it reach energy class B at 1335.9 kWh a year — about £334 a year at 25p/kWh — with an EEI of 12.0%.

The cabinet stands 2040 mm tall and measures 1330 × 750 mm on the floor; internally the display is 1250 × 544 × 1562 mm. Packed it measures 1350 × 770 × 2320 mm, so check ceiling height and access against both figures. It weighs 369 kg gross and 285 kg net, and runs from a standard 13 amp, 220–240 V supply.

BEFORE YOU BUY

Questions, answered straight

It stands 2040 mm tall on a 1330 × 750 mm footprint, and ships crated at 1350 × 770 × 2320 mm. Check ceiling height, doorways and lifts against the packed size before delivery.

It runs a -1 to +5 °C band under an electronic controller, suited to chilled grab-and-go, dairy, drinks and pre-packed food.

The glass doors help it reach energy class B at 1335.9 kWh a year — about £334 a year at 25p/kWh. Your actual cost depends on tariff and door usage.

Gross capacity is 1443 litres with 629 litres of net usable volume, spread over five adjustable shelves and 1.91 m² of display area.

The two hinged glass doors hold the chill in, which is what lets the cabinet reach energy class B and a 12.0% EEI while still merchandising stock at height.

It runs from a standard 13 amp, 220–240 V supply and uses R290 refrigerant with a 140 g charge. For servicing, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1250 x 544 x 1562 mm
External Dimension (WxDxH): 1330 x 750 x 2005 mm
Packed Dimension (WxDxH): 1350 x 770 x 2320 mm

Cooling and Functions

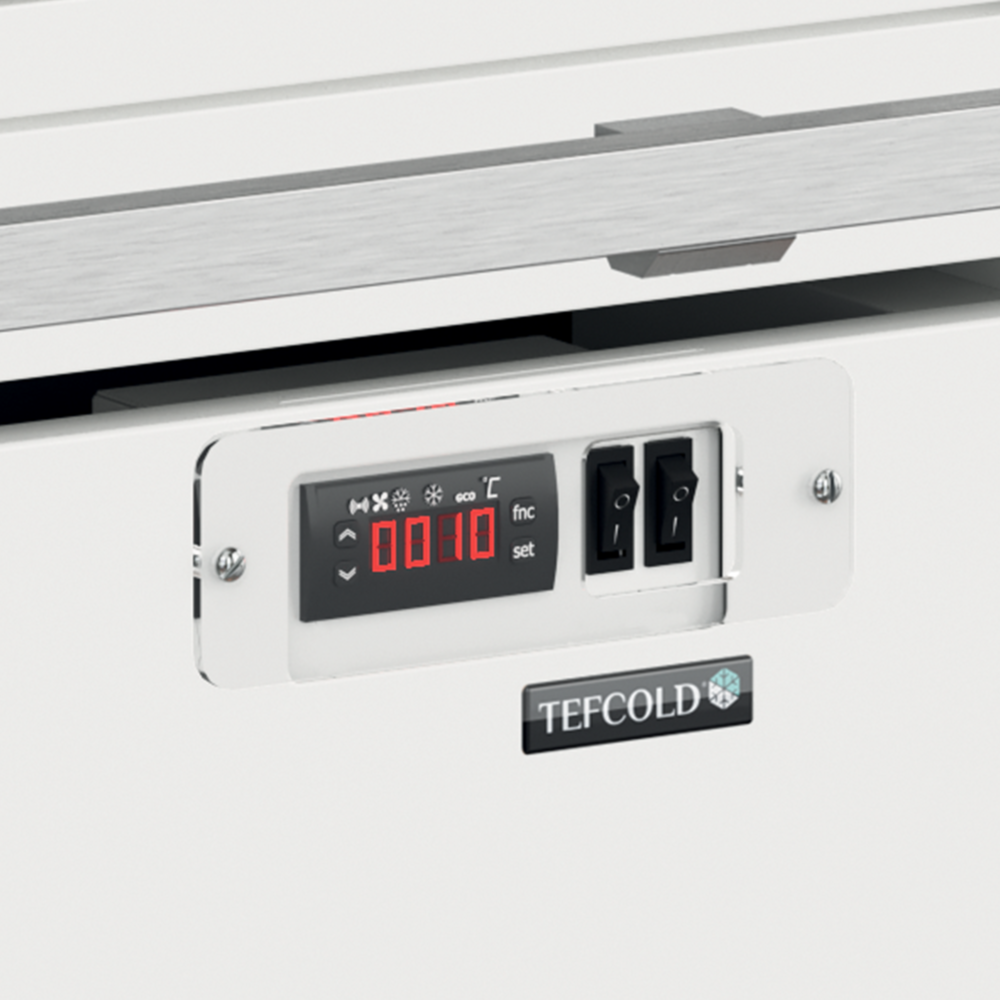

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 140 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.66 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 1336 kWh/year m³
EEI: 12 %
Input Power: 308 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 369 / 285 kg
Gross / Net Volume: 1443 / 629 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.91 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 1250x400mm
Max load on Shelves: 160 kg/m²
Feet / Legs: 4 adjustable feet
Exterior Finish: White RAL9003
Interior Finish: White RAL9003
Interior Light: LED
If you have any questions about the TEFCOLD Galaxy+ GP14FGD White Multideck With Doors then please get in touch.
