TEFCOLD Galaxy+ GP10FGD White Multideck With Doors

£3,122.00

+vat

- +

Brand:

SKU: 45307

Energy Arrow

Product summary

  • Fully automatic, fan assisted cooling
  • Internal vertical & horizontal LED light
  • Solid 40 mm endwalls with mirrored interior
  • Frameless hinged double glazed self closing doors

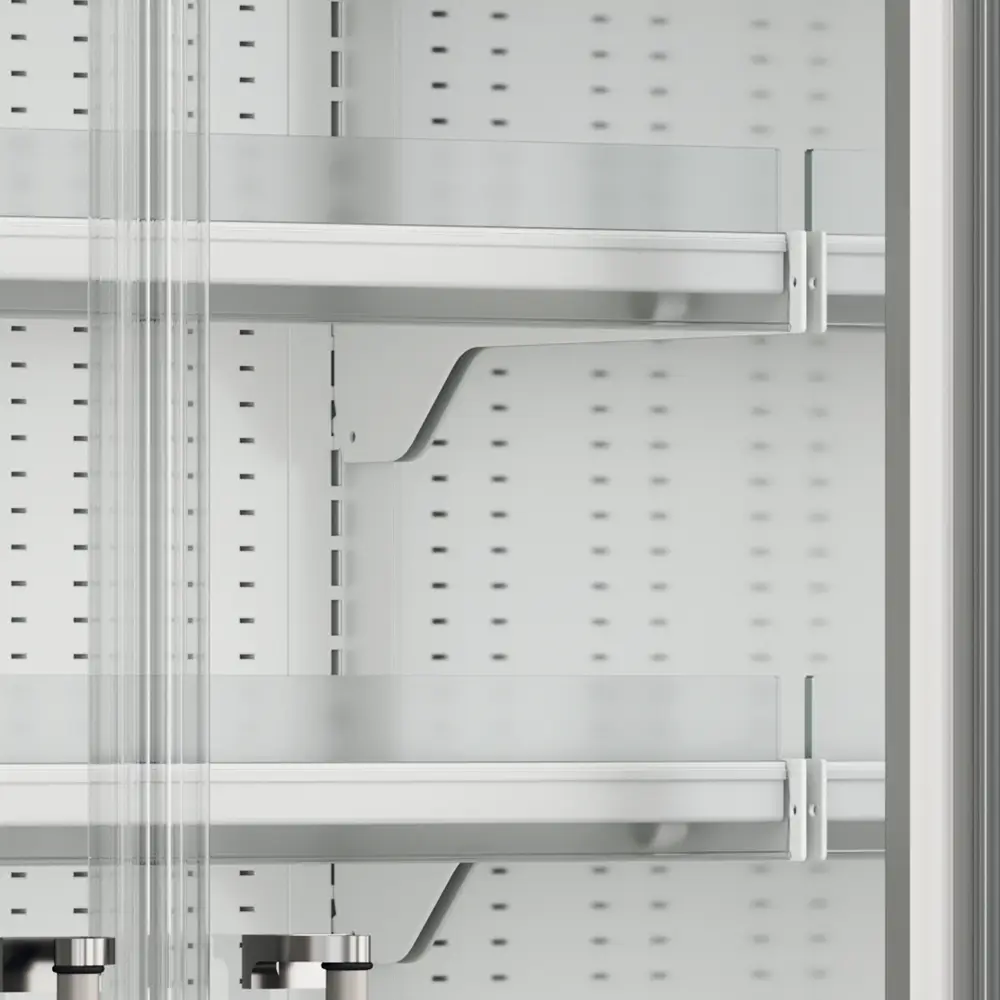

  • 5 Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • EPOS Ticket strips & shelf risers
  • Suitable for fresh meat
  • Can be multiplexed with kit (POA)
  • Door widths match on G14 & G26 & on G10 & G20

Product description

The TEFCOLD Galaxy+ FGD (Full Glass Door) range are part of our popular range of plug-in multidecks. We’ve combined an expanded display area and optimised cabinet efficiency with frameless, full-vision glass doors, offering enhanced product visibility that captures customers’ attention. The ultra-low front and slim top canopy provide an extra 100mm of internal height, accommodating up to 5 shelves (plus base) as standard. With a standard depth, the unit fits through most doors for easy installation, yet has deep shelves for maximum stock capacity. Thanks to the carefully designed refrigeration system and optimal airflow throughout the cabinets, all sizes in this range are rated B for energy efficiency. Each unit comes with heavy-duty adjustable shelves that can be tilted if needed, as well as EPOS ticket strips and shelf risers as standard. Optional extras include glass end-walls and multiplexing kits.

The TEFCOLD Galaxy+ GP10FGD is a 1018 mm-wide glass-door multideck fridge with two hinged glass doors and five adjustable shelves, holding -1 to +5 °C over 1.44 m² of display in a white RAL9003 finish, with automatic defrost, R290 refrigerant and a class B rating.

SPECIFICATION 47 facts · tap for all External W × D × H1018 x 750 x 2005 mmWidth1018 mmDepth750 mmGross / net weight277 / 264 kgGross weight277 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181720377site
Product code 45307site
Sub title Multideck With Doorscatalogue
Type Glass Door Multideck Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 750 mmsite
External (W×D×H) 1018 × 750 × 2005 mmcatalogue
External W × D × H 1018 x 750 x 2005 mmsite
Gross / net weight 277 / 264 kgsite
Gross weight 277 kgcatalogue
Height 2005 mmsite
Internal (W×D×H) 938 × 544 × 1562 mmcatalogue
Internal W × D × H 938 x 544 x 1562 mmsite
Packed (W×D×H) 1100 × 770 × 2320 mmcatalogue
Packed W × D × H 1100 x 770 x 2320 mmsite
Width 1018 mmsite

Capacity4

Display area 1.44 m²site
Doors 2catalogue
Gross volume 1083 litrescatalogue
Shelves 5catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 110 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 1186 kWh/yearsite
Energy consumption 3.25 kWh/24hsite
Energy efficiency index 12.7 %site
Input power 289 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Exterior finish White RAL9003site
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 160site
Reversible doors Nosite
Shelf dimensions 938x400mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this glass door multideck fridge earns its place

The Galaxy+ GP10FGD is a slim, full-height glass-door multideck that merchandises chilled stock behind two hinged glass doors in a footprint just over a metre wide. It offers 1.44 m² of display area across five adjustable shelves, a gross volume of 1083 litres and 472 litres net, finished in white RAL9003 inside and out for a clean retail look.

The doors and cabinet hold a -1 to +5 °C band under an electronic controller with automatic defrost. The glass doors keep efficiency high: it carries a class B energy rating at 1186.2 kWh a year — about £297 a year at 25p/kWh. It is rated to climate class 3 and measured noise is 55 dB(A).

External dimensions are 1018 × 750 × 2040 mm (W×D×H) and it ships packed at 1100 × 770 × 2320 mm, so the sub-1.1-metre width clears most standard openings — still check your access route first, as it weighs 277 kg gross (264 kg net). It runs on a 220–240 V supply drawing up to 13 A and uses 110 g of R290 refrigerant.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 1018 × 750 × 2040 mm (W×D×H) and ships packed at 1100 × 770 × 2320 mm, so its sub-1.1-metre width clears most standard openings. Check your access route before delivery, as it weighs 277 kg gross.

It runs a -1 to +5 °C band under an electronic controller with automatic defrost, suited to chilled lines such as drinks, dairy and pre-packed food.

Rated energy class B at 1186.2 kWh a year, it works out at about £297 a year at 25p/kWh. Your actual figure depends on your tariff, ambient conditions and how the cabinet is loaded.

It gives 1.44 m² of display area across five adjustable shelves, with a gross volume of 1083 litres and 472 litres net. The shelves adjust to suit different pack heights.

It runs on a standard 220–240 V single-phase supply and draws up to 13 A, so it needs its own suitably rated socket circuit.

Yes. Craven Cooling services the cabinets we supply — call the team on 01792 732702 to arrange a visit or talk a fault through. It uses R290 refrigerant and an electronic controller with automatic defrost.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 938 x 544 x 1562 mm
External Dimension (WxDxH): 1018 x 750 x 2005 mm
Packed Dimension (WxDxH): 1100 x 770 x 2320 mm

Cooling and Functions

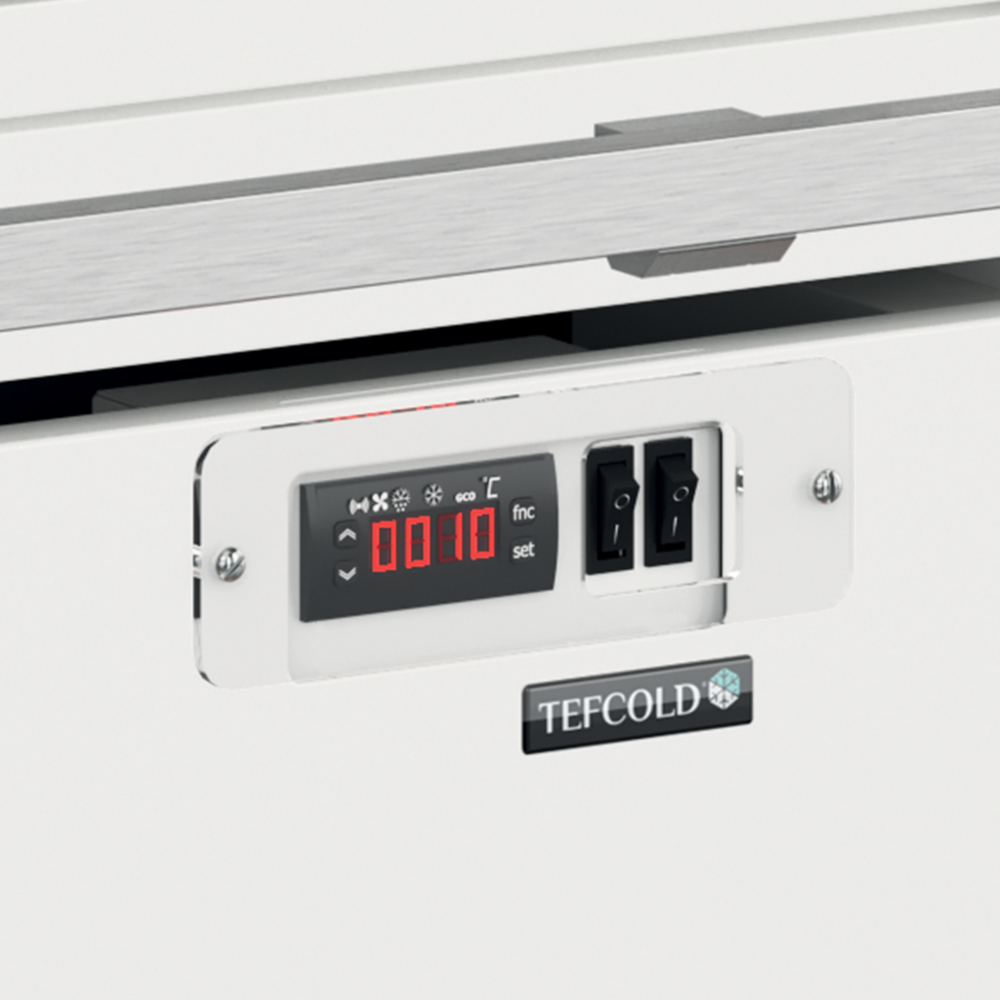

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.25 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 1186 kWh/year m³
EEI: 12.7 %
Input Power: 289 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 277 / 264 kg
Gross / Net Volume: 1083 / 472 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.44 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 938x400mm
Max load on Shelves: 160 kg/m²
Feet / Legs: 4 adjustable feet
Exterior Finish: White RAL9003
Interior Finish: White RAL9003
Interior Light: LED
If you have any questions about the TEFCOLD Galaxy+ GP10FGD White Multideck With Doors then please get in touch.
