TEFCOLD Galaxy+ GP10FGD SS Multideck With Doors

£3,351.00

+vat

Brand:

SKU: 46462

Energy Arrow

Product summary

  • Fully automatic, fan assisted cooling
  • Internal vertical & horizontal LED light
  • Solid 40 mm endwalls with mirrored interior
  • Frameless hinged double glazed self closing doors
  • 5 Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • EPOS Ticket strips & shelf risers
  • Suitable for fresh meat
  • Can be multiplexed with kit (POA)
  • Door widths match on G14 & G26 & on G10 & G20

Product description

Mirror Stainless Steel Multideck With Doors

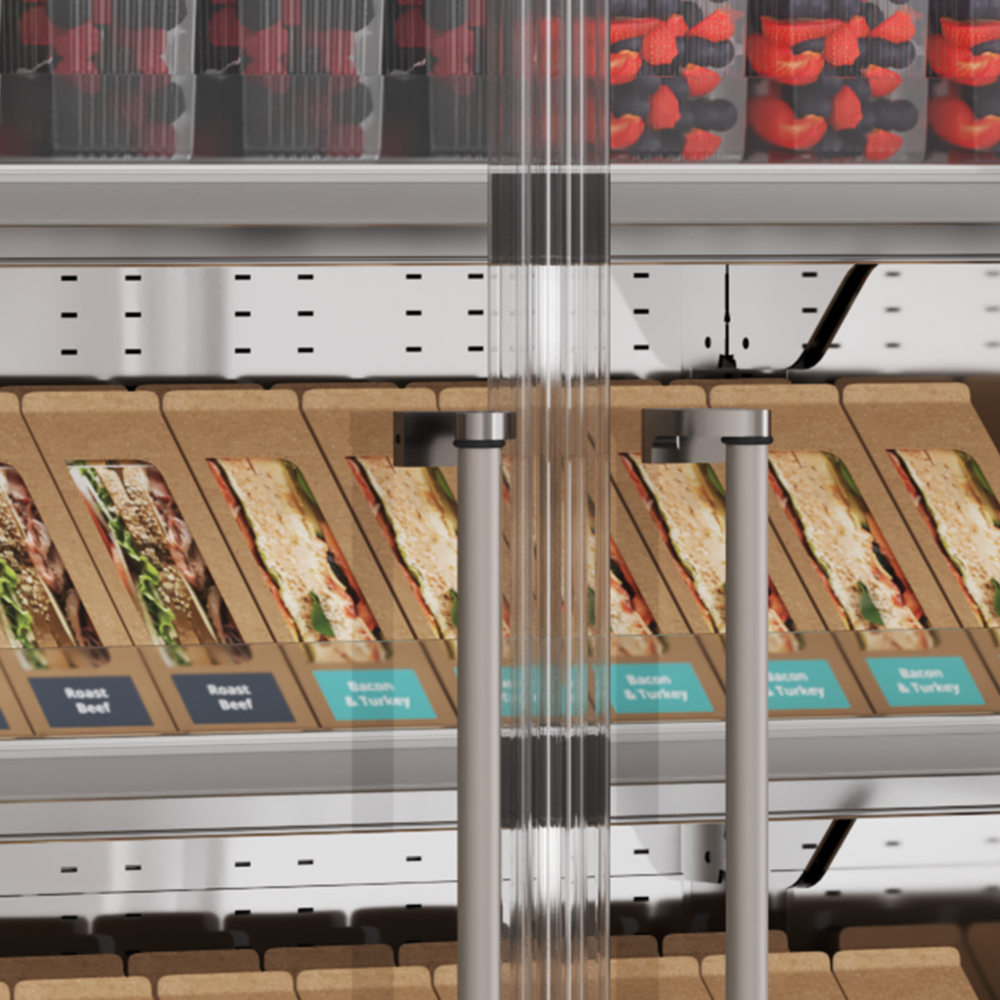

The TEFCOLD Galaxy+ FGD (Full Glass Door) range, finished in mirror stainless steel: part of our popular assortment of plug-in multidecks. We’ve combined an expanded display area and optimised cabinet efficiency with frameless, full-vision glass doors, offering enhanced product visibility that captures customers’ attention. The ultra-low front and slim top canopy provide an extra 100mm of internal height, accommodating up to 5 shelves (plus base) as standard. With a standard depth, the unit fits through most doors for easy installation, yet has deep shelves for maximum stock capacity. Thanks to the carefully designed refrigeration system and optimal airflow throughout the cabinets, all sizes in this range are rated B for energy efficiency. Each unit comes with heavy-duty adjustable shelves that can be tilted if needed, EPOS ticket strips and shelf risers as standard. Optional extras include glass end-walls and multiplexing kits.

The TEFCOLD Galaxy+ GP10FGD is a mirror stainless-steel glass-door multideck holding 1083 litres gross (472 litres net) across five adjustable shelves behind two hinged glass doors at -1 to +5 °C, energy class B with R290 refrigerant.

SPECIFICATION 47 facts · tap for all External W × D × H1018 x 750 x 2005 mmWidth1018 mmDepth750 mmGross / net weight277 / 264 kgGross weight277 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181726195site
Product code 46462site
Sub title Multideck With Doorscatalogue
Type Glass Door Multideck Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 750 mmsite
External (W×D×H) 1018 × 750 × 2005 mmcatalogue
External W × D × H 1018 x 750 x 2005 mmsite
Gross / net weight 277 / 264 kgsite
Gross weight 277 kgcatalogue
Height 2005 mmsite
Internal (W×D×H) 938 × 544 × 1562 mmcatalogue
Internal W × D × H 938 x 544 x 1562 mmsite
Packed (W×D×H) 1100 × 770 × 2320 mmcatalogue
Packed W × D × H 1100 x 770 x 2320 mmsite
Width 1018 mmsite

Capacity4

Display area 1.44 m²site
Doors 2catalogue
Gross volume 1083 litrescatalogue
Shelves 5catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 110 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 1186 kWh/yearsite
Energy consumption 3.25 kWh/24hsite
Energy efficiency index 12.7 %site
Input power 289 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Exterior finish Mirror Stainless Steelsite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 160site
Reversible doors Nosite
Shelf dimensions 938x400mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this glass door multideck fridge earns its place

The Galaxy+ GP10FGD is a glass-door multideck that pairs multideck display with the energy discipline of doors. Two hinged glass doors front 1.44 m² of display over five adjustable shelves, keeping chilled stock fully visible while the mirror stainless-steel finish inside and out gives a premium retail look. It is a doored alternative to open-fronted formats where energy and temperature stability matter.

It holds stock at -1 to +5 °C with automatic defrost under an electronic controller. The cabinet uses R290 hydrocarbon refrigerant (110 g charge) and earns a strong energy class B rating — the glass doors are a large part of why. Annual consumption of 1186.2 kWh works out at about £297 a year at 25p/kWh. Measured noise is 55 dB and it carries climate class 3 for air-conditioned retail floors.

External dimensions are 1018 × 750 × 2040 mm (W×D×H), a little over a metre wide and just over two metres tall, so check the 2040 mm height and packed size of 1100 × 770 × 2320 mm against your doorways and ceiling. It runs from a 13 A supply on 220–240 V, 50 Hz. Gross weight is 277 kg (264 kg net), so plan mechanical handling for delivery and positioning.

BEFORE YOU BUY

Questions, answered straight

The glass doors help the GP10FGD reach energy class B and hold temperature more steadily than an open front, at about £297 a year at 25p/kWh. Stock stays fully visible through the two hinged doors.

The cabinet is 1018 mm wide and 2040 mm tall, and ships packed at 1100 × 770 × 2320 mm. Check the height against door frames and ceilings, as the packed carton is 2320 mm tall.

It operates at -1 to +5 °C across five adjustable shelves, suited to chilled drinks, dairy and packaged food, with automatic defrost managed by an electronic controller.

Gross capacity is 1083 litres and net capacity is 472 litres, with 1.44 m² of display area behind the two glass doors.

It is energy class B and uses 1186.2 kWh a year, about £297 a year at 25p/kWh. Your actual cost depends on your tariff and how often the doors are opened.

Yes — Craven Cooling can arrange servicing and support on 01792 732702. It uses R290 refrigerant and should be serviced by a competent refrigeration engineer.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 938 x 544 x 1562 mm
External Dimension (WxDxH): 1018 x 750 x 2005 mm
Packed Dimension (WxDxH): 1100 x 770 x 2320 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.25 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 1186 kWh/year m³
EEI: 12.7 %
Input Power: 289 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 277 / 264 kg
Gross / Net Volume: 1083 / 472 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.44 m² m²

Design and Material

Door Reversible: No
Shelf Color: Stainless steel
Shelf Dimensions: 938x400mm
Max load on Shelves: 160 kg/m²
Feet / Legs: 4 adjustable feet
Exterior Finish: Mirror Stainless Steel
Interior Finish: Mirror Stainless Steel
Interior Light: LED
If you have any questions about the TEFCOLD Galaxy+ GP10FGD SS Multideck With Doors then please get in touch.
