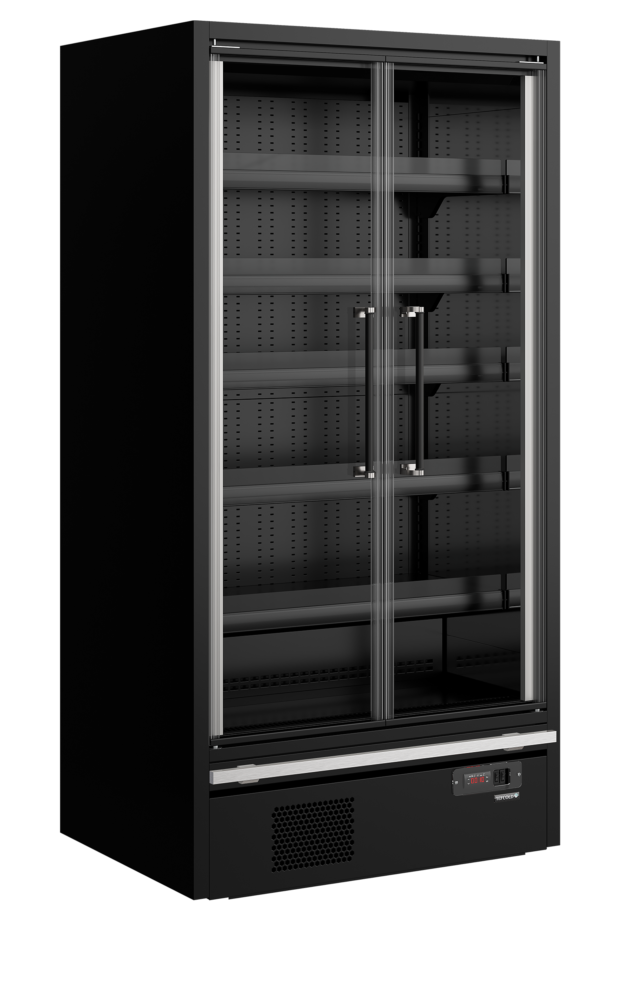

TEFCOLD Galaxy+ GP10FGD Black Multideck With Doors

£2,993.00

+vat

- +

Brand:

SKU: 43813

Energy Arrow

Product summary

  • EU Energy Class B
  • Frameless glass doors for great product visibility
  • Adjustable shelves (can be tilted)
  • Heavy duty shelving with strengthening bar
  • Ticket strip and acrylic front riser as standard
  • Self-closing doors
  • Solid 40 mm endwalls with mirrored interior
  • Internal vertical and horizontal LED light
  • Stainless steel bumper bars
  • Can be multiplexed with kit (POA)

Product description

Full Glass Door Multideck

The TEFCOLD Galaxy+ FGD (Full Glass Door) range are part of our popular range of plug-in multidecks. We’ve combined an expanded display area and optimised cabinet efficiency with frameless, full-vision glass doors, offering enhanced product visibility that captures customers’ attention. The ultra-low front and slim top canopy provide an extra 100mm of internal height, accommodating up to 5 shelves (plus base) as standard. With a standard depth, the unit fits through most doors for easy installation, yet has deep shelves for maximum stock capacity. Thanks to the carefully designed refrigeration system and optimal airflow throughout the cabinets, all sizes in this range are rated B for energy efficiency. Each unit comes with heavy-duty adjustable shelves that can be tilted if needed, as well as EPOS ticket strips and shelf risers as standard. Optional extras include glass end-walls and multiplexing kits.

SPECIFICATION 47 facts · tap for all External W × D × H1018 x 750 x 2005 mmWidth1018 mmDepth750 mmGross / net weight277 / 264 kgGross weight277 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181711221site
Product code 43813site
Sub title Multideck With Doorscatalogue
Type Glass Door Multideck Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 750 mmsite
External (W×D×H) 1018 × 750 × 2005 mmcatalogue
External W × D × H 1018 x 750 x 2005 mmsite
Gross / net weight 277 / 264 kgsite
Gross weight 277 kgcatalogue
Height 2005 mmsite
Internal (W×D×H) 938 × 544 × 1562 mmcatalogue
Internal W × D × H 938 x 544 x 1562 mmsite
Packed (W×D×H) 1100 × 770 × 2320 mmcatalogue
Packed W × D × H 1100 x 770 x 2320 mmsite
Width 1018 mmsite

Capacity4

Display area 1.44 m²site
Doors 2catalogue
Gross volume 1083 litrescatalogue
Shelves 5catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 110 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 1186 kWh/yearsite
Energy consumption 3.25 kWh/24hsite
Energy efficiency index 12.7 %site
Input power 289 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Exterior finish Black RAL9005site
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 160site
Reversible doors Nosite
Shelf dimensions 938x400mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this glass door multideck fridge earns its place

The Galaxy+ GP10FGD is a glass-door multideck for chilled grab-and-go retail — soft drinks, dairy, packed food and chilled snacks — presented across a 1.44 m² display on five adjustable shelves. The black RAL9005 finish inside and out gives a consistent look, and two hinged glass doors reduce the cold loss of an open front.

It holds a -1 to +5 °C band under an electronic controller with automatic defrost. Rated to climate class 3, it runs at 55 dB. Net capacity is 472 litres, 1083 litres gross. At energy class B with an EEI of 12.7% and 1186.2 kWh a year, running cost is about £297 a year at 25p/kWh.

External size is 1018 × 750 × 2040 mm (W×D×H). At 2040 mm tall and 1018 mm wide it needs adequate ceiling and door height, and at 277 kg gross it is a two-person delivery — check the route before it arrives. It runs from a standard 13A supply and cools with R290 refrigerant on a 110 g charge.

BEFORE YOU BUY

Questions, answered straight

Net capacity is 472 litres, 1083 litres gross, across five adjustable shelves behind two hinged glass doors. Display area is 1.44 m².

It holds a -1 to +5 °C band under electronic control with automatic defrost, suited to chilled grab-and-go lines like drinks, dairy and packed food.

At 1186.2 kWh a year it works out at about £297 a year at 25p/kWh. It carries an energy class of B with an EEI of 12.7%.

External size is 1018 × 750 × 2040 mm (W×D×H). At 2040 mm tall it needs adequate ceiling and door height, and at 277 kg gross it is a two-person delivery — check the route first.

The two hinged glass doors reduce the cold loss of an open front while keeping product on full view, which supports the energy class B rating and the 1186.2 kWh annual figure.

Yes — call the service team on 01792 732702 for servicing or spares. It uses R290 refrigerant with an electronic controller and automatic defrost.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 938 x 544 x 1562 mm
External Dimension (WxDxH): 1018 x 750 x 2005 mm
Packed Dimension (WxDxH): 1100 x 770 x 2320 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.25 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 1186 kWh/year m³
EEI: 12.7 %
Input Power: 289 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 277 / 264 kg
Gross / Net Volume: 1083 / 472 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.44 m² m²

Design and Material

Door Reversible: No
Shelf Color: Black
Shelf Dimensions: 938x400mm
Max load on Shelves: 160 kg/m²
Feet / Legs: 4 adjustable feet
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
If you have any questions about the TEFCOLD Galaxy+ GP10FGD Black Multideck With Doors then please get in touch.
