Atosa Closed Display Multideck 580L YLM580B

£3,550.00

+vat

- +

Brand:

SKU: YLM580B

Product summary

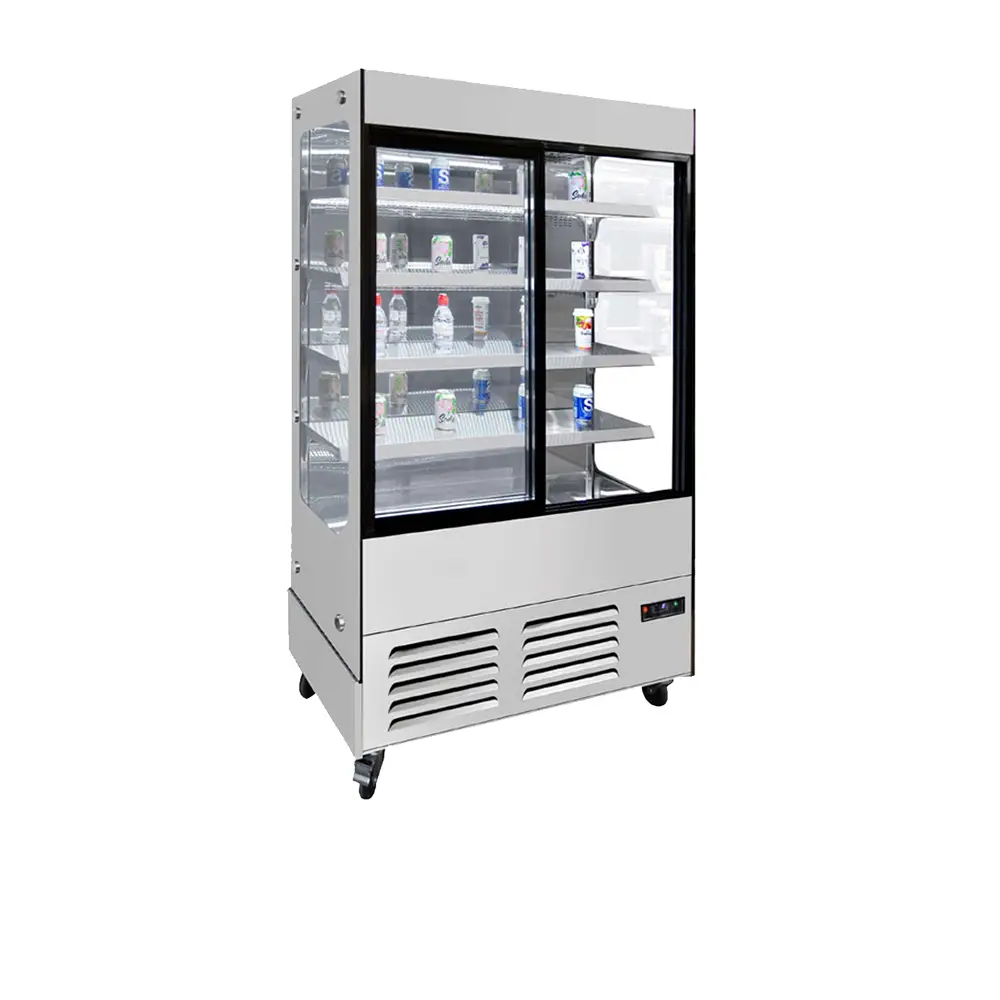

YLM580B – 580L refrigerated multideck display with self closing doors.

Product description

    • Model No. – YLM580B
    • Silver Service – 2 Years Parts and Labour Warranty
    • Mirrored stainless steel / Glass construction
    • Energy saving white LED lighting under each shelf as standard
    • Self-closing sliding doors
    • Digital controller
    • Even airflow distribution system
    • Temperature range +4 C to +10 C
    • 4 removable shelves
    • Castors as standard
    • R290hc refrigerant

Downloads

SPECIFICATION 6 facts · tap for all External W × D × HxxProduct codeYLM580BBrandAtosaTypeGlass Door Multideck Fridges

Manufacturer documents1

Identity3

Brand Atosasite
Product code YLM580Bsite
Type Glass Door Multideck Fridgescatalogue

Size & weight2

External (W×D×H) xx mmcatalogue
External W × D × H xxsite
THE WORKING VIEW

Why this glass door multideck fridge earns its place

The Atosa YLM580B steps up to 580 litres of display space — enough for a busy convenience store or forecourt to stock multiple product lines without turning over stock constantly. The larger capacity means fewer restocks per shift, which is crucial when you're managing one person per till in peak times.

Glass doors and mirrored back keep the cabinet looking premium while actually pulling product into view. Unlike open multidecks that lose cold at every reach, the doors keep your energy bill realistic. Self-closing mechanism means even if a customer leaves one standing open for a few seconds, you're not bleeding cold air and condensation across the shop floor.

Four removable shelves let you customise display height. Taller products on the lower shelves, smaller packs stacked higher — the flexibility means you're not rearranging the whole cabinet when you switch between product categories or seasonal lines.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 580 litres capacity with a 480mm depth, so it fits into most standard shop alcoves and counter spaces. Check your doorway width for delivery — if it's tight, removable shelves and doors come off for access. Ring 01792 732702 for specific measurements and advice on your space.

Yes. The +4–+10°C temperature range meets meat display standards. Make sure your shop's food safety procedure covers rotation and temperature checks — the cabinet holds the temperature; you manage the stock cycle.

Check the Energy Label on the back of the cabinet for kWh consumption. Use our Energy Label Decoder tool: enter your electricity tariff (p/kWh) and it'll show the annual cost. Most retailers find modern closed-door multidecks break even on energy savings within 18–24 months compared to open models.

The doors self-close but aren't fitted with locks as standard. If you need to secure the cabinet overnight (to prevent unauthorised opening), that's a servicing conversation — ring 01792 732702 and we can discuss options for your shop layout.

It ships with four removable shelves and castors fitted. You'll need a 230V single-phase power socket within 2 metres. Two-year parts and labour warranty covers manufacturing defects. Our technicians are on hand if you need help with positioning, setup, or any issues during the warranty period.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Atosa Closed Display Multideck 580L YLM580B Product Data

Model YLM580B
Exterior Dimension (WxDxH) mm 1200 x 610 x 1910
Interior Dimension (WxDxH) mm 1160 x 410 x 1140
Packing Dimension (WxDxH) mm 1273 x 785 x 1994
Shelf Dimensions mm 1146 x 310
Shelf Quantity 4 Shelves plus base
Shelf Loading Capacity (Kg Pc) 30
Capacity (Litre) 580
Net Weight (Kgs) 210
Gross Weight (Kgs) 280
Voltage (V/HZ/PH) 220/50/1
Power (Watts) 780
Electrical Current (Amps) 4.5
Power Consumption (KW 24Hrs) 18
Climate Class 3
Defrost Method Off Cycle
Refrigerant Type / Amount R290hc / 145g
Cooling Method Ventilated
Inner Temperature (ºC) +2ºC to +8ºC
Insulation Polyurethane foam
Foaming Material C5H10
Castors 4 (2 braked on front)
Material External / Internal Mirror S/S Glass
Lighting LED strips under shelves
Door lock No
If you have any questions about the Atosa Closed Display Multideck 580L YLM580B then please get in touch.
