TEFCOLD TM45C Minibar

£286.00

+vat

- +

Brand:

SKU: 47856

Energy Arrow

Product summary

  • Low energy consumption
  • Compressor operated cooling system
  • Low noise operation
  • Timing function for maximum guest comfort
  • SLEEP-mode function for silence period
  • FAST-cool function for immediate cooling
  • Adjustable shelves, also in door
  • Reversible solid door
  • LED interior light
  • Integrated handle

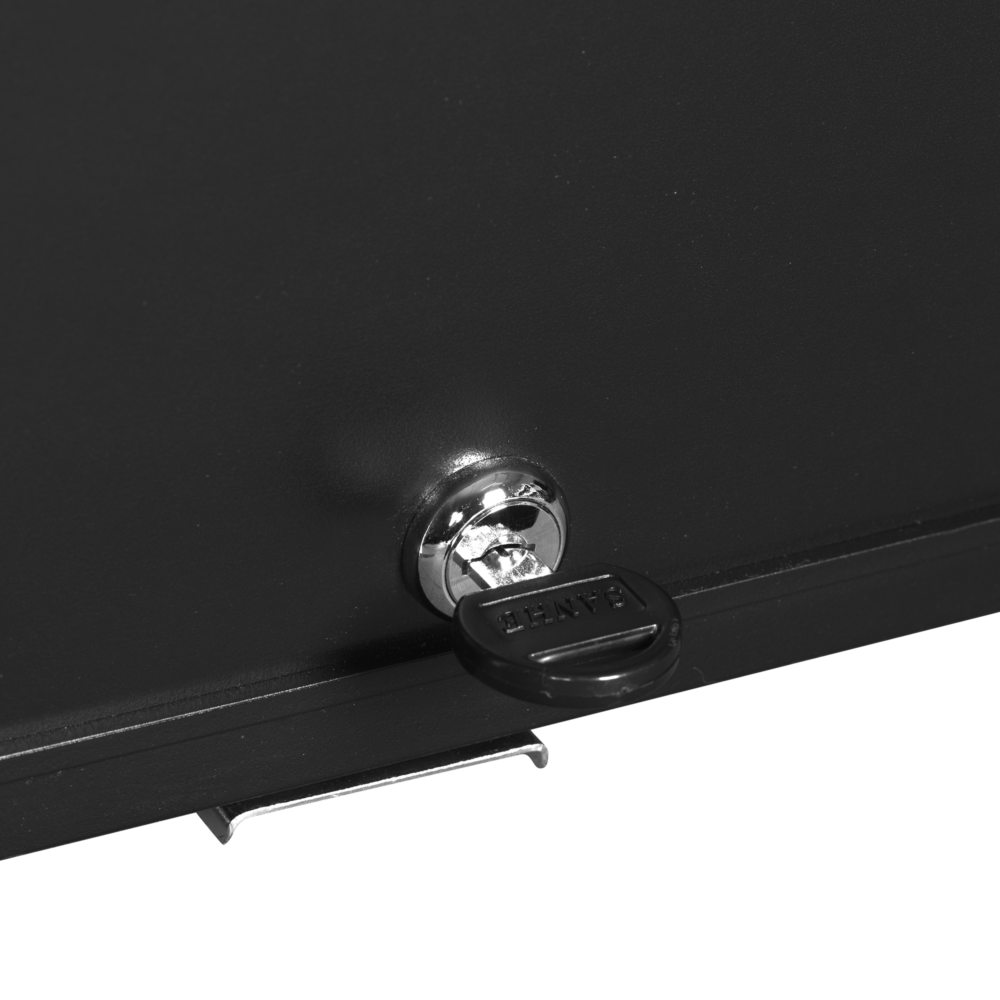

  • Lock

Product description

Minibar cooler with low energy consumption

The TM-C range of hotel minibars from TEFCOLD provides an innovative alternative to the traditional “absorption” refrigeration systems of many minibars. The TM-C model feature a compressor refrigeration system that significantly reduces consumption while providing faster cooling of produce. The units runs at a quiet 38dB and using smart programming can be set to function during periods of the day when the room is likely to be unoccupied (for example between 11am and 4pm). There is also a one press silent function that will sleep the compressor for 1 hour, and a one press function to run the refrigeration system for 5 hours when it is restocked to pull down temperature of the product inside. This range comes in a number of sizes including a drawer version. They are suitable for hotel rooms and boardrooms.

The Tefcold TM45C is a compact minibar holding +5 to +10 °C across 34 net litres behind a single hinged solid door, running at 38 dB(A) on R600a refrigeration from a standard 13A supply in a black cabinet just 402 mm wide.

SPECIFICATION 45 facts · tap for all External W × D × H402 x 500 x 565 mmWidth402 mmDepth500 mmGross / net weight21 / 20 kgGross weight21 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181727727site
Product code 47856site
Sub title Minibarcatalogue
Type Minibars & Hotel Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 500 mmsite
External (W×D×H) 402 × 500 × 565 mmcatalogue
External W × D × H 402 x 500 x 565 mmsite
Gross / net weight 21 / 20 kgsite
Gross weight 21 kgcatalogue
Height 565 mmsite
Internal (W×D×H) 310 × 300 × 455 mmcatalogue
Internal W × D × H 310 x 300 x 455 mmsite
Packed (W×D×H) 450 × 535 × 620 mmcatalogue
Packed W × D × H 450 x 535 x 620 mmsite
Width 402 mmsite

Capacity3

Doors 1catalogue
Gross volume 38 litrescatalogue
Shelves 2catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 26 gsite
Temperature range +5 to +10site
Thermometer Nosite

Power & energy6

Annual energy consumption 57 kWh/yearsite
Energy consumption 0.16 kWh/24hsite
Energy efficiency index 74 %site
Input power 65 Wsite
Noise level 38 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Blacksite
Feet / legs Adjustable Feetsite
Interior light LEDsite
Reversible doors Yessite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this minibars & hotel fridge earns its place

The Tefcold TM45C is a compact minibar built for guest rooms and other spaces where a small, discreet fridge earns its place. It has a 38-litre gross (34-litre net) capacity behind a single hinged solid door, with a black exterior and white interior that sits quietly in a room. At 402 mm wide it slots into cabinetry, a desk return or a bedside unit without dominating the space.

It holds a temperature band of +5 to +10 °C using static cooling with automatic defrost and an electronic controller, so drinks stay chilled without manual intervention. It runs on R600a refrigerant with a 26 g charge and draws just 65 W. A measured 38 dB(A) keeps it unobtrusive in a sleeping or working space, and it is rated energy class D.

The cabinet measures 402 × 500 × 565 mm (W×D×H) externally with a 310 × 300 × 455 mm interior, and ships packed at 450 × 535 × 620 mm. It connects to a standard 13A supply at 220-240V/50Hz, so no special electrics are needed. At 21 kg gross (20 kg net) it is light enough for one person to position, making room-by-room installation straightforward.

BEFORE YOU BUY

Questions, answered straight

It runs at a measured 38 dB(A), which keeps it unobtrusive in a sleeping or working space. It uses static cooling with automatic defrost, so there is no manual defrost cycle to interrupt a guest.

It holds a band of +5 to +10 °C, suited to keeping soft drinks, water and snacks chilled. That is a chilled-drinks range rather than a deep-cold storage temperature.

The cabinet is 402 × 500 × 565 mm (W×D×H) with a 310 × 300 × 455 mm interior and 34 net litres of usable space. At 402 mm wide it fits most minibar recesses and desk returns; check the packed size of 450 × 535 × 620 mm for delivery access.

A standard 13A supply at 220-240V/50Hz, so it plugs into an ordinary socket with no dedicated electrical work. It draws just 65 W in use.

R600a with a 26 g charge — a low-GWP natural refrigerant — paired with static cooling and an electronic controller.

Yes. We support and service the units we supply — call the team on 01792 732702 to discuss servicing or a fault.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 310 x 300 x 455 mm
External Dimension (WxDxH): 402 x 500 x 565 mm
Packed Dimension (WxDxH): 450 x 535 x 620 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 26 g
Thermometer: No

Power and Consumption

Energy Consumption: 0.16 kWh/24h
Temperature Range: +5 to +10 °C
Annual Energy Consumption: 57 kWh/year m³
EEI: 74 %
Input Power: 65 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 38 dB(A)

Measures and Content

Temperature Range: +5 to +10 °C
Climate Class: 4
Gross / Net Weight: 21 / 20 kg
Gross / Net Volume: 38 / 34 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: Yes
Feet / Legs: Adjustable Feet
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD TM45C Minibar then please get in touch.
