TEFCOLD TM33 Minibar

£231.00

+vat

Brand:

SKU: 53924

Energy Arrow

Product summary

  • Absorption operated cooling system

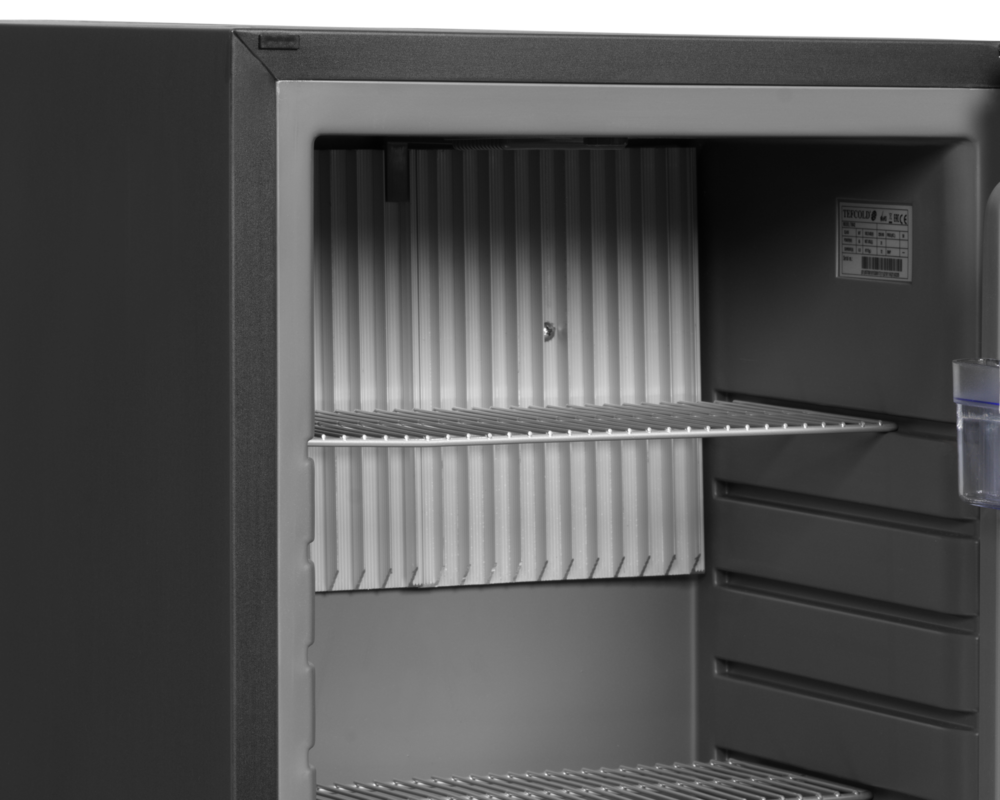

  • Flat integrated evaporator
  • Silent running refrigeration system
  • Low energy consumption
  • Reversible solid door
  • Adjustable shelves, also in door
  • LED interior light

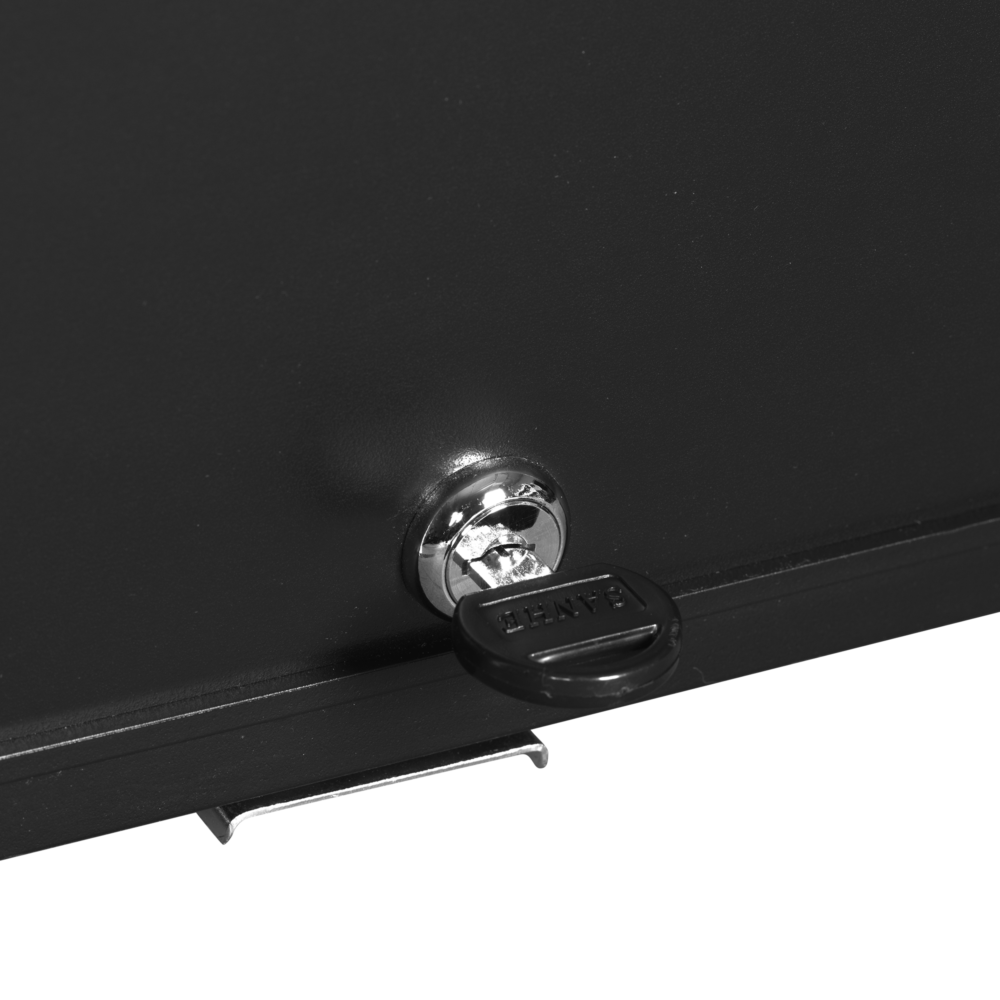

  • Lock

Product description

Solid door minibar

The TM range of minibars are very popular for hotel rooms and boardrooms. With a silent running refrigeration system, they won’t keep you awake at night (or during board meetings). Units come with internal LED lighting that comes on when the door is opened. Please note these are not suitable for shops or other areas where there is high usage. The unit can be integrated into the cabinet with optional fixing kit (POA), but ventilation holes must be provided.

The TEFCOLD TM33 is a compact 28-litre gross (26-litre net) minibar with a black exterior and a single wire shelf, holding 0 to +10 °C with automatic defrost and electronic control, drawing 50 W from a 13 amp supply for about £47 a year at 25p/kWh.

SPECIFICATION 42 facts · tap for all External W × D × H402 x 439 x 500 mmWidth402 mmDepth439 mmGross / net weight18 / 16 kgGross weight18 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181738495site
Product code 53924site
Sub title Minibarcatalogue
Type Minibars & Hotel Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 439 mmsite
External (W×D×H) 402 × 439 × 500 mmcatalogue
External W × D × H 402 x 439 x 500 mmsite
Gross / net weight 18 / 16 kgsite
Gross weight 18 kgcatalogue
Height 500 mmsite
Internal (W×D×H) 312 × 225 × 395 mmcatalogue
Internal W × D × H 312 x 225 x 395 mmsite
Packed (W×D×H) 450 × 470 × 540 mmcatalogue
Packed W × D × H 450 x 470 x 540 mmsite
Width 402 mmsite

Capacity2

Gross volume 28 litrescatalogue
Shelves 1catalogue

Performance8

Climate class Nsite
Controller Electronicsite
Cooling type Absorptionsite
Defrost type Automaticsite
Refrigerant NH3site
Refrigerant charge 70 gsite
Temperature range 0 to +10site
Thermometer Yessite

Power & energy5

Annual energy consumption 188 kWh/yearsite
Energy consumption 0.52 kWh/24hsite
Energy efficiency index 244.8 %site
Input power 50 Wsite
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Exterior finish Blacksite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 250site
Shelf dimensions 322×125site

Other stated facts1

Energy class Gcatalogue
THE WORKING VIEW

Why this minibars & hotel fridge earns its place

The TM33 is a compact minibar built for keeping bottled drinks and snacks cold where floor space is tight. It carries 28 litres of gross volume, 26 litres net, on a single black wire shelf behind a black exterior, so it merchandises a small chilled selection discreetly in a bedroom, office or waiting area without dominating the room.

Day to day it holds 0 to +10 °C — a chilled band for drinks and packaged snacks rather than frozen stock — under electronic control with automatic defrost, so there is no manual defrost routine to schedule. Input power is 50 W and the energy rating is class G at 189.8 kWh a year, which works out at about £47 a year at 25p/kWh.

Installation is straightforward: the cabinet measures 402 × 438 × 500 mm (W×D×H) and runs from a standard 220-240 V, 13 amp socket, so it drops into a room on a normal supply. The interior is lined in ABS, RAL7005, and the refrigerant charge is 70 g.

BEFORE YOU BUY

Questions, answered straight

It holds 0 to +10 °C, controlled electronically with automatic defrost. That is a chilled band for bottled drinks and packaged snacks, not a freezing cabinet.

It is rated at 189.8 kWh a year, energy class G, which is about £47 a year at 25p/kWh. Input power is 50 W.

The cabinet measures 402 × 438 × 500 mm (W×D×H), so it suits a bedroom, desk-side or counter position where floor space is limited.

A standard 220-240 V, 13 amp socket. No special supply is required.

The exterior is black, the interior is lined in ABS, RAL7005, and it carries one black wire shelf.

Yes. Our engineers service Tefcold cabinets across the UK — call 01792 732702 to arrange a service or advice on installation.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 312 x 225 x 395 mm
External Dimension (WxDxH): 402 x 439 x 500 mm
Packed Dimension (WxDxH): 450 x 470 x 540 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Absorption
Type of Defrost: Automatic
Refrigerant: NH3
Refrigerant Charge: 70 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 0.52 kWh/24h
Temperature Range: 0 to +10 °C
Annual Energy Consumption: 188 kWh/year m³
EEI: 244.8 %
Input Power: 50 W
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: 0 to +10 °C
Climate Class: N
Gross / Net Weight: 18 / 16 kg
Gross / Net Volume: 28 / 26 l

Design and Material

Door Reversible: Yes
Shelf Color: Black
Shelf Dimensions: 322×125
Max load on Shelves: 250 kg/m²
Feet / Legs: 4 adjustable feet
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
Lock: Yes
