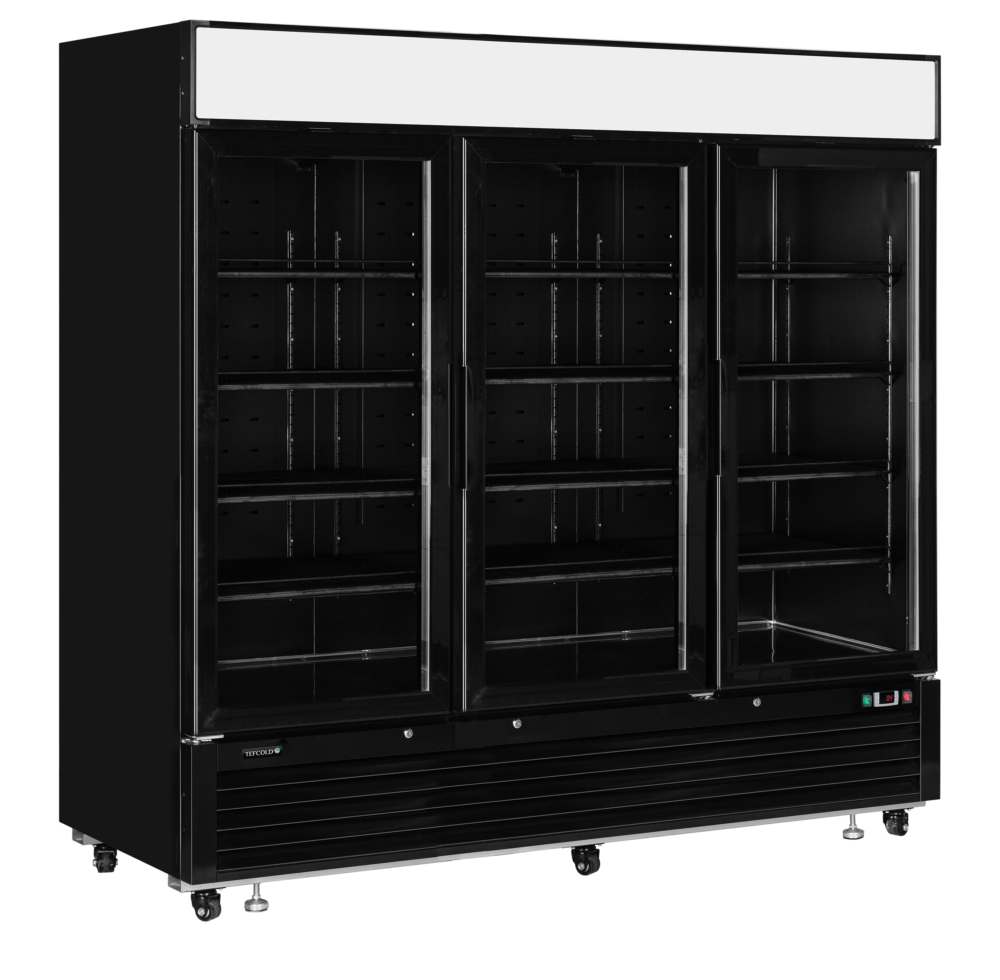

TEFCOLD LGC7500B Glass Door Merchandiser

£2,028.00

+vat

Brand:

SKU: 71041

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Automatic defrost
  • Lock
  • Adjustable shelves

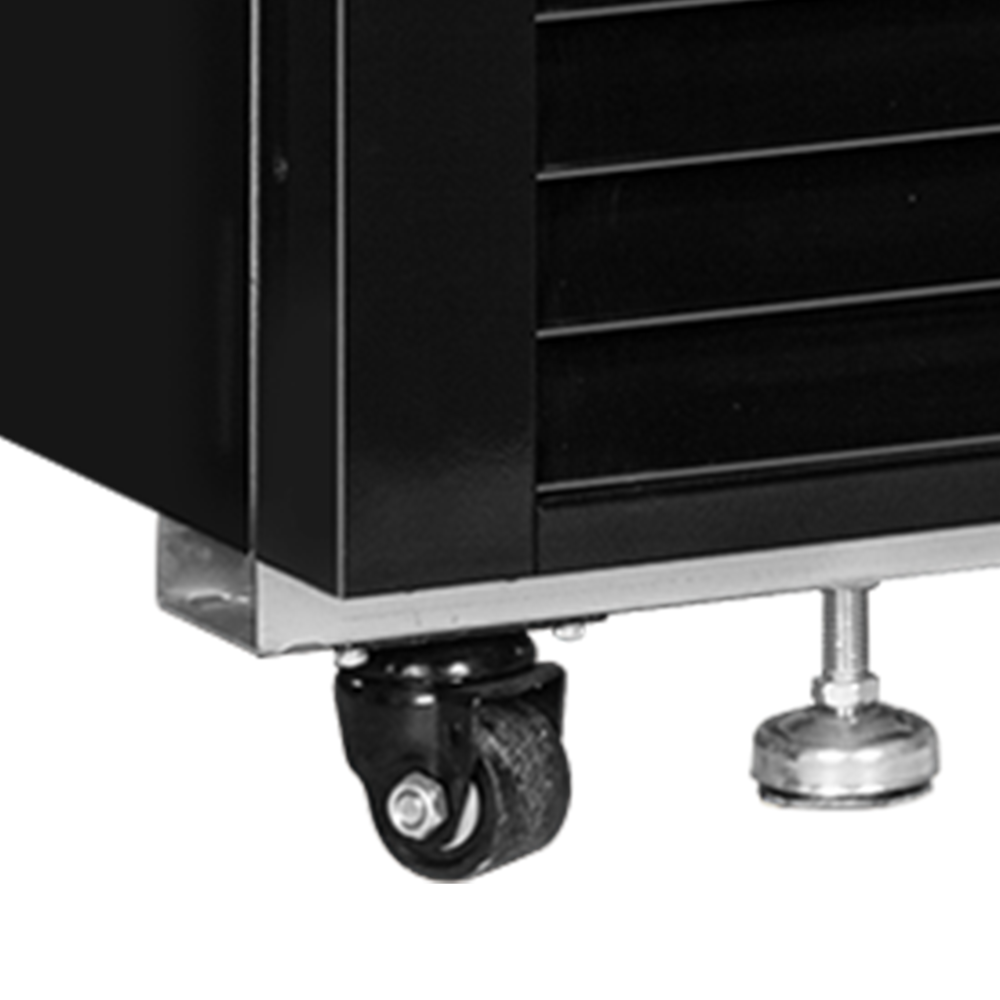

  • Castors and locking feet
  • LED interior light with switch (2 LED strips per door)
  • Digital controller and temperature display
  • LED Light canopy with switch
  • Internal stainless steel base
  • Self closing doors with stay open feature for ease of loading

Product description

Elegant display chiller with canopy

The LGC-B range of display coolers is designed for elegant and efficient display in retail settings. It comes with 1, 2, or 3 doors. It features adjustable shelves, self-closing glass doors, and two LED lights per door for optimal product presentation. It comes with an illuminated LED canopy and is ideal for branding to attract attention. Enjoy low operational costs with the energy-efficient cooling system, keeping your products perfectly chilled. Also available in a freezer version (LGF).

The Tefcold LGC7500B is a three-door glass merchandiser holding 2050 litres across 15 shelves, running at +1 to +8 °C on R290 refrigerant with a class C energy rating, automatic off-cycle defrost and a black RAL9005 finish for high-volume chilled drinks display.

SPECIFICATION 46 facts · tap for all External W × D × H2079 x 805 x 2065 mmWidth2079 mmDepth805 mmGross / net weight245 / 230 kgGross weight245 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181759063site
Product code 71041site
Sub title Glass Door Merchandisercatalogue
Type Triple Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 805 mmsite
External (W×D×H) 2079 × 805 × 2065 mmcatalogue
External W × D × H 2079 x 805 x 2065 mmsite
Gross / net weight 245 / 230 kgsite
Gross weight 245 kgcatalogue
Height 2065 mmsite
Internal (W×D×H) 1959 × 640 × 1520 mmcatalogue
Internal W × D × H 1959 x 640 x 1520 mmsite
Packed (W×D×H) 2130 × 860 × 2260 mmcatalogue
Packed W × D × H 2130 x 860 x 2260 mmsite
Width 2079 mmsite

Capacity5

330ml bottles 1550 pcssite
Display area 2.07 m²site
Doors 3catalogue
Gross volume 2050 litrescatalogue
Shelves 15catalogue

Performance8

Climate class 4site
Defrost type Automatic / Off Cyclesite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range +1 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 3870 kWh/yearsite
Energy consumption 10.6 kWh/24hsite
Energy efficiency index 30 %site
Input power 650 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Exterior finish Black RAL9005site
Interior light LEDsite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 618*622 / 690*622site

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this triple door glass door fridge earns its place

The Tefcold LGC7500B is a three-door glass merchandiser built for high-volume chilled display. Behind its three hinged glass doors it offers 2050 litres of gross volume and 2.07 m² of display area across 15 shelves, presenting drinks and grab-and-go stock face-on to the customer. The black RAL9005 exterior and black interior keep the eye on the product rather than the cabinet.

It runs at +1 to +8 °C, holding chilled stock across the whole cabinet, and uses automatic off-cycle defrost so it clears frost without a manual routine. Cooling is on R290 hydrocarbon refrigerant with a class C energy rating and an energy efficiency index of 30%; at a rated 3869 kWh a year that works out at about £967 a year at 25p/kWh. It draws 650 W, runs at 60 dB, and is rated climate class 4 to hold temperature in warm, busy rooms.

Inside, the usable space measures 1959 × 640 × 1520 mm (W×D×H), so plan shelf layout around a wide, deep cabinet. It is a substantial unit at 245 kg, so factor in delivery access and a solid floor at the install position. Cooling uses a 150 g charge of R290 refrigerant.

BEFORE YOU BUY

Questions, answered straight

It is rated at 3869 kWh a year with a class C energy rating, which is about £967 a year at 25p/kWh. Actual cost depends on your tariff, ambient temperature and how often the doors are opened.

It runs at +1 to +8 °C across the cabinet, suited to chilled drinks and grab-and-go stock. It is rated climate class 4, so it holds temperature in warm, busy rooms.

It offers 2050 litres of gross volume and 2.07 m² of display area across 15 shelves behind three hinged glass doors, giving a large chilled range plenty of face-on display.

It is a large three-door cabinet weighing 245 kg, so measure your access route and delivery path before ordering. The internal usable space is 1959 × 640 × 1520 mm, and our team can talk through access if you are unsure.

It runs on R290, a hydrocarbon refrigerant, with a 150 g charge. Cooling is paired with automatic off-cycle defrost so the cabinet clears frost without a manual routine.

Yes. Our team can advise on installation, servicing and spares. Call 01792 732702 to discuss your requirements.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1959 x 640 x 1520 mm
External Dimension (WxDxH): 2079 x 805 x 2065 mm
Packed Dimension (WxDxH): 2130 x 860 x 2260 mm

Cooling and Functions

Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 10.6 kWh/24h
Temperature Range: +1 to +8 °C
Annual Energy Consumption: 3870 kWh/year m³
EEI: 30 %
Input Power: 650 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Bottles 330 ml: 1550 pcs pcs
Temperature Range: +1 to +8 °C
Climate Class: 4
Gross / Net Weight: 245 / 230 kg
Gross / Net Volume: 2050 / 1436 l
Max Ambient: +30°C, 55% RH
Total Display Area: 2.07 m² m²

Design and Material

Door Reversible: No
Shelf Dimensions: 618*622 / 690*622
Max load on Shelves: 196 kg/m²
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD LGC7500B Glass Door Merchandiser then please get in touch.
