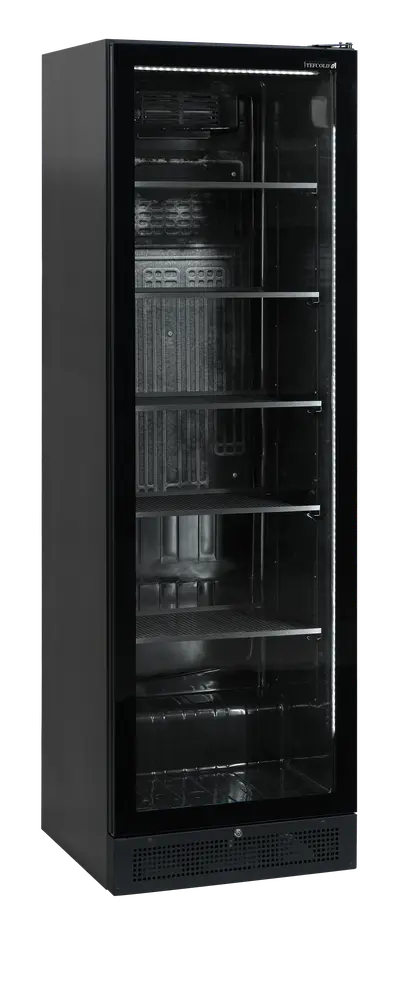

TEFCOLD SCU1425 FRAMELESS Glass Door Merchandiser

£634.00

+vat

- +

Brand:

SKU: 17045

Energy Arrow

Product summary

  • Taller than standard for greater display area
  • Fully automatic
  • Fan assisted cooling
  • Lock
  • Adjustable shelves
  • Adjustable feet
  • Frameless glass door
  • Internal vertical & horizontal LED light
  • Replaceable door gasket
  • Thermometer

Product description

The SCU1425 is a display refrigeration unit that offers high-quality at an affordable price. Being taller than a standard glass door fridge this provides extra storage inside, and well designed interior lighting (3 Led light strips) illuminates the product from the front. The black finish puts emphasis on the product and the “frameless” glass door creates a seamless finish. Fan assisted cooling ensures even cooling throughout the cabinet and a faster pull-down time when re-stocked. This display cooler is designed to maximise display space, make your product stand out and draw attention to what’s inside.

SPECIFICATION 48 facts · tap for all External W × D × H595 x 595 x 1990 mmWidth595 mmGross / net weight97 / 86 kgGross weight97 kgVoltage / frequency220-240/50 V/HzInput power235 W

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181020743site
Product code 17045site
Sub title Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

External (W×D×H) 595 × 595 × 1990 mmcatalogue
External W × D × H 595 x 595 x 1990 mmsite
Gross / net weight 97 / 86 kgsite
Gross weight 97 kgcatalogue
Height 1990 mmsite
Internal (W×D×H) 505 × 462 × 1742 mmcatalogue
Internal W × D × H 505 x 462 x 1742 mmsite
Packed (W×D×H) 665 × 715 × 2150 mmcatalogue
Packed W × D × H 665 x 715 x 2150 mmsite
Width 595 mmsite

Capacity4

330ml bottles 264 pcssite
Doors 1catalogue
Gross volume 387 litrescatalogue
Shelves 5catalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Fan assistedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 85 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 683 kWh/yearsite
Energy consumption 1.87 kWh/24hsite
Energy efficiency index 38.9 %site
Input power 235 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Castors 2 rollerssite
Exterior finish Blacksite
Feet / legs 2 adjustable feetsite
Interior light LED inside door framesite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 477 x 365 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

The SCU1425 is a single-door glass merchandiser built to put chilled stock on show. Behind its frameless hinged glass door sit five black sheet-metal shelves and 347 litres of net capacity (387 litres gross), giving you the vertical face to merchandise drinks, grab-and-go food or packaged chilled lines at eye level. The black exterior and black ABS interior keep the focus on the product rather than the cabinet.

It holds a chilled band of +2 to +10 °C and runs automatic defrost, so there is no manual routine to schedule. A mechanical controller keeps the setpoint. Rated at 45 dB it is quiet enough for customer-facing positions, and it carries climate class 4, meaning it is built to keep working in the warmer ambient conditions of a busy shop floor. Energy class D at 682.6 kWh a year works out at about £171 a year at 25p/kWh.

The cabinet measures 595 × 595 × 1990 mm externally, so it sits on a standard 600 mm footprint and clears most doorways once unpacked; in its packing it ships at 665 × 715 × 2150 mm, worth checking against your access route. It runs from a standard 13-amp supply drawing 235 W at 220–240 V, using R600a refrigerant with an 85 g charge. Net weight is 86 kg (97 kg gross), a two-person lift into position.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 595 mm wide and 595 mm deep, so it clears a standard doorway once unpacked. In its packing it measures 665 × 715 × 2150 mm, so check your access route and remove the packaging before the final approach if space is tight.

It runs a chilled band of +2 to +10 °C, suited to packaged drinks, grab-and-go food and other pre-packed chilled lines. It is not a freezer and should not be used to store frozen stock.

It is rated energy class D at 682.6 kWh a year, which is about £171 a year at 25p/kWh. Actual cost depends on your tariff, ambient temperature and how often the door is opened.

No. It runs from a standard 13-amp socket, drawing 235 W at 220–240 V. No dedicated circuit is required.

It comes with five black sheet-metal shelves and offers 347 litres net capacity (387 litres gross) behind a single frameless hinged glass door.

Craven Cooling services the refrigeration it supplies; call 01792 732702 to arrange a service visit or discuss a fault. Automatic defrost and a sealed R600a system with an 85 g charge mean routine upkeep is minimal.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 505 x 462 x 1742 mm
External Dimension (WxDxH): 595 x 595 x 1990 mm
Packed Dimension (WxDxH): 665 x 715 x 2150 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Fan assisted
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.87 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 683 kWh/year m³
EEI: 38.9 %
Input Power: 235 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Bottles 330 ml: 264 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 97 / 86 kg
Gross / Net Volume: 387 / 347 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: No
Shelf Color: Black
Shelf Dimensions: 477 x 365 mm
Max load on Shelves: 196 kg/m²
Feet / Legs: 2 adjustable feet
Castors: 2 rollers
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED inside door frame
Lock: Yes
If you have any questions about the TEFCOLD SCU1425 FRAMELESS Glass Door Merchandiser then please get in touch.
