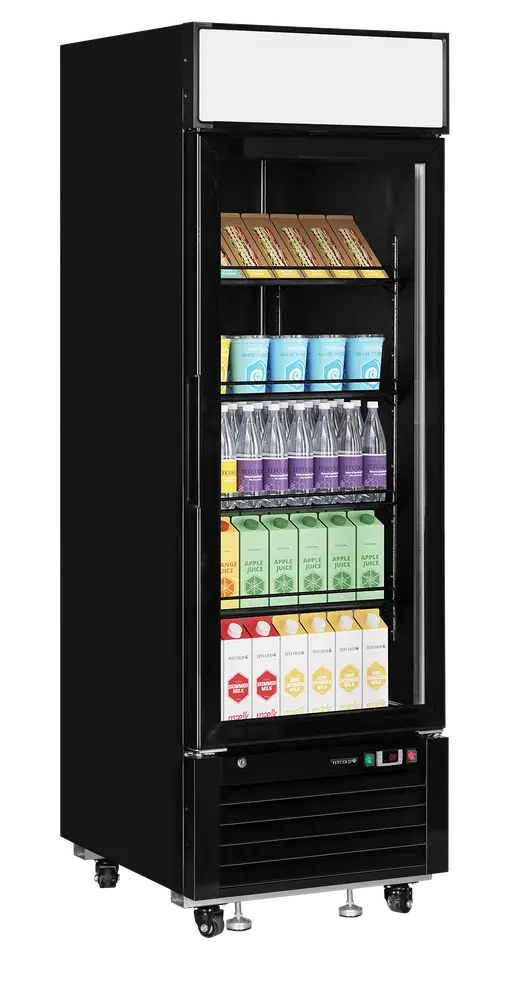

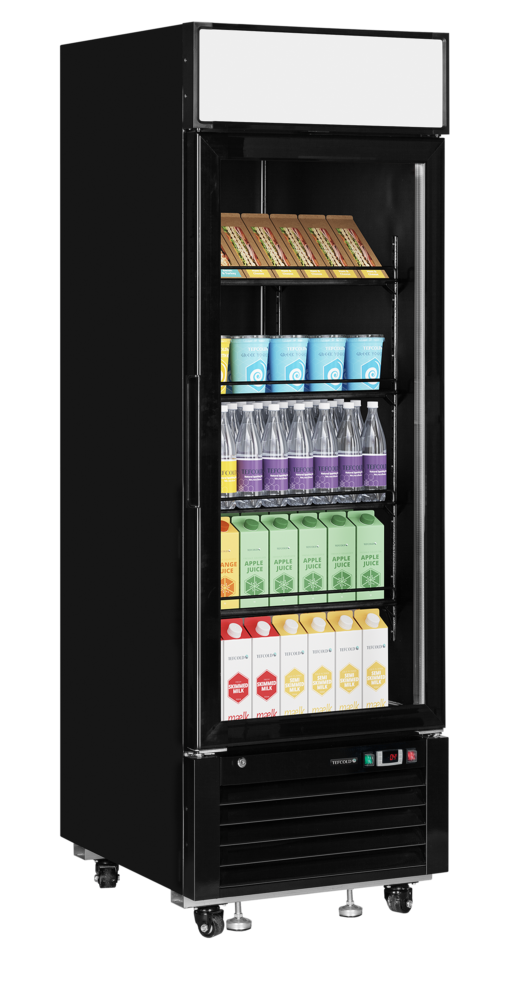

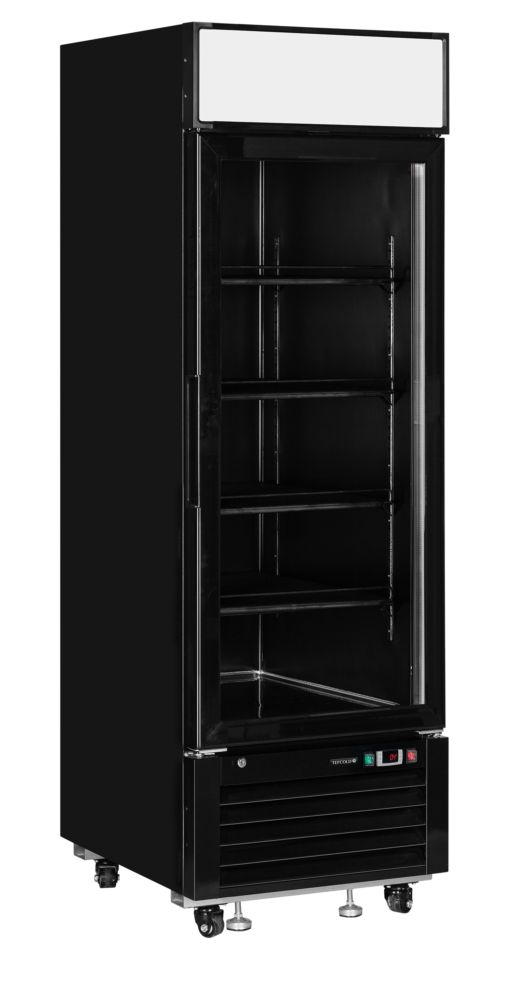

TEFCOLD LGC2500B Glass Door Merchandiser

£1,052.00

+vat

- +

Brand:

SKU: 71040

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Automatic defrost
  • Lock
  • Adjustable shelves

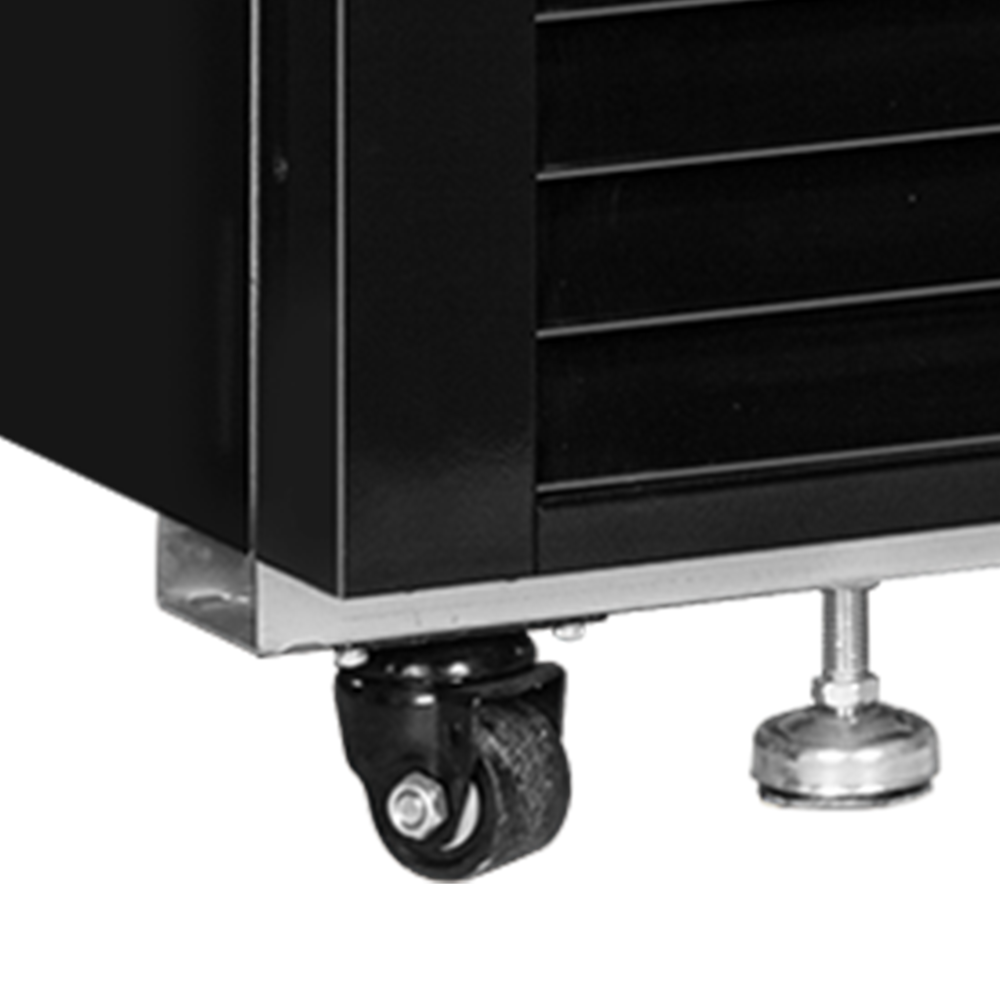

  • Castors and locking feet
  • LED interior light with switch (2 LED strips per door)
  • Digital controller and temperature display

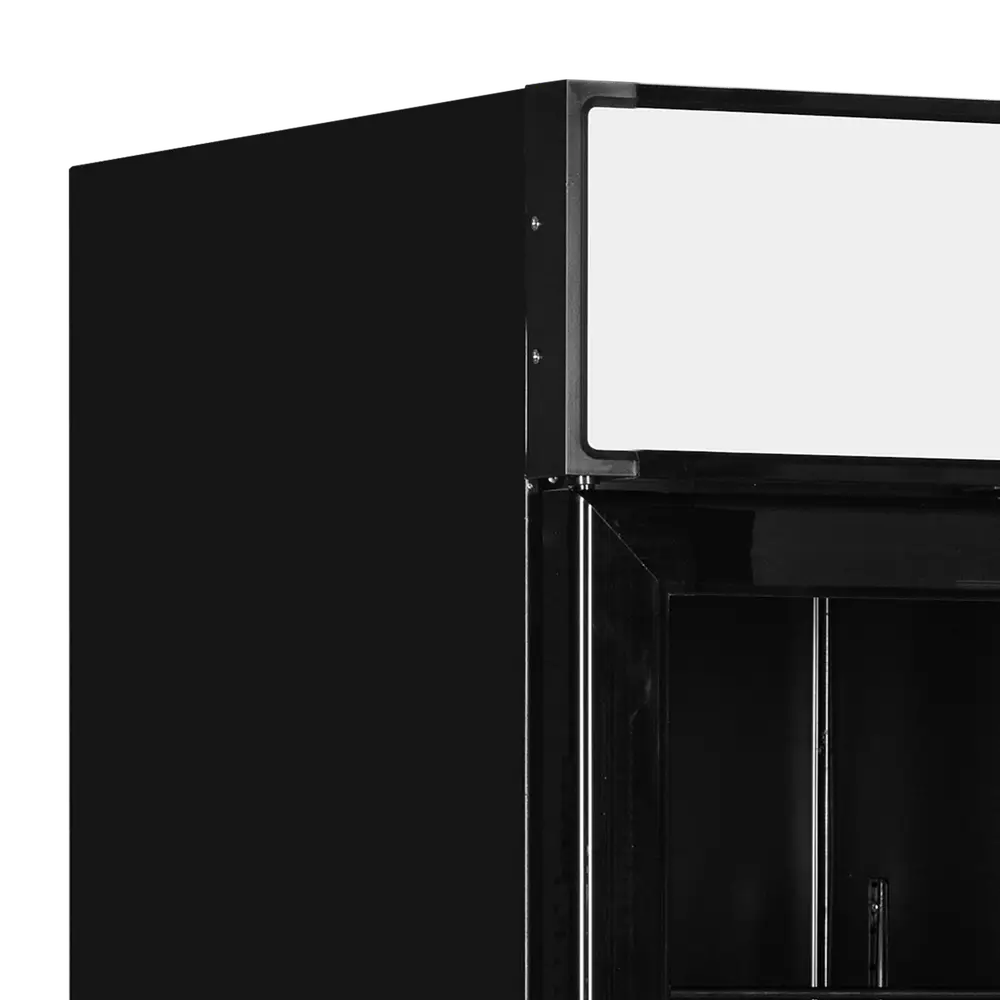

  • LED Light canopy with switch
  • Internal stainless steel base
  • Self closing doors with stay open feature for ease of loading

Product description

Elegant display chiller with canopy

The LGC-B range of display coolers is designed for elegant and efficient display in retail settings. It comes with 1, 2, or 3 doors. It features adjustable shelves, self-closing glass doors, and two LED lights per door for optimal product presentation. It comes with an illuminated LED canopy and is ideal for branding to attract attention. Enjoy low operational costs with the energy-efficient cooling system, keeping your products perfectly chilled. Also available in a freezer version (LGF).

SPECIFICATION 46 facts · tap for all External W × D × H685 x 805 x 2065 mmWidth685 mmDepth805 mmGross / net weight135 / 115 kgGross weight135 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181759056site
Product code 71040site
Sub title Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 805 mmsite
External (W×D×H) 685 × 805 × 2065 mmcatalogue
External W × D × H 685 x 805 x 2065 mmsite
Gross / net weight 135 / 115 kgsite
Gross weight 135 kgcatalogue
Height 2065 mmsite
Internal (W×D×H) 565 × 640 × 1520 mmcatalogue
Internal W × D × H 565 x 640 x 1520 mmsite
Packed (W×D×H) 745 × 860 × 2260 mmcatalogue
Packed W × D × H 745 x 860 x 2260 mmsite
Width 685 mmsite

Capacity5

330ml bottles 450 pcssite
Display area 0.69 m²site
Doors 1catalogue
Gross volume 496 litrescatalogue
Shelves 5catalogue

Performance8

Climate class 4site
Defrost type Automatic / Off Cyclesite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 110 gsite
Temperature range +1 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 1349 kWh/yearsite
Energy consumption 3.7 kWh/24hsite
Energy efficiency index 19 %site
Input power 280 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Exterior finish Black RAL9005site
Interior light LEDsite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 545*622site

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

The LGC2500B is a single glass-door merchandiser for chilled grab-and-go — bottled drinks, sandwiches, desserts and packaged chilled lines held on show behind a hinged glass door. Gross volume is 496 litres over 5 shelves, with 0.69 m² of display area facing the customer. The black RAL9005 exterior and black interior give a clean retail backdrop for the stock.

It runs at +1 to +8 °C, the standard band for packaged chilled retail, with automatic off-cycle defrost so it clears itself without manual intervention. The cabinet carries climate class 4, built to hold its temperature in warmer ambient shop-floor conditions, and runs at 58 dB. Energy class is B and it is rated at 1350.5 kWh a year — about £338 a year at 25p/kWh.

Internally the cabinet measures 565 × 640 × 1520 mm (W×D×H) with 5 shelves for laying out stock. It uses R600a refrigerant with a 110 g charge and draws 280 W in use. At 135 kg gross it is a two-person lift into position, so plan the delivery route and final siting before it arrives.

BEFORE YOU BUY

Questions, answered straight

Gross volume is 496 litres across 5 shelves, with 0.69 m² of display area facing the customer. Internal dimensions are 565 × 640 × 1520 mm (W×D×H).

It holds +1 to +8 °C, the standard band for packaged chilled retail such as drinks, sandwiches and desserts.

It is energy class B, rated at 1350.5 kWh a year — about £338 a year at 25p/kWh. It draws 280 W in use.

No. Defrost is automatic on the off cycle, so the cabinet clears itself without manual intervention. The refrigerant is R600a with a 110 g charge.

It carries climate class 4, so it is built to hold its temperature in warmer ambient shop-floor conditions. Running noise is 58 dB.

Yes, our team handles servicing and breakdowns on Tefcold cabinets. Call 01792 732702 to arrange a visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 565 x 640 x 1520 mm
External Dimension (WxDxH): 685 x 805 x 2065 mm
Packed Dimension (WxDxH): 745 x 860 x 2260 mm

Cooling and Functions

Type of Defrost: Automatic / Off Cycle
Refrigerant: R600a
Refrigerant Charge: 110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.7 kWh/24h
Temperature Range: +1 to +8 °C
Annual Energy Consumption: 1349 kWh/year m³
EEI: 19 %
Input Power: 280 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Bottles 330 ml: 450 pcs pcs
Temperature Range: +1 to +8 °C
Climate Class: 4
Gross / Net Weight: 135 / 115 kg
Gross / Net Volume: 496 / 405 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.69 m² m²

Design and Material

Door Reversible: No
Shelf Dimensions: 545*622
Max load on Shelves: 196 kg/m²
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD LGC2500B Glass Door Merchandiser then please get in touch.
