TEFCOLD LGC2500 Glass Door Merchandiser

£1,626.00 £1,068.00

+vat

Brand:

SKU: 20354

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Automatic defrost
  • Lock
  • Adjustable shelves

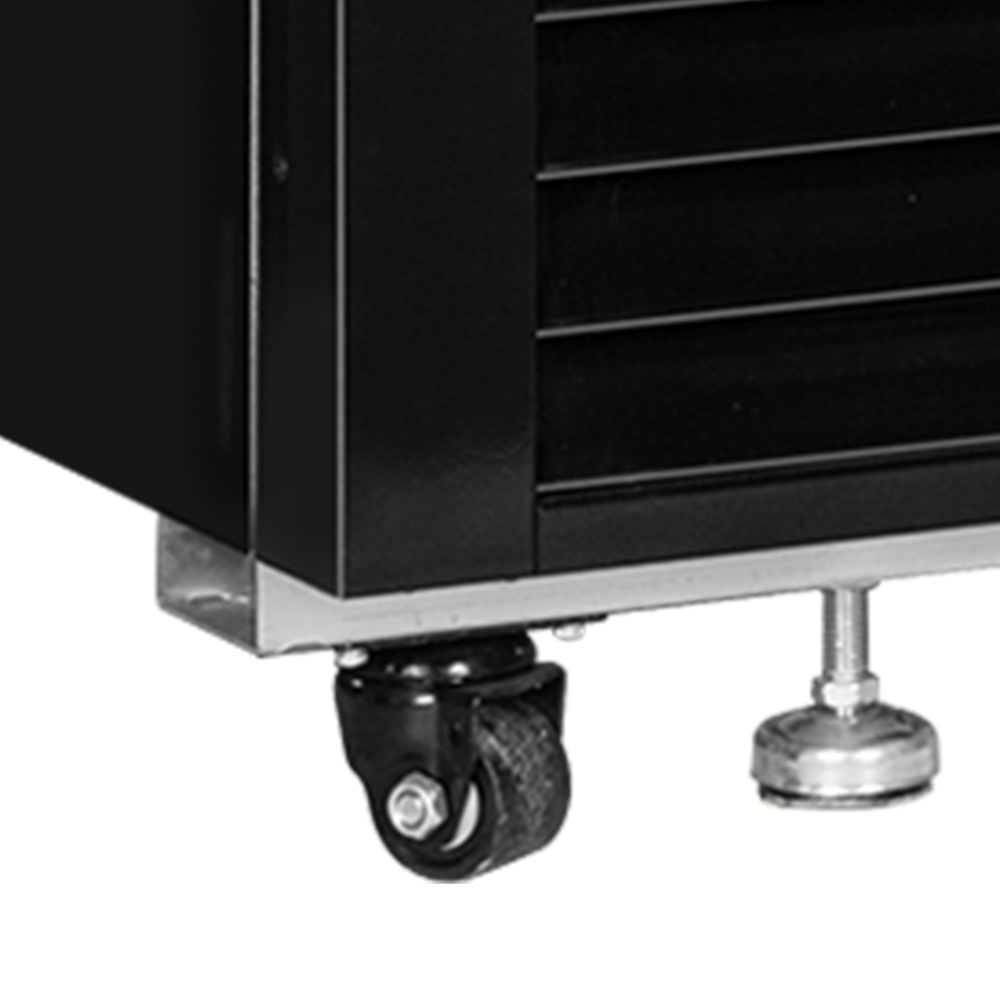

  • Castors and locking feet
  • LED interior light with switch (2 LED strips per door)

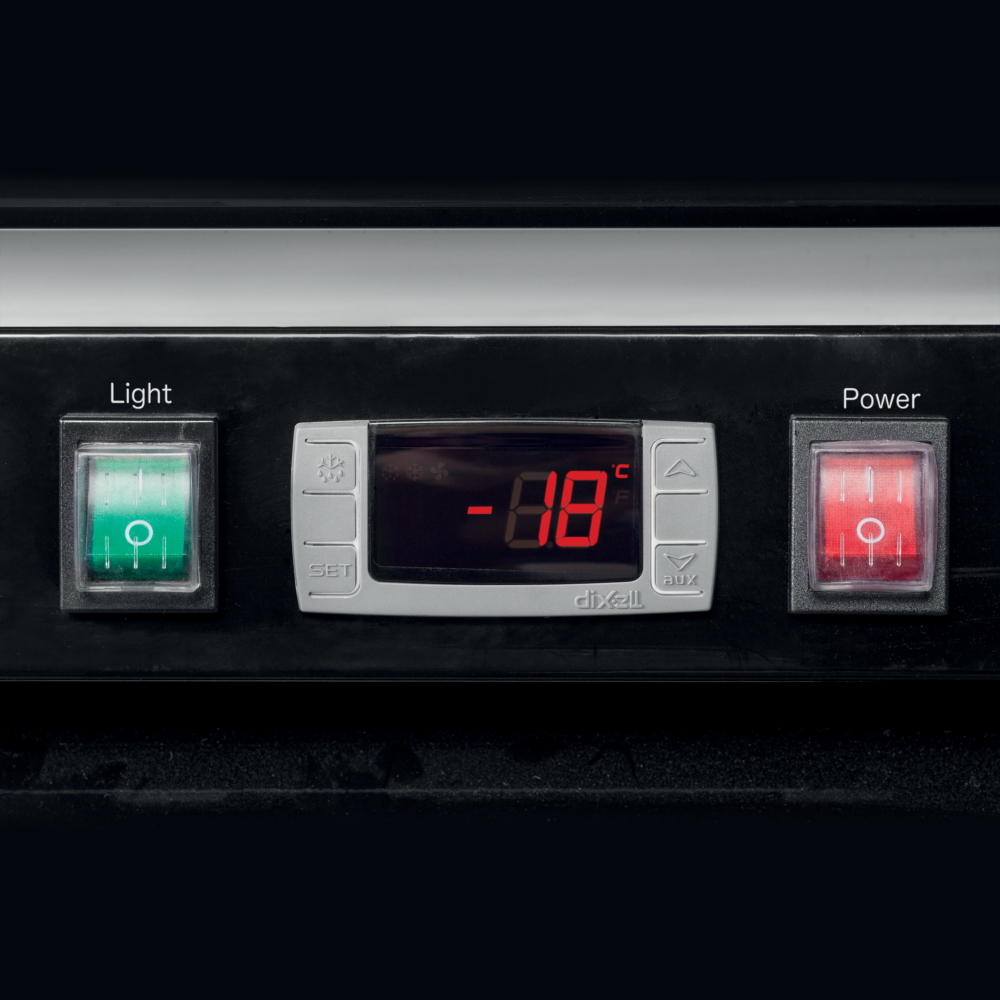

  • Digital controller and temperature display
  • LED Light canopy with switch
  • Internal stainless steel base
  • Self closing doors with stay open feature for ease of loading

Product description

The Tefcold LGC series offers single, double, and triple door glass chillers that match with freezers in the LGF range. These sturdy cabinets are equipped with useful features, including two vertical LED lights per door, a stainless steel base for easy cleaning, and an energy-efficient refrigeration system. The LED canopy allows for branding, and the castors provide easy mobility, while the locking feet ensure stability. The Tefcold LGC range is an affordable, versatile, and high-quality solution.

The TEFCOLD LGC2500 is a single-door glass merchandiser holding +1 to +8 °C across 5 shelves with 405 litres net capacity, running on R600a refrigerant in a 685 mm-wide white cabinet, rated energy class B at 1350.5 kWh a year (about £338 a year at 25p/kWh).

Sale!
SPECIFICATION 46 facts · tap for all External W × D × H685 x 805 x 2065 mmWidth685 mmDepth805 mmGross / net weight135 / 115 kgGross weight135 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991241site
Product code 20354site
Sub title Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 805 mmsite
External (W×D×H) 685 × 805 × 2065 mmcatalogue
External W × D × H 685 x 805 x 2065 mmsite
Gross / net weight 135 / 115 kgsite
Gross weight 135 kgcatalogue
Height 2065 mmsite
Internal (W×D×H) 565 × 640 × 1520 mmcatalogue
Internal W × D × H 565 x 640 x 1520 mmsite
Packed (W×D×H) 745 × 860 × 2260 mmcatalogue
Packed W × D × H 745 x 860 x 2260 mmsite
Width 685 mmsite

Capacity5

330ml bottles 450 pcssite
Display area 0.69 m²site
Doors 1catalogue
Gross volume 496 litrescatalogue
Shelves 5catalogue

Performance8

Climate class 4site
Defrost type Automatic / Off Cyclesite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 110 gsite
Temperature range +1 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 1349 kWh/yearsite
Energy consumption 3.7 kWh/24hsite
Energy efficiency index 19 %site
Input power 280 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Exterior finish Whitesite
Interior light LEDsite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 545*622site

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

The TEFCOLD LGC2500 is a compact single-door glass merchandiser built to put chilled stock in front of the customer. Its single hinged glass door and 5 shelves give a 0.69 m² display face, with 496 litres gross and 405 litres net behind the glass, all in a white finish inside and out. The upright footprint suits grab-and-go drinks and pre-packed impulse lines in smaller retail spaces.

Day to day it runs at +1 to +8 °C on R600a refrigerant with automatic off-cycle defrost, so there is no manual defrost routine to schedule. It carries a climate class 4 rating and an energy class B, drawing 1350.5 kWh a year — about £338 a year at 25p/kWh. Sound output is rated at 58 dB.

The cabinet measures 685 × 805 × 2065 mm externally and ships packed at 745 × 860 × 2260 mm, so check delivery access against the packed height. At 685 mm wide it clears most standard doorways. It weighs 115 kg net (135 kg gross), runs on a standard 13 A supply at 220-240 V/50 Hz drawing 280 W, and holds a 110 g charge of R600a.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 685 mm wide externally, so it clears most standard 762 mm doorways. It ships packed at 745 × 860 × 2260 mm, so check the packed height against your delivery route and any low thresholds.

It runs at +1 to +8 °C, which suits chilled drinks and pre-packed grab-and-go lines. It is rated to climate class 4 and uses R600a refrigerant with automatic off-cycle defrost.

It is rated energy class B and draws 1350.5 kWh a year, which is about £338 a year at 25p/kWh. Actual cost depends on your tariff and siting.

A standard 13 A socket at 220-240 V/50 Hz. Input power is 280 W, so it plugs into a normal socket without a dedicated circuit.

Gross volume is 496 litres and net 405 litres across 5 shelves, giving a 0.69 m² display area behind a single hinged glass door.

Sound output is rated at 58 dB. For servicing or spares, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 565 x 640 x 1520 mm
External Dimension (WxDxH): 685 x 805 x 2065 mm
Packed Dimension (WxDxH): 745 x 860 x 2260 mm

Cooling and Functions

Type of Defrost: Automatic / Off Cycle
Refrigerant: R600a
Refrigerant Charge: 110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.7 kWh/24h
Temperature Range: +1 to +8 °C
Annual Energy Consumption: 1349 kWh/year m³
EEI: 19 %
Input Power: 280 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Bottles 330 ml: 450 pcs pcs
Temperature Range: +1 to +8 °C
Climate Class: 4
Gross / Net Weight: 135 / 115 kg
Gross / Net Volume: 496 / 405 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.69 m² m²

Design and Material

Door Reversible: No
Shelf Dimensions: 545*622
Max load on Shelves: 196 kg/m²
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD LGC2500 Glass Door Merchandiser then please get in touch.
