TEFCOLD FSC175H BLACK Slimline Glass Door Merchandiser

£587.00

+vat

- +

Brand:

SKU: 34077

Energy Arrow

Product summary

  • Black interior and exterior
  • LED illuminated canopy
  • Self-closing hinged glass door
  • LED light in door frame
  • Adjustable shelves
  • Fan assisted cooling
  • Internal stainless steel base
  • Digital temperature display
  • Fully automatic

Product description

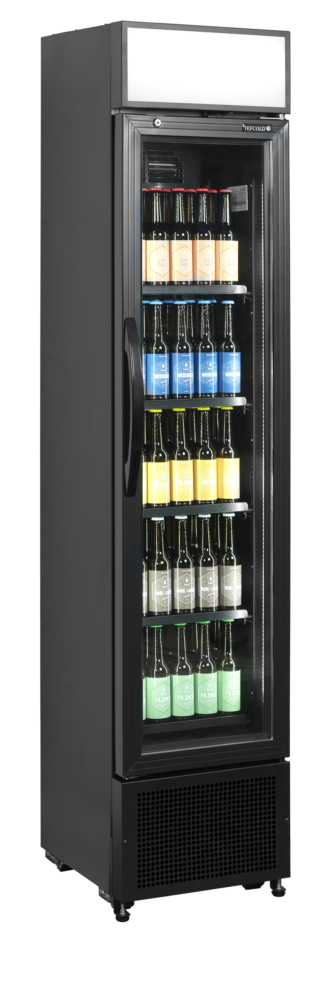

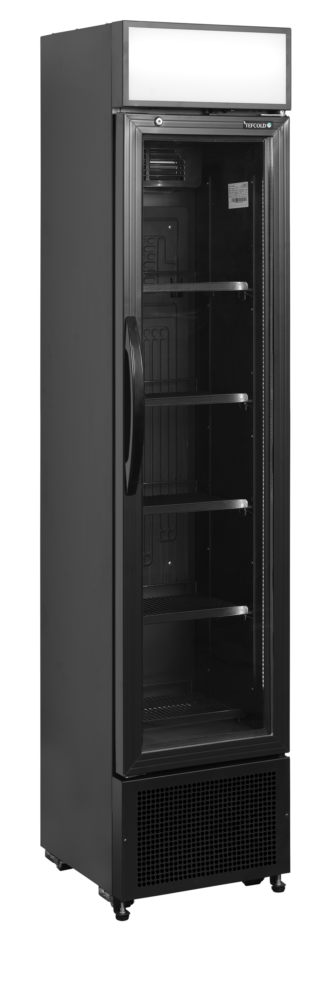

The slim FSC175H Black is only 435mm wide makes an ideal glass door merchandiser where space is restricted but you want to maximise your sales. The unit comes with 5 adjustable shelves, two bright full length vertical LED lights down each side of the door frame that perfectly illuminate the product inside and an LED light canopy. The black exterior finish looks great especially in high end cafes, delis and patisseries and the black interior makes the product for sale stand out. The unit is ideal to be branded and is popular with drinks companies.

SPECIFICATION 52 facts · tap for all External W × D × H435 x 460 x 2013 mmWidth435 mmDepth460 mmGross / net weight76 / 64 kgGross weight76 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181994853site
Product code 34077site
Sub title Slimline Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 460 mmsite
External (W×D×H) 435 × 460 × 2013 mmcatalogue
External W × D × H 435 x 460 x 2013 mmsite
Gross / net weight 76 / 64 kgsite
Gross weight 76 kgcatalogue
Height 2013 mmsite
Internal (W×D×H) 357 × 362 × 1410 mmcatalogue
Internal W × D × H 357 x 362 x 1410 mmsite
Packed (W×D×H) 470 × 535 × 2045 mmcatalogue
Packed W × D × H 470 x 535 x 2045 mmsite
Width 435 mmsite

Capacity6

330ml bottles 100 pcssite
330ml cans 180 pcssite
500ml cans 120 pcssite
Doors 1catalogue
Gross volume 190 litrescatalogue
Shelves 5catalogue

Performance10

Climate class CC2site
Controller Mechanicalsite
Cooling type Fan assistedsite
Defrost type Automaticsite
Max ambient 322 °Ccatalogue
Maximum ambient +32,2°C, 65% RHsite
Refrigerant R600asite
Refrigerant charge 40 gsite
Temperature range 0 to +7site
Thermometer Yessite

Power & energy6

Annual energy consumption 967 kWh/yearsite
Energy consumption 2.65 kWh/24hsite
Energy efficiency index 78 %site
Input power 140 Wsite
Noise level 56 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings8

Canopy L-Shapesite
Castors 2 rollerssite
Exterior finish Blacksite
Feet / legs 2 adjustable feetsite
Interior light LEDsite
Max load per shelf 171site
Reversible doors Nosite
Shelf dimensions 342 x 266site

Other stated facts1

Energy class Fcatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

The FSC175H BLACK is a slimline upright glass-door merchandiser for chilled drinks, snacks and grab-and-go lines where floor space is tight. At only 435 mm wide, it is made for narrow shop, café and deli positions, but the tall 2013 mm cabinet still gives 190 litres of gross volume and five adjustable shelves for a useful display range.

The all-black exterior and black interior are deliberately retail-facing, helping the product stand out behind the glass door rather than making the cabinet the focus. TEFCOLD pairs that finish with two bright full-length vertical LED lights down the door frame and an LED canopy, so the display remains visible from the aisle or service counter.

For refrigeration, the FSC175H BLACK is specified for +0 to +7 °C, with automatic defrost, a mechanical controller, thermometer and R600a refrigerant with a 40 g charge. Electrical details are 220-240V/50Hz with 140W rated input, and the energy label is class F at 2.65 kWh per 24 hours and 967 kWh per year.

BEFORE YOU BUY

Questions, answered straight

Gross volume is 190 litres, with five adjustable shelves inside a cabinet that is only 435 mm wide. Internal dimensions are 357 × 362 × 1410 mm.

The energy label is class F, with stated consumption of 2.65 kWh per 24 hours and 967 kWh per year. Use those figures with your own tariff to estimate running cost.

The specification lists a 220-240V/50Hz supply and 140W rated input. The cabinet uses R600a refrigerant with a 40 g charge.

Yes, defrost is automatic, so there is no manual routine to run. A mechanical controller keeps day-to-day operation simple to set.

The stated range is +0 to +7 °C. Check that range against the chilled drinks or food you intend to merchandise.

The exterior and interior are both black. TEFCOLD also specifies two full-length vertical LED lights down the door frame plus an LED canopy.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 357 x 362 x 1410 mm
External Dimension (WxDxH): 435 x 460 x 2013 mm
Packed Dimension (WxDxH): 470 x 535 x 2045 mm

Cooling and Functions

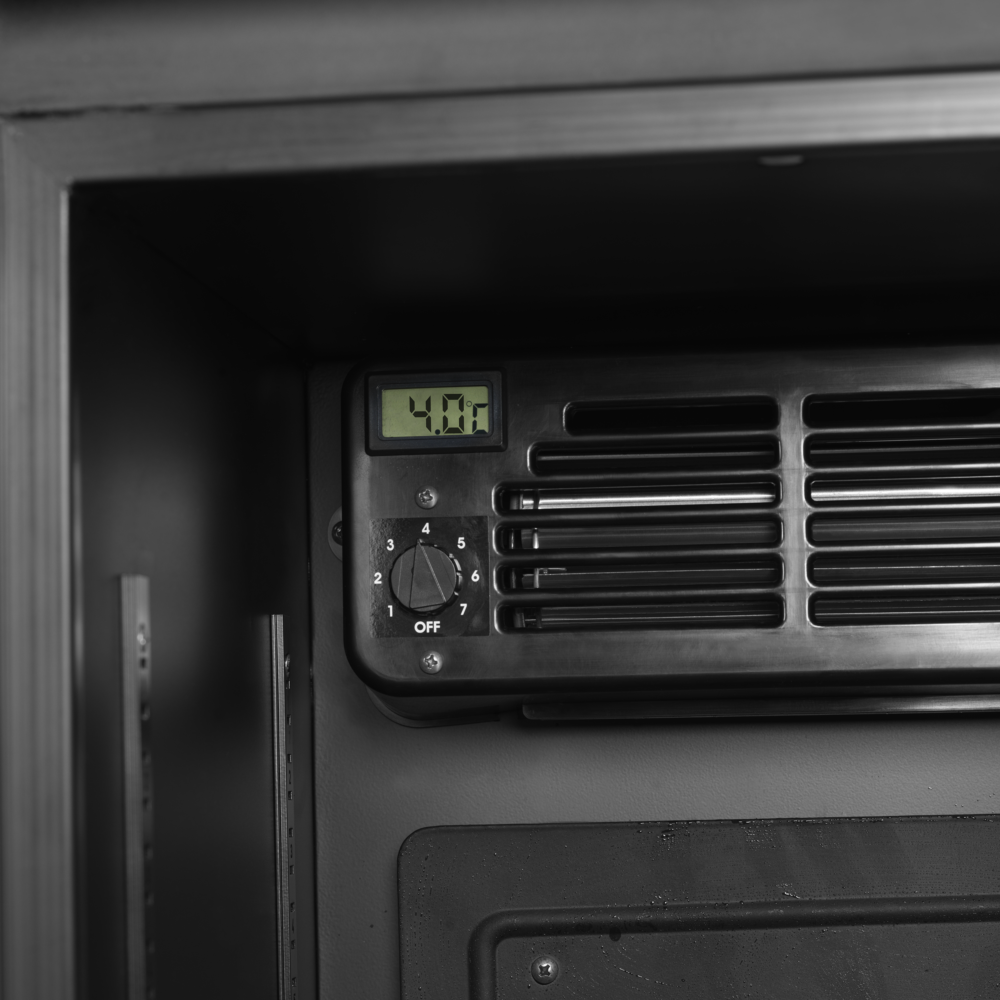

Type of Controller: Mechanical
Type of Cooling: Fan assisted
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 40 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.65 kWh/24h
Temperature Range: 0 to +7 °C
Annual Energy Consumption: 967 kWh/year m³
EEI: 78 %
Input Power: 140 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 56 dB(A)

Measures and Content

Cans 330 ml: 180 pcs pcs
Cans 500 ml: 120 pcs pcs
Bottles 330 ml: 100 pcs pcs
Temperature Range: 0 to +7 °C
Climate Class: CC2
Gross / Net Weight: 76 / 64 kg
Gross / Net Volume: 190 / 116 l
Max Ambient: +32,2°C, 65% RH

Design and Material

Door Reversible: No
Shelf Color: Black
Shelf Dimensions: 342 x 266
Max load on Shelves: 171 kg/m²
Canopy Type: L-Shape
Feet / Legs: 2 adjustable feet
Castors: 2 rollers
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD FSC175H BLACK Slimline Glass Door Merchandiser then please get in touch.
