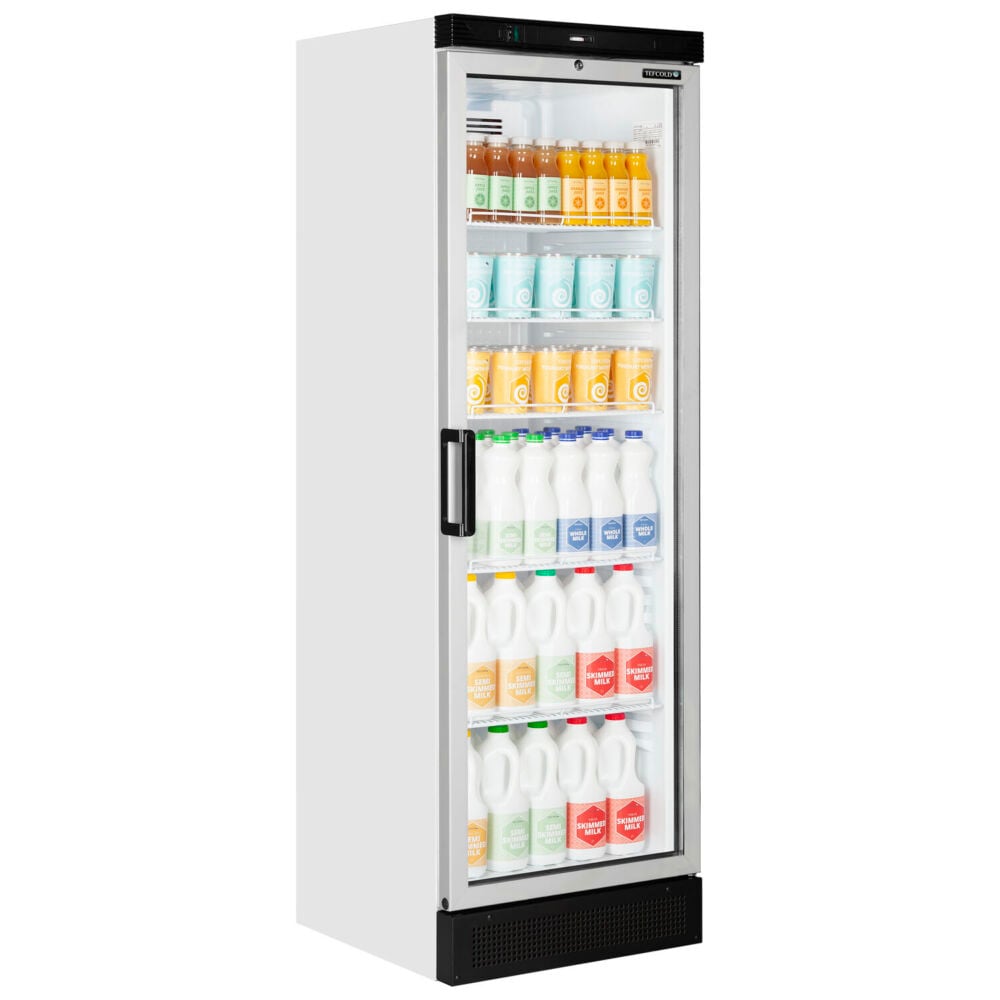

TEFCOLD FS1380 Glass Door Merchandiser

£560.00

+vat

Brand:

SKU: 22516

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Lock
  • Adjustable shelves
  • Vertical LED interior light with switch
  • Adjustable feet
  • Thermometer
  • Replaceable door gasket

Product description

Our most popular glass door fridge, and probably the best selling unit in the UK. Tried and tested TEFCOLD quality at an excellent price. This cabinet is renowned for its reliability, simple design with aluminium door frame, interior light, lock and temperature display. It is everything you need from a glass door merchandiser including a number of shelves as standard to maximise display space. A reliable workhorse for all shops and cafés. This model is so popular we even stock it as a left-hand hinge version as standard in addition to the more usual right-hand hinge version.

The Tefcold FS1380 is a single hinged glass-door display merchandiser holding 345 litres net across five white wire shelves, running at +2 to +10 °C on a 13A supply and using about £201 of electricity a year at 25p/kWh.

SPECIFICATION 50 facts · tap for all External W × D × H595 x 640 x 1840 mmWidth595 mmDepth640 mmGross / net weight81 / 74 kgGross weight81 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181008543site
Product code 22516site
Sub title Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 640 mmsite
External (W×D×H) 595 × 640 × 1840 mmcatalogue
External W × D × H 595 x 640 x 1840 mmsite
Gross / net weight 81 / 74 kgsite
Gross weight 81 kgcatalogue
Height 1840 mmsite
Internal (W×D×H) 505 × 462 × 1555 mmcatalogue
Internal W × D × H 505 x 462 x 1555 mmsite
Packed (W×D×H) 680 × 710 × 1940 mmcatalogue
Packed W × D × H 680 x 710 x 1940 mmsite
Width 595 mmsite

Capacity6

330ml bottles 217 pcssite
330ml cans 455 pcssite
500ml cans 301 pcssite
Doors 1catalogue
Gross volume 358 litrescatalogue
Shelves 5catalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Fan assistedsite
Defrost type Automatic / Off Cyclesite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 80 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 803 kWh/yearsite
Energy consumption 2.2 kWh/24hsite
Energy efficiency index 48.6 %site
Input power 295 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 2 rollerssite
Exterior finish Whitesite
Feet / legs 2 adjustable feetsite
Interior light LEDsite
Max load per shelf 196site
Shelf dimensions 498 x 405 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

The FS1380 is an upright single-door glass merchandiser built to display chilled stock at eye level rather than store it out of sight. The white cabinet carries five white wire shelves across a 358-litre gross volume, giving 345 litres of usable space for cans, bottles, pre-packed food and other grab-and-go lines. The full-height glass door lets the display sell while keeping product at temperature.

Day to day the cabinet holds +2 to +10 °C under a mechanical controller, with an automatic off-cycle defrost that clears frost without staff intervention. It runs on R600a with an 80 g charge, is rated at 45 dB, and carries a climate class 4 rating, so it is built to hold its display duty in a warm, busy retail environment.

The FS1380 measures 595 × 640 × 1840 mm externally and 505 × 462 × 1555 mm inside, and ships packed at 680 × 710 × 1940 mm, so check that crated width against your access route before delivery. It draws from a standard 13A supply at 295 W, and its class D rating and 803 kWh annual figure work out to about £201 a year at 25p/kWh. Gross weight is 81 kg (74 kg net), so plan for two people to position it.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 595 mm wide and ships packed at 680 × 710 × 1940 mm (W×D×H). Measure your narrowest access point against that crated width, as most standard doorways are around 760 mm.

It is rated energy class D and uses 803 kWh a year, which is about £201 a year at 25p/kWh. Your actual cost depends on your tariff and how often the door is opened.

The FS1380 runs at +2 to +10 °C, which suits chilled drinks, pre-packed food and other grab-and-go lines. It is a display chiller, not a low-temperature or fresh-meat cabinet.

No. It runs on a standard 220–240 V supply and draws 13A at 295 W, so a normal socket is enough. It uses R600a refrigerant with an 80 g charge.

It comes with five white wire shelves and is rated at 45 dB, quiet enough for a shop floor or service area where staff and customers are close by.

Yes, Craven Cooling can advise on installation and servicing. Call the team on 01792 732702 to discuss your site and supply.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 505 x 462 x 1555 mm
External Dimension (WxDxH): 595 x 640 x 1840 mm
Packed Dimension (WxDxH): 680 x 710 x 1940 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Fan assisted
Type of Defrost: Automatic / Off Cycle
Refrigerant: R600a
Refrigerant Charge: 80 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.2 kWh/24h
Temperature Range: +2 to +12 °C
Annual Energy Consumption: 803 kWh/year m³
EEI: 48.6 %
Input Power: 295 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Cans 330 ml: 455 pcs pcs
Cans 500 ml: 301 pcs pcs
Bottles 330 ml: 217 pcs pcs
Temperature Range: +2 to +12 °C
Climate Class: 4
Gross / Net Weight: 81 / 74 kg
Gross / Net Volume: 358 / 219 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: 498 x 405 mm
Max load on Shelves: 196 kg/m²
Feet / Legs: 2 adjustable feet
Castors: 2 rollers
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD FS1380 Glass Door Merchandiser then please get in touch.
