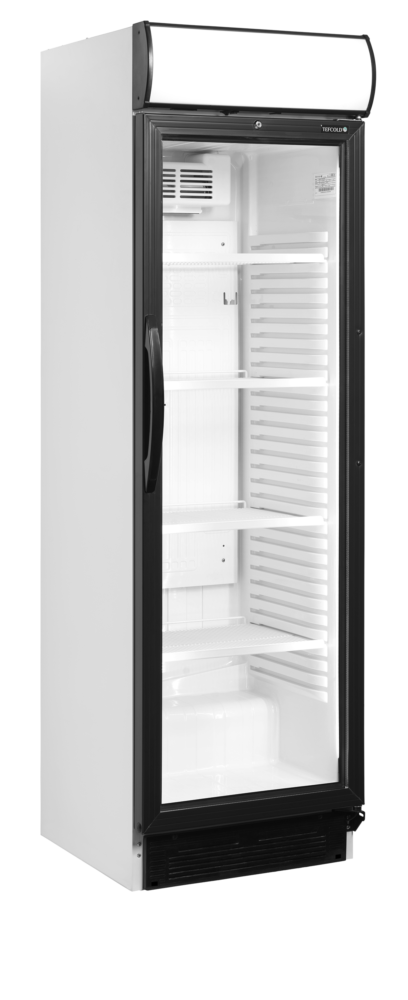

TEFCOLD CEV435CP 2 LED Glass Door Merchandiser

£666.00

+vat

- +

Brand:

SKU: 51531

Energy Arrow

Product summary

  • Low energy consumption
  • Elegant design
  • Great product presentation
  • Illuminated canopy
  • Ideal for branding
  • LED light in door frame
  • Adjustable shelves
  • Fan assisted cooling
  • Lock

Product description

This range of glass door merchandisers offers low energy consumption and a sleek elegant design. Ideal for great product presentation this range comes with an illuminated canopy with black and white variants. With an LED light in door frame and adjustable shelves and fan assisted cooling.

SPECIFICATION 51 facts · tap for all External W × D × H595 x 640 x 1980 mmWidth595 mmDepth640 mmGross / net weight85 / 78 kgGross weight85 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181735036site
Product code 51531site
Sub title Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 640 mmsite
External (W×D×H) 595 × 640 × 1980 mmcatalogue
External W × D × H 595 x 640 x 1980 mmsite
Gross / net weight 85 / 78 kgsite
Gross weight 85 kgcatalogue
Height 1980 mmsite
Internal (W×D×H) 505 × 462 × 1555 mmcatalogue
Internal W × D × H 505 x 462 x 1555 mmsite
Packed (W×D×H) 650 × 715 × 2150 mmcatalogue
Packed W × D × H 650 x 715 x 2150 mmsite
Width 595 mmsite

Capacity6

330ml bottles 213 pcssite
330ml cans 357 pcssite
500ml cans 231 pcssite
Doors 1catalogue
Gross volume 358 litrescatalogue
Shelves 5catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Fan assistedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 70 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 406.61 kWh/yearsite
Energy consumption 1.114 kWh/24hsite
Energy efficiency index 24.6 %site
Input power 370 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Canopy L-Shapesite
Castors 2 rollerssite
Exterior finish Whitesite
Feet / legs 2 adjustable feetsite
Interior light LED inside door framesite
Max load per shelf 196site
Shelf dimensions 499 x 360 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

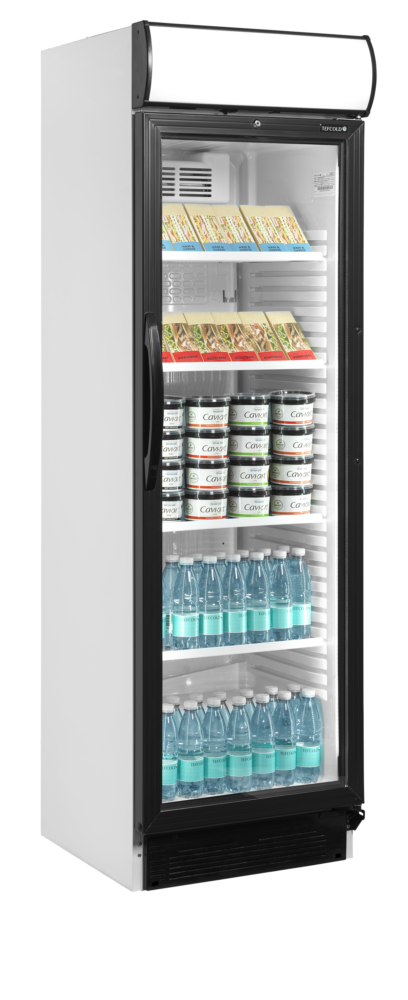

The CEV435CP is a single-door upright glass merchandiser sized for tight retail spaces, at just 595 mm wide. Behind the hinged glass door it offers 345 litres of net volume from a 358-litre gross cabinet, on five white wire shelves, in a white finish inside and out. It is a compact way to keep chilled drinks and grab-and-go in front of the customer without taking a wide footprint.

It holds +2 to +10 °C through an electronic controller with automatic defrost, so the glass and shelves stay clear during trading without manual intervention. It carries an energy class C rating with an energy efficiency index of 24.6%, drawing 406.6 kWh a year — about £102 a year at 25p/kWh, before your own tariff, ambient and door-opening patterns. Noise is rated at 55 dB and it is built to climate class 4.

The cabinet measures 595 × 640 × 1980 mm externally and ships packed at 650 × 715 × 2150 mm, with a gross weight of 85 kg (78 kg net). Its 595 mm width clears a standard doorway. It runs from a standard 13 A supply at 220-240 V with an input power of 370 W, and uses R600a refrigerant with a 70 g charge.

BEFORE YOU BUY

Questions, answered straight

Yes. The cabinet is 595 mm wide externally and clears a standard doorway; it ships packed at 650 × 715 × 2150 mm and weighs 85 kg gross, so plan a route for the crated unit.

It is rated energy class C at 406.6 kWh a year, roughly £102 a year at 25p/kWh. Your actual cost depends on your tariff, ambient temperature and how often the door is opened.

It runs +2 to +10 °C through an electronic controller with automatic defrost, suited to chilled drinks and packaged food. It is a chiller, not a freezer.

345 litres net from a 358-litre gross cabinet, across five white wire shelves behind a single hinged glass door.

A standard 13 A supply at 220-240 V, with an input power of 370 W. It uses R600a refrigerant with a 70 g charge.

Yes, we offer servicing and support across our refrigeration range. Call 01792 732702 to arrange a visit or discuss a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 505 x 462 x 1555 mm
External Dimension (WxDxH): 595 x 640 x 1980 mm
Packed Dimension (WxDxH): 650 x 715 x 2150 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Fan assisted
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 70 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.114 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 406.61 kWh/year m³
EEI: 24.6 %
Input Power: 370 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Cans 330 ml: 357 pcs pcs
Cans 500 ml: 231 pcs pcs
Bottles 330 ml: 213 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 85 / 78 kg
Gross / Net Volume: 358 / 345 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: 499 x 360 mm
Max load on Shelves: 196 kg/m²
Canopy Type: L-Shape
Feet / Legs: 2 adjustable feet
Castors: 2 rollers
Exterior Finish: White
Interior Finish: White

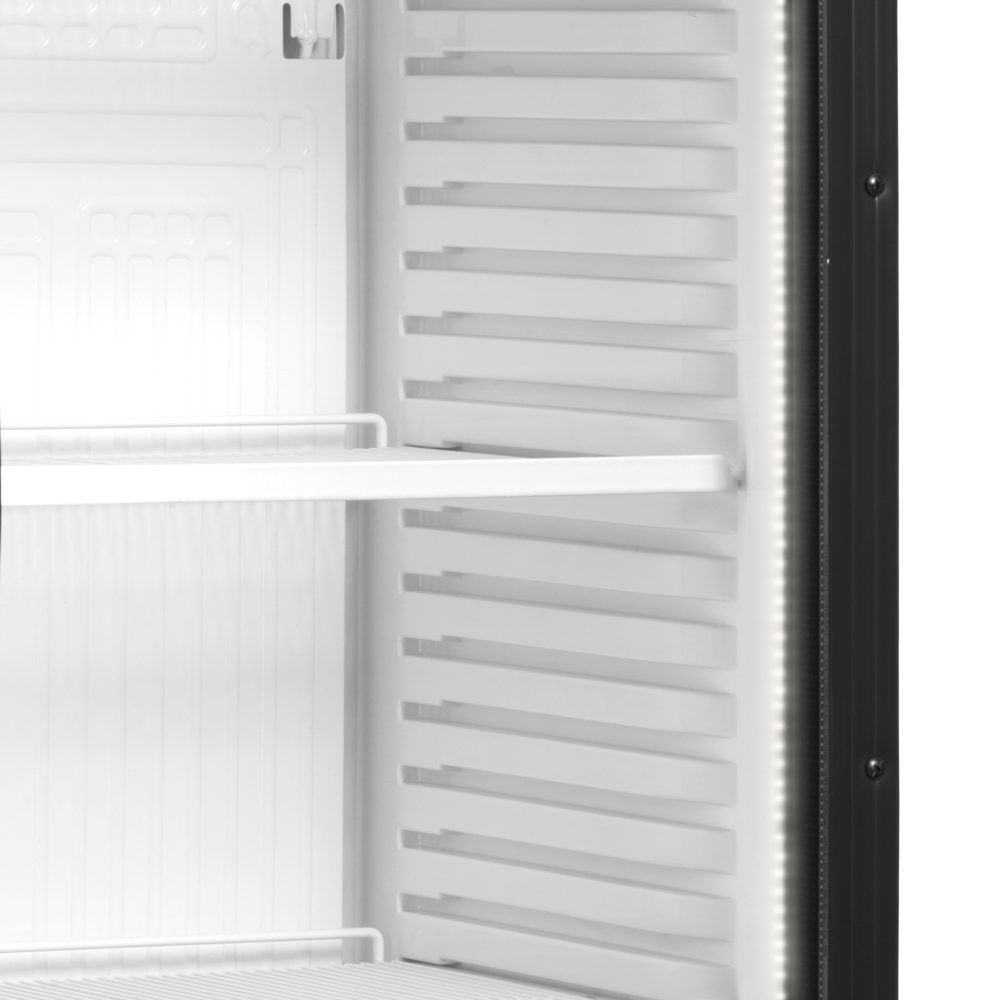

Interior Light: LED inside door frame
Lock: Yes
If you have any questions about the TEFCOLD CEV435CP 2 LED Glass Door Merchandiser then please get in touch.
