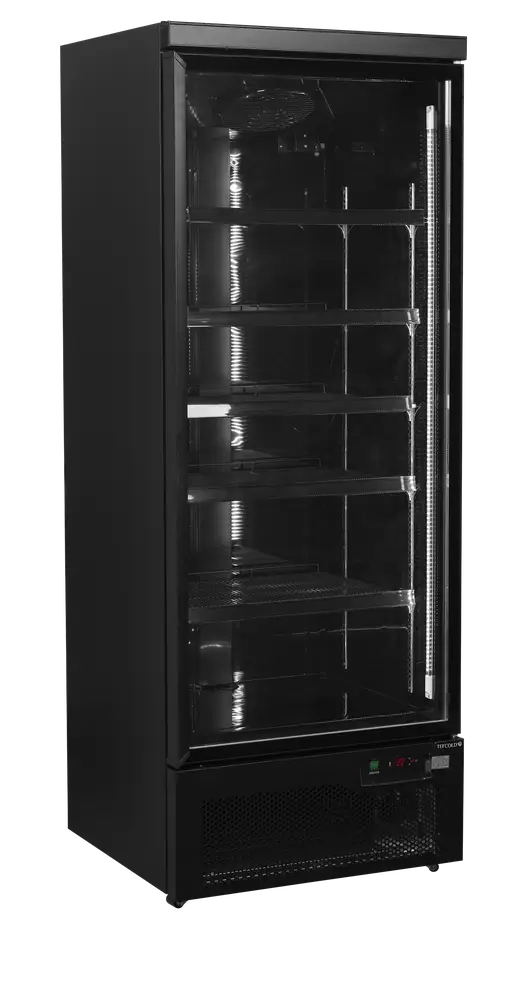

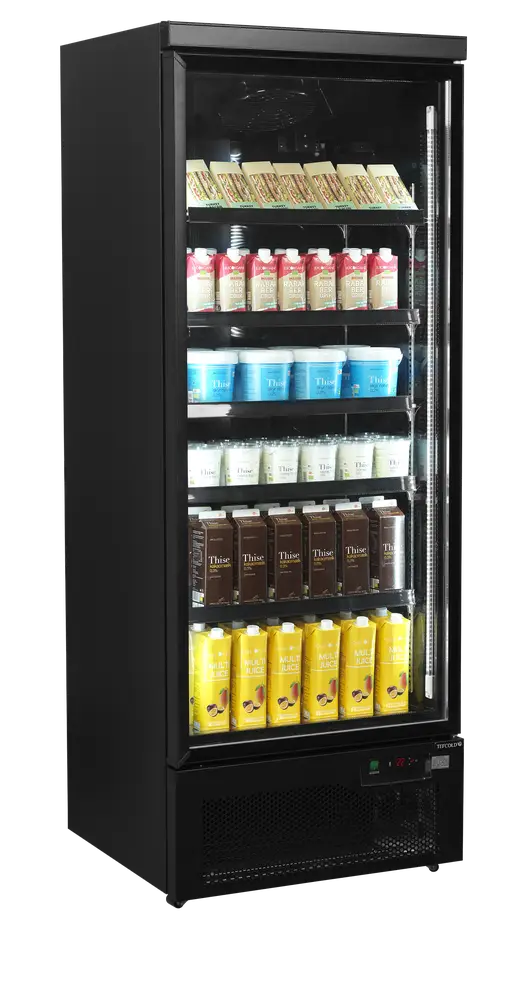

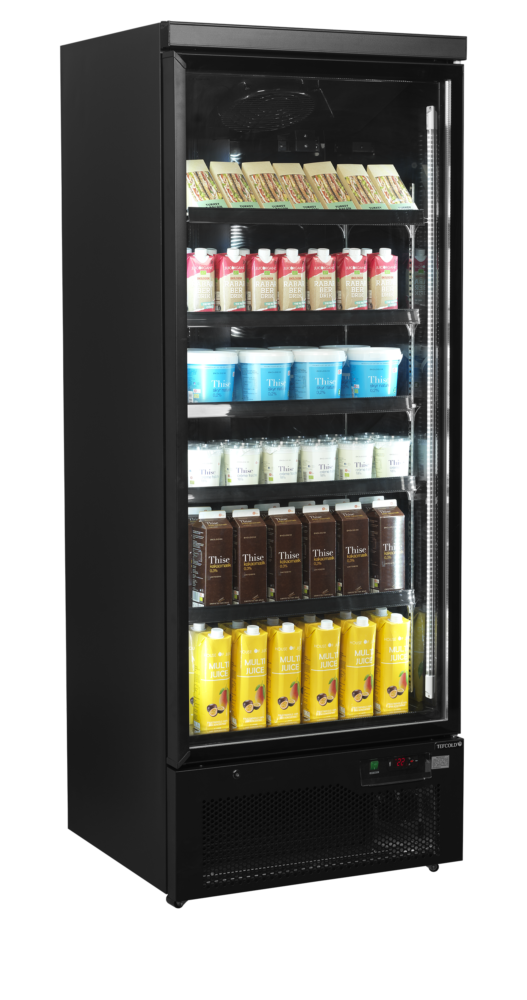

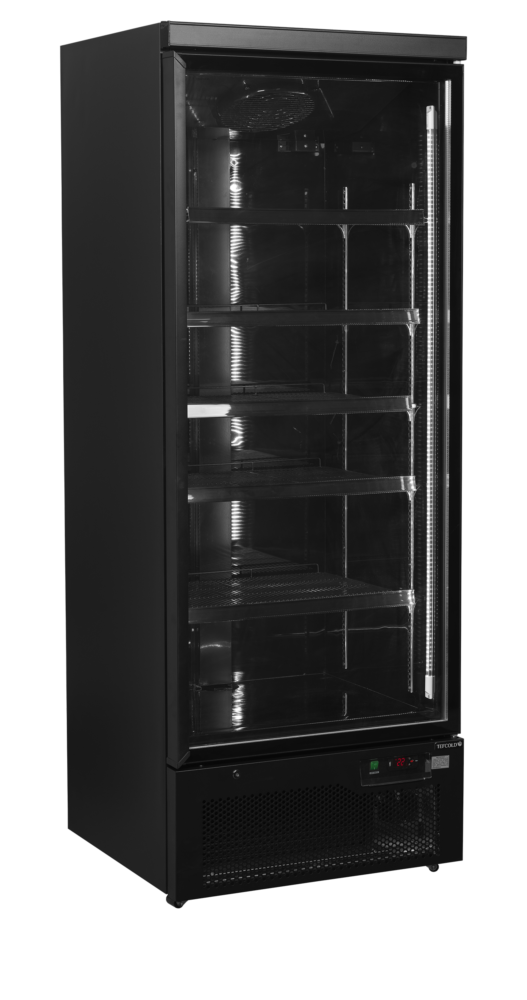

TEFCOLD Atom Maxi C1DBB Glass Door Merchandiser

£998.00

+vat

- +

Brand:

SKU: 54346

Energy Arrow

Product summary

  • Great product presentation
  • Black interior and exterior
  • Low energy consumption
  • Self-closing heated glass door
  • Double glazed tempered glass

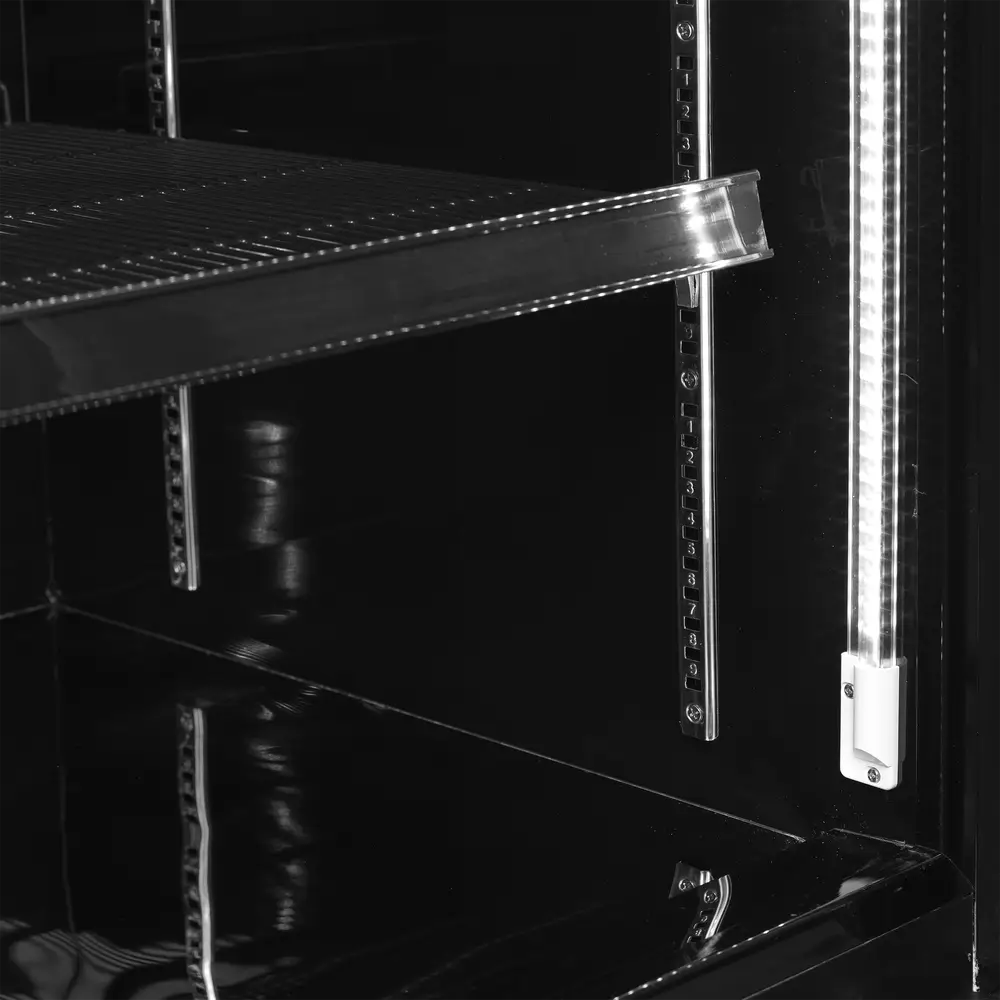

  • Internal vertical LED light
  • Ventilated cooling
  • Adjustable shelves
  • Stainless steel base with mirror effect

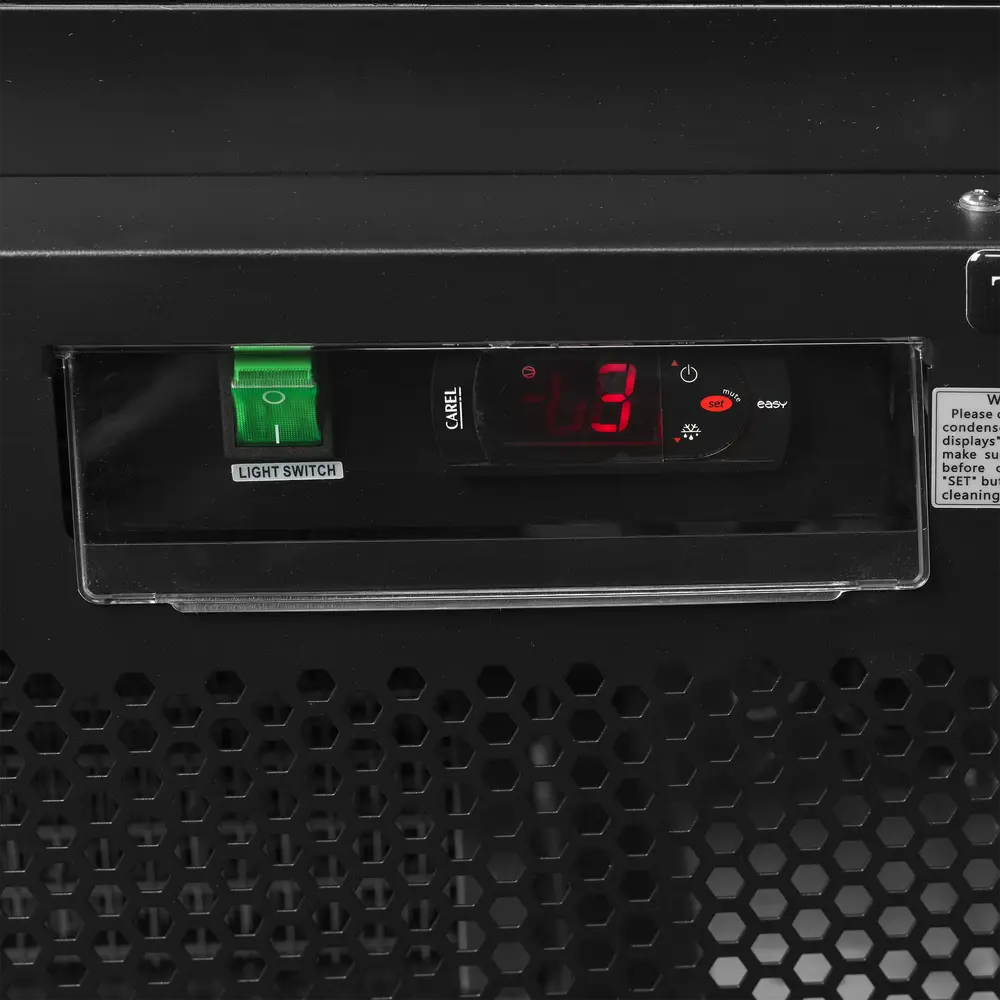

  • Digital controller and temperature display
  • Freezer Option Available

Product description

1 door chiller, black

The Atom Maxi range of glass door chillers is available in 1, 2 or 3 door options. Edge-to-edge “frameless” self-closing glass doors together with excellent storage capacity make it ideal for all types of frozen food displays. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a frozen selection gives customers extra choice.

SPECIFICATION 51 facts · tap for all External W × D × H750 x 710 x 2003 mmWidth750 mmDepth710 mmGross / net weight141.5 / 130 kgGross weight141.5 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181739546site
Product code 54346site
Sub title Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 710 mmsite
External (W×D×H) 750 × 710 × 2003 mmcatalogue
External W × D × H 750 x 710 x 2003 mmsite
Gross / net weight 141.5 / 130 kgsite
Gross weight 141.5 kgcatalogue
Height 2003 mmsite
Internal (W×D×H) 660 × 595 × 1568 mmcatalogue
Internal W × D × H 660 x 595 x 1568 mmsite
Packed (W×D×H) 775 × 770 × 2090 mmcatalogue
Packed W × D × H 775 x 770 x 2090 mmsite
Width 750 mmsite

Capacity7

330ml bottles 350 pcssite
330ml cans 630 pcssite
500ml cans 378 pcssite
Display area 0.98 m²site
Doors 1catalogue
Gross volume 614 litrescatalogue
Shelves 5catalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 85 gsite
Temperature range -1 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 913 kWh/yearsite
Energy consumption 2.5 kWh/24hsite
Energy efficiency index 15.4 %site
Input power 323 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 4 castorssite
Exterior finish Black RAL9005site
Interior light LEDsite
Max load per shelf 135site
Reversible doors Nosite
Shelf dimensions 637 x 480 mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

The Atom Maxi C1DBB is a single-door upright glass merchandiser built to put chilled stock in front of the customer rather than behind a solid door. Its hinged glass door and 0.98 m² of display area front 614 litres of gross capacity, 459 litres of it usable, with five adjustable shelves to set out grab-and-go drinks, sandwiches and pre-packed chilled lines the way the fixture demands. The black RAL9005 exterior keeps it reading as retail furniture, not back-of-house kit.

Day to day it holds -1 to +10 °C under an electronic controller, so you can run it warm for soft drinks or down towards zero for tighter chilled work. Automatic off-cycle defrost keeps the coil clear without manual intervention, and it is rated to climate class 3 for normal air-conditioned retail interiors. Running noise sits at 58 dB. With an EEI of 15.4 and 912.5 kWh a year, it lands at energy class B and costs about £228 a year to run at 25p/kWh.

The cabinet interior measures 660 × 595 × 1568 mm (W×D×H) and it weighs 141.5 kg, so plan a clear route and adequate handling for delivery and positioning. Cooling is on natural-refrigerant R290 with an 85 g charge, and the unit runs from a 13 A supply. Check that the final position leaves the intended socket within reach before siting it.

BEFORE YOU BUY

Questions, answered straight

It runs -1 to +10 °C under an electronic controller, so it covers chilled drinks and pre-packed food. Automatic off-cycle defrost keeps the coil clear without manual defrosting.

It uses 912.5 kWh a year at energy class B, with an EEI of 15.4. At 25p/kWh that works out at about £228 a year.

It runs from a 13 A supply. Make sure the intended socket is within reach of the final position before siting the cabinet.

Gross capacity is 614 litres and net usable capacity is 459 litres, across five adjustable shelves and 0.98 m² of glass display area.

It uses natural-refrigerant R290 with an 85 g charge, and runs at 58 dB in normal operation.

Yes — Craven Cooling can arrange servicing and repairs. Call the team on 01792 732702 to book, quoting the C1DBB model.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 660 x 595 x 1568 mm
External Dimension (WxDxH): 750 x 710 x 2003 mm
Packed Dimension (WxDxH): 775 x 770 x 2090 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.5 kWh/24h
Temperature Range: -1 to +10 °C
Annual Energy Consumption: 913 kWh/year m³
EEI: 15.4 %
Input Power: 323 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Cans 330 ml: 630 pcs pcs
Cans 500 ml: 378 pcs pcs
Bottles 330 ml: 350 pcs pcs
Temperature Range: -1 to +10 °C
Climate Class: 3
Gross / Net Weight: 141.5 / 130 kg
Gross / Net Volume: 614 / 459 l
Max Ambient: +25°C, 60% RH
Total Display Area: 0.98 m² m²

Design and Material

Door Reversible: No
Shelf Color: Black
Shelf Dimensions: 637 x 480 mm
Max load on Shelves: 135 kg/m²
Castors: 4 castors
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD Atom Maxi C1DBB Glass Door Merchandiser then please get in touch.
