TEFCOLD LGC5000B Glass Door Merchandiser

£2,150.00 £1,413.00

+vat

Brand:

SKU: 48003

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Automatic defrost
  • Lock
  • Adjustable shelves

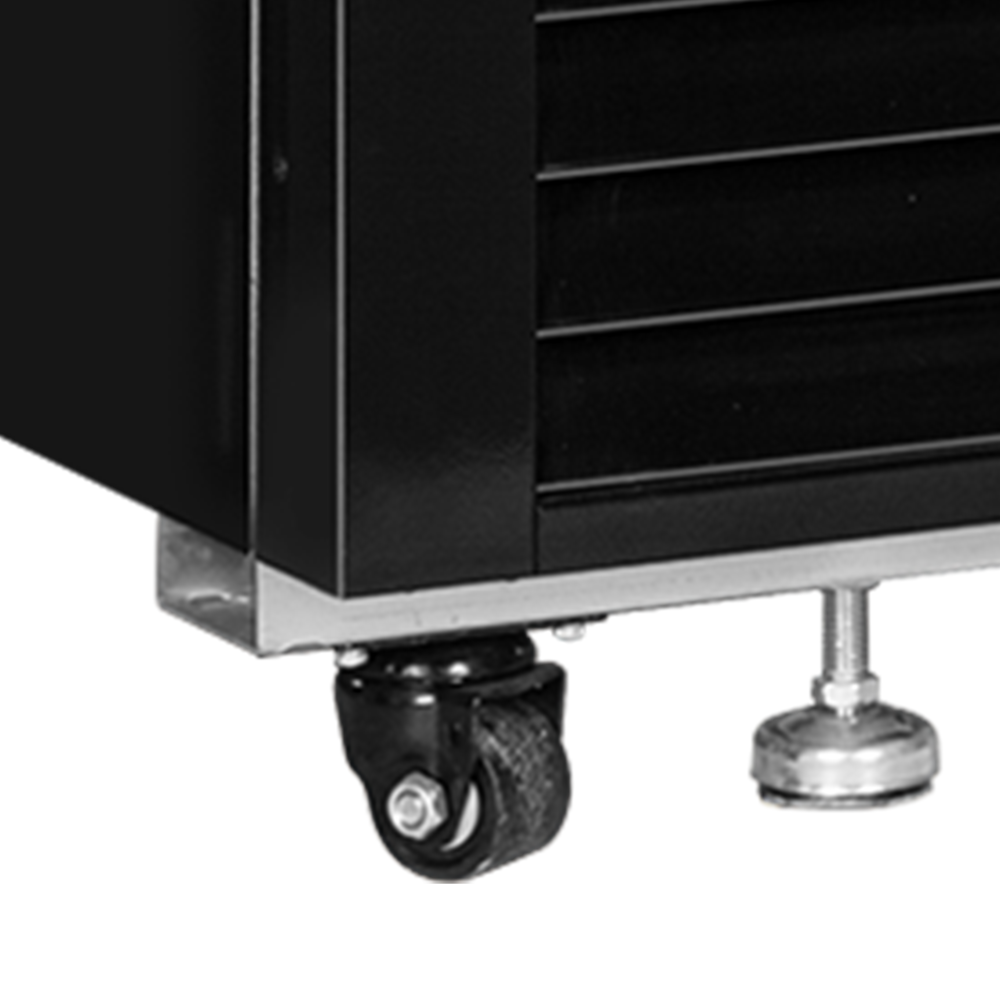

  • Castors and locking feet
  • LED interior light with switch (2 LED strips per door)
  • Digital controller and temperature display
  • LED Light canopy with switch
  • Internal stainless steel base
  • Self closing doors with stay open feature for ease of loading

Product description

Elegant display chiller with canopy

The LGC-B range of display coolers is designed for elegant and efficient display in retail settings. It comes with 1, 2, or 3 doors. It features adjustable shelves, self-closing glass doors, and two LED lights per door for optimal product presentation. It comes with an illuminated LED canopy and is ideal for branding to attract attention. Enjoy low operational costs with the energy-efficient cooling system, keeping your products perfectly chilled. Also available in a freezer version (LGF).

The TEFCOLD LGC5000B is a twin hinged-glass-door upright merchandiser with 1.38 m² of display area, running +1 to +8 °C on energy class B with R290 refrigerant and automatic off-cycle defrost, and drawing about £475 a year in energy at 25p/kWh.

Sale!
SPECIFICATION 45 facts · tap for all External W × D × H1382 x 805 x 2065 mmWidth1382 mmDepth805 mmGross / net weight210 / 190 kgGross weight210 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181733612site
Product code 48003site
Sub title Glass Door Merchandisercatalogue
Type Double Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 805 mmsite
External (W×D×H) 1382 × 805 × 2065 mmcatalogue
External W × D × H 1382 x 805 x 2065 mmsite
Gross / net weight 210 / 190 kgsite
Gross weight 210 kgcatalogue
Height 2065 mmsite
Internal (W×D×H) 1262 × 640 × 1520 mmcatalogue
Internal W × D × H 1262 x 640 x 1520 mmsite
Packed (W×D×H) 1430 × 860 × 2260 mmcatalogue
Packed W × D × H 1430 x 860 x 2260 mmsite
Width 1382 mmsite

Capacity5

330ml bottles 1000 pcssite
Display area 1.38 m²site
Doors 2catalogue
Gross volume 1108 litrescatalogue
Shelves 10catalogue

Performance8

Climate class 4site
Defrost type Automatic / Off Cyclesite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 120 gsite
Temperature range +1 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 1900 kWh/yearsite
Energy consumption 5.21 kWh/24hsite
Energy efficiency index 19 %site
Input power 400 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Blacksite
Interior light 2 x Vertically LED in door framesite
Max load per shelf 196site
Shelf dimensions 618*622site

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

The LGC5000B is a twin-door upright glass merchandiser built to put chilled stock on show in a busy retail aisle. Two hinged glass doors front 1.38 m² of display area, a wide glazed span for a high-visibility line-up of soft drinks, dairy, packed food and other chilled retail lines. The upright format keeps the display vertical and shopper-facing.

In use it holds +1 to +8 °C for chilled retail stock, with automatic off-cycle defrost that clears frost during natural off periods rather than on a scheduled cycle. It sits at energy class B with an energy efficiency index of 19.0, and at 1901.7 kWh a year that is about £475 a year in energy at 25p/kWh — a figure worth rechecking against your own tariff with the energy label decoder below. It runs at 58 dB, so factor that into where it sits relative to customers.

On the technical side it draws 400 W and uses natural R290 refrigerant, a low-GWP hydrocarbon standard across current chilled display cabinets. For exact dimensions, capacity and electrical detail, see the full specification table on this page.

BEFORE YOU BUY

Questions, answered straight

It uses 1901.7 kWh a year, about £475 a year in energy at 25p/kWh, at energy class B with an energy efficiency index of 19.0. Use the energy label decoder to convert that to your own tariff.

It runs +1 to +8 °C, suited to chilled retail stock such as soft drinks, dairy and packed food, behind two hinged glass doors.

It uses automatic off-cycle defrost, clearing frost during the cabinet's natural off periods rather than on a fixed scheduled cycle, so there is no manual defrost routine to run.

It runs on natural R290 (propane) refrigerant, a low-GWP hydrocarbon used widely across current chilled display cabinets. The cabinet draws 400 W in operation.

It runs at 58 dB, so position it with that noise level in mind relative to where customers stand or sit.

Yes — we install and service the cabinets we supply. Call the team on 01792 732702 to arrange a visit or set up a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1262 x 640 x 1520 mm
External Dimension (WxDxH): 1382 x 805 x 2065 mm
Packed Dimension (WxDxH): 1430 x 860 x 2260 mm

Cooling and Functions

Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 5.21 kWh/24h
Temperature Range: +1 to +8 °C
Annual Energy Consumption: 1900 kWh/year m³
EEI: 19 %
Input Power: 400 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Bottles 330 ml: 1000 pcs pcs
Temperature Range: +1 to +8 °C
Climate Class: 4
Gross / Net Weight: 210 / 190 kg
Gross / Net Volume: 1108 / 922 l
Max Ambient: +30°C, 55% RH
Total Display Area: 1.38 m² m²

Design and Material

Shelf Dimensions: 618*622
Max load on Shelves: 196 kg/m²
Exterior Finish: Black
Interior Finish: Black
Interior Light: 2 x Vertically LED in door frame
Lock: Yes
If you have any questions about the TEFCOLD LGC5000B Glass Door Merchandiser then please get in touch.
