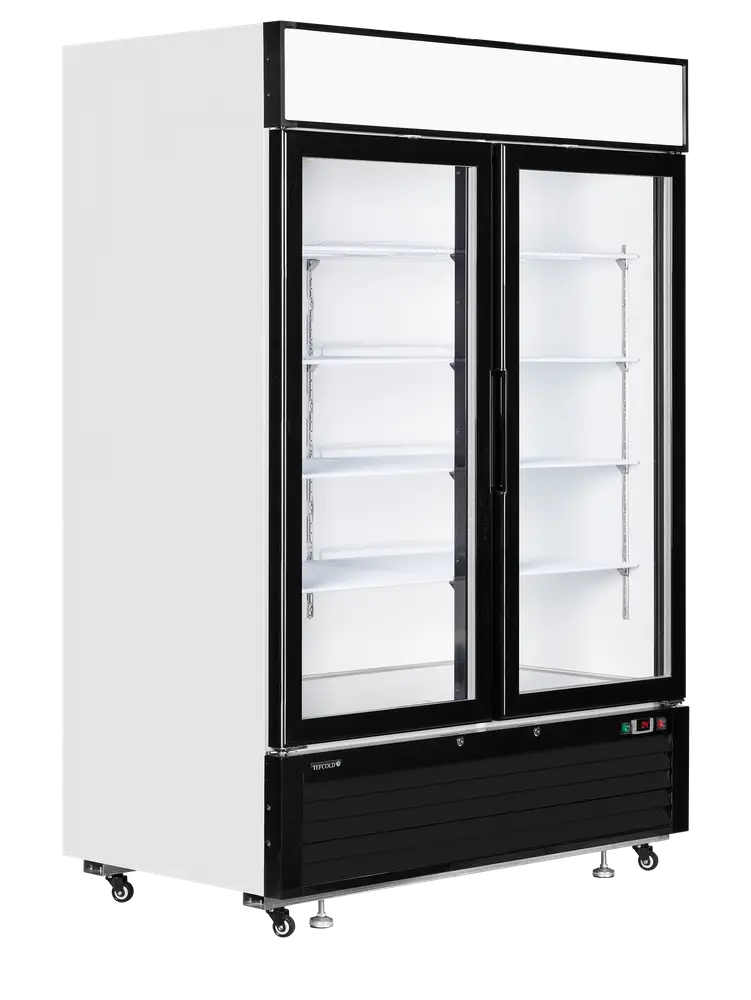

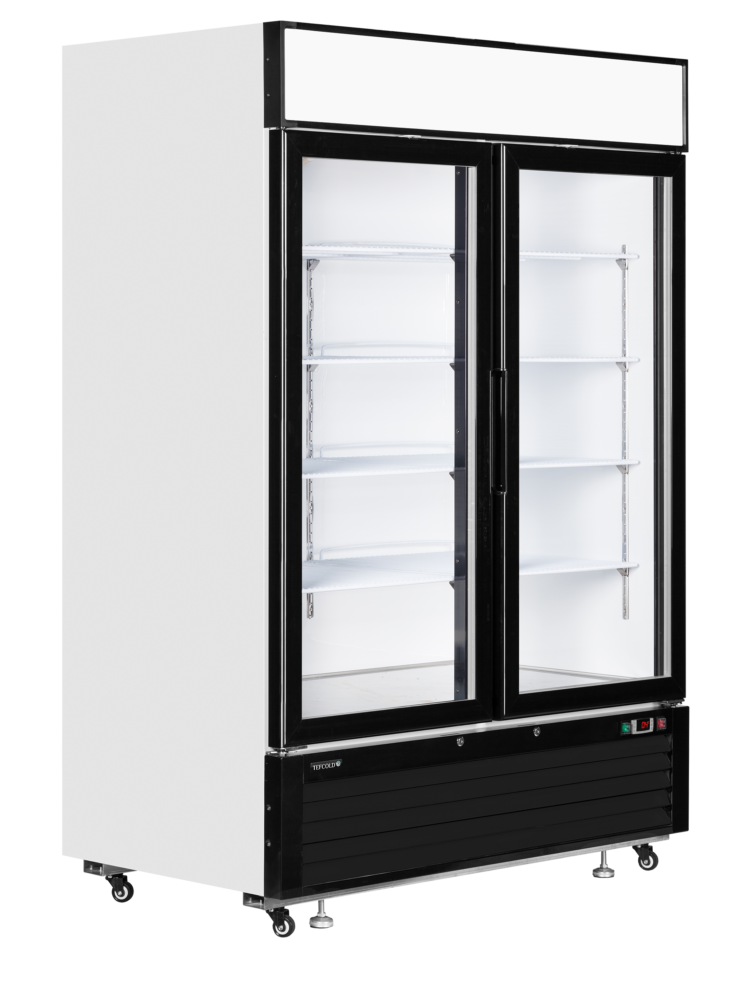

TEFCOLD LGC5000 Glass Door Merchandiser

£2,050.00 £1,347.00

+vat

- +

Brand:

SKU: 20355

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Automatic defrost
  • Lock
  • Adjustable shelves

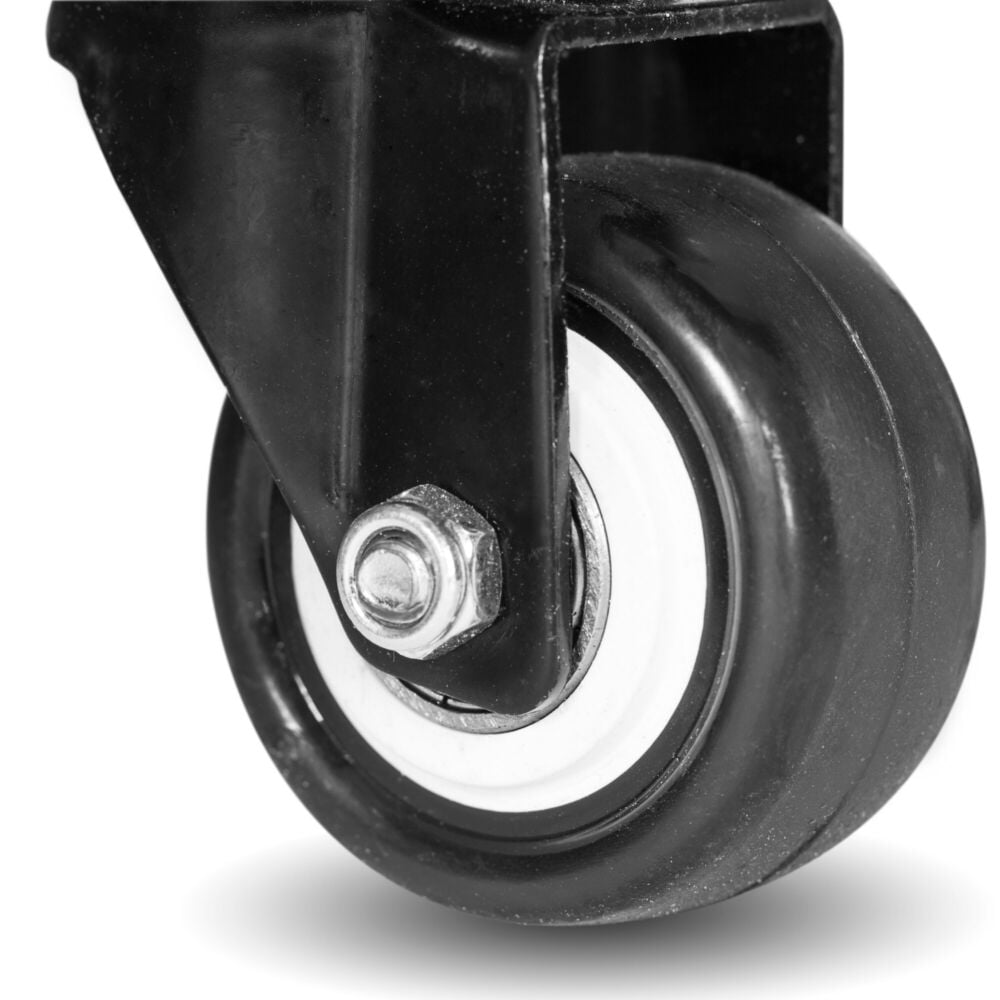

  • Castors and locking feet

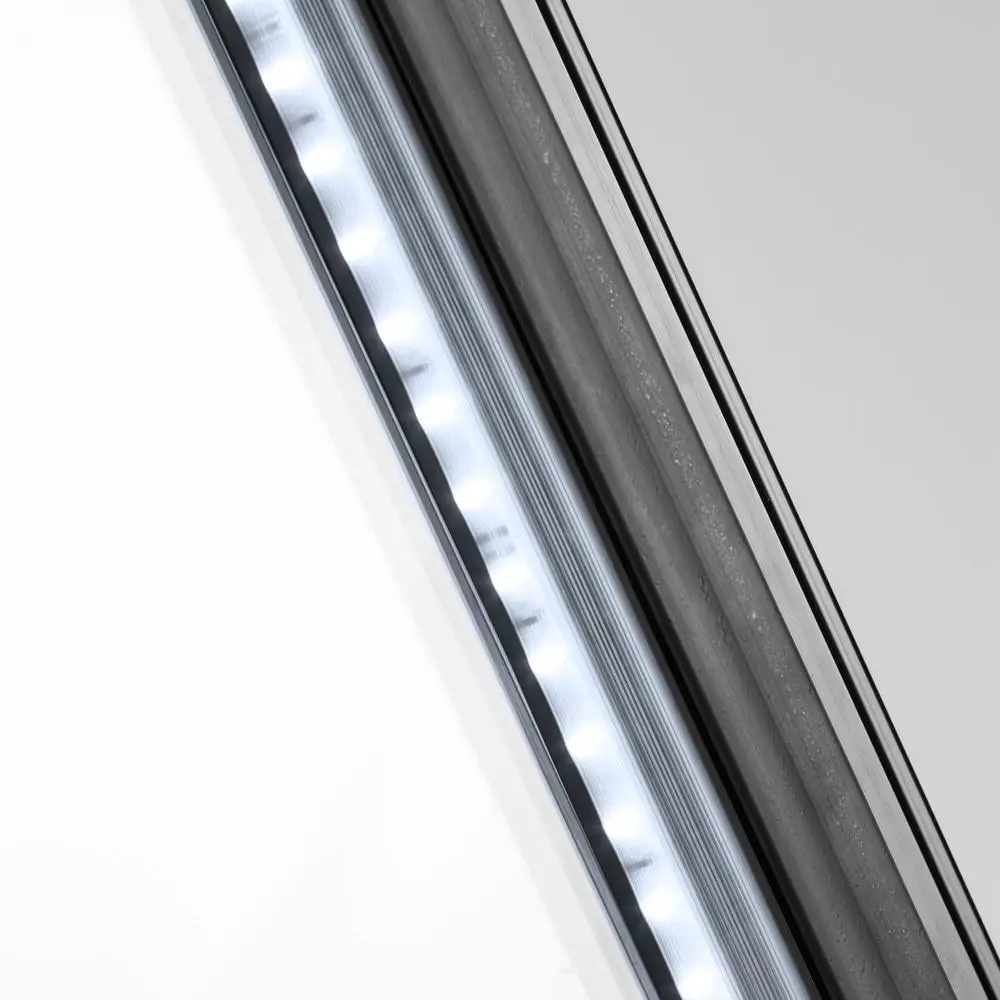

  • LED interior light with switch (2 LED strips per door)
  • Digital controller and temperature display
  • LED Light canopy with switch
  • Internal stainless steel base
  • Self closing doors with stay open feature for ease of loading

Product description

The TEFCOLD LGC series offers single, double, and triple door glass chillers that match with freezers in the LGF range. These sturdy cabinets are equipped with useful features, including two vertical LED lights per door, a stainless steel base for easy cleaning, and an energy-efficient refrigeration system. The LED canopy allows for branding, and the castors provide easy mobility, while the locking feet ensure stability. The TEFCOLD LGC range is an affordable, versatile, and high-quality solution.

Sale!
SPECIFICATION 45 facts · tap for all External W × D × H1382 x 805 x 2065 mmWidth1382 mmDepth805 mmGross / net weight210 / 190 kgGross weight210 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991258site
Product code 20355site
Sub title Glass Door Merchandisercatalogue
Type Double Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 805 mmsite
External (W×D×H) 1382 × 805 × 2065 mmcatalogue
External W × D × H 1382 x 805 x 2065 mmsite
Gross / net weight 210 / 190 kgsite
Gross weight 210 kgcatalogue
Height 2065 mmsite
Internal (W×D×H) 1262 × 640 × 1520 mmcatalogue
Internal W × D × H 1262 x 640 x 1520 mmsite
Packed (W×D×H) 1430 × 860 × 2260 mmcatalogue
Packed W × D × H 1430 x 860 x 2260 mmsite
Width 1382 mmsite

Capacity5

330ml bottles 1000 pcssite
Display area 1.38 m²site
Doors 2catalogue
Gross volume 1108 litrescatalogue
Shelves 10catalogue

Performance8

Climate class 4site
Defrost type Automatic / Off Cyclesite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 120 gsite
Temperature range +1 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 1900 kWh/yearsite
Energy consumption 5.21 kWh/24hsite
Energy efficiency index 19 %site
Input power 400 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max load per shelf 196site
Shelf dimensions 618*622site

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

The TEFCOLD LGC5000 is an upright double-door glass merchandiser for chilled impulse and grab-and-go sales. Two hinged glass doors front 1108 litres gross (922 litres net) over ten shelves and 1.38 m² of display area, in a white cabinet with a white interior, so drinks and packed chilled lines stay fully visible while the doors keep temperature stable.

The cabinet holds +1 to +8 °C with off-cycle automatic defrost, so it clears frost without interrupting trade. It is rated to climate class 4 and runs at 58 dB, and draws just 400 W. At energy class B and 1901.7 kWh a year, running cost works out at about £475 a year at 25p/kWh.

The external footprint is 1382 × 805 × 2065 mm (W×D×H), so plan the 1382 mm width and 2065 mm height against your doorways; internal space is 1262 × 640 × 1520 mm. Packed for delivery it measures 1430 × 860 × 2260 mm and weighs 210 kg, or 190 kg net once unpacked. Power is a single 13 amp, 220-240 V/50 Hz supply, and cooling uses natural R290 refrigerant with a 120 g charge.

BEFORE YOU BUY

Questions, answered straight

It runs at +1 to +8 °C, the chilled band for drinks and packed food. Defrost is off-cycle and automatic, so it clears frost without interrupting trade.

The cabinet is 1382 × 805 × 2065 mm (W×D×H), so plan the 1382 mm width and 2065 mm height against your access. Packed it is 1430 × 860 × 2260 mm, so allow for that on the delivery route.

1108 litres gross and 922 litres net across ten shelves, with 1.38 m² of display behind two hinged glass doors.

It is energy class B and uses 1901.7 kWh a year, which is about £475 a year at 25p/kWh depending on your tariff. It draws 400 W.

It runs at 58 dB. Cooling uses natural R290 refrigerant with a 120 g charge.

Yes. Craven Cooling services the cabinets it supplies; call the service team on 01792 732702 to arrange a visit or a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1262 x 640 x 1520 mm
External Dimension (WxDxH): 1382 x 805 x 2065 mm
Packed Dimension (WxDxH): 1430 x 860 x 2260 mm

Cooling and Functions

Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 5.21 kWh/24h
Temperature Range: +1 to +8 °C
Annual Energy Consumption: 1900 kWh/year m³
EEI: 19 %
Input Power: 400 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Bottles 330 ml: 1000 pcs pcs
Temperature Range: +1 to +8 °C
Climate Class: 4
Gross / Net Weight: 210 / 190 kg
Gross / Net Volume: 1108 / 922 l
Max Ambient: +30°C, 55% RH
Total Display Area: 1.38 m² m²

Design and Material

Shelf Dimensions: 618*622
Max load on Shelves: 196 kg/m²
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD LGC5000 Glass Door Merchandiser then please get in touch.
