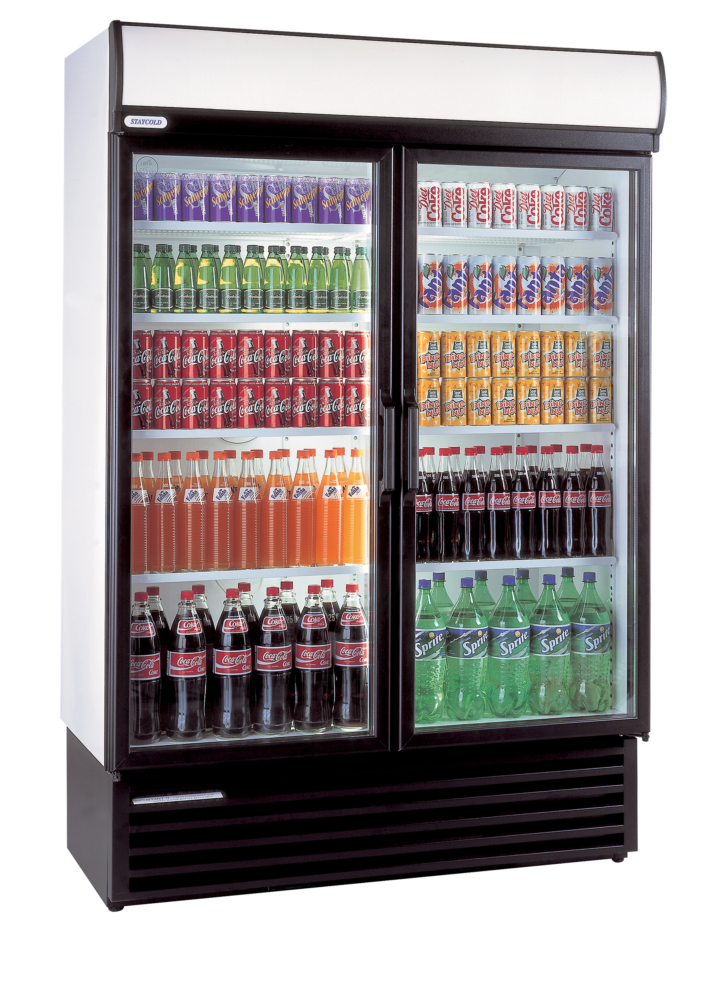

TEFCOLD HD1360 Glass Door Merchandiser

£1,807.00

+vat

- +

Brand:

SKU: 18976

Energy Arrow

Product summary

  • High efficiency compressor and EC fans
  • Low E glass door – equivalent to triple glazing
  • Fully automatic
  • Fan assisted cooling
  • Adjustable shelves (split level)
  • Adjustable feet
  • LED interior light with switch
  • Thermometer
  • LED Light canopy with switch
  • Replaceable door gasket

Product description

This range of upright glass door chillers are fully automatic with fan assisted cooling. With adjustable shelves (split level) and adjustable feet the HD range comes with some great lighting features. With an LED light canopy and interior light, both with switches, choose from a range of sizes to suit your space.

Downloads

SPECIFICATION 39 facts · tap for all External W × D × H1360 x 635 x 2020 mmWidth1360 mmDepth635 mmGross / net weight210 / 208 kgGross weight210 kgVoltage / frequency220-240/50 V/Hz

Manufacturer documents2

Identity6

Brand TEFCOLDsite
GTIN / EAN 5060482000092site
Product code 18976site
Sub title Glass Door Merchandisercatalogue
Type Double Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 635 mmsite
External (W×D×H) 1360 × 635 × 2020 mmcatalogue
External W × D × H 1360 x 635 x 2020 mmsite
Gross / net weight 210 / 208 kgsite
Gross weight 210 kgcatalogue
Height 2020 mmsite
Internal (W×D×H) 1270 × 550 × 1380 mmcatalogue
Internal W × D × H 1270 x 550 x 1380 mmsite
Packed (W×D×H) 1355 × 650 × 2110 mmcatalogue
Packed W × D × H 1355 x 650 x 2110 mmsite
Width 1360 mmsite

Capacity3

Doors 2catalogue
Gross volume 1110 litrescatalogue
Shelves 8catalogue

Performance8

Climate class 5site
Defrost type Automatic / Off Cyclesite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range +1 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 1172 kWh/yearsite
Energy consumption 3.21 kWh/24hsite
Energy efficiency index 33.5 %site
Input power 780 Wsite
Noise level 57 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish Whitesite
Interior light LEDsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

The HD1360 is a double-door glass merchandiser built to display drinks and packaged chilled stock through two hinged glass doors. Eight shelves give full-height presentation, and the white cabinet with a white interior keeps the focus on the product. As an upright merchandiser it suits high-turnover self-service display in retail and hospitality.

It holds a temperature band of +1 to +10 °C, covering soft drinks, packaged food and general chilled stock. Cooling uses R290 refrigerant with a 150 g charge, and defrost runs automatically on the off cycle. Rated at 57 dB and climate class 5, it is built to hold temperature in warmer, busier rooms.

The cabinet measures 1360 × 635 × 2020 mm (W×D×H) and weighs 210 kg, so plan the doorway route and a level floor before delivery. It runs from a standard 13 A supply at 220–240 V. Energy use is rated at 1171.7 kWh a year — about £293 a year at 25p/kWh — at energy class C.

BEFORE YOU BUY

Questions, answered straight

At 1360 × 635 × 2020 mm (W×D×H) and 210 kg, check the doorway route and floor level before delivery.

Eight shelves across two hinged glass doors, giving full-height display for drinks and packaged chilled stock.

It holds +1 to +10 °C, suited to soft drinks, packaged food and general chilled stock. Defrost runs automatically on the off cycle.

It is rated at 1171.7 kWh a year, about £293 a year at 25p/kWh, at energy class C. Actual cost depends on tariff and siting.

No. It runs from a standard 13 A supply at 220–240 V, using R290 refrigerant with a 150 g charge.

Yes. For servicing or a quote, call Craven Cooling on 01792 732702. Climate class 5 means it is rated to hold temperature in warmer rooms.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1270 x 550 x 1380 mm
External Dimension (WxDxH): 1360 x 635 x 2020 mm
Packed Dimension (WxDxH): 1355 x 650 x 2110 mm

Cooling and Functions

Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.21 kWh/24h
Temperature Range: +1 to +10 °C
Annual Energy Consumption: 1172 kWh/year m³
EEI: 33.5 %
Input Power: 780 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 57 dB(A)

Measures and Content

Temperature Range: +1 to +10 °C
Climate Class: 5
Gross / Net Weight: 210 / 208 kg
Gross / Net Volume: 1110 / l
Max Ambient: +40°C, 40% RH

Design and Material

Exterior Finish: White
Interior Finish: White
Interior Light: LED
If you have any questions about the TEFCOLD HD1360 Glass Door Merchandiser then please get in touch.
