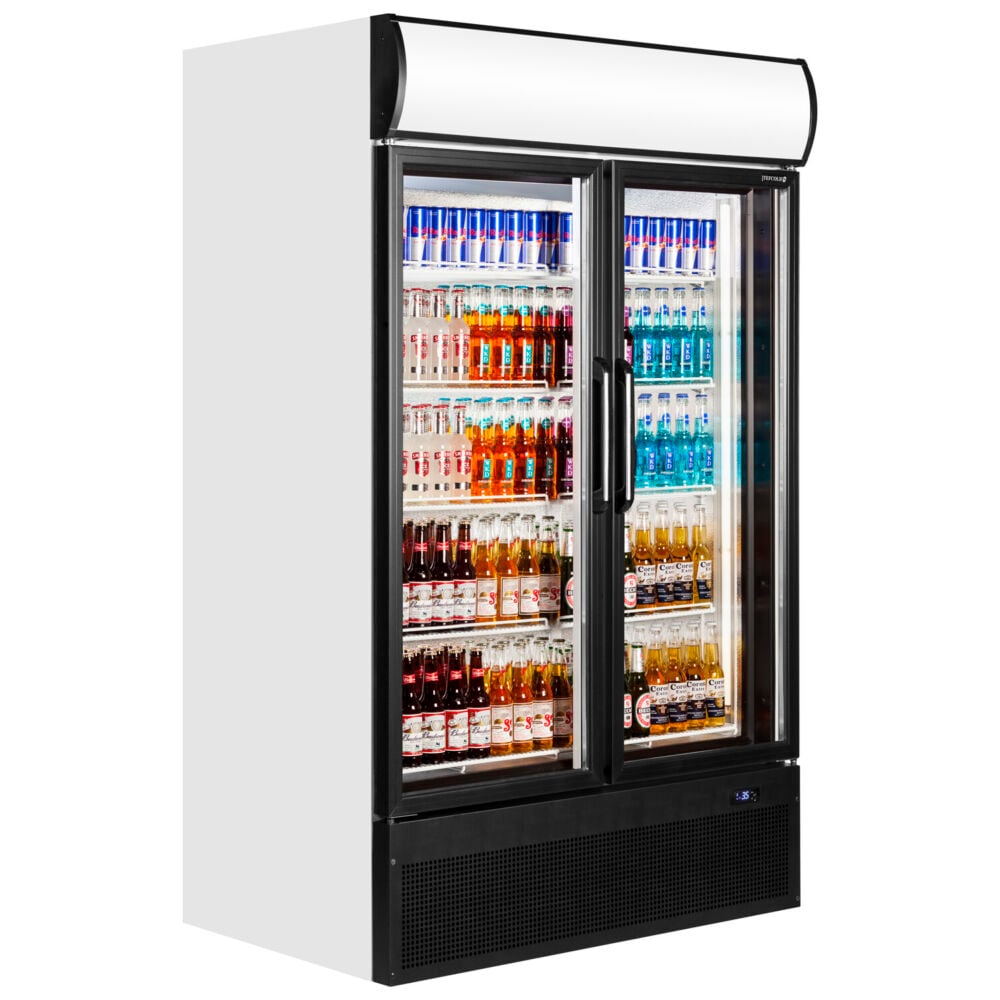

TEFCOLD FSC1200H Glass Door Merchandiser

£2,011.00 £1,151.00

+vat

- +

Brand:

SKU: 22526

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable full width shelves
  • Vertical LED interior light with switch
  • Thermometer
  • Self-closing hinged glass door
  • LED Light canopy with switch
  • Adjustable feet with rollers to rear
  • Replaceable door gasket

Product description

Sale!
SPECIFICATION 53 facts · tap for all External W × D × H1200 x 790 x 2000 mmWidth1200 mmDepth790 mmGross / net weight189 / 174 kgGross weight189 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181003906site
Product code 22526site
Sub title Glass Door Merchandisercatalogue
Type Double Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 790 mmsite
External (W×D×H) 1200 × 790 × 2000 mmcatalogue
External W × D × H 1200 x 790 x 2000 mmsite
Gross / net weight 189 / 174 kgsite
Gross weight 189 kgcatalogue
Height 2000 mmsite
Internal (W×D×H) 1090 × 670 × 1533 mmcatalogue
Internal W × D × H 1090 x 670 x 1533 mmsite
Packed (W×D×H) 1250 × 840 × 2100 mmcatalogue
Packed W × D × H 1250 x 840 x 2100 mmsite
Width 1200 mmsite

Capacity6

330ml bottles 640 pcssite
330ml cans 1312 pcssite
500ml cans 928 pcssite
Doors 2catalogue
Gross volume 1082 litrescatalogue
Shelves 5catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 120 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 2482 kWh/yearsite
Energy consumption 6.8 kWh/24hsite
Energy efficiency index 72 %site
Input power 880 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings9

Bottom shelf 1070 x 475site
Canopy D-Shapesite
Castors 4 rollerssite
Exterior finish White RAL9016site
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 1072 x 540 mmsite

Other stated facts1

Energy class Fcatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

The Tefcold FSC1200H is an upright double-door glass merchandiser for chilled drinks and grab-and-go stock, presenting product behind two hinged glass doors on five white wire shelves. Its white RAL9016 finish suits a convenience store, forecourt or takeaway chiller line. With 645 litres of net capacity (1082 litres gross) in a 1200 mm-wide cabinet, it handles a high-turnover impulse range.

It holds a +2 to +10 °C band using ventilated cooling for even temperature across the shelves, with automatic defrost managed by an electronic controller. Running noise is rated at 48 dB, and it carries a climate class 4 rating for warmer interiors. At its rated 2482 kWh a year, running cost is about £621 a year at 25p/kWh, and it sits in energy class F.

The cabinet measures 1200 × 790 × 2000 mm (W×D×H) and stands 2000 mm tall, so check doorway height and the 790 mm depth on the delivery route; packed it is 1250 × 840 × 2100 mm. It weighs 174 kg net, runs from a standard 13 A, 220-240 V supply with an 880 W input, and uses 120 g of natural R290 refrigerant.

BEFORE YOU BUY

Questions, answered straight

Net capacity is 645 litres (1082 litres gross) across five white wire shelves behind two hinged glass doors. It suits high-turnover chilled drinks and grab-and-go ranges.

It holds a +2 to +10 °C band using ventilated cooling for even temperature across the shelves, with automatic defrost managed by an electronic controller.

The cabinet is 1200 × 790 × 2000 mm (W×D×H) and 2100 mm tall packed, so check door height and the 790 mm depth on the delivery route. It weighs 174 kg net.

At its rated 2482 kWh a year, running cost is about £621 a year at 25p/kWh. It sits in energy class F. Actual cost depends on your tariff and siting.

Running noise is rated at 48 dB, and it uses 120 g of natural R290 refrigerant. It runs from a standard 13 A, 220-240 V supply.

Yes, servicing and support can be arranged; call 01792 732702. The cabinet uses ventilated cooling, automatic defrost and an electronic controller.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1090 x 670 x 1533 mm
External Dimension (WxDxH): 1200 x 790 x 2000 mm
Packed Dimension (WxDxH): 1250 x 840 x 2100 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 6.8 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 2482 kWh/year m³
EEI: 72 %
Input Power: 880 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Cans 330 ml: 1312 pcs pcs
Cans 500 ml: 928 pcs pcs
Bottles 330 ml: 640 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 189 / 174 kg
Gross / Net Volume: 1082 / 645 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 1072 x 540 mm
Max load on Shelves: 196 kg/m²
Bottom Shelf Dimensions: 1070 x 475
Canopy Type: D-Shape
Feet / Legs: 4 adjustable feet
Castors: 4 rollers
Exterior Finish: White RAL9016
Interior Finish: White RAL9016
Interior Light: LED
Lock: Yes
