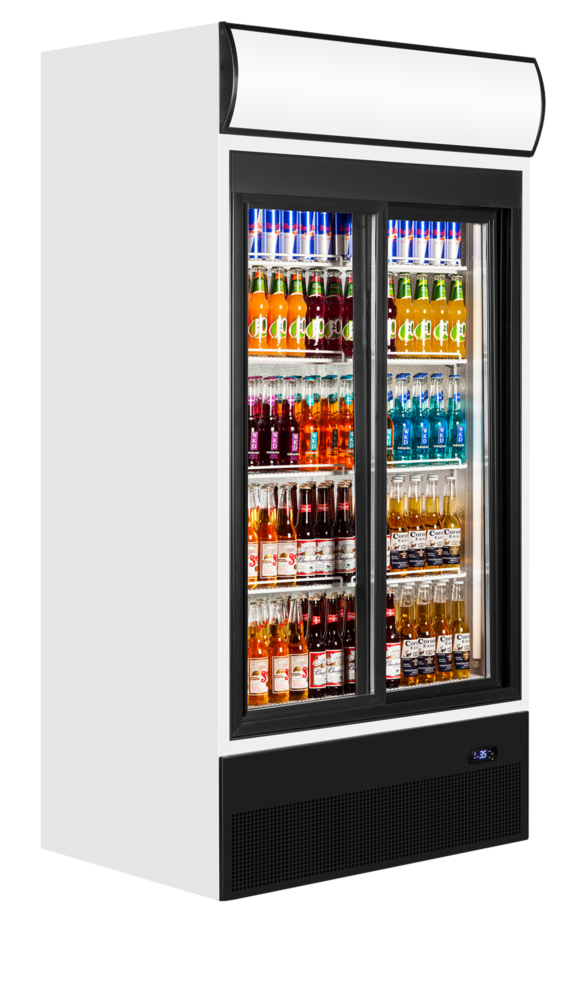

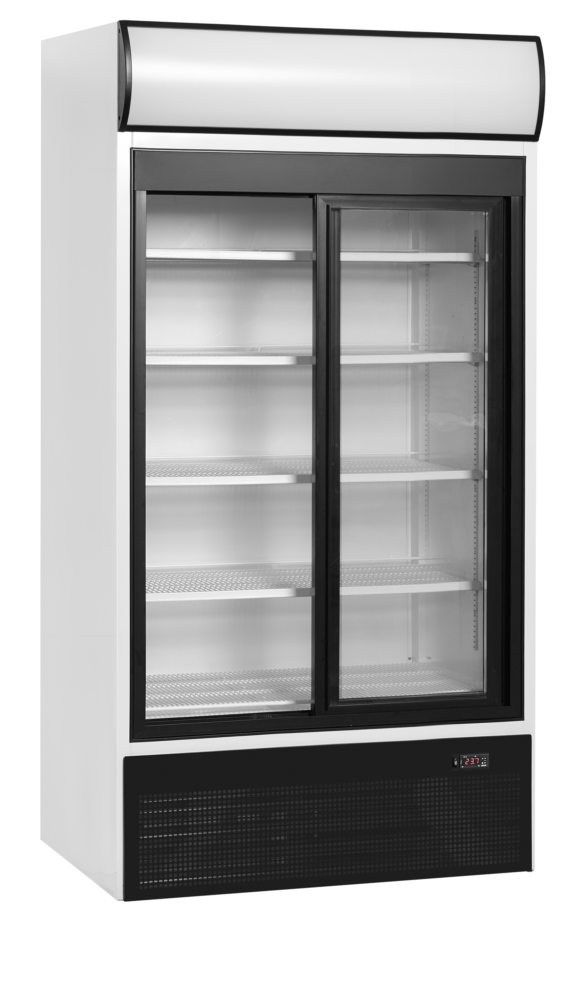

TEFCOLD FSC1000S Glass Door Merchandiser

£1,840.00 £1,054.00

+vat

- +

Brand:

SKU: 22524

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable full width shelves
  • LED interior light with switch
  • Thermometer
  • Self-closing sliding glass doors
  • LED Light canopy with switch
  • Adjustable feet with rollers to rear

Product description

Three sizes of double sliding door chillers. The FSC891S, FSC1000S and FSC1200S are versatile units suitable for drinks, dairy (milk, cheese etc) and sandwiches. Fan assisted cooling, vertical interior lights and self closing doors make it ideal for supermarkets, shops and cafés.

Sale!
SPECIFICATION 53 facts · tap for all External W × D × H1000 x 740 x 2000 mmWidth1000 mmDepth740 mmGross / net weight164 / 159 kgGross weight164 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181003890site
Product code 22524site
Sub title Glass Door Merchandisercatalogue
Type Double Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 740 mmsite
External (W×D×H) 1000 × 740 × 2000 mmcatalogue
External W × D × H 1000 x 740 x 2000 mmsite
Gross / net weight 164 / 159 kgsite
Gross weight 164 kgcatalogue
Height 2000 mmsite
Internal (W×D×H) 890 × 572 × 1533 mmcatalogue
Internal W × D × H 890 x 572 x 1533 mmsite
Packed (W×D×H) 1080 × 840 × 2100 mmcatalogue
Packed W × D × H 1080 x 840 x 2100 mmsite
Width 1000 mmsite

Capacity6

330ml bottles 455 pcssite
330ml cans 936 pcssite
500ml cans 663 pcssite
Doors 2catalogue
Gross volume 771 litrescatalogue
Shelves 5catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 120 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 2175 kWh/yearsite
Energy consumption 5.96 kWh/24hsite
Energy efficiency index 79.6 %site
Input power 450 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings9

Bottom shelf 870 x 475site
Canopy D-Shapesite
Castors 4 rollerssite
Exterior finish White RAL9016site
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 870 x 470 mmsite

Other stated facts1

Energy class Fcatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

The Tefcold FSC1000S is a high-capacity, double-door glass merchandiser for putting a full chilled range on show in retail and food-service settings. Two self-closing sliding glass doors front five white wire shelves, and the white RAL9016 exterior over a white painted-steel interior gives 524 usable litres (771 litres gross) of merchandised space. The sliding doors mean no door-swing clearance is needed at the aisle face.

Cooling is ventilated with automatic defrost under electronic control, holding a +2 to +10 °C band suited to bottled drinks, packaged chilled stock and grab-and-go lines. It runs on R290 refrigerant with a 120 g charge and is rated at 48 dB. At 2175.4 kWh a year (energy class F, EEI 79.6%) it costs about £544 a year to run at 25p/kWh.

Externally the cabinet measures 1000 × 740 × 2000 mm (W×D×H) with an internal 890 × 572 × 1533 mm, so plan for a metre of floor width and a two-metre height. It runs from a standard 13-amp socket on a 220-240 V/50 Hz supply, draws 450 W, and weighs 159 kg net (164 kg gross).

BEFORE YOU BUY

Questions, answered straight

It uses 2175.4 kWh a year and is rated energy class F (EEI 79.6%). At 25p/kWh that works out at about £544 a year.

Usable capacity is 524 litres (771 litres gross) across five white wire shelves. The internal space measures 890 × 572 × 1533 mm (W×D×H).

The cabinet is 1000 × 740 × 2000 mm (W×D×H). The doors slide rather than swing, so you do not need extra clearance in front for them to open.

It runs a +2 to +10 °C band with ventilated cooling and automatic defrost under electronic control, suited to bottled drinks and packaged chilled stock.

No. It runs from a standard 13-amp socket on a 220-240 V/50 Hz supply and draws 450 W.

Yes. Craven Cooling supports its cabinets after installation — call the service team on 01792 732702 to arrange servicing or a fault visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 890 x 572 x 1533 mm
External Dimension (WxDxH): 1000 x 740 x 2000 mm
Packed Dimension (WxDxH): 1080 x 840 x 2100 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 5.96 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 2175 kWh/year m³
EEI: 79.6 %
Input Power: 450 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Cans 330 ml: 936 pcs pcs
Cans 500 ml: 663 pcs pcs
Bottles 330 ml: 455 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 164 / 159 kg
Gross / Net Volume: 771 / 524 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 870 x 470 mm
Max load on Shelves: 196 kg/m²
Bottom Shelf Dimensions: 870 x 475
Canopy Type: D-Shape
Feet / Legs: 4 adjustable feet
Castors: 4 rollers
Exterior Finish: White RAL9016
Interior Finish: White RAL9016
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD FSC1000S Glass Door Merchandiser then please get in touch.
