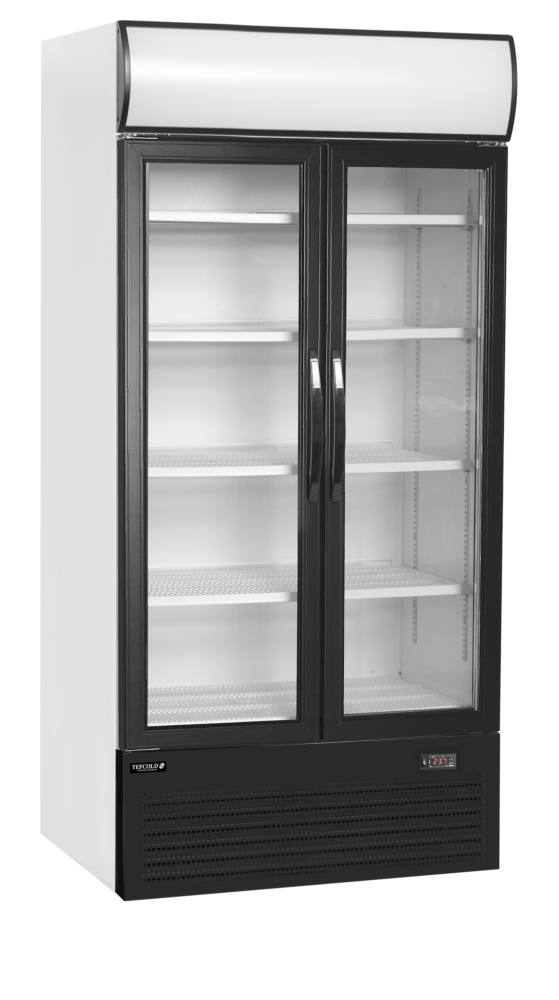

TEFCOLD FSC1000H Glass Door Merchandiser

£1,881.00 £1,077.00

+vat

- +

Brand:

SKU: 22523

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable full width shelves
  • Lock

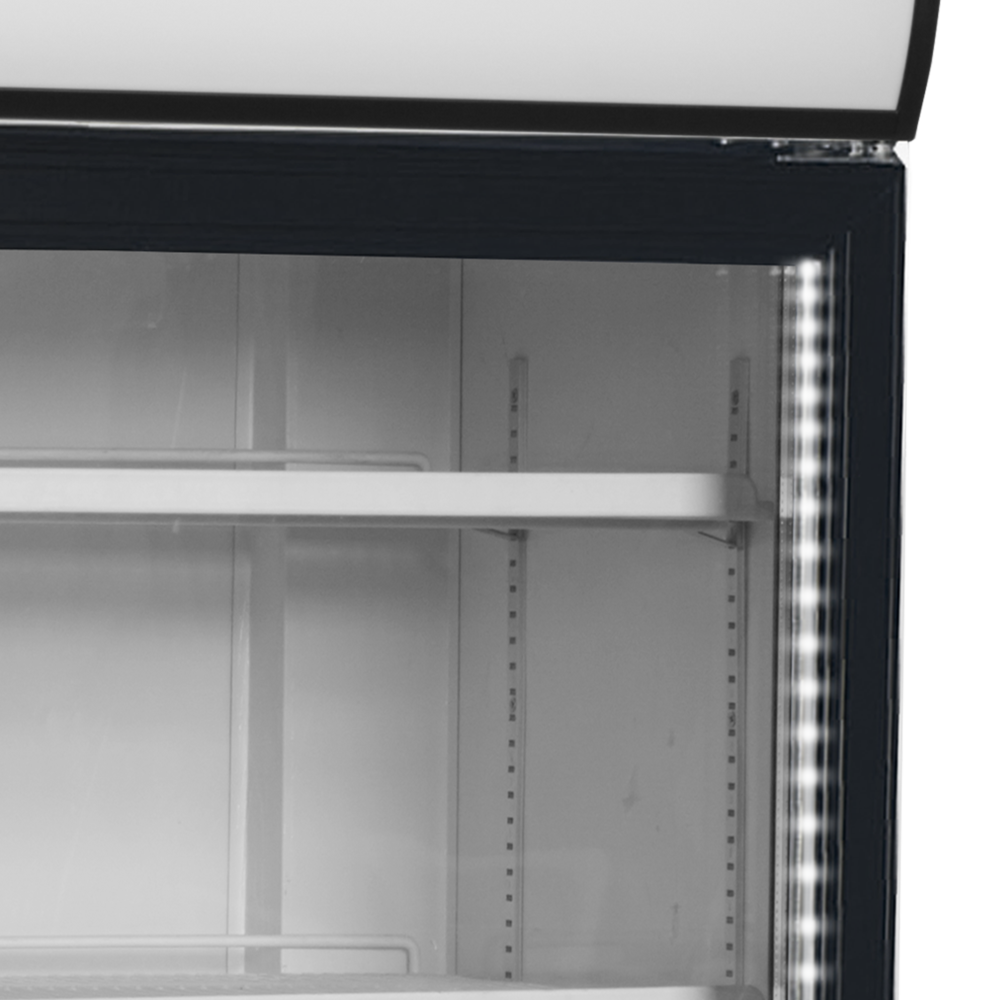

  • Vertical LED interior light with switch
  • Thermometer
  • Self-closing hinged glass door
  • LED Light canopy with switch
  • Adjustable feet with rollers to rear
  • Replaceable door gasket

Product description

The FSC-H range combines a quality unit at a very competitive price. Excellent build quality with a powerful fan assisted refrigeration system, sturdy hinged door, excellent internal lighting and a light canopy that can have branding added to create extra impact.

Sale!
SPECIFICATION 53 facts · tap for all External W × D × H1000 x 790 x 2000 mmWidth1000 mmDepth790 mmGross / net weight175 / 162 kgGross weight175 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181003821site
Product code 22523site
Sub title Glass Door Merchandisercatalogue
Type Double Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 790 mmsite
External (W×D×H) 1000 × 790 × 2000 mmcatalogue
External W × D × H 1000 x 790 x 2000 mmsite
Gross / net weight 175 / 162 kgsite
Gross weight 175 kgcatalogue
Height 2000 mmsite
Internal (W×D×H) 890 × 670 × 1533 mmcatalogue
Internal W × D × H 890 x 670 x 1533 mmsite
Packed (W×D×H) 1080 × 800 × 2100 mmcatalogue
Packed W × D × H 1080 x 800 x 2100 mmsite
Width 1000 mmsite

Capacity6

330ml bottles 520 pcssite
330ml cans 1066 pcssite
500ml cans 754 pcssite
Doors 2catalogue
Gross volume 796 litrescatalogue
Shelves 5catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 120 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 2175 kWh/yearsite
Energy consumption 5.96 kWh/24hsite
Energy efficiency index 76.5 %site
Input power 450 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings9

Bottom shelf 870 x 475site
Canopy D-Shapesite
Castors 4 rollerssite
Exterior finish White RAL9016site
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 870 x 540 mmsite

Other stated facts1

Energy class Fcatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

The Tefcold FSC1000H is an upright double-door glass merchandiser for chilled drinks and grab-and-go stock, presenting product behind two hinged glass doors on five white wire shelves. Its white RAL9016 finish suits a convenience store, forecourt or takeaway chiller line. With 524 litres of net capacity (796 litres gross) in a 1000 mm-wide cabinet, it handles a high-turnover impulse range in a tighter footprint.

It holds a +2 to +10 °C band using ventilated cooling for even temperature across the shelves, with automatic defrost managed by an electronic controller. Running noise is rated at 48 dB, and it carries a climate class 4 rating for warmer interiors. At its rated 2175.4 kWh a year, running cost is about £544 a year at 25p/kWh, and it sits in energy class F.

The cabinet measures 1000 × 790 × 2000 mm (W×D×H) and stands 2000 mm tall, so check doorway height and the 790 mm depth on the delivery route. It weighs 162 kg net, runs from a standard 13 A, 220-240 V supply with a 450 W input, and uses 120 g of natural R290 refrigerant.

BEFORE YOU BUY

Questions, answered straight

Net capacity is 524 litres (796 litres gross) across five white wire shelves behind two hinged glass doors. It suits high-turnover chilled drinks and grab-and-go ranges.

It holds a +2 to +10 °C band using ventilated cooling for even temperature across the shelves, with automatic defrost managed by an electronic controller.

The cabinet is 1000 × 790 × 2000 mm (W×D×H), 2000 mm tall, so check door height and the 790 mm depth on the delivery route. It weighs 162 kg net.

At its rated 2175.4 kWh a year, running cost is about £544 a year at 25p/kWh. It sits in energy class F. Actual cost depends on your tariff and siting.

Running noise is rated at 48 dB, and it uses 120 g of natural R290 refrigerant. It runs from a standard 13 A, 220-240 V supply.

Yes, servicing and support can be arranged; call 01792 732702. The cabinet uses ventilated cooling, automatic defrost and an electronic controller.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 890 x 670 x 1533 mm
External Dimension (WxDxH): 1000 x 790 x 2000 mm
Packed Dimension (WxDxH): 1080 x 800 x 2100 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 5.96 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 2175 kWh/year m³
EEI: 76.5 %
Input Power: 450 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Cans 330 ml: 1066 pcs pcs
Cans 500 ml: 754 pcs pcs
Bottles 330 ml: 520 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 175 / 162 kg
Gross / Net Volume: 796 / 524 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 870 x 540 mm
Max load on Shelves: 196 kg/m²
Bottom Shelf Dimensions: 870 x 475
Canopy Type: D-Shape
Feet / Legs: 4 adjustable feet
Castors: 4 rollers
Exterior Finish: White RAL9016
Interior Finish: White RAL9016
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD FSC1000H Glass Door Merchandiser then please get in touch.
