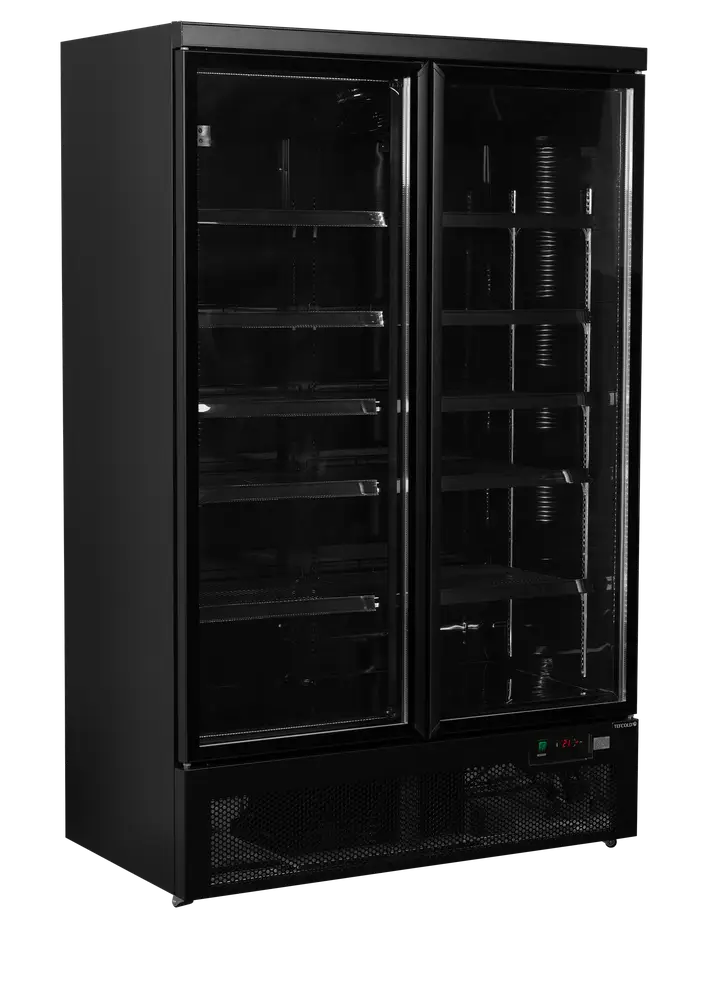

TEFCOLD Atom Maxi C2DBB Glass Door Merchandiser

£1,606.00

+vat

- +

Brand:

SKU: 54347

Energy Arrow

Product summary

  • Great product presentation
  • Black interior and exterior
  • Low energy consumption
  • Self-closing glass doors
  • Double glazed tempered glass
  • Internal vertical LED light
  • Ventilated cooling
  • Adjustable shelves (split level)
  • Stainless steel base with mirror effect
  • Digital controller and temperature display
  • Freezer Option Available

Product description

2 door chiller, black

The Atom Maxi range of glass door chillers is available in 1, 2 or 3 door options. Edge-to-edge “frameless” self-closing glass doors together with excellent storage capacity make it ideal for all types of frozen food displays. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a frozen selection gives customers extra choice.

The TEFCOLD Atom Maxi C2DBB is a double hinged-glass-door upright merchandiser holding 809 litres net across ten adjustable shelves at -1 to +10 °C, energy class B on R290 refrigerant, drawing about £381 a year in electricity at 25p/kWh.

SPECIFICATION 51 facts · tap for all External W × D × H1253 x 710 x 2003 mmWidth1253 mmDepth710 mmGross / net weight197 / 179 kgGross weight197 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181739553site
Product code 54347site
Sub title Glass Door Merchandisercatalogue
Type Double Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 710 mmsite
External (W×D×H) 1253 × 710 × 2003 mmcatalogue
External W × D × H 1253 x 710 x 2003 mmsite
Gross / net weight 197 / 179 kgsite
Gross weight 197 kgcatalogue
Height 2003 mmsite
Internal (W×D×H) 1163 × 595 × 1568 mmcatalogue
Internal W × D × H 1163 x 595 x 1568 mmsite
Packed (W×D×H) 1278 × 760 × 2090 mmcatalogue
Packed W × D × H 1278 x 760 x 2090 mmsite
Width 1253 mmsite

Capacity7

330ml bottles 630 pcssite
330ml cans 1120 pcssite
500ml cans 672 pcssite
Display area 1.58 m²site
Doors 2catalogue
Gross volume 1081 litrescatalogue
Shelves 10catalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 110 gsite
Temperature range -1 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 1522 kWh/yearsite
Energy consumption 4.17 kWh/24hsite
Energy efficiency index 19.7 %site
Input power 460 Wsite
Noise level 62 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 4 castorssite
Exterior finish Black RAL9005site
Interior light LEDsite
Max load per shelf 135site
Reversible doors Nosite
Shelf dimensions 566 x 480 mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

The Atom Maxi C2DBB is the twin-door upright glass merchandiser in the Atom Maxi range, built to hold a wide chilled facing behind two hinged glass doors. It fronts 1.58 m² of display area and 1081 litres of gross capacity, 809 litres of it usable, across ten adjustable shelves — enough to lay out chilled drinks, sandwiches and pre-packed lines with room to plan the whole fixture. Black RAL9005 outside and a black interior keep the focus on the stock behind the glass.

Day to day it holds -1 to +10 °C under an electronic controller, so it can run warm for soft drinks or down towards zero for tighter chilled work. Automatic off-cycle defrost keeps the coil clear without manual intervention, and it is rated to climate class 3 for normal air-conditioned retail interiors. Running noise sits at 62 dB, and with an EEI of 19.7 and 1522 kWh a year it lands at energy class B — about £381 a year to run at 25p/kWh.

The cabinet interior measures 1163 × 595 × 1568 mm (W×D×H) and it weighs 197 kg, so allow a clear route and proper handling for delivery and positioning. Cooling is on natural-refrigerant R290 with a 110 g charge, and the unit runs from a 13 A supply. Confirm the final position leaves the intended socket within reach before siting it.

BEFORE YOU BUY

Questions, answered straight

It runs -1 to +10 °C under an electronic controller, covering chilled drinks and pre-packed food. Automatic off-cycle defrost clears the coil without manual defrosting.

It uses 1522 kWh a year at energy class B, with an EEI of 19.7. At 25p/kWh that works out at about £381 a year.

Gross capacity is 1081 litres and net usable capacity is 809 litres, across ten adjustable shelves and 1.58 m² of glass display area.

It runs from a 13 A supply. Check the intended socket is within reach of the final position before siting the cabinet.

It uses natural-refrigerant R290 with a 110 g charge, and runs at 62 dB in normal operation.

Yes — Craven Cooling can arrange servicing and repairs. Call the team on 01792 732702 to book, quoting the C2DBB model.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1163 x 595 x 1568 mm
External Dimension (WxDxH): 1253 x 710 x 2003 mm
Packed Dimension (WxDxH): 1278 x 760 x 2090 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 4.17 kWh/24h
Temperature Range: -1 to +10 °C
Annual Energy Consumption: 1522 kWh/year m³
EEI: 19.7 %
Input Power: 460 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 62 dB(A)

Measures and Content

Cans 330 ml: 1120 pcs pcs
Cans 500 ml: 672 pcs pcs
Bottles 330 ml: 630 pcs pcs
Temperature Range: -1 to +10 °C
Climate Class: 3
Gross / Net Weight: 197 / 179 kg
Gross / Net Volume: 1081 / 809 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.58 m² m²

Design and Material

Door Reversible: No
Shelf Color: Black
Shelf Dimensions: 566 x 480 mm
Max load on Shelves: 135 kg/m²
Castors: 4 castors
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD Atom Maxi C2DBB Glass Door Merchandiser then please get in touch.
