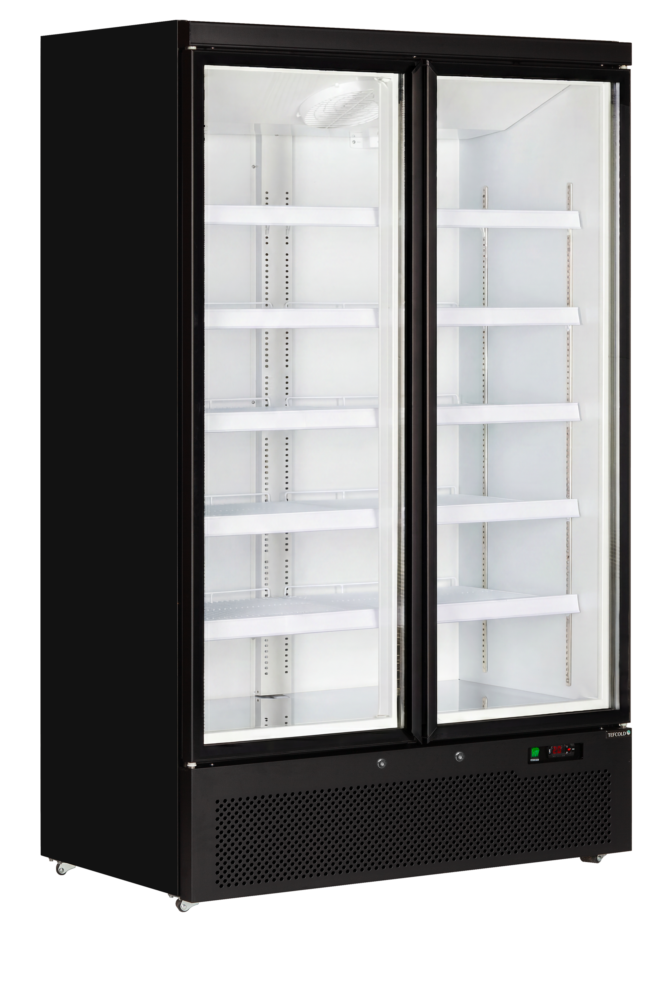

TEFCOLD Atom Maxi C2DB Glass Door Merchandiser

£1,970.00 £1,314.00

+vat

- +

Brand:

SKU: 49728

Energy Arrow

Product summary

  • Low energy consumption
  • Hinged glass doors
  • Self-closing doors
  • Double glazed doors

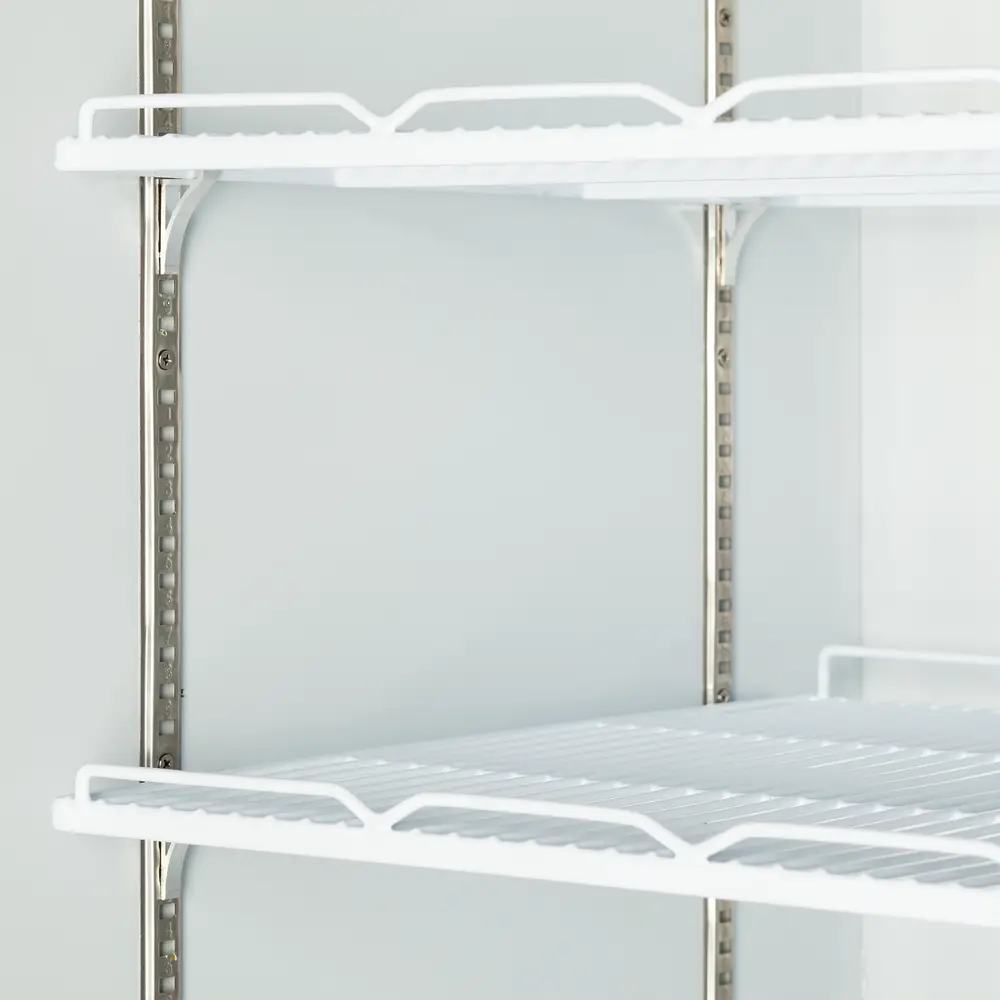

  • Adjustable shelves
  • Vertical LED interior light with switch
  • Ventilated cooling

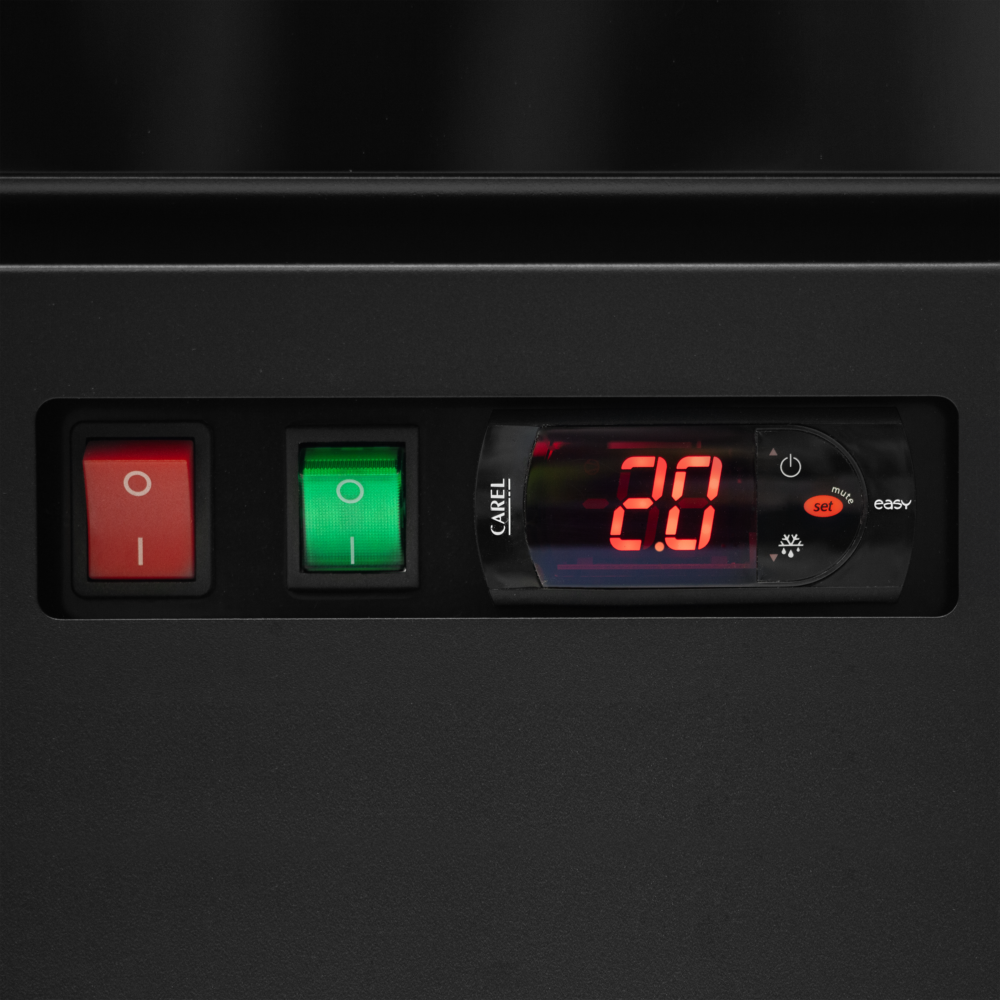

  • Digital controller and temperature display
  • Castors
  • Freezer Option Available

Product description

2 door chiller

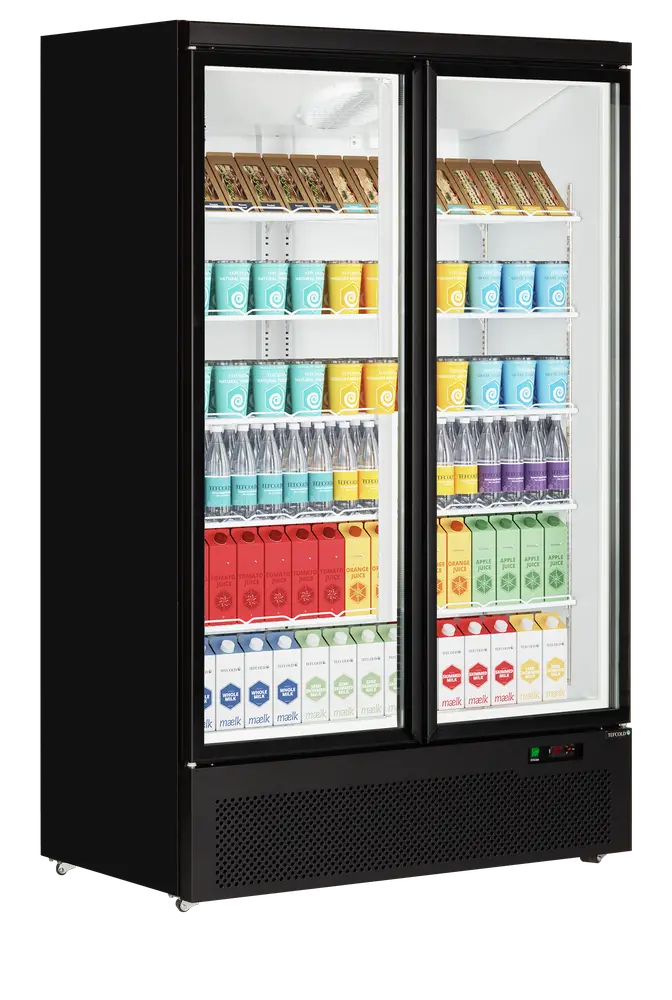

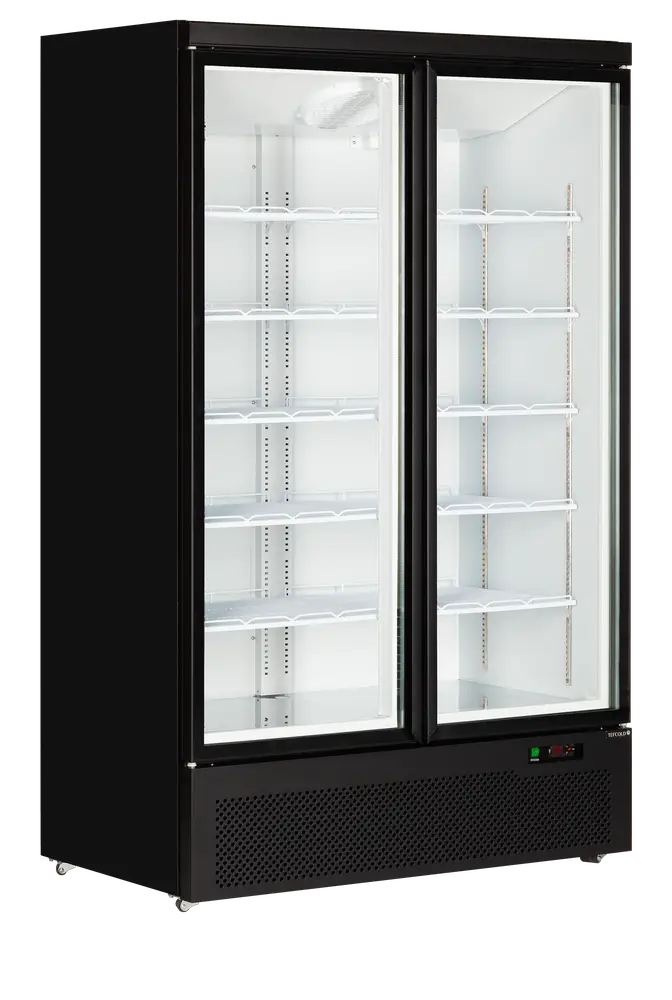

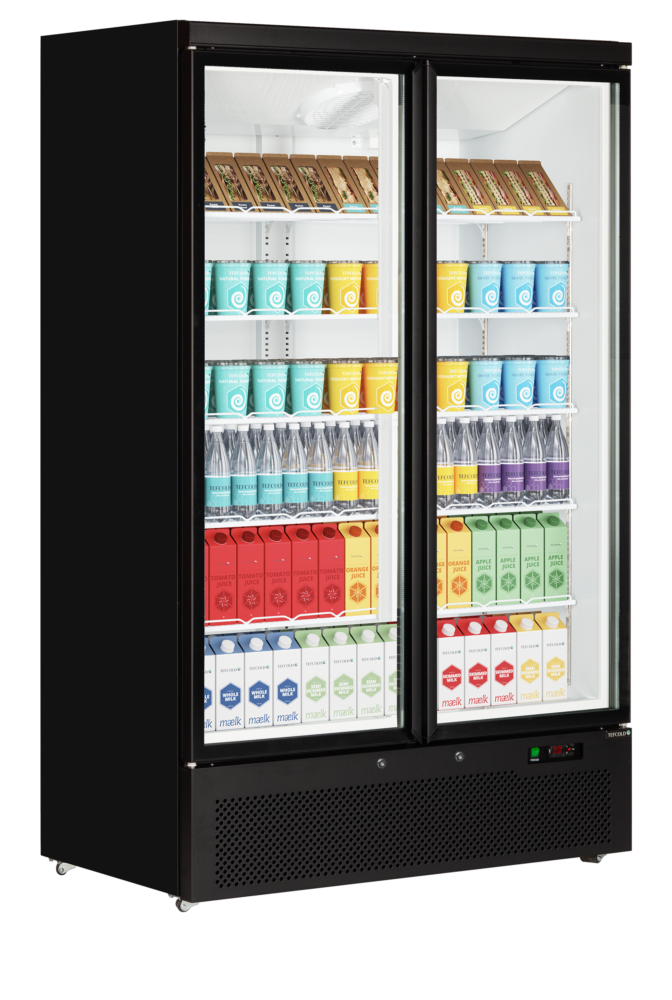

The Atom Maxi range of glass door chillers is available in 1, 2 or 3 door options. Edge to edge “frameless” self-closing glass doors together with excellent storage capacity make it ideal for all types of chilled food and drink displays. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a chilled food and drink selection enables extra choice. A white interior with vertical LED lighting helps present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce chilled produce to your customers. There is also a matching freezer option available.

Sale!
SPECIFICATION 51 facts · tap for all External W × D × H1253 x 710 x 2003 mmWidth1253 mmDepth710 mmGross / net weight197 / 179 kgGross weight197 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181733100site
Product code 49728site
Sub title Glass Door Merchandisercatalogue
Type Double Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 710 mmsite
External (W×D×H) 1253 × 710 × 2003 mmcatalogue
External W × D × H 1253 x 710 x 2003 mmsite
Gross / net weight 197 / 179 kgsite
Gross weight 197 kgcatalogue
Height 2003 mmsite
Internal (W×D×H) 1163 × 595 × 1568 mmcatalogue
Internal W × D × H 1163 x 595 x 1568 mmsite
Packed (W×D×H) 1278 × 760 × 2090 mmcatalogue
Packed W × D × H 1278 x 760 x 2090 mmsite
Width 1253 mmsite

Capacity7

330ml bottles 630 pcssite
330ml cans 1120 pcssite
500ml cans 672 pcssite
Display area 1.58 m²site
Doors 2catalogue
Gross volume 1081 litrescatalogue
Shelves 10catalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 110 gsite
Temperature range -1 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 1522 kWh/yearsite
Energy consumption 4.17 kWh/24hsite
Energy efficiency index 19.7 %site
Input power 460 Wsite
Noise level 62 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 4 castorssite
Exterior finish Black RAL9005site
Interior light LEDsite
Max load per shelf 135site
Reversible doors Nosite
Shelf dimensions 566 x 480 mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

The Atom Maxi C2DB is a double-door glass-door merchandiser fridge with a black RAL9005 cabinet and a white RAL9003 interior, built to sell chilled stock on sight. Two hinged glass doors front 1.58 m² of display, and ten adjustable shelves give you the flexibility to lay out cans, bottles, grab-and-go food or dairy however the fixture needs to work. Net usable capacity is 809 litres from 1081 litres gross.

The cabinet holds -1 to +10 °C using ventilated cooling for even temperature top to bottom, with automatic off-cycle defrost and an electronic controller running it hands-off. It is rated climate class 3 for normal shop-floor conditions and runs at 62 dB. On energy it is strong for its size — class B with an EEI of 19.7% — putting running cost at about £381 a year at 25p/kWh.

The external cabinet measures 1253 × 710 × 2003 mm (W×D×H) and packs to 1278 × 760 × 2090 mm, so check doorway width and delivery access against the 710 mm depth. It runs from a standard 13 A supply at 220-240 V/50 Hz, weighs 197 kg gross and 179 kg net, and cools on R290 refrigerant with a 110 g charge.

BEFORE YOU BUY

Questions, answered straight

At energy class B with an EEI of 19.7% and 1522 kWh a year, it works out at about £381 a year at 25p/kWh. That is strong for a cabinet of this size, though your figure will vary with tariff and door usage.

The external cabinet is 1253 × 710 × 2003 mm (W×D×H) and packs to 1278 × 760 × 2090 mm, so check both the 1253 mm width and the 710 mm depth against your access route before delivery.

Net usable capacity is 809 litres from 1081 litres gross, laid out across ten adjustable shelves so you can set spacing around your stock.

It runs from a standard 13 A supply at 220-240 V/50 Hz, so it does not need a dedicated high-amp circuit.

It holds -1 to +10 °C on ventilated cooling for even temperature top to bottom, with automatic off-cycle defrost, so there is no manual routine to run.

It runs on R290, a low-GWP hydrocarbon refrigerant, with a 110 g charge. For servicing or siting advice, call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1163 x 595 x 1568 mm
External Dimension (WxDxH): 1253 x 710 x 2003 mm
Packed Dimension (WxDxH): 1278 x 760 x 2090 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 4.17 kWh/24h
Temperature Range: -1 to +10 °C
Annual Energy Consumption: 1522 kWh/year m³
EEI: 19.7 %
Input Power: 460 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 62 dB(A)

Measures and Content

Cans 330 ml: 1120 pcs pcs
Cans 500 ml: 672 pcs pcs
Bottles 330 ml: 630 pcs pcs
Temperature Range: -1 to +10 °C
Climate Class: 3
Gross / Net Weight: 197 / 179 kg
Gross / Net Volume: 1081 / 809 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.58 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 566 x 480 mm
Max load on Shelves: 135 kg/m²
Castors: 4 castors
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD Atom Maxi C2DB Glass Door Merchandiser then please get in touch.
