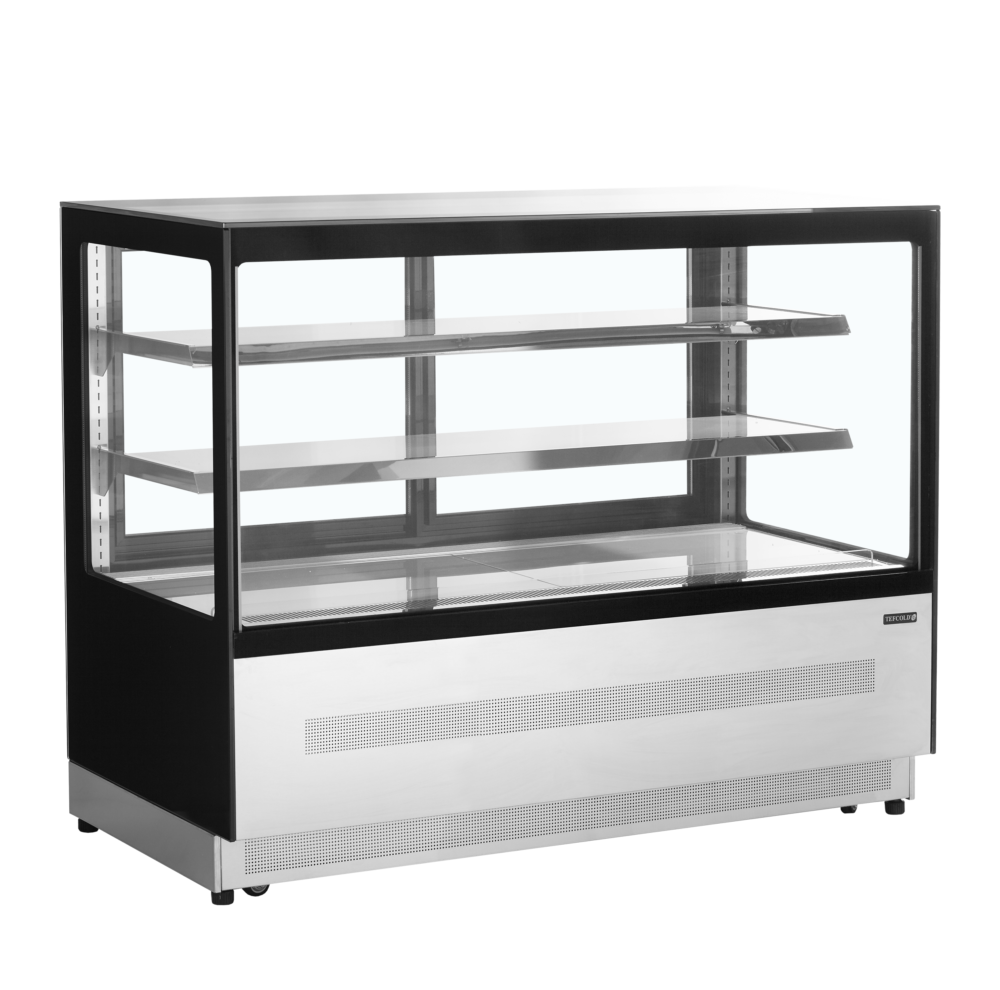

TEFCOLD LPD1500F Chilled Display Cabinet

£1,815.00

+vat

Brand:

SKU: 19314

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable feet and castors
  • Adjustable shelves
  • LED interior light with switch
  • Digital controller and temperature display
  • Individually illuminated glass shelves
  • Double glazed glass
  • Anti mist front glass
  • Glass rear sliding doors

Product description

A premium range of refrigerated flat glass displays ideal for cafés and coffee shops. Suitable for deli or cake display and available in 4 different sizes, units have LED lighting under each shelf to help give an excellent display. Sliding doors to the rear allow easy loading and serving while double glazed glass helps to reduce running costs. Cabinets comes fitted with castors for easy movement with adjustable feet at each corner for positioning and levelling if required. Finished in stainless steel and gloss black glass.

The TEFCOLD LPD1500F is a 1505 mm-wide floor-standing chilled display cabinet with a 2.26 m² display over two glass shelves plus base, a +2 to +8 °C range and sliding glass doors, running on R290 refrigerant with electronic control and automatic off-cycle defrost.

SPECIFICATION 47 facts · tap for all External W × D × H1505 x 745 x 1209 mmWidth1505 mmDepth745 mmGross / net weight301 / 245 kgGross weight301 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991333site
Product code 19314site
Sub title Chilled Display Cabinetcatalogue
Type Flat Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 745 mmsite
External (W×D×H) 1505 × 745 × 1209 mmcatalogue
External W × D × H 1505 x 745 x 1209 mmsite
Gross / net weight 301 / 245 kgsite
Gross weight 301 kgcatalogue
Height 1209 mmsite
Internal (W×D×H) 1440 × 510 × 670 mmcatalogue
Internal W × D × H 1440 x 510 x 670 mmsite
Packed (W×D×H) 1560 × 800 × 1320 mmcatalogue
Packed W × D × H 1560 x 800 x 1320 mmsite
Width 1505 mmsite

Capacity3

Display area 2.26 m²site
Gross volume 480 litrescatalogue
Shelves 2catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 140 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 4723 kWh/yearsite
Energy consumption 12.94 kWh/24hsite
Energy efficiency index 36 %site
Input power 685 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Castors 4 castorssite
Exterior finish Stainless steel / Glasssite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 33.7site
Reversible doors Nosite
Shelf dimensions 135×33 / 135×33 / 135×44site

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this flat glass cake display fridge earns its place

The LPD1500F is a floor-standing chilled display cabinet built to merchandise a full cake and patisserie range. Two glass shelves plus the base give a 2.26 m² display area behind sliding glass doors, in a stainless steel and glass finish, so a large chilled selection stays covered and on show along a service counter.

It holds +2 to +8 °C under an electronic controller, with automatic off-cycle defrost keeping the routine hands-off, and carries a climate class 3 rating for normal indoor conditions. At 4723.1 kWh a year (energy class D) it works out at about £1,181 a year at 25p/kWh, before your own tariff is applied.

The cabinet measures 1505 × 745 × 1209 mm (W×D×H) externally with 1440 × 510 × 670 mm of internal space, giving a gross 480 litres and net 244 litres. It weighs 245 kg net and ships packed at 1560 × 800 × 1320 mm, so check the packed width against your delivery route. It runs from a standard 13 A supply at 220-240 V/50 Hz, draws 685 W and uses R290 refrigerant with a 140 g charge.

BEFORE YOU BUY

Questions, answered straight

It is rated at 4723.1 kWh a year in energy class D. At 25p/kWh that is about £1,181 a year, before your own tariff is applied.

It runs at +2 to +8 °C under an electronic controller, with automatic off-cycle defrost so there is no manual routine to manage.

It offers a 2.26 m² display area over two glass shelves plus the base, for a gross 480 litres and net 244 litres of chilled space.

It measures 1505 × 745 × 1209 mm (W×D×H) and ships packed at 1560 × 800 × 1320 mm. Check the packed width against doorways on the delivery path.

No. It runs from a standard 13 A supply at 220-240 V/50 Hz and draws 685 W, using R290 refrigerant with a 140 g charge.

Yes. Craven Cooling can arrange servicing and support once the cabinet is installed — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1440 x 510 x 670 mm
External Dimension (WxDxH): 1505 x 745 x 1209 mm
Packed Dimension (WxDxH): 1560 x 800 x 1320 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 140 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 12.94 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 4723 kWh/year m³
EEI: 36 %
Input Power: 685 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 3
Gross / Net Weight: 301 / 245 kg
Gross / Net Volume: 480 / 244 l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.26 m² m²

Design and Material

Door Reversible: No
Shelf Dimensions: 135×33 / 135×33 / 135×44
Max load on Shelves: 33.7 kg/m²
Feet / Legs: 4 adjustable feet
Castors: 4 castors
Exterior Finish: Stainless steel / Glass
Interior Finish: Stainless steel / Glass
Interior Light: LED
If you have any questions about the TEFCOLD LPD1500F Chilled Display Cabinet then please get in touch.
