TEFCOLD UPD80 Refrigerated Glass Display

£408.00

+vat

- +

Brand:

SKU: 20061

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch

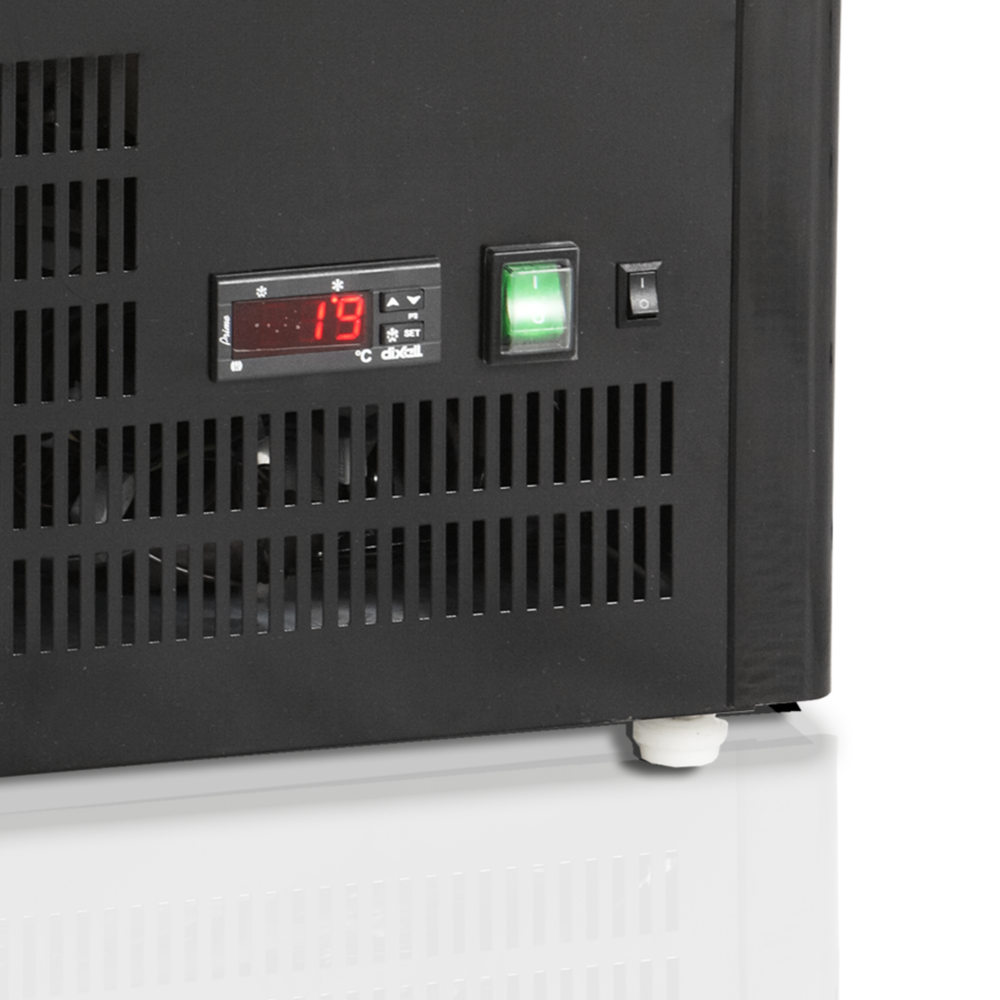

  • Digital controller and temperature display
  • Replaceable door gasket
  • Double glazed glass
  • Black interior for enhanced product display

Product description

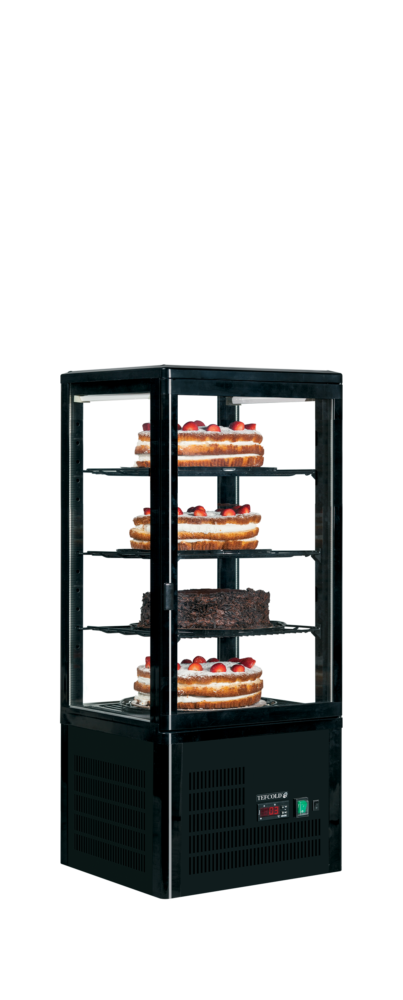

A great little counter top cooler available in 2 heights. Its sleek black finish looks great in cafés and restaurants, where this unit is excellent for display of cakes and desserts. LED lights help to display the produce while fan assisted cooling ensures even temperature over the whole cabinet.

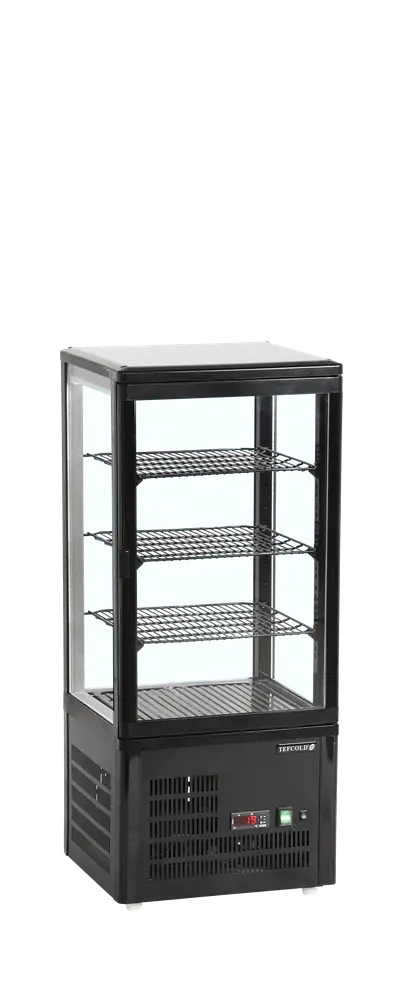

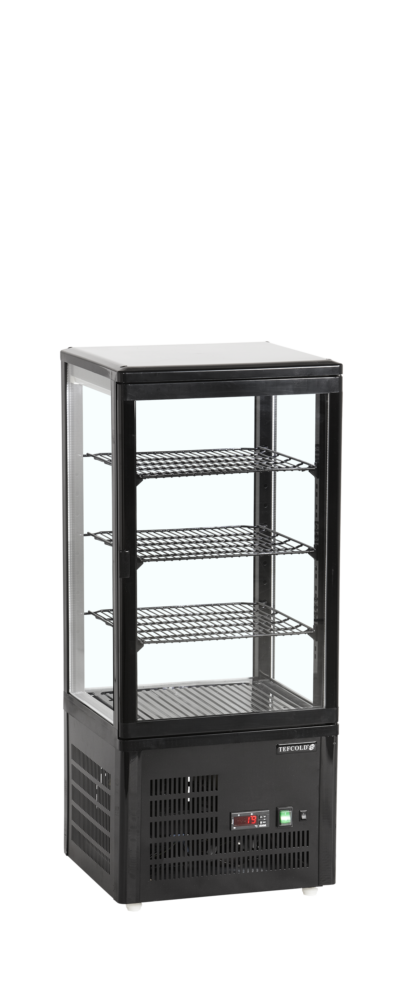

The Tefcold UPD80 is a countertop cake display fridge holding 78 litres net over three shelves behind a hinged glass door, running at +2 to +12 °C on R600a refrigerant, in a compact 428 mm-wide cabinet for counter-top merchandising.

SPECIFICATION 45 facts · tap for all External W × D × H428 x 386 x 1000 mmWidth428 mmDepth386 mmGross / net weight46 / 41 kgGross weight46 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181355845site
Product code 20061site
Sub title Refrigerated Glass Displaycatalogue
Type Countertop Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 386 mmsite
External (W×D×H) 428 × 386 × 1000 mmcatalogue
External W × D × H 428 x 386 x 1000 mmsite
Gross / net weight 46 / 41 kgsite
Gross weight 46 kgcatalogue
Height 1000 mmsite
Internal (W×D×H) 400 × 358 × 610 mmcatalogue
Internal W × D × H 400 x 358 x 610 mmsite
Packed (W×D×H) 500 × 450 × 1045 mmcatalogue
Packed W × D × H 500 x 450 x 1045 mmsite
Width 428 mmsite

Capacity4

Display area 0.76 m²site
Doors 1catalogue
Gross volume 80 litrescatalogue
Shelves 3catalogue

Performance9

Climate class 4site
Controller Electronicsite
Defrost type Automatic / Off Cyclesite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 40 gsite
Temperature range +2 to +12site
Thermometer Yessite

Power & energy6

Annual energy consumption 1369 kWh/yearsite
Energy consumption 3.75 kWh/24hsite
Energy efficiency index 25.9 %site
Input power 184 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Black finish, ABSsite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Reversible doors Nosite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this countertop cake display fridge earns its place

The Tefcold UPD80 is a countertop cake display fridge for merchandising patisserie, gateaux and chilled treats at the point of sale. Behind its single hinged glass door sit three black wire shelves and 80 litres gross / 78 litres net of display space, presented across a 0.76 m² display area. The black ABS finish, inside and out, keeps the emphasis on what is on the shelves.

It runs at +2 to +12 °C, a working band wide enough to suit cakes, desserts and other chilled display lines, and an electronic controller holds the setting. Defrost is automatic on the off cycle, so there is no manual routine to run. At 42 dB it is quiet enough for a serving counter, and at energy class C and 1368.8 kWh a year it costs about £342 a year at 25p/kWh.

The cabinet measures 428 × 386 × 1000 mm (W×D×H) with 400 × 358 × 610 mm of internal space, and weighs 46 kg, so it sits on a counter without dominating it. It runs from a standard 13 amp supply on 220-240 V, draws 184 W, and uses R600a refrigerant with a 40 g charge. Its compact width makes it straightforward to position on most back-counters.

BEFORE YOU BUY

Questions, answered straight

It offers 80 litres gross and 78 litres net across three black wire shelves and a 0.76 m² display area, behind a single hinged glass door.

It runs at +2 to +12 °C, suited to cakes and chilled desserts, with an electronic controller and automatic off-cycle defrost.

The cabinet is 428 × 386 × 1000 mm (W×D×H) and weighs 46 kg, giving 400 × 358 × 610 mm of internal display space.

At energy class C and 1368.8 kWh a year, it works out at about £342 a year at 25p/kWh, depending on your tariff and ambient conditions.

No. It runs from a standard 13 amp socket on 220-240 V and draws 184 W.

Running noise is 42 dB, quiet enough for a serving counter. For servicing questions call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 400 x 358 x 610 mm
External Dimension (WxDxH): 428 x 386 x 1000 mm
Packed Dimension (WxDxH): 500 x 450 x 1045 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic / Off Cycle
Refrigerant: R600a
Refrigerant Charge: 40 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.75 kWh/24h
Temperature Range: +2 to +12 °C
Annual Energy Consumption: 1369 kWh/year m³
EEI: 25.9 %
Input Power: 184 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: +2 to +12 °C
Climate Class: 4
Gross / Net Weight: 46 / 41 kg
Gross / Net Volume: 80 / 78 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.76 m² m²

Design and Material

Door Reversible: No
Shelf Color: Black
Feet / Legs: 4 adjustable feet
Exterior Finish: Black finish, ABS
Interior Finish: Black finish, ABS
Interior Light: LED
If you have any questions about the TEFCOLD UPD80 Refrigerated Glass Display then please get in touch.
