Serrco by TEFCOLD SGD-360E High-end Backbar Cooler

£2,369.00

+vat

Product summary

  • Suitable for bottles and KEGS
  • Low energy consumption
  • Adjustable plate shelves
  • Adjustable legs
  • Skinplate exterior/interior
  • Digital controller and temperature display
  • LED interior light (when door is open)
  • Automatic defrost
  • Easy maintenance condenser

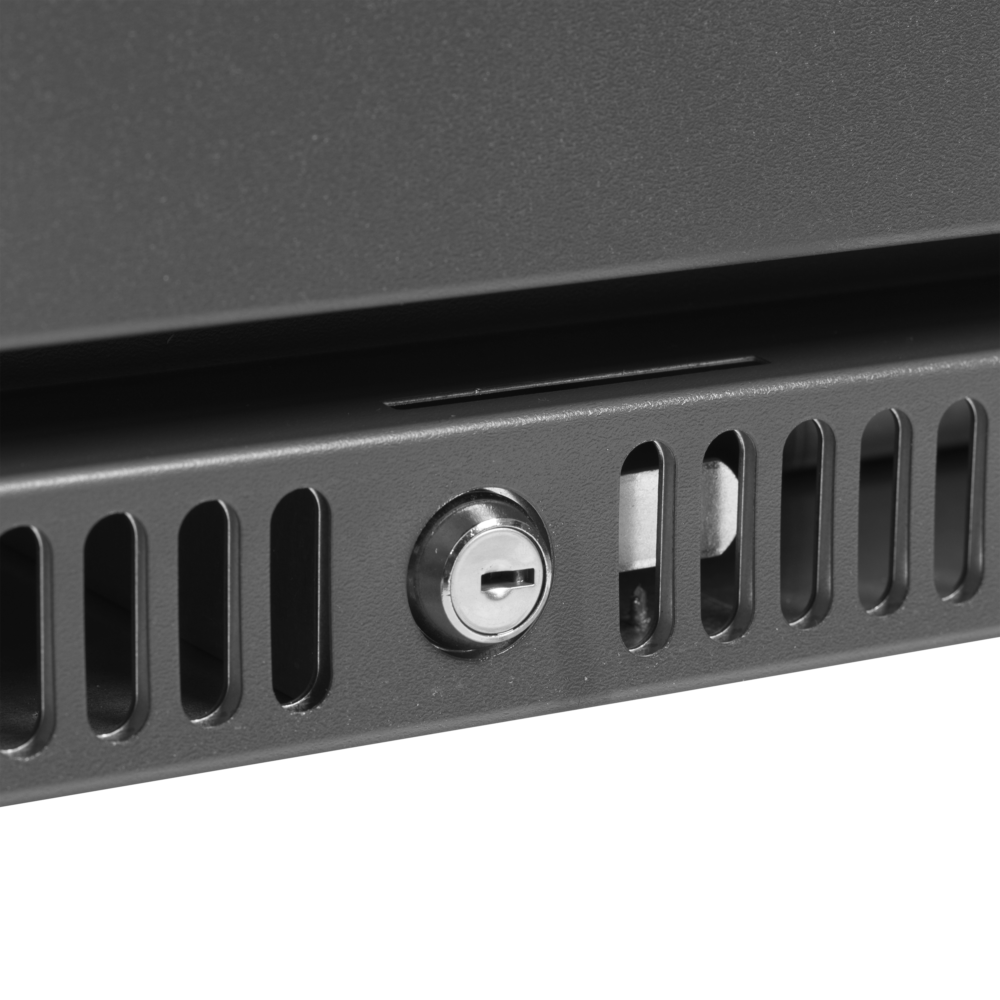

  • Lock

Product description

Multi-purpose bottle cooler/keg cooler

The SGD range of bottle coolers/keg coolers combines durability, versatility and style. Designed for storing bottles or 20L/30L kegs, it features energy-efficient cooling, adjustable shelves, as well as a scratch-resistant anthracite finish. Choose between solid doors or glass doors to suit your needs. Perfect for hospitality environments, the SGD delivers reliable performance and a sleek, modern look.

The Serrco by TEFCOLD SGD-360E is a three solid-door back-bar cooler holding 401 litres net at +2 to +10 °C, cooled by ventilated R290 with automatic defrost and an electronic controller, drawing 855 kWh a year (about £214 at 25p/kWh).

SPECIFICATION 48 facts · tap for all External W × D × H1670 x 600 x 840 mmWidth1670 mmDepth600 mmGross / net weight151 / 135 kgGross weight151 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Serrco by TEFCOLDsite
GTIN / EAN 5708181755553site
Product code 69084site
Sub title High-end Backbar Coolercatalogue
Type Triple Door Bar Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 600 mmsite
External (W×D×H) 1670 × 600 × 840 mmcatalogue
External W × D × H 1670 x 600 x 840 mmsite
Gross / net weight 151 / 135 kgsite
Gross weight 151 kgcatalogue
Height 840 mmsite
Internal (W×D×H) 1605 × 425 × 682 mmcatalogue
Internal W × D × H 1605 x 425 x 682 mmsite
Packed (W×D×H) 1705 × 640 × 975 mmcatalogue
Packed W × D × H 1705 x 640 x 975 mmsite
Width 1670 mmsite

Capacity6

330ml bottles 365 pcssite
330ml cans 603 pcssite
500ml cans 372 pcssite
Doors 3catalogue
Gross volume 434 litrescatalogue
Shelves 6catalogue

Performance8

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Refrigerant charge 85 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 855 kWh/yearsite
Energy consumption 2.34 kWh/24hsite
Energy efficiency index 49.4 %site
Input power 280 Wsite
Noise level 47 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Bottom shelf 1605 x 220site
Exterior finish Anthracite RAL 7021site
Feet / legs Adjustable Feetsite
Interior light LEDsite
Max load per shelf 165site
Reversible doors Nosite
Shelf dimensions 510 x 355 mm & 546 x 355 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this triple door bar fridge earns its place

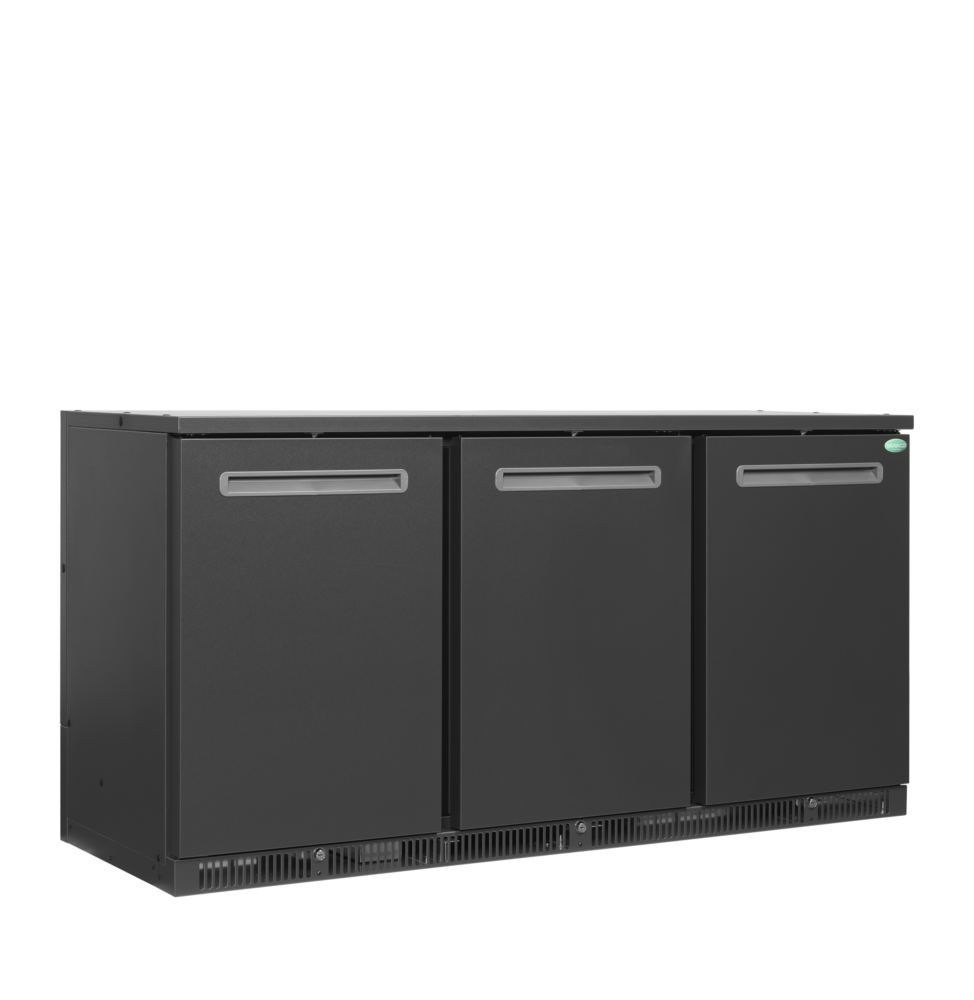

The Serrco by TEFCOLD SGD-360E is a three-door back-bar cooler built to keep bottled drinks and mixers cold within arm's reach of the service point. Three hinged solid doors front an anthracite RAL 7021 cabinet with a silver interior, giving 434 litres gross and 401 litres net of chilled storage behind the bar.

Cooling is ventilated for even temperature across the loaded cabinet, holding +2 to +10 °C under electronic control with automatic defrost, so there is no manual routine to manage. It runs on R290 hydrocarbon refrigerant with an 85 g charge, and at 47 dB it stays quiet enough for a front-of-house position.

The cabinet measures 1605 × 425 × 682 mm internally and ships packed at 1705 × 640 × 975 mm, so check delivery access before it arrives at 151 kg gross. It runs from a standard 220-240 V / 50 Hz supply drawing 280 W, and uses 855 kWh a year — about £214 at 25p/kWh, energy class D.

BEFORE YOU BUY

Questions, answered straight

It runs +2 to +10 °C using ventilated cooling and an electronic controller, with automatic defrost so there is no manual routine. That band suits bottled drinks and mixers.

Three hinged solid doors. It is built as a chilled storage cabinet behind the bar rather than a glass-fronted display.

It draws 855 kWh a year — about £214 at 25p/kWh — and carries energy class D with an EEI of 49.4%.

R290 hydrocarbon refrigerant with an 85 g charge, run through a ventilated cooling system.

It ships packed at 1705 × 640 × 975 mm and the cabinet is 1605 × 425 × 682 mm internally, so measure your access route before delivery. It weighs 151 kg gross.

Craven Cooling can arrange servicing and support — call the team on 01792 732702. It runs from a standard 220-240 V / 50 Hz supply drawing 280 W.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1605 x 425 x 682 mm
External Dimension (WxDxH): 1670 x 600 x 840 mm
Packed Dimension (WxDxH): 1705 x 640 x 975 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.34 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 855 kWh/year m³
EEI: 49.4 %
Input Power: 280 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 47 dB(A)

Measures and Content

Cans 330 ml: 603 pcs pcs
Cans 500 ml: 372 pcs pcs
Bottles 330 ml: 365 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 151 / 135 kg
Gross / Net Volume: 434 / 401 l

Design and Material

Door Reversible: No
Shelf Color: Silver
Shelf Dimensions: 510 x 355 mm & 546 x 355 mm
Max load on Shelves: 165 kg/m²
Bottom Shelf Dimensions: 1605 x 220
Feet / Legs: Adjustable Feet
Exterior Finish: Anthracite RAL 7021
Interior Finish: Anthracite RAL 7021
Interior Light: LED
Lock: Yes
If you have any questions about the Serrco by TEFCOLD SGD-360E High-end Backbar Cooler then please get in touch.
