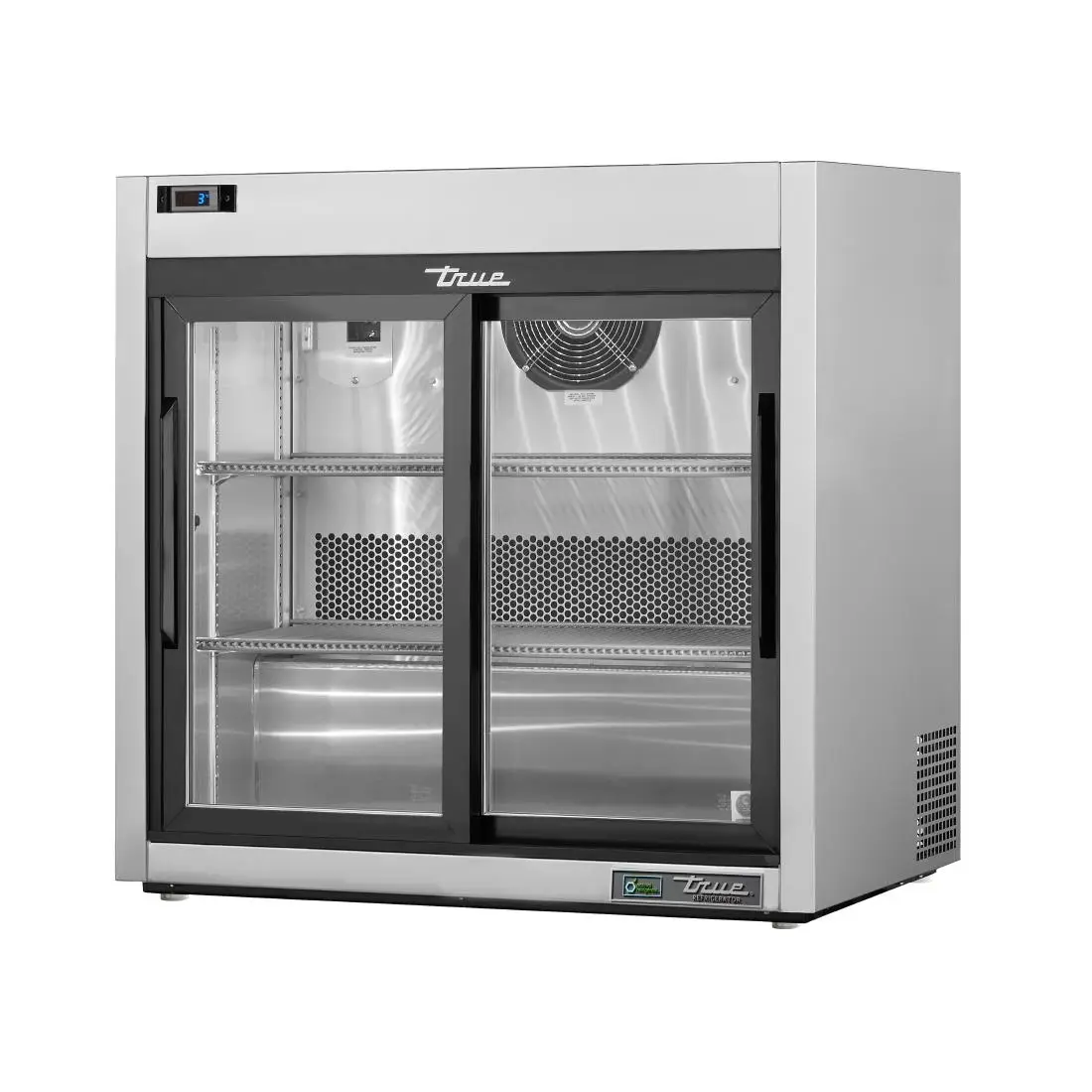

True Sliding Door Display Fridge TSD-09G-HC-LD FB012

£2,382.23

+vat

Availability: 999 in stock

Brand:

SKU: FB012

Product summary

Capacity: 110Ltr. R290

Product description

True¿s glass door reach-in’s are designed with enduring quality that protects your long term investment. Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today¿s food service marketplace.

Industry-leading comprehensive 7 Year Parts & Labour Warranty
Slide door design, ideal for where space is at a premium.
True “Low-E”, double pane thermal insulated glass, for improved energy efficiency.
Extra bright True LED interior lighting for bright and even illumination of your product display.
Entire cabinet structure is foamed-in place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Adjustable, heavy duty PVC coated shelves.
Self closing door.

Unit can be wall-mounted (kit sold separate)
Environmentally friendly and energy efficient R290 hydrocarbon refrigeration system.
Refrigeration system maintains cabinet temperatures 0.5°C to 3.3°C, ideal for packaged food merchandising and rapid cooling of beverages.

The True TSD-09G-HC-LD is a 110-litre sliding-door commercial display fridge running on R290 refrigerant, built to merchandise chilled bottles, cans and grab-and-go stock behind a bar or on the shop floor where customers can see it.

Downloads

SPECIFICATION 34 facts · tap for all Width913 mmDepth532 mmHeight893 mmGross weight127 kgVoltage230VTemperature range+0.5 to +3.3 °C

Identity6

Brand Truesite
Model ref TSD-09G-HC-LDcatalogue
Product code FB012site
Seo name True Sliding Door Display Fridge TSD 09G HC LDcatalogue
Type Display Fridgescatalogue
Warranty 7 Years Parts & Labourcatalogue

Size & weight6

Depth 532 mmcatalogue
External (W×D×H) 893 × 913 × 532 mmcatalogue
Gross weight 127 kgcatalogue
Height 893 mmcatalogue
Internal (W×D×H) 720(H) x 345(D)mmcatalogue
Width 913 mmsite

Capacity5

Capacity 110Ltrcatalogue
Doors 2catalogue
Net volume 140 litrescatalogue
Product capacity 110catalogue
Shelves 3catalogue

Performance3

Cooling Forced Aircatalogue
Refrigerant R290 / GWP 3catalogue
Temperature range +0.5 to +3.3 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 345 Wcatalogue
Voltage 230Vcatalogue

Build & fittings4

Colour Silvercatalogue
Doorocation Frontcatalogue
Insulation 43 mmcatalogue
Material Stainless Steelcatalogue

Other stated facts7

EEI 12.5 %catalogue
Energy (24h) 1.757 kWh/24hcatalogue
Energy class Bcatalogue
Energy consumption 641 kWh/yearcatalogue
Mobility Feetcatalogue
Plug notice Yescatalogue
Suitable for FOH/BOHcatalogue
THE WORKING VIEW

Why this display fridge earns its place

The True TSD-09G-HC-LD is a sliding-door commercial display fridge built to merchandise chilled stock where customers and staff can see it. Behind its sliding glass front it holds 110 litres of bottled drinks, cans and packaged grab-and-go lines, turning cold stock into a visible, self-selecting display. It suits back-bar and shop-floor positions where a hinged door would foul gangways or service runs, and where product visibility drives the sale as much as storage does. Built in stainless steel with a 43mm insulation envelope, it holds a professional appearance and a steady chill across three shelves, each ready for a working stock line.

The cabinet runs on R290, a natural hydrocarbon refrigerant with a very low global warming potential, so its refrigeration circuit meets current environmental expectations without a high-GWP gas charge. It holds product at a steady chilled display temperature ready for service (0.5 to 3.3°C), and the sealed glass doors keep the cold in while still giving customers a clear view of what is inside. At 641 kWh per year (energy class B), enter the figures into our energy label decoder to work out your tariff cost — a meaningful figure in a high-traffic setting where the cabinet runs 24/7.

Plan the install around the sliding doors: because the panels slide on runners rather than swinging out, the cabinet needs no door-swing clearance in front, which helps in tight bar backs and narrow retail aisles. At 893mm wide and 532mm deep, it tucks into compact spaces without demanding a footprint. The stainless-steel exterior and True's 7-year parts-and-labour warranty mean it is built to outlast shorter-term installations. Measure your access route and final position against the delivered dimensions before it arrives (127kg at delivery), and confirm the electrical supply. The 110-litre capacity and R290 charge make it a self-contained display unit ready to drop into place.

BEFORE YOU BUY

Questions, answered straight

It offers 110 litres of chilled display capacity behind its sliding doors. That covers a working bottle, can and grab-and-go range for a bar back or shop-floor position.

It runs on R290, a natural hydrocarbon refrigerant with very low global warming potential. That keeps the cabinet aligned with current environmental standards without a high-GWP gas charge.

No. The doors slide on runners rather than swinging outward, so you do not need to leave door-swing space in front. That makes it easier to place in tight bar backs and narrow aisles.

The precise operating band is listed in the spec table on this page rather than the description. As a glass-door display fridge it is built to hold bottled and packaged chilled stock at serving temperature; confirm the exact range against your product before ordering.

Yes. Craven Cooling supports the cabinets we supply, and our service team can advise on maintenance or faults on 01792 732702. Have the model number, TSD-09G-HC-LD, to hand when you call.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

True Sliding Door Display Fridge TSD-09G-HC-LD FB012 Product Data

Brand True
Type Display Fridges
Dimensions 893(H) x 913(W) x 532(D)mm
Capacity 110Ltr
Material Stainless Steel
Colour / Finish Silver
Temperature Range 0.5°C to 3.3°C
Refrigerant R290 / GWP 3
Cooling Forced Air
Number of Doors 2
Number of Shelves 3
Energy Rating B
Annual Energy Use 641kWh/annum
Power 345W
Voltage 230V
Fuel / Supply Plug
Suitable For FOH/BOH
Warranty 7 Years Parts & Labour
Weight 127kg
Manufacturer Ref TSD-09G-HC-LD
If you have any questions about the True Sliding Door Display Fridge TSD-09G-HC-LD FB012 then please get in touch.
