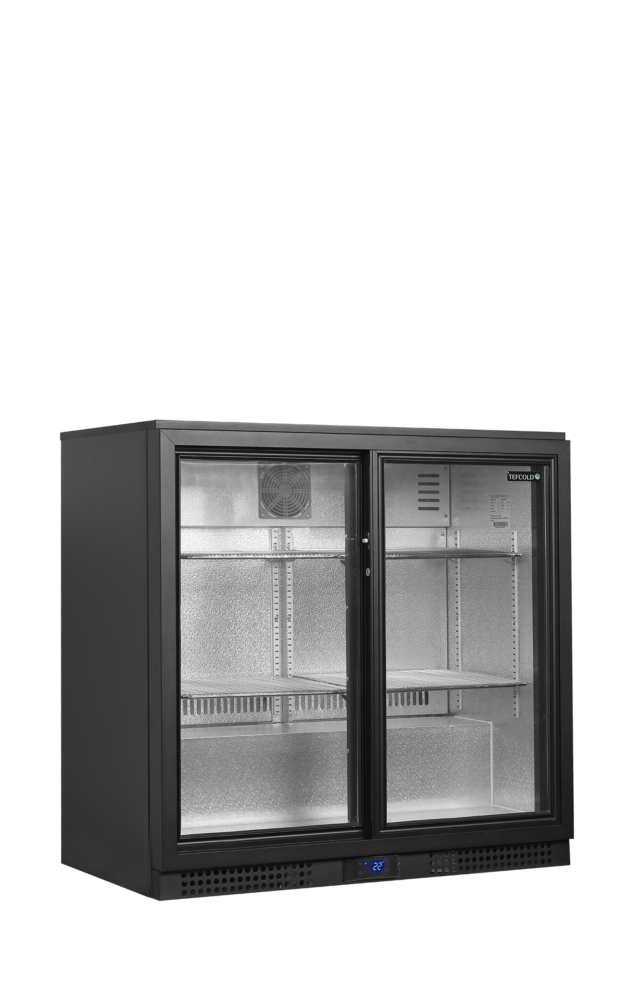

TEFCOLD BA21S Back Bar Cooler

£917.00 £581.00

+vat

Brand:

SKU: 46180

Energy Arrow

Product summary

  • EU Energy Class A
  • Approx. 59% more energy efficient than previous BA-range
  • Double glazed tempered glass
  • Reversible glass door
  • Ventilated cooling for fast pull-down and even temperature
  • Easy access electronic thermostat
  • Adjustable shelves
  • LED interior light
  • Lock

Product description

High-quality sliding door backbar with low energy consumption

Meet the BA range of premium backbars. These have been updated and now use significantly less energy compared to the previous models from the same range. These backbars have ventilated cooling for a short pull-down time to ensure that you can keep up with customer demand for cold beverages. If you need to adjust the temperature this is easily done on the electronic thermostat.

The TEFCOLD BA21S is a black double sliding-door back bar cooler that keeps bottled drinks chilled and on display behind the bar, holding 188 litres at +2 to +10 °C for about £104 a year to run on energy class A.

Sale!
SPECIFICATION 48 facts · tap for all External W × D × H900 x 533 x 900 mmDepth533 mmGross / net weight70 / 64 kgGross weight70 kgVoltage / frequency220-240/50 V/HzInput power115 W

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181739843site
Product code 46180site
Sub title Back Bar Coolercatalogue
Type Double Door Bar Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 533 mmsite
External (W×D×H) 900 × 533 × 900 mmcatalogue
External W × D × H 900 x 533 x 900 mmsite
Gross / net weight 70 / 64 kgsite
Gross weight 70 kgcatalogue
Internal (W×D×H) 810 × 418 × 734 mmcatalogue
Internal W × D × H 810 x 418 x 734 mmsite
Packed (W×D×H) 985 × 575 × 970 mmcatalogue
Packed W × D × H 985 x 575 x 970 mmsite
Width 900 mmsite

Capacity6

330ml bottles 143 pcssite
330ml cans 276 pcssite
500ml cans 168 pcssite
Display area 0.54 m²site
Doors 2catalogue
Gross volume 196 litrescatalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 70 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 416 kWh/yearsite
Energy consumption 1.14 kWh/24hsite
Energy efficiency index 9 %site
Input power 115 Wsite
Noise level 44 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Exterior finish Blacksite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Reversible doors Nosite
Shelf dimensions 395×328 mmsite

Other stated facts1

Energy class Acatalogue
THE WORKING VIEW

Why this double door bar fridge earns its place

The BA21S is a double door back bar cooler with two sliding glass doors, a black exterior and a stucco aluminium interior. It gives 0.54 m² of display area across a 188-litre net capacity (196 litres gross), so bottled stock stays visible to the customer while staff pull from either door. Sliding doors mean nothing swings out into the service lane behind the bar.

In service it holds +2 to +10 °C using ventilated cooling, with automatic defrost and an electronic controller. It runs at 44 dB(A) and carries climate class 4, so it is rated for warm, busy bar environments. Energy class is A at 416 kWh a year — about £104 a year at 25p/kWh, which is low for a double door cabinet.

The external footprint is 900 mm wide, 515 mm deep and 900 mm high, sized to sit in the back bar line. It runs from a 220–240 V 50 Hz supply on a standard 13 A plug, drawing 115 W. The refrigerant is R600a with a 70 g charge. It weighs 64 kg net (70 kg gross) and arrives packed at 985 × 575 × 970 mm.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 900 mm high, 900 mm wide and 515 mm deep. Measure the height and depth of the space under your counter against those figures before ordering.

The BA21S has two sliding glass doors, so nothing swings open into the space behind the bar — staff can pull bottles from either side even in a tight service lane.

Rated consumption is 416 kWh a year at energy class A. That is about £104 a year at 25p/kWh.

It runs at 44 dB(A), and its climate class 4 rating means it is built for warm, busy front-of-house conditions rather than a cold store room.

A standard 220–240 V 50 Hz socket on a 13 A plug. Input power is 115 W, so no dedicated circuit or hard wiring is required.

Craven Cooling services what it sells, with engineers familiar with the TEFCOLD back bar range. Call 01792 732702 to book a service or repair.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 810 x 418 x 734 mm
External Dimension (WxDxH): 900 x 533 x 900 mm
Packed Dimension (WxDxH): 985 x 575 x 970 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 70 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.14 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 416 kWh/year m³
EEI: 9 %
Input Power: 115 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 44 dB(A)

Measures and Content

Cans 330 ml: 276 pcs pcs
Cans 500 ml: 168 pcs pcs
Bottles 330 ml: 143 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 70 / 64 kg
Gross / Net Volume: 196 / 188 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.54 m² m²

Design and Material

Door Reversible: No
Shelf Color: Chrome
Shelf Dimensions: 395×328 mm
Feet / Legs: 4 adjustable feet
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD BA21S Back Bar Cooler then please get in touch.
