TEFCOLD BA21H Back Bar Cooler

£892.00 £581.00

+vat

Brand:

SKU: 46181

Energy Arrow

Product summary

  • EU Energy Class A
  • Approx. 59% more energy efficient than previous BA-range
  • Double glazed tempered glass
  • Reversible glass door
  • Ventilated cooling for fast pull-down and even temperature
  • Easy access electronic thermostat
  • Adjustable shelves
  • LED interior light
  • Lock

Product description

High-quality hinged door backbar with low energy consumption

Enhance efficiency in your establishment with the BA21H Backbar Cooler. With EU Energy Class A, it excels by 59% in energy efficiency, ensuring savings without compromising performance. Featuring double-glazed glass, hinged doors, and a ventilated cooling system for freshness preservation, this cooler offers convenience, visibility, and security with adjustable shelves and LED lighting. Built for busy establishments, it provides energy-saving benefits and precise temperature control to meet your operational demands effectively.

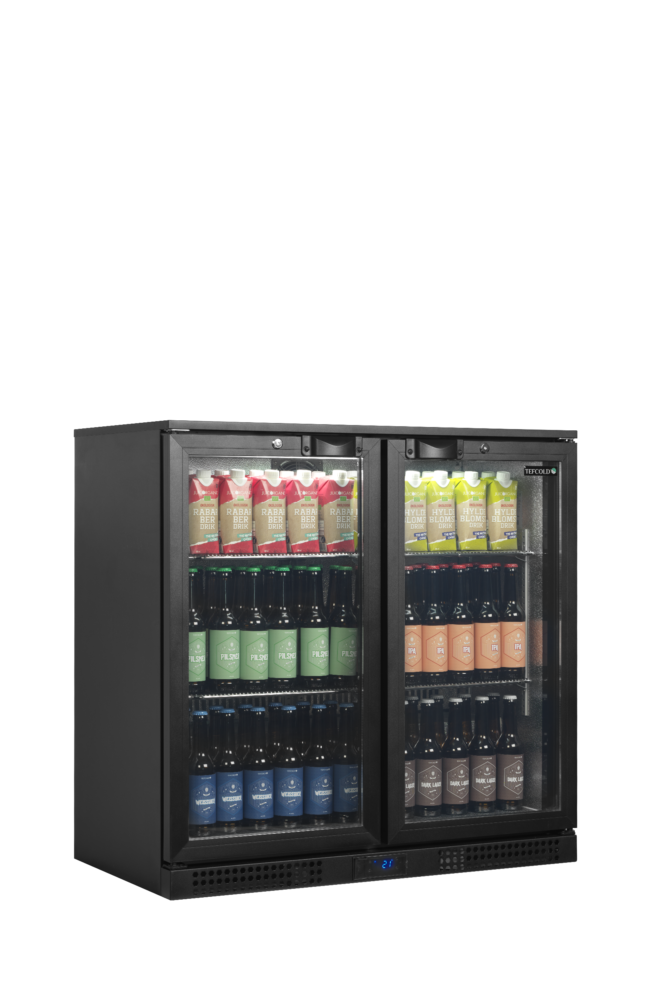

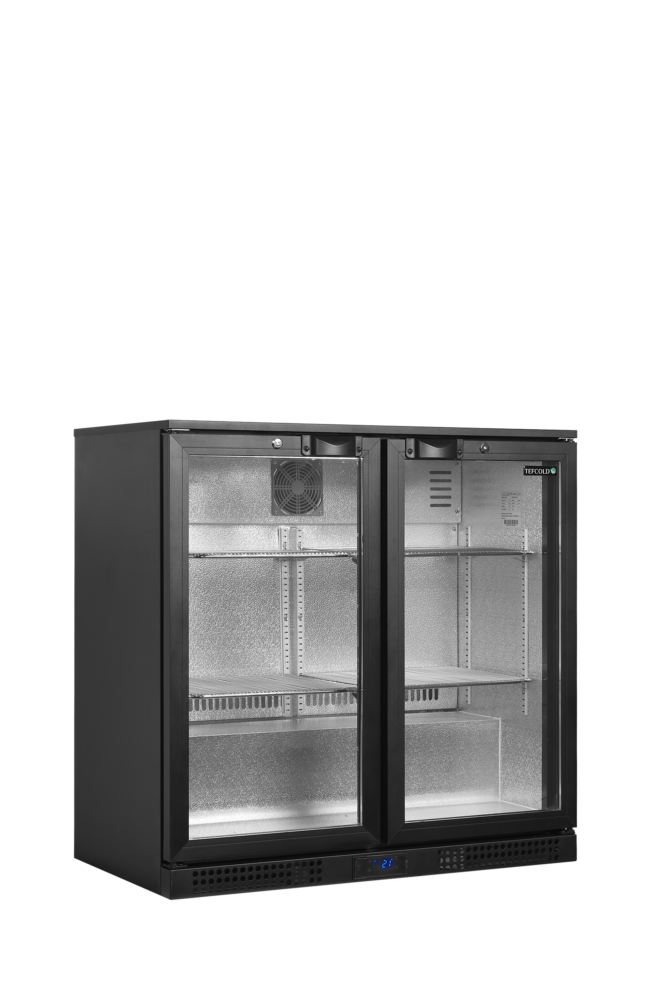

The TEFCOLD BA21H is a 900 mm-wide double-door back bar cooler holding +2 to +10 °C behind two hinged glass doors, with 196 litres gross over four chrome wire shelves, fan-assisted ventilated cooling, R600a refrigerant and a class A energy rating.

Sale!
SPECIFICATION 48 facts · tap for all External W × D × H900 x 545 x 900 mmDepth545 mmGross / net weight70 / 64 kgGross weight70 kgVoltage / frequency220-240/50 V/HzInput power115 W

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181739836site
Product code 46181site
Sub title Back Bar Coolercatalogue
Type Double Door Bar Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 545 mmsite
External (W×D×H) 900 × 545 × 900 mmcatalogue
External W × D × H 900 x 545 x 900 mmsite
Gross / net weight 70 / 64 kgsite
Gross weight 70 kgcatalogue
Internal (W×D×H) 810 × 418 × 734 mmcatalogue
Internal W × D × H 810 x 418 x 734 mmsite
Packed (W×D×H) 985 × 575 × 970 mmcatalogue
Packed W × D × H 985 x 575 x 970 mmsite
Width 900 mmsite

Capacity6

330ml bottles 143 pcssite
330ml cans 276 pcssite
500ml cans 168 pcssite
Display area 0.52 m²site
Doors 2catalogue
Gross volume 196 litrescatalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 70 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 394 kWh/yearsite
Energy consumption 1.08 kWh/24hsite
Energy efficiency index 9 %site
Input power 115 Wsite
Noise level 44 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Exterior finish Blacksite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Reversible doors Nosite
Shelf dimensions 395×328 mmsite

Other stated facts1

Energy class Acatalogue
THE WORKING VIEW

Why this double door bar fridge earns its place

The BA21H is a compact double-door back bar cooler built to chill and display bottles and cans within arm's reach of the till. Two hinged glass doors front a black cabinet with a stucco aluminium interior, holding a 196-litre gross volume (188 litres net) across four chrome wire shelves at 0.52 m² of display.

It holds a +2 to +10 °C band using fan-assisted ventilated cooling under an electronic controller with automatic defrost, keeping drinks cold and evenly chilled through service. It carries a class A energy rating at 394 kWh a year — about £99 a year at 25p/kWh — runs quietly at 44 dB(A) and is rated to climate class 4.

It measures 900 × 515 × 900 mm (W×D×H) — a back-bar height that slots under most counter runs — and ships packed at 985 × 575 × 970 mm at 70 kg gross (64 kg net). It runs on a standard 220–240 V, 13 A supply drawing 115 W, and uses 70 g of R600a refrigerant.

BEFORE YOU BUY

Questions, answered straight

It measures 900 × 515 × 900 mm (W×D×H) and ships packed at 985 × 575 × 970 mm. Check your counter recess against those figures before delivery; it weighs 70 kg gross.

It runs a +2 to +10 °C band using fan-assisted ventilated cooling under an electronic controller with automatic defrost, keeping bottles and cans evenly chilled through service.

Rated energy class A at 394 kWh a year, it works out at about £99 a year at 25p/kWh. Your actual figure depends on your tariff, ambient conditions and how the cooler is loaded.

Measured noise is 44 dB(A), which suits a bar, lobby or breakfast area. It is rated to climate class 4.

It has a 196-litre gross volume (188 litres net) across four chrome wire shelves, giving 0.52 m² of display behind two hinged glass doors.

Yes. Craven Cooling services the cabinets we supply — call the team on 01792 732702 to arrange a visit or talk a fault through. It uses R600a refrigerant and an electronic controller with automatic defrost.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 810 x 418 x 734 mm
External Dimension (WxDxH): 900 x 545 x 900 mm
Packed Dimension (WxDxH): 985 x 575 x 970 mm

Cooling and Functions

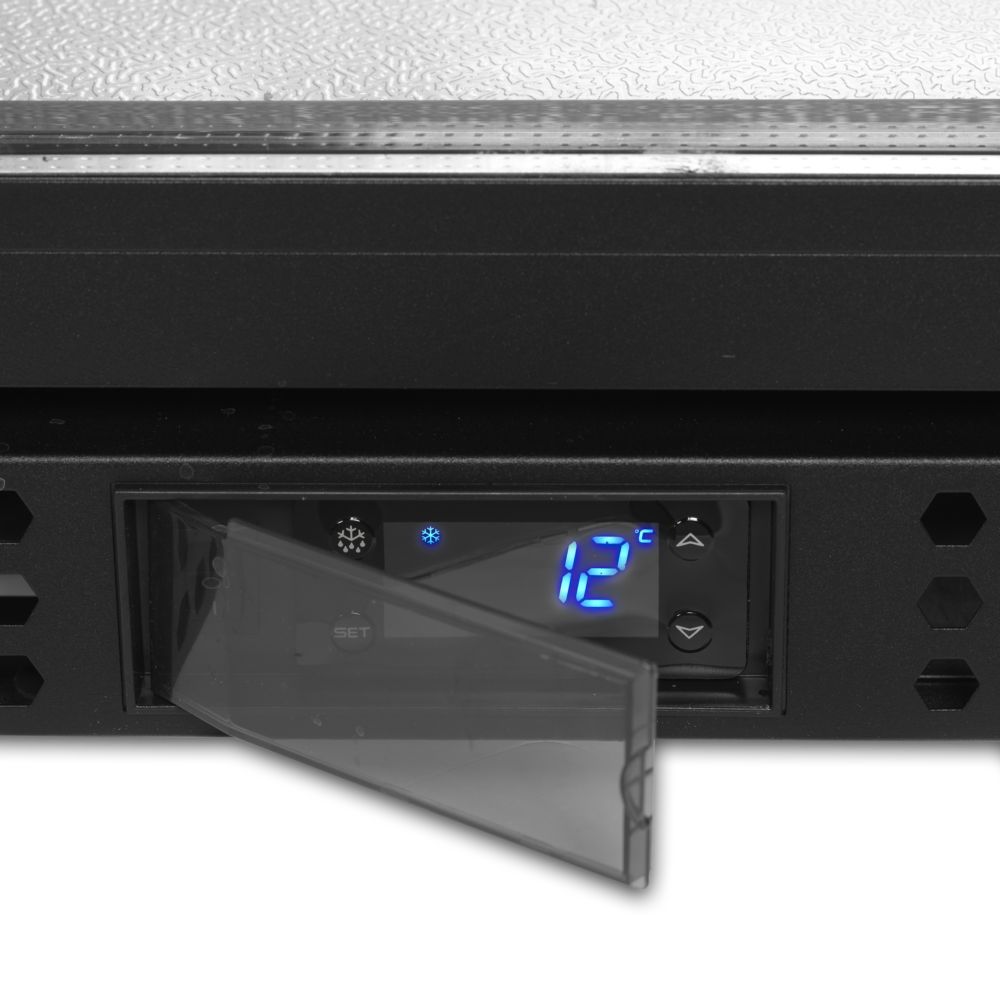

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 70 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.08 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 394 kWh/year m³
EEI: 9 %
Input Power: 115 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 44 dB(A)

Measures and Content

Cans 330 ml: 276 pcs pcs
Cans 500 ml: 168 pcs pcs
Bottles 330 ml: 143 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 70 / 64 kg
Gross / Net Volume: 196 / 188 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.52 m² m²

Design and Material

Door Reversible: No
Shelf Color: Chrome

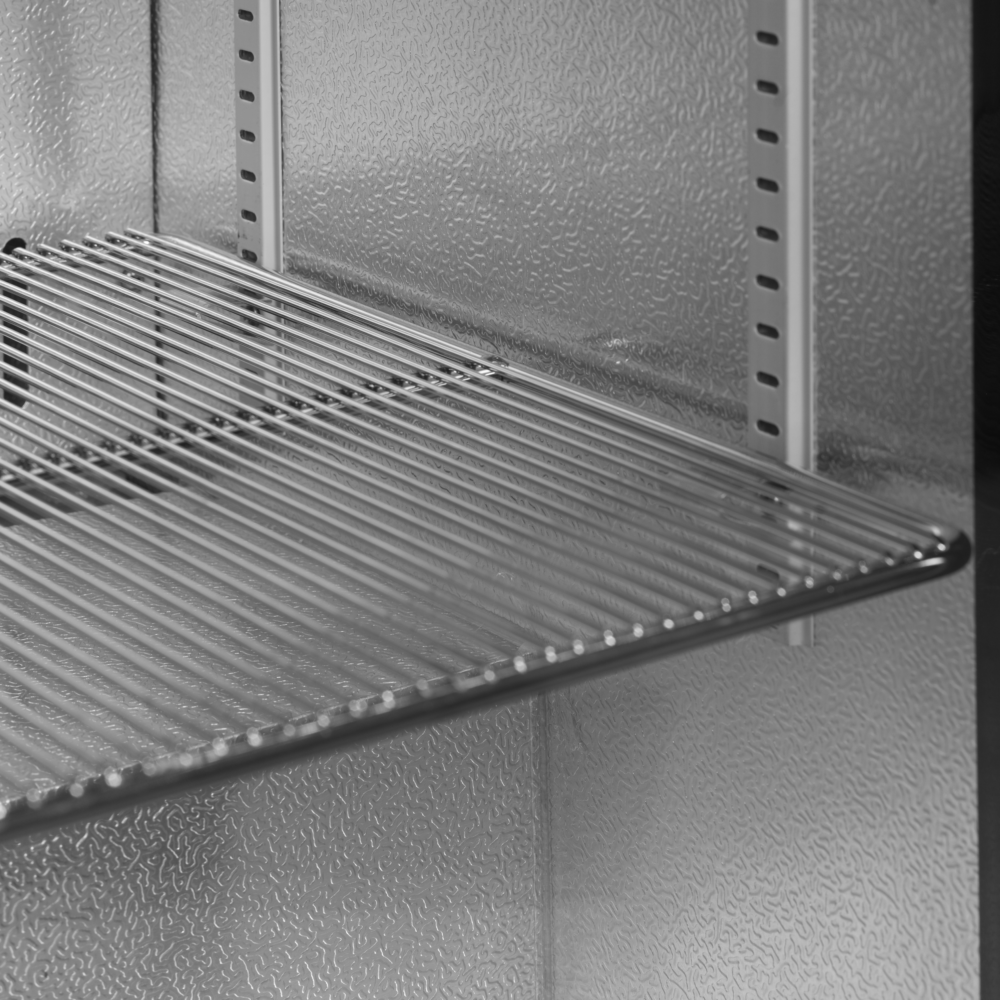

Shelf Dimensions: 395×328 mm
Feet / Legs: 4 adjustable feet
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD BA21H Back Bar Cooler then please get in touch.
