CombiSteel Barcooler Black 4 Drawers 7450.0317

£1,618.00

+vat

Brand:

SKU: 7450.0317

Product summary

Size W/D/H (mm) x x

Product description

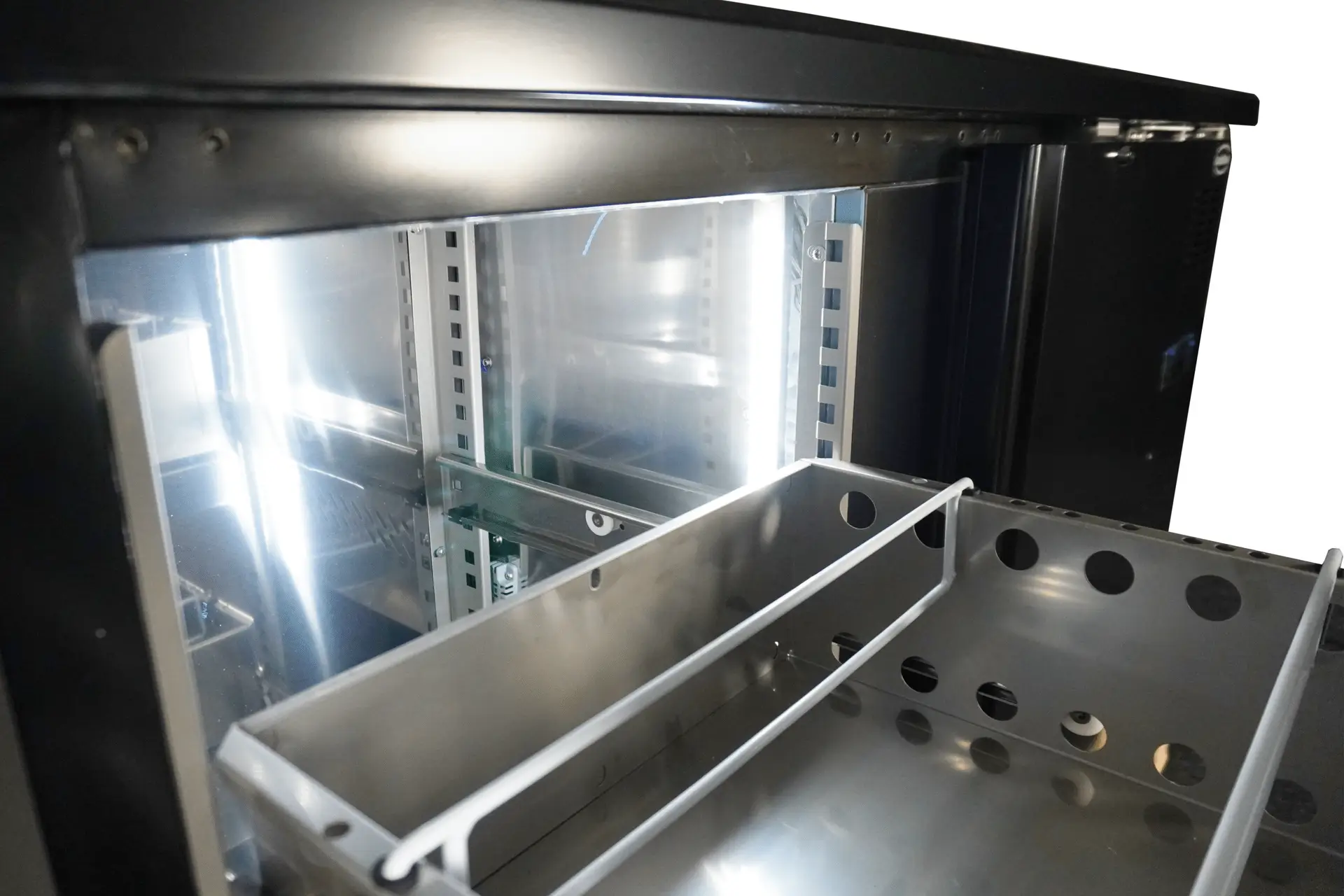

The Combisteel Barcooler is a black under-counter bar fridge with four drawers, built to hold bottles and cans chilled and within arm’s reach of the server in bars, pubs and back-bar setups.

Downloads

SPECIFICATION 35 facts · tap for all Width1462 mmDepth513 mmHeight860 mmGross / net weight100 kgVoltage / frequency23050Voltage230V / 50Hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 7422242990964catalogue
Range / series Standard Linecatalogue
Type Double Door Bar Fridgescatalogue

Size & weight7

Depth 513 mmsite
External (W×D×H) 1462 × 513 × 860 mmcatalogue
Gross / net weight 100 kgsite
Height 860 mmsite
Internal (W×D×H) 1082 × 415 × 760 mmcatalogue
Internal W × D × H 1082x415x760site
Width 1462 mmsite

Capacity2

Capacity 350 Ltrcatalogue
Gross volume 350 litrescatalogue

Performance6

Controller Digitalcatalogue
Cooling type R 600 Asite
Defrost type Automaticsite
Max ambient 3232 °Ccatalogue
Maximum ambient 3232site
Temperature range 0/+10site

Power & energy7

Energy consumption 0,28site
Frequency 50 Hzcatalogue
Noise level 5050site
Rated input 280 Wcatalogue
Rated power 28 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings8

Colour Blackcatalogue
Drawers 4site
Exterior finish Zwart gelakt staalsite
Insulation 40 mmcatalogue
Interior finish Stainless steel 430site
Interior light Yes, LEDsite
Lock Yessite
Temperature display Yes, digitalcatalogue

Other stated facts1

Mobility Nocatalogue
THE WORKING VIEW

Why this double door bar fridge earns its place

The Combisteel Barcooler 7450.0317 is a black lacquered-steel, four-drawer bottle fridge holding 350 litres, built to fit under the serving station. Its four drawers put chilled bottles and cans directly accessible from a sitting position, so staff pull stock without turning away from the customer or bending awkwardly into a low cabinet. The dark finish is made to sit unobtrusively into a bar run rather than stand out as white catering kit.

As an under-counter bottle cooler it maintains 0 to 10°C with automatic defrost and ventilated cooling, keeping packaged drinks service-ready through a busy shift. Drawers rather than swing doors keep the cold air contained and present bottles upright and easy to grab, so a busy bar keeps moving without staff hunting at peak. It operates at 50 dB(A), quiet enough for front-of-house use.

This is an under-counter unit measuring 1462mm wide, 513mm deep and 860mm high, weighing 100kg, sized to slot beneath a bar top. Measure the aperture height, width and depth of your counter run carefully, and leave clearance for ventilation and for the drawers to pull fully out. It runs from 230V mains; make sure a socket sits within reach of its final position. Check the dimensions on the spec sheet against your space before you cut it into the bar, and we can confirm the fit and handle installation.

BEFORE YOU BUY

Questions, answered straight

It is designed as an under-counter unit, so measure the height, width and depth of the aperture in your bar run and check them against the external dimensions on the spec sheet. Leave clearance for ventilation and for the drawers to open fully.

Drawers keep the cold air low in the cabinet and present bottles upright, so staff can grab stock quickly without a swing door blocking a tight service area. It suits a busy back bar where speed of access matters.

It holds 0 to 10°C with automatic defrost, so it stays ready for service without manual frost management. It is built as a chilled bottle cooler for packaged drinks. If you are matching it to a particular product, call us and we will confirm it is the right cabinet.

Running cost comes down to the cabinet's energy rating and your tariff. At 50 dB(A) it is quiet enough for a front bar position. Read the energy class and annual kWh off its energy label and run them through our energy label decoder for a figure in pounds on your own electricity price.

Bottles and cans load upright into the drawers, which pull out for stocking and for grabbing during service. Face your fastest-moving lines to the front so they refill quickly through a busy shift.

Craven Cooling supplies, delivers and services its refrigeration. Call 01792 732702 to arrange delivery, under-counter installation or a service visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Barcooler Black 4 Drawers 7450.0317 Product Data

Brand CombiSteel
Type Standard Line
Dimensions (W×D×H) 1462 × 513 × 860 mm
Interior Dimensions 1082x415x760
Capacity 350 Ltr
Material Zwart gelakt staal
Interior Material Stainless steel 430
Colour / Finish Black
Temperature Range 0/+10
Max. Ambient Temp. 32
Refrigerant R 600 A
Cooling Ventilated
Defrost Automatic
Electrical Power 0.28 kW
Voltage 230V / 50Hz
Installation Freestanding
Mobile No
Lockable Yes
Noise Level 50 dB
Insulation 40 mm
Weight 100 kg
If you have any questions about the CombiSteel Barcooler Black 4 Drawers 7450.0317 then please get in touch.
