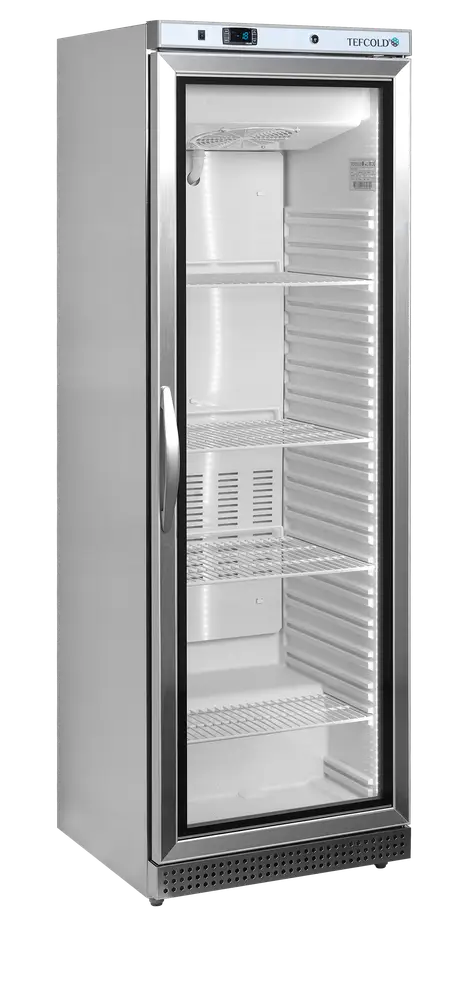

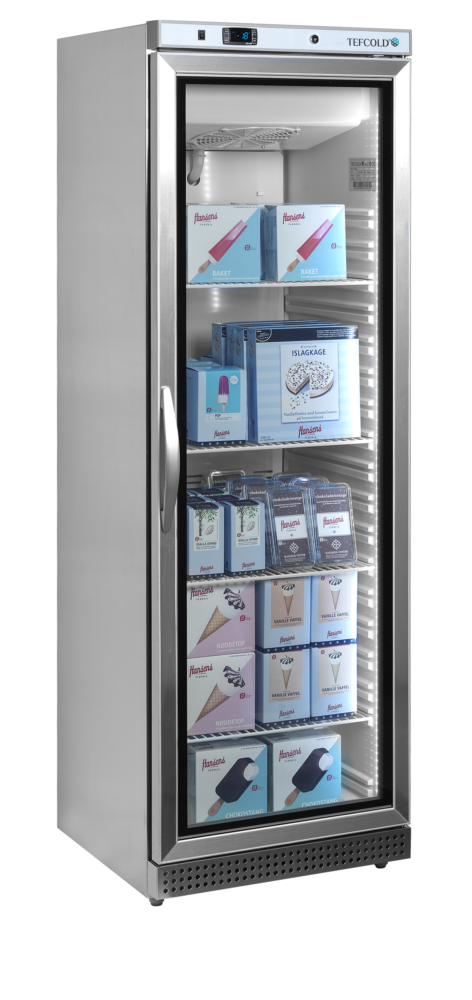

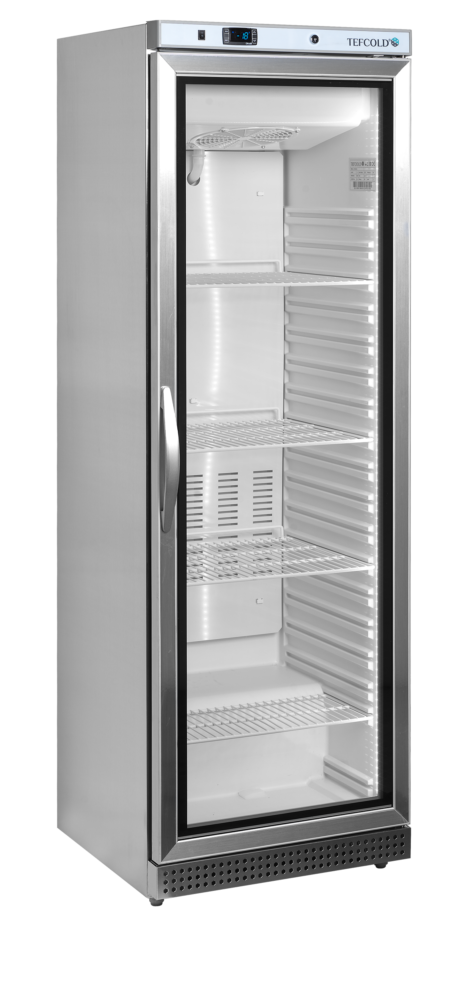

TEFCOLD UF400VSG Glass Door Display Freezer

£1,408.00 £896.00

+vat

- +

Brand:

SKU: 33868

Energy Arrow

Product summary

  • Stainless steel cabinet
  • Heated glass door
  • Electronic thermostat
  • Automatic defrost
  • Adjustable shelves
  • LED interior light
  • Ventilated cooling
  • Lock
  • Adjustable feet with rollers to rear
  • Digital temperature display

Product description

The UF-VSG range of display freezers is the ventilated version of our stainless steel glass door freezers. It comes in a variety of sizes and offers great flexibility with adjustable shelves. The effective ventilated refrigeration system ensures an even temperature throughout the cabinet. The temperature can be set on an easy-to-use digital thermostat display. Defrost happens automatically.

Sale!
SPECIFICATION 48 facts · tap for all External W × D × H600 x 585 x 1855 mmWidth600 mmDepth585 mmGross / net weight85 / 80 kgGross weight85 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181994419site
Product code 33868site
Sub title Glass Door Display Freezercatalogue
Type Single Door Upright Glass Door Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 585 mmsite
External (W×D×H) 600 × 585 × 1855 mmcatalogue
External W × D × H 600 x 585 x 1855 mmsite
Gross / net weight 85 / 80 kgsite
Gross weight 85 kgcatalogue
Height 1855 mmsite
Internal (W×D×H) 484 × 470 × 1620 mmcatalogue
Internal W × D × H 484 x 470 x 1620 mmsite
Packed (W×D×H) 690 × 650 × 2050 mmcatalogue
Packed W × D × H 690 x 650 x 2050 mmsite
Width 600 mmsite

Capacity3

Display area 0.61 m²site
Doors 1catalogue
Gross volume 400 litrescatalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 80 gsite
Temperature range -24 to -10site
Thermometer Yessite

Power & energy6

Annual energy consumption 2664 kWh/yearsite
Energy consumption 7.3 kWh/24hsite
Energy efficiency index 34.3 %site
Input power 300 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Castors 2 rollerssite
Exterior finish SS430site
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 110site
Reversible doors Nosite
Shelf dimensions 490 x 420 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this single door upright glass door freezer earns its place

The Tefcold UF400VSG is an upright glass-door display freezer built to sell frozen stock rather than just hold it. Behind the full-height glass front, four white wire shelves present 400 litres of gross volume (340 litres usable) at eye level, giving customers a clear view of the product before they open the door. The SS430 stainless exterior and white ABS interior keep it looking clean on a shop floor or in back-of-house.

The cabinet holds a -24 to -10 °C band under static cooling, managed by an electronic controller, so frozen product stays hard through the trading day. It carries climate class 4, rated for standard ambient trading conditions, which covers a warm shop floor. At energy class C it draws 2664.5 kWh a year — about £666 a year at 25p/kWh.

Externally the cabinet measures 600 mm wide, 585 mm deep and 1855 mm tall, so it needs a 600 mm floor slot plus clearance for loading. Packed for delivery it goes out at 690 × 650 × 2050 mm, worth measuring against your doorways and access route. It runs from a standard 13-amp socket on a 220–240 V supply and weighs 85 kg gross, 80 kg net.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 600 mm wide and 585 mm deep unpacked, and 690 × 650 × 2050 mm boxed for delivery. Measure your narrowest access point against the packed dimensions before it arrives.

It runs a -24 to -10 °C band under static cooling, managed by an electronic controller, so frozen stock stays hard through the day.

It is energy class C and uses 2664.5 kWh a year, which works out at about £666 a year at 25p/kWh. Your actual cost depends on your tariff.

A standard 13-amp socket on a 220–240 V supply. No special installation is required beyond a suitable socket nearby.

400 litres gross and 340 litres net across four white wire shelves, with a 0.61 m² display area facing the aisle.

Yes. Craven Cooling runs its own service operation and can support Tefcold cabinets in the field. Call 01792 732702 to arrange a visit or talk a fault through.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 484 x 470 x 1620 mm
External Dimension (WxDxH): 600 x 585 x 1855 mm
Packed Dimension (WxDxH): 690 x 650 x 2050 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 80 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 7.3 kWh/24h
Temperature Range: -24 to -10 °C
Annual Energy Consumption: 2664 kWh/year m³
EEI: 34.3 %
Input Power: 300 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: -24 to -10 °C
Climate Class: 4
Gross / Net Weight: 85 / 80 kg
Gross / Net Volume: 400 / 340 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.61 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 490 x 420 mm
Max load on Shelves: 110 kg/m²
Feet / Legs: 4 adjustable feet
Castors: 2 rollers
Exterior Finish: SS430
Interior Finish: SS430
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD UF400VSG Glass Door Display Freezer then please get in touch.
