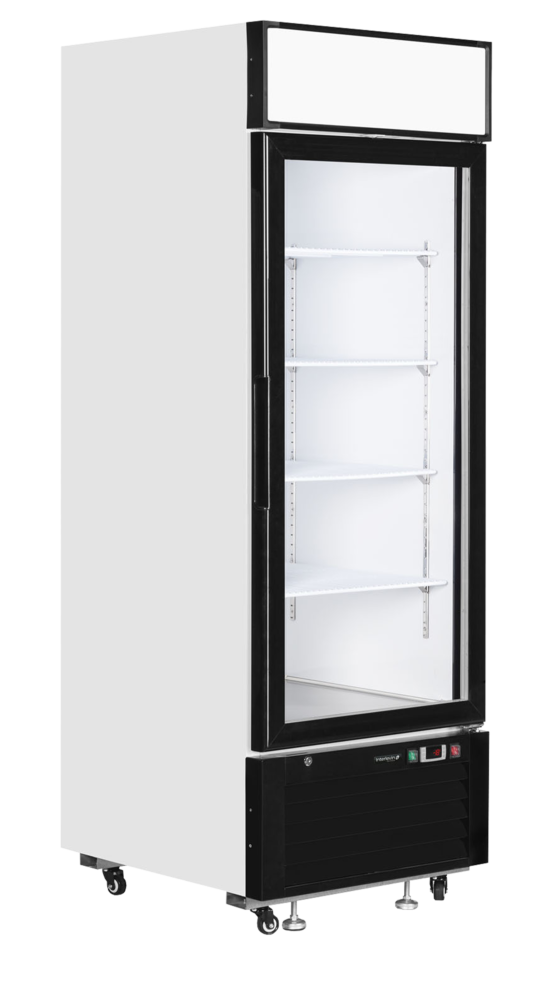

TEFCOLD LGF2500 Glass Door Display Freezer

£1,246.00

+vat

Brand:

SKU: 20269

Energy Arrow

Product summary

  • Fully automatic, fan assisted cooling
  • Adjustable shelves
  • Self closing doors with stay open feature for ease of loading
  • LED interior light with switch (2 LED strips per door)
  • Digital controller and temperature display
  • Light canopy with switch
  • Heated glass door to prevent condensation
  • Internal stainless steel base

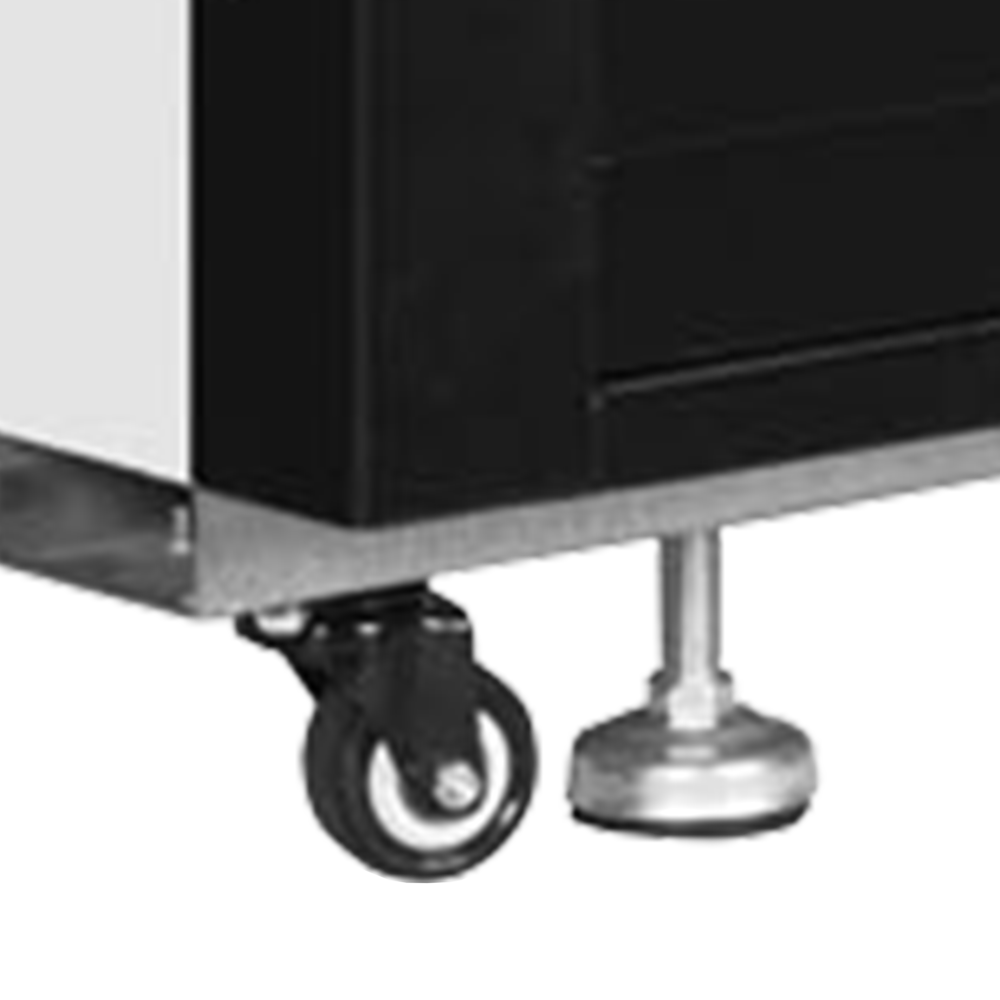

  • Castors and locking feet

Product description

The LGF range of glass door freezers in white gives you the option of matching single, double and triple door units. Each door has two vertical LED light strips for excellent internal illumination and a large LED light canopy. The carefully designed refrigeration system is energy efficient to keep running costs down.

The Tefcold LGF2500 is a single-door upright glass-door display freezer holding 405 litres net, running -25 to -14 °C on natural R290 refrigerant, measuring 685 × 805 × 2065 mm with a 0.69 m² glass display front and energy class C.

SPECIFICATION 45 facts · tap for all External W × D × H685 x 805 x 2065 mmWidth685 mmDepth805 mmGross / net weight140 / 120 kgGross weight140 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991272site
Product code 20269site
Sub title Glass Door Display Freezercatalogue
Type Single Door Upright Glass Door Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 805 mmsite
External (W×D×H) 685 × 805 × 2065 mmcatalogue
External W × D × H 685 x 805 x 2065 mmsite
Gross / net weight 140 / 120 kgsite
Gross weight 140 kgcatalogue
Height 2065 mmsite
Internal (W×D×H) 565 × 640 × 1520 mmcatalogue
Internal W × D × H 565 x 640 x 1520 mmsite
Packed (W×D×H) 745 × 860 × 2210 mmcatalogue
Packed W × D × H 745 x 860 x 2210 mmsite
Width 685 mmsite

Capacity4

Display area 0.69 m²site
Doors 1catalogue
Gross volume 496 litrescatalogue
Shelves 5catalogue

Performance9

Climate class 4site
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 120 gsite
Temperature range -25 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 2842 kWh/yearsite
Energy consumption 7.79 kWh/24hsite
Energy efficiency index 34 %site
Input power 650 Wsite
Noise level 59 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light 2 x Vertically LED in door framesite
Reversible doors Nosite
Shelf dimensions 545*622site

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this single door upright glass door freezer earns its place

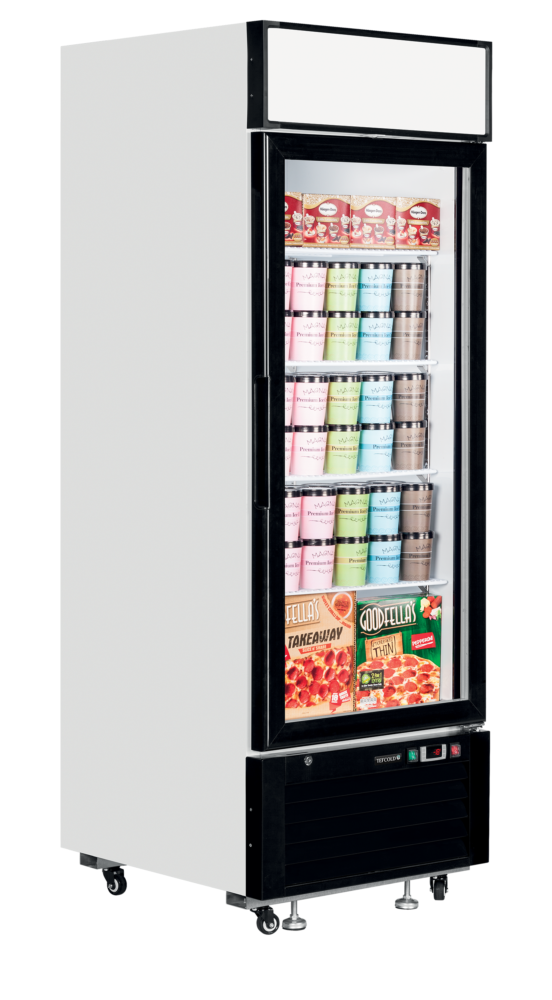

The Tefcold LGF2500 is an upright glass-door display freezer built to sell frozen stock through the door rather than store it out of sight. A single hinged glass door fronts 0.69 m² of display area, putting ice cream, frozen ready meals and bagged product at eye level where it drives impulse pickups. The white cabinet holds 496 litres gross, 405 litres net.

It runs ventilated cooling across a -25 to -14 °C band, with automatic electric defrost so you are not scraping ice off the coils between services. Climate class 4 means it holds temperature in the warmer ambient conditions of a busy shop floor. Rated noise is 59 dB, and at energy class C it uses 2843.3 kWh a year — about £711 a year at 25p/kWh.

The cabinet stands 685 mm wide, 805 mm deep and 2065 mm tall, so check door heights and lift access before delivery — packed it ships at 745 × 860 × 2210 mm and 140 kg gross. It plugs into a standard 13 A socket, drawing 650 W at 220-240 V. Cooling uses natural R290 refrigerant with a 120 g charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 685 mm wide and 805 mm deep, so it clears most standard doorways on its narrow face. Packed it measures 745 × 860 × 2210 mm and weighs 140 kg gross, so plan lift access and check ceiling height for the 2065 mm cabinet.

It runs -25 to -14 °C on ventilated cooling, suitable for frozen retail stock. Automatic electric defrost clears the coils without manual intervention.

At energy class C it uses 2843.3 kWh a year, which is about £711 a year at 25p/kWh. Your actual figure depends on your electricity tariff and how often the door is opened.

No. It draws 650 W at 220-240 V and plugs into a standard 13 A socket.

It uses natural R290 refrigerant with a 120 g charge, a low-GWP hydrocarbon.

Craven Cooling services the refrigeration we supply. Call the team on 01792 732702 to arrange servicing or spares.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 565 x 640 x 1520 mm
External Dimension (WxDxH): 685 x 805 x 2065 mm
Packed Dimension (WxDxH): 745 x 860 x 2210 mm

Cooling and Functions

Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 7.79 kWh/24h
Temperature Range: -25 to -14 °C
Annual Energy Consumption: 2842 kWh/year m³
EEI: 34 %
Input Power: 650 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 59 dB(A)

Measures and Content

Temperature Range: -25 to -14 °C
Climate Class: 4
Gross / Net Weight: 140 / 120 kg
Gross / Net Volume: 496 / 405 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.69 m² m²

Design and Material

Door Reversible: No
Shelf Dimensions: 545*622
Exterior Finish: White
Interior Finish: White
Interior Light: 2 x Vertically LED in door frame
If you have any questions about the TEFCOLD LGF2500 Glass Door Display Freezer then please get in touch.
