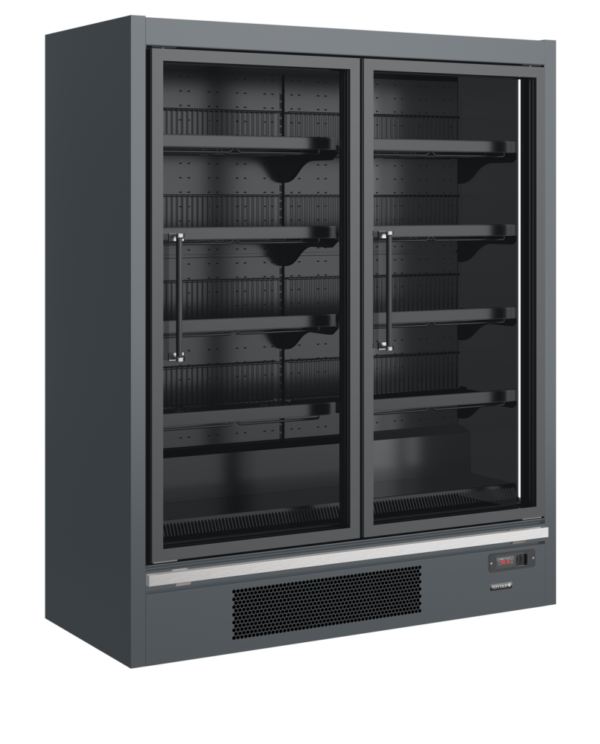

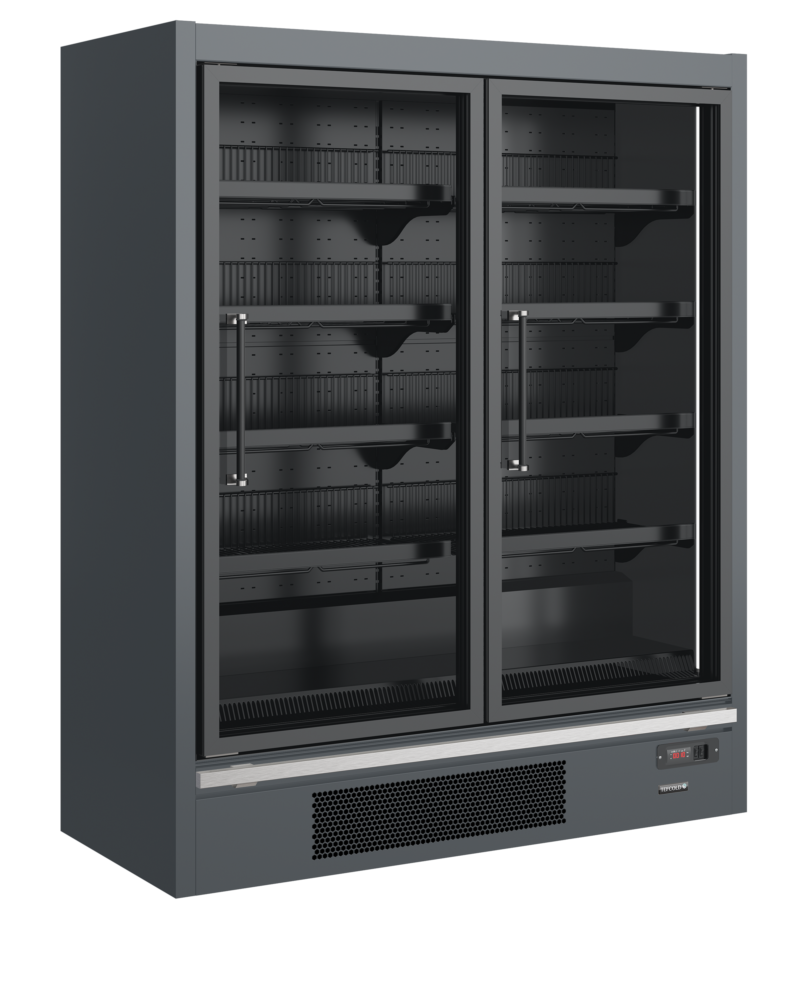

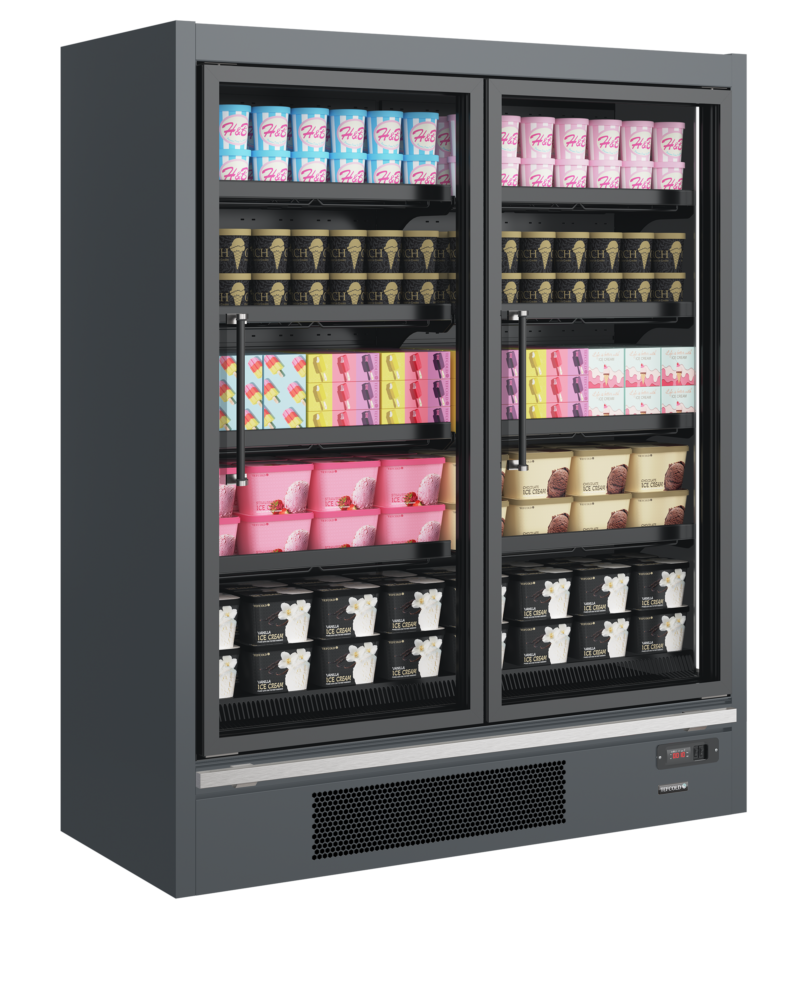

TEFCOLD Galaxy+ GPF2D Glass Door Freezer

£5,925.00

+vat

Brand:

SKU: 68551

Energy Arrow

Product summary

  • Colour is anthracite RAL7016
  • Fully automatic
  • Heated glass to help prevent condensation
  • Triple glazed insulated glass
  • Adjustable shelves
  • Vertical LED interior light with switch
  • Epos Ticket Strips
  • Digital controller and temperature display
  • Ventilated cooling
  • Adjustable feet
  • Replaceable door gasket

Product description

Multideck freezer for exceptional product presentation

The Galaxy+ range of freezers offers exceptional product presentation with its beautiful design, adjustable shelves and heated glass doors with prevent condensation. This allows for multiplexing and increases your options for maximising the space you have available (multiplexing kit required).

The TEFCOLD Galaxy+ GPF2D is a double-door upright glass-door freezer cooled by natural R290 refrigerant with automatic hot-gas defrost, rated energy class D at 8139.5 kWh a year, running from a 16 A supply at 65 dB.

SPECIFICATION 47 facts · tap for all External W × D × H1563 x 751 x 2005 mmWidth1563 mmDepth751 mmGross / net weight488 / 463 kgGross weight488 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181754365site
Product code 68551site
Sub title Glass Door Freezercatalogue
Type Double Door Upright Glass Door Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 751 mmsite
External (W×D×H) 1563 × 751 × 2005 mmcatalogue
External W × D × H 1563 x 751 x 2005 mmsite
Gross / net weight 488 / 463 kgsite
Gross weight 488 kgcatalogue
Height 2005 mmsite
Internal (W×D×H) 1562 × 520 × 1386 mmcatalogue
Internal W × D × H 1562 x 520 x 1386 mmsite
Packed (W×D×H) 1800 × 850 × 2390 mmcatalogue
Packed W × D × H 1800 x 850 x 2390 mmsite
Width 1563 mmsite

Capacity4

Display area 2.1 m²site
Doors 2catalogue
Gross volume 1646 litrescatalogue
Shelves 8catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automatic, hot gassite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2×110 gsite
Temperature range -21 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 8150.5 kWh/yearsite
Energy consumption 22.3 kWh/24hsite
Energy efficiency index 42.3 %site
Input power 1906 Wsite
Noise level 65 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Exterior finish Anthracite RAL7016site
Feet / legs Adjustable Feetsite
Interior light LEDsite
Max load per shelf 160site
Reversible doors Nosite
Shelf dimensions 5x 400mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this double door upright glass door freezer earns its place

The TEFCOLD Galaxy+ GPF2D is an upright double-door glass-door display freezer. The glass fronts put frozen stock on show through the doors, so customers can see and select without the cabinet being opened, which suits convenience retail, forecourts and food-to-go where frozen lines need to sell themselves.

It cools with R290 natural refrigerant and clears frost with an automatic hot-gas defrost cycle, controlled electronically, so it holds a steady frozen environment without manual defrosting. It carries a climate class 3 rating and runs at 65 dB. Rated energy class D with an energy efficiency index of 42.3%, it uses 8139.5 kWh a year, which works out at about £2035 a year at 25p/kWh.

For installation, plan for a dedicated 16 A electrical supply, as the cabinet draws up to 1906 W. It weighs 488 kg gross, so siting on a suitable floor and a clear delivery route matter. Cooling uses a small R290 charge. Craven Cooling can confirm exact dimensions, positioning and servicing before you order.

BEFORE YOU BUY

Questions, answered straight

It runs from a dedicated 16 A supply and draws up to 1906 W. Because it pulls a meaningful load, it is best given its own circuit rather than sharing with other equipment.

It is rated energy class D with an energy efficiency index of 42.3% and uses 8139.5 kWh a year. At 25p/kWh that is about £2035 a year, before you account for door openings and ambient temperature.

It uses an automatic hot-gas defrost cycle managed by an electronic controller, so frost is cleared without you switching it off or clearing it by hand. It carries a climate class 3 rating.

It uses R290, a natural hydrocarbon refrigerant with a very low global warming potential compared with older synthetic gases. The cabinet is a self-contained unit rather than a remote system.

It weighs 488 kg gross and runs at 65 dB. To confirm exact dimensions, floor loading, positioning and servicing before ordering, contact Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1562 x 520 x 1386 mm
External Dimension (WxDxH): 1683 x 751 x 2005 mm
Packed Dimension (WxDxH): 1800 x 850 x 2390 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 2×110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 22.3 kWh/24h
Temperature Range: -21 to -18 °C
Annual Energy Consumption: 8150.5 kWh/year m³
EEI: 42.3 %
Input Power: 1906 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 65 dB(A)

Measures and Content

Temperature Range: -21 to -18 °C
Climate Class: 3
Gross / Net Weight: 488 / 463 kg
Gross / Net Volume: 1646 / 866 l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.1 m² m²

Design and Material

Door Reversible: No
Shelf Color: Anthracite RAL7016
Shelf Dimensions: 5x 400mm
Max load on Shelves: 160 kg/m²
Feet / Legs: Adjustable Feet
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD Galaxy+ GPF2D Glass Door Freezer then please get in touch.
