TEFCOLD Atom Maxi F2DB Display Freezer

£2,002.00

+vat

- +

Brand:

SKU: 49726

Energy Arrow

Product summary

  • Perfect display for frozen foods
  • Low energy consumption
  • Hinged glass doors
  • Heated glass to help prevent condensation
  • Triple glazed insulated glass
  • Self-closing doors
  • Adjustable shelves
  • Vertical LED interior light with switch
  • Ventilated cooling
  • Digital controller and temperature display
  • Castors
  • Chiller Option Available

Product description

2 door display freezer

The Atom Maxi range of glass door freezers is available in 1 to 3 door options. Edge to edge “frameless” self-closing glass doors together with excellent storage capacity make it ideal for all types of frozen food display. The canopy-less design makes it a favourite choice for shopfitters for use in convenience stores, delis and butchers where a frozen selection gives customers extra choice. A fully automatic refrigeration system ensures the unit will not ice-up under normal conditions, while vertical LED lighting on the interior help present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce frozen food to your customers. There is also a matching chiller option available and the unit is often used alongside the Galaxy+ multideck.

SPECIFICATION 48 facts · tap for all External W × D × H1253 x 760 x 2003 mmWidth1253 mmDepth760 mmGross / net weight270 / 240 kgGross weight270 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181733087site
Product code 49726site
Sub title Display Freezercatalogue
Type Double Door Upright Glass Door Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 760 mmsite
External (W×D×H) 1253 × 760 × 2003 mmcatalogue
External W × D × H 1253 x 760 x 2003 mmsite
Gross / net weight 270 / 240 kgsite
Gross weight 270 kgcatalogue
Height 2003 mmsite
Internal (W×D×H) 1133 × 580 × 1538 mmcatalogue
Internal W × D × H 1133 x 580 x 1538 mmsite
Packed (W×D×H) 2090 × 780 × 2090 mmcatalogue
Packed W × D × H 2090 x 780 x 2090 mmsite
Width 1253 mmsite

Capacity4

Display area 1.39 m²site
Doors 2catalogue
Gross volume 1006 litrescatalogue
Shelves 10catalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 80 gsite
Temperature range -18 to -22site
Thermometer Yessite

Power & energy6

Annual energy consumption 6377 kWh/yearsite
Energy consumption 17.47 kWh/24hsite
Energy efficiency index 46.3 %site
Input power 1205 Wsite
Noise level 65 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 4 castorssite
Exterior finish Black RAL9005site
Interior light LEDsite
Max load per shelf 140site
Reversible doors Nosite
Shelf dimensions 551 x 470 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this double door upright glass door freezer earns its place

The Tefcold Atom Maxi F2DB is a high-capacity double-door upright display freezer in a black RAL9005 finish, with two hinged glass doors and a 1.39 m² display area for showing frozen stock at eye level. It offers 1006 litres of gross capacity and 702 litres of usable net volume across ten adjustable shelves, so you can merchandise a deep frozen range without a customer digging through a chest.

It holds product at -22 to -18 °C with ventilated cooling for even temperature across the shelves and fully automatic defrost, so there is no manual defrost routine. An electronic controller holds the setting, the white RAL9003 interior keeps packaging clear, and the cabinet is rated climate class 3. It carries energy class D with a 46.3% efficiency index, and on 6,376.5 kWh a year it costs about £1,594 to run at 25p/kWh.

The cabinet measures 1253 × 760 × 2003 mm (W×D×H), so check doorway height as well as width on the delivery route — at just over two metres tall it will not clear every opening. It runs on a standard 220–240 V 13-amp supply drawing 1205 W, uses natural R290 refrigerant, and weighs 240 kg net, so plan equipment and access for positioning.

BEFORE YOU BUY

Questions, answered straight

It runs at -22 to -18 °C, suitable for frozen retail stock. Ventilated cooling keeps the temperature even across all ten shelves.

The cabinet is 1253 mm wide and 2003 mm tall. Measure doorway height and any low soffits on the route, as it stands just over two metres.

It is energy class D and uses 6,376.5 kWh a year, about £1,594 at 25p/kWh. The efficiency index is 46.3%.

A standard 220–240 V single-phase 13-amp supply. It draws 1205 W, so give it a dedicated socket.

It is measured at 65 dB, so site it toward the back of a trading floor and away from seating or quiet areas.

Yes, we install and service the full Tefcold range; call 01792 732702 to arrange delivery or a service visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1133 x 580 x 1538 mm
External Dimension (WxDxH): 1253 x 760 x 2003 mm
Packed Dimension (WxDxH): 2090 x 780 x 2090 mm

Cooling and Functions

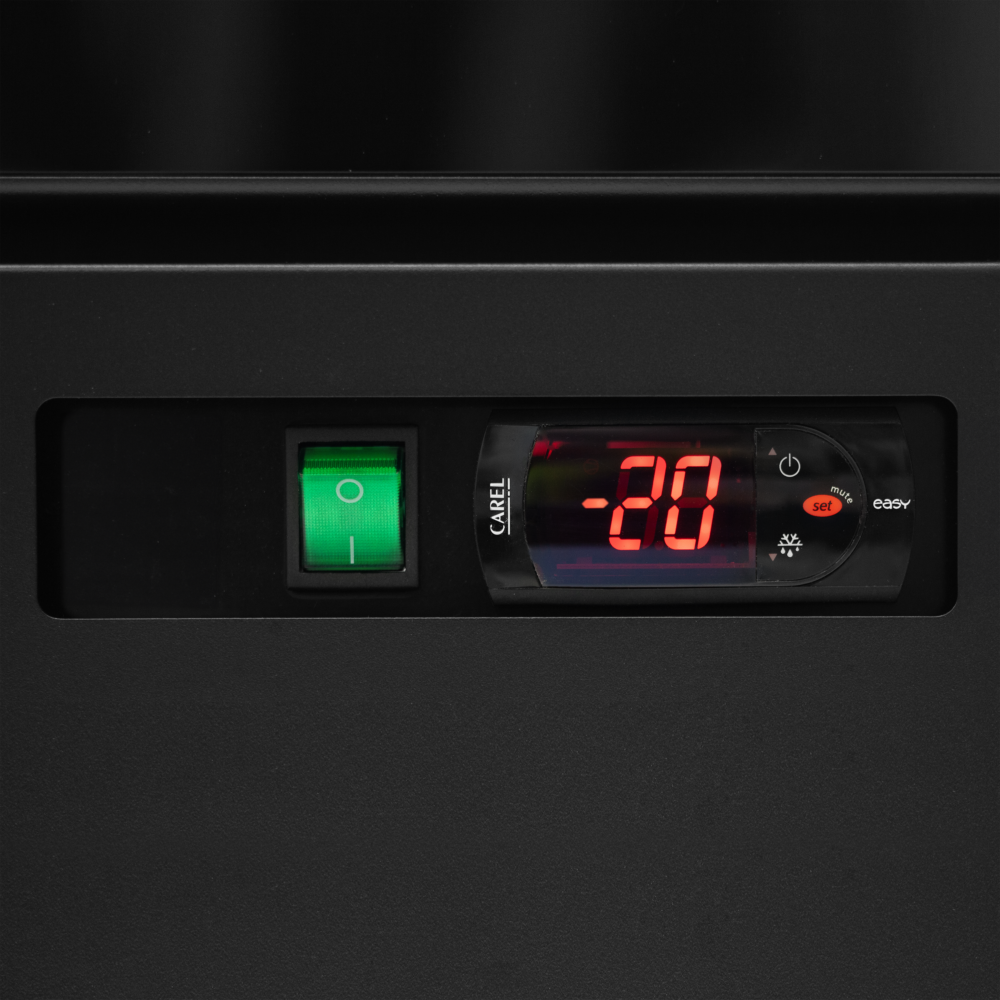

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 2 x 80 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 17.47 kWh/24h
Temperature Range: -18 to -22 °C
Annual Energy Consumption: 6377 kWh/year m³
EEI: 46.3 %
Input Power: 1205 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 65 dB(A)

Measures and Content

Temperature Range: -18 to -22 °C
Climate Class: 3
Gross / Net Weight: 270 / 240 kg
Gross / Net Volume: 1006 / 702 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.39 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 551 x 470 mm
Max load on Shelves: 140 kg/m²
Castors: 4 castors
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD Atom Maxi F2DB Display Freezer then please get in touch.
