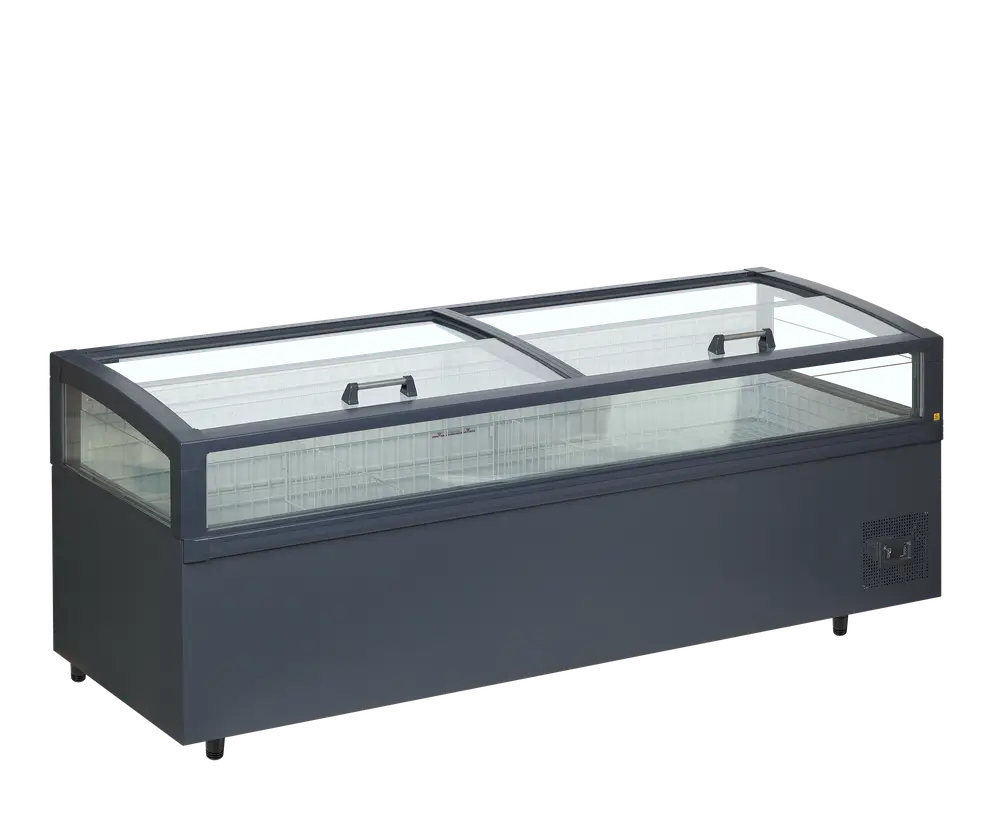

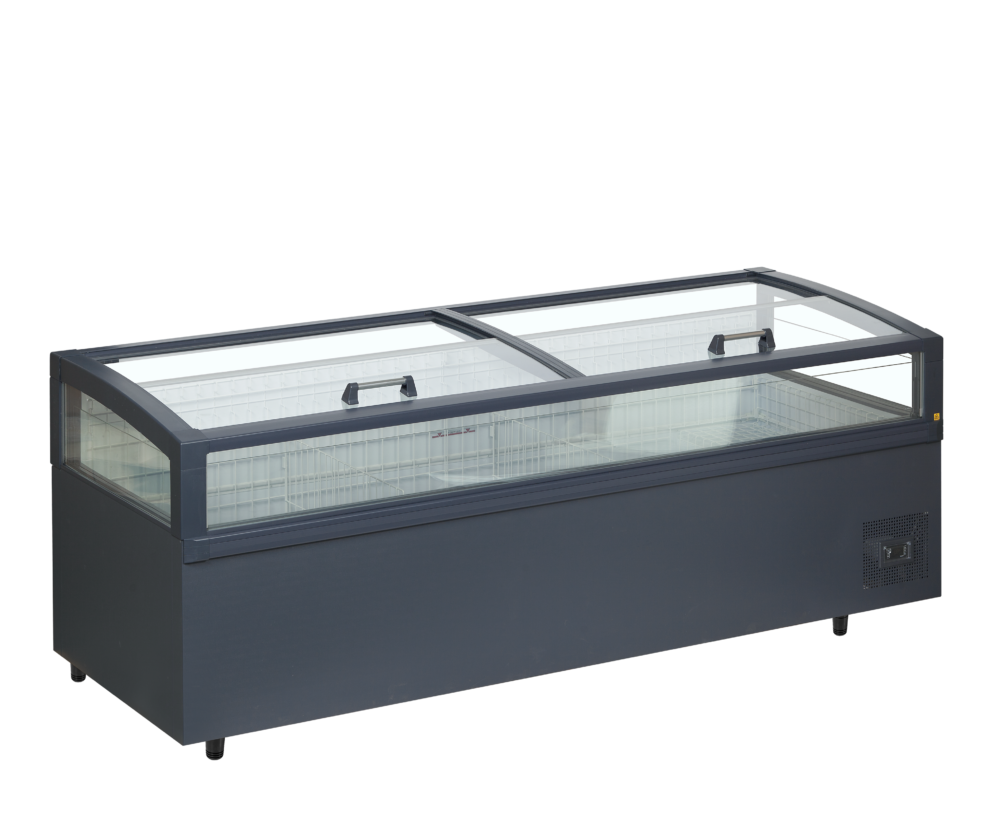

TEFCOLD VIEW 250CF VS Chiller / Freezer

£3,274.00

+vat

- +

Brand:

SKU: 47828

Energy Arrow

Product summary

  • Easily switchable between cooler and freezer
  • Energy saving variable speed compressor
  • Excellent energy efficiency
  • Front to back sliding lids for easy access
  • Adjustable false base
  • LED interior light
  • Ideal for use in combination with the ARV215DE

Product description

The VIEW is a versatile supermarket cooler/freezer in a contemporary design. It offers great product visibility with glass walls on three sides of the unit, as well as front-to-back sliding lids on the top. It is easy switchable between cooling and freezing, simply choose the wanted temperature on the digital controller. The HC (head case) version is made to go in the end if you are creating an island.

The TEFCOLD VIEW 250CF VS is a 2500 mm dual chiller/freezer with 1,320 litres gross capacity and 1.93 m² of display that runs anywhere from -22 to +10 °C on R290 refrigerant, rated energy class D on an electronic controller and a standard 13 A supply.

SPECIFICATION 44 facts · tap for all External W × D × H2500 x 980 x 970 mmWidth2500 mmDepth980 mmGross / net weight220 / 175 kgGross weight220 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181727581site
Product code 47828site
Sub title Chiller / Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 980 mmsite
External (W×D×H) 2500 × 980 × 970 mmcatalogue
External W × D × H 2500 x 980 x 970 mmsite
Gross / net weight 220 / 175 kgsite
Gross weight 220 kgcatalogue
Height 970 mmsite
Internal (W×D×H) 2345 × 820 × 880 mmcatalogue
Internal W × D × H 2345 x 820 x 880 mmsite
Packed (W×D×H) 2606 × 1066 × 1028 mmcatalogue
Packed W × D × H 2606 x 1066 x 1028 mmsite
Width 2500 mmsite

Capacity2

Display area 1.93 m²site
Gross volume 1320 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automatic, hot gassite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 127 gsite
Temperature range -22 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 3796 kWh/yearsite
Energy consumption 10.4 kWh/24hsite
Energy efficiency index 39.6 %site
Input power 520 Wsite
Noise level 54 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Dividers 2site
Exterior finish Anthracite RAL7016site
Feet / legs 4 adjustable feetsite
Interior light LEDsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The VIEW 250CF VS is a large-format display cabinet that runs as either a freezer or a chiller, so a single unit can cover frozen lines this season and chilled lines the next. Its temperature spans -22 to +10 °C, giving 1,320 litres gross / 860 litres net of holding capacity behind 1.93 m² of display area — enough to build a serious frozen or chilled aisle in a supermarket, convenience store or forecourt. The anthracite (RAL7016) exterior gives it a modern retail look on the shop floor.

It runs static cooling on an electronic controller, with automatic hot gas defrost so the cabinet clears itself without being shut down during trading. It is rated energy class D at 3,796 kWh a year — about £949 a year at 25p/kWh — reflecting its size and the wide -22 to +10 °C operating range. At 54 dB it is a larger cabinet with a correspondingly higher sound level, best sited in an aisle rather than tucked against a quiet counter.

The cabinet measures 2500 × 980 × 970 mm externally, 2345 × 820 × 880 mm internally, and ships packed at 2606 × 1066 × 1028 mm — so plan both the aisle run and the delivery route carefully against the packed width. At 220 kg gross it is a sited, multi-person installation. It runs on a standard 220-240 V supply through a 13 A socket and uses R290 refrigerant with a 127 g charge, with a white interior.

BEFORE YOU BUY

Questions, answered straight

Yes. Its operating range spans -22 to +10 °C, so it can be set to run as a freezer or as a chiller depending on the stock you need to display.

It gives 1,320 litres gross and 860 litres net, with 1.93 m² of display area — a large cabinet built to carry a full frozen or chilled aisle.

It is rated energy class D at 3,796 kWh a year, which is about £949 a year at 25p/kWh. As a large dual-function cabinet with a wide temperature range, it draws more than a small storage unit.

It is 2500 mm wide externally and ships packed at 2606 × 1066 × 1028 mm, so measure both the aisle position and the full delivery route against the packed dimensions before ordering.

No. It runs on a standard 220-240 V supply through a 13 A socket, drawing 520 W, so no dedicated circuit is required for a normal retail position.

Defrost is automatic hot gas, so it clears itself without a manual shut-down. For installation planning or servicing our team is on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 2345 x 820 x 880 mm
External Dimension (WxDxH): 2500 x 980 x 970 mm
Packed Dimension (WxDxH): 2606 x 1066 x 1028 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 127 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 10.4 kWh/24h
Temperature Range: -22 to +10 °C
Annual Energy Consumption: 3796 kWh/year m³
EEI: 39.6 %
Input Power: 520 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 54 dB(A)

Measures and Content

Temperature Range: -22 to +10 °C
Climate Class: 3
Gross / Net Weight: 220 / 175 kg
Gross / Net Volume: 1320 / 860 l
Max Ambient: +30°C, 55% RH
Total Display Area: 1.93 m² m²

Design and Material

Divider System: Yes
Number of dividers: 2 pcs
Feet / Legs: 4 adjustable feet
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD VIEW 250CF VS Chiller / Freezer then please get in touch.
