TEFCOLD SUPER ARV215DE Panoramic Top Case Freezer

£6,159.00

+vat

- +

Brand:

SKU: 20292

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable shelves
  • Vertical LED interior light with switch
  • Digital controller and temperature display
  • Heated Self-closing glass doors
  • Requires display chiller/freezer to sit underneath
  • Available in white or anthracite (RAL7016) finish
  • Ticket strip and acrylic front riser as standard

Product description

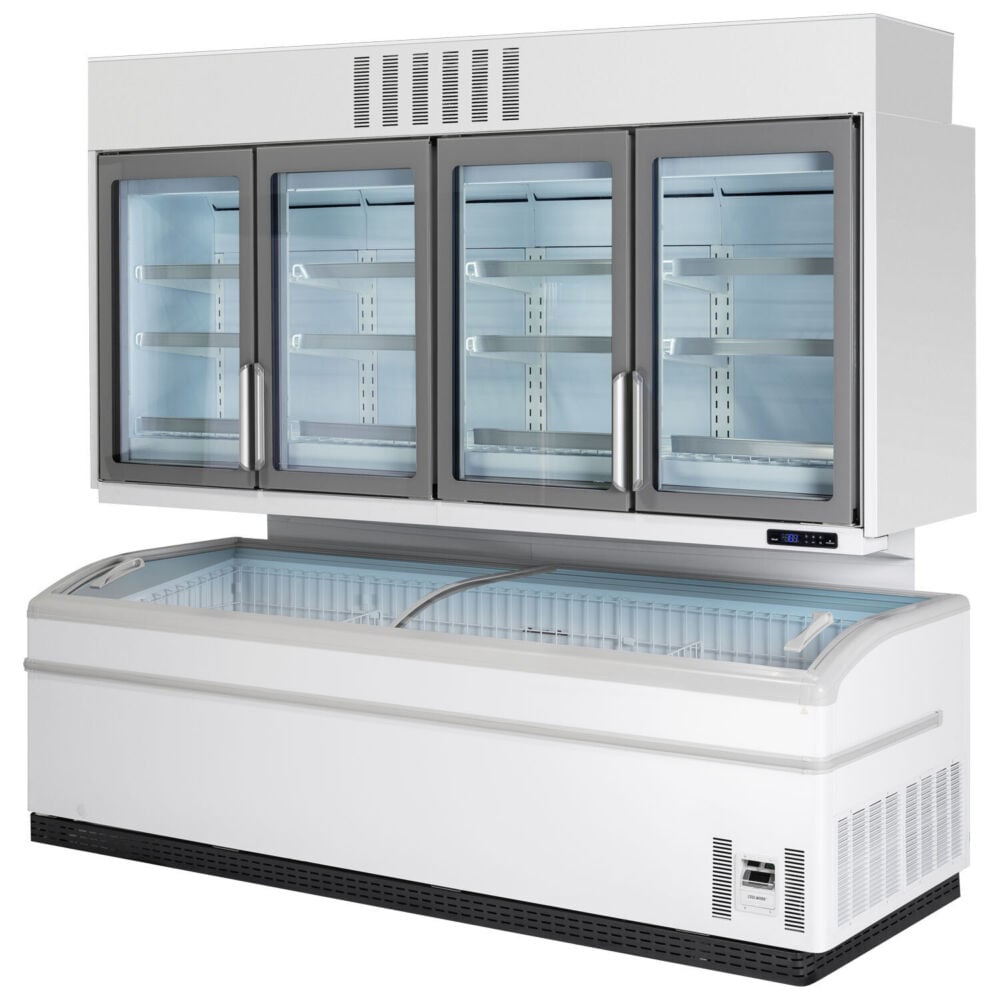

The Super ARV215DE panoramic top case should be used in combination with the Super 250DE to offer a a versatile eye level display. Sitting above the Super 250DE display freezer, it is ideal for a variety of configurations either as a wall or island display.

SPECIFICATION 42 facts · tap for all External W × D × H2500 x 940 x 880 mmWidth2500 mmDepth940 mmGross / net weight542 / 462 kgGross weight542 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181617219site
Product code 20292site
Sub title Panoramic Top Case Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 940 mmsite
External (W×D×H) 2500 × 940 × 880 mmcatalogue
External W × D × H 2500 x 940 x 880 mmsite
Gross / net weight 542 / 462 kgsite
Gross weight 542 kgcatalogue
Height 880 mmsite
Internal (W×D×H) 2050 × 422 × 740 mmcatalogue
Internal W × D × H 2050 x 422 x 740 mmsite
Packed (W×D×H) 2505 × 1060 × 1670 mmcatalogue
Packed W × D × H 2505 x 1060 x 1670 mmsite
Width 2500 mmsite

Capacity4

Display area 1.7 m²site
Doors 4catalogue
Gross volume 760 litrescatalogue
Shelves 8catalogue

Performance8

Climate class 3site
Defrost type Automatic, electricsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 60 gsite
Temperature range -24 to -18site
Thermometer Yessite

Power & energy5

Annual energy consumption 5657 kWh/yearsite
Energy consumption 15.5 kWh/24hsite
Input power 1300 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Whitesite
Interior light LEDsite
Reversible doors Nosite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The SUPER ARV215DE is a jumbo-format top case display freezer built to merchandise a large frozen range at eye level. It offers 760 litres gross and 642 litres net across a 1.7 m² display area, split behind four hinged glass doors and carried on eight shelves. The panoramic top case layout lets shoppers browse and self-select frozen lines without opening a lid, which suits high-turnover supermarket and convenience settings.

In use the cabinet runs a frozen band of -24 to -18 °C and manages frost with an automatic electric defrost, so there is no manual routine to schedule. It draws 1300 W and is rated energy class C at 5657.5 kWh a year, which works out at about £1414 a year at 25p/kWh. Sound output is 48 dB, and it carries a climate class 3 rating for the ambient conditions of a typical retail floor.

The external footprint is 2500 × 940 × 880 mm (W×D×H), and it ships packed at 2505 × 1060 × 1670 mm, so plan delivery access around that crated size. Net weight is 462 kg (542 kg gross), so siting needs a firm, level floor and enough hands or equipment to position it. It runs on a 220-240 V/50 Hz, 13 A supply and uses R290 refrigerant with a 60 g charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet measures 2500 × 940 × 880 mm (W×D×H) and ships crated at 2505 × 1060 × 1670 mm. Measure your access route against the packed size, and note the 542 kg gross weight when planning how you will move and position it.

It runs a frozen band of -24 to -18 °C, suitable for holding pre-packed frozen goods. It is a display freezer and is not intended for chilled fresh produce.

It is rated energy class C at 5657.5 kWh a year, which is about £1414 a year at 25p/kWh. The R290 refrigerant helps keep efficiency up for a cabinet of this capacity.

It runs on a standard 220-240 V/50 Hz single-phase supply and draws 13 A, so a normal 13 A socket circuit is enough. Input power is 1300 W.

No. Defrost is automatic and electric, so the -24 to -18 °C band is maintained without a scheduled manual defrost.

Yes. Our service team covers commercial refrigeration across the UK and can be reached on 01792 732702 to arrange maintenance or a callout.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 2050 x 422 x 740 mm
External Dimension (WxDxH): 2500 x 940 x 880 mm
Packed Dimension (WxDxH): 2505 x 1060 x 1670 mm

Cooling and Functions

Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 2 x 60 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 15.5 kWh/24h
Temperature Range: -24 to -18 °C
Annual Energy Consumption: 5657 kWh/year m³
Input Power: 1300 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Temperature Range: -24 to -18 °C
Climate Class: 3
Gross / Net Weight: 542 / 462 kg
Gross / Net Volume: 760 / 642 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.7 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Exterior Finish: White
Interior Finish: White
Interior Light: LED
If you have any questions about the TEFCOLD SUPER ARV215DE Panoramic Top Case Freezer then please get in touch.
