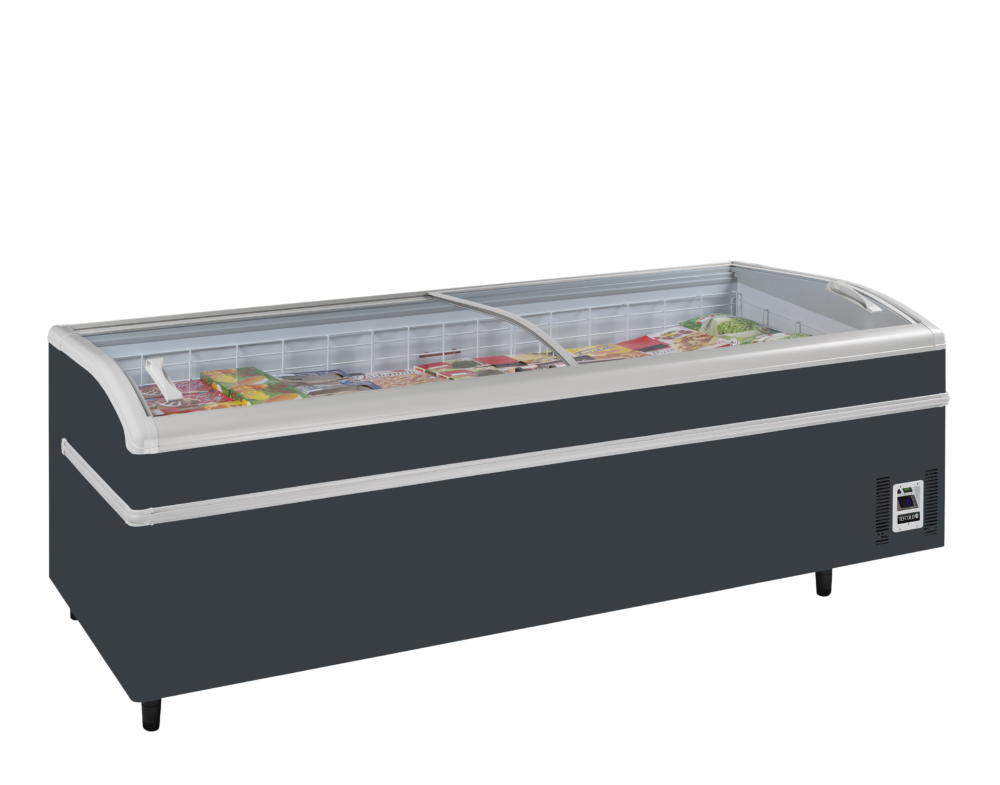

TEFCOLD SUPER 250DE RAL7016 High Vision Supermarket Freezer

£2,093.00

+vat

- +

Brand:

SKU: 34311

Energy Arrow

Product summary

  • Curved sliding lids
  • Static cooling
  • Automatic defrost
  • Dual temp options available
  • LED interior light with switch
  • Digital controller and temperature display
  • Low maintenance condensor
  • Bumper bars
  • 2 Dividers supplied as standard

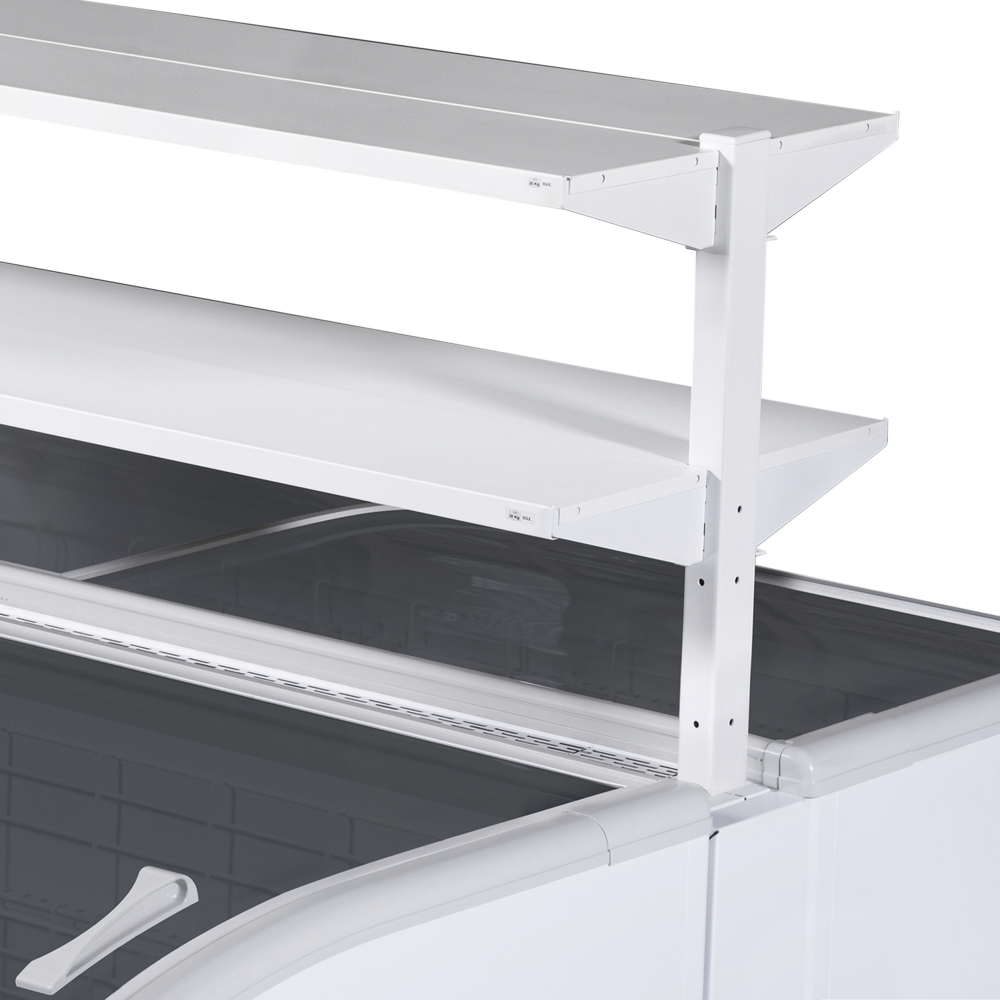

  • Multiplexable,shelving kit options
  • EPOS ticket strip option
  • Defrost drain

Product description

The Arcaboa Super range of freezers is perfect for supermarkets and convenience stores. These units feature large panoramic glass lids and LED lighting to provide an excellent display of products. They can be arranged into islands with head case units (Super 200HCDE) on the ends, and multiplex kits are available to join them together. For added sales potential, shelving kits can be added. The cabinet has an auto defrost function to reduce maintenance costs and prevent ice formation. With very low energy consumption, this freezer is one of the most efficient on the market.

SPECIFICATION 44 facts · tap for all External W × D × H2500 x 920 x 790 mmWidth2500 mmDepth920 mmGross / net weight198 / 147 kgGross weight198 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181995317site
Product code 34311site
Sub title High Vision Supermarket Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 920 mmsite
External (W×D×H) 2500 × 920 × 790 mmcatalogue
External W × D × H 2500 x 920 x 790 mmsite
Gross / net weight 198 / 147 kgsite
Gross weight 198 kgcatalogue
Height 790 mmsite
Internal (W×D×H) 2364 × 773 × 490 mmcatalogue
Internal W × D × H 2364 x 773 x 490 mmsite
Packed (W×D×H) 2610 × 1020 × 850 mmcatalogue
Packed W × D × H 2610 x 1020 x 850 mmsite
Width 2500 mmsite

Capacity2

Display area 1.66 m²site
Gross volume 1030 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 80 gsite
Temperature range -24 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 2847 kWh/yearsite
Energy consumption 6.9 kWh/24hsite
Energy efficiency index 33 %site
Input power 681 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Dividers 2site
Exterior finish Anthracite RAL7016site
Feet / legs 4 adjustable legssite
Interior light LEDsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The TEFCOLD SUPER 250DE is a high-vision supermarket display freezer built to turn frozen lines into visible, impulse-led sales. At 2500 mm wide it presents 1.66 m² of display area and 1030 litres gross — 750 litres net — of frozen storage, wrapped in an anthracite RAL7016 exterior with a white-lined interior for a clean retail finish.

It holds -24 to -18 °C using static cooling with automatic defrost and an electronic controller, so frozen stock stays at temperature without manual intervention. Running noise is rated at 48 dB, the cabinet carries an energy class C rating, and it is built to a climate class 3 rating.

The freezer measures 2500 × 920 × 790 mm (W×D×H) and ships packed at 2610 × 1020 × 850 mm, weighing 198 kg gross. Its low chest height suits open floor positioning, so measure the 920 mm depth against your access route before delivery. It runs from a 13 A supply at 220-240 V drawing 681 W, and uses hydrocarbon R290 refrigerant with an 80 g charge.

BEFORE YOU BUY

Questions, answered straight

The freezer measures 2500 × 920 × 790 mm and ships packed at 2610 × 1020 × 850 mm. As a low chest-format cabinet the main considerations are the 2500 mm width and 920 mm depth, so measure doorways and corridors before delivery.

Gross volume is 1030 litres and net usable volume is 750 litres, presented across 1.66 m² of display area.

It operates from -24 to -18 °C using static cooling with automatic defrost and an electronic controller, suitable for frozen stock.

It runs from a standard 13 A supply at 220-240 V and draws 681 W in operation.

It uses R290, a hydrocarbon refrigerant, with an 80 g charge.

Yes — our service team covers commercial refrigeration and can be reached on 01792 732702 to arrange a visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 2364 x 773 x 490 mm
External Dimension (WxDxH): 2500 x 920 x 790 mm
Packed Dimension (WxDxH): 2610 x 1020 x 850 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 2 x 80 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 6.9 kWh/24h
Temperature Range: -24 to -18 °C
Annual Energy Consumption: 2847 kWh/year m³
EEI: 33 %
Input Power: 681 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Temperature Range: -24 to -18 °C
Climate Class: 3
Gross / Net Weight: 198 / 147 kg
Gross / Net Volume: 1030 / 750 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.66 m² m²

Design and Material

Number of dividers: 2 pcs
Feet / Legs: 4 adjustable legs
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD SUPER 250DE RAL7016 High Vision Supermarket Freezer then please get in touch.
