TEFCOLD SUPER 200DE RAL7016 High Vision Supermarket Freezer

£1,847.00

+vat

- +

Brand:

SKU: 32182

Energy Arrow

Product summary

  • Curved sliding lids
  • Static cooling
  • Automatic defrost
  • Dual temp options available
  • LED interior light with switch
  • Digital controller and temperature display
  • Low maintenance condensor
  • Bumper bars
  • 2 Dividers supplied as standard

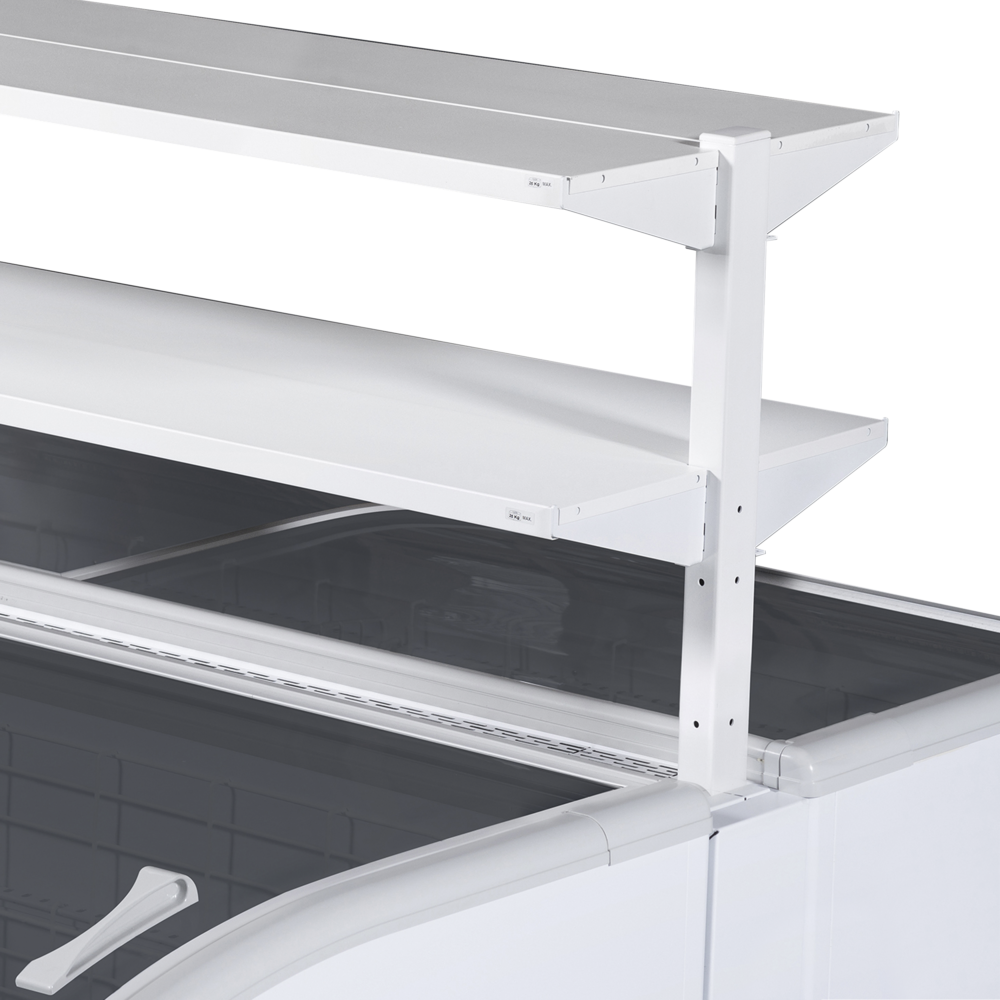

  • Multiplexable,shelving kit options
  • Defrost drain
  • EPOS ticket strip option

Product description

The Arcaboa Super range of freezers is perfect for supermarkets and convenience stores. These units feature large panoramic glass lids and LED lighting to provide an excellent display of products. They can be arranged into islands with head case units (Super 200HCDE) on the ends, and multiplex kits are available to join them together. For added sales potential, shelving kits can be added. The cabinet has an auto defrost function to reduce maintenance costs and prevent ice formation. With very low energy consumption, this freezer is one of the most efficient on the market.

SPECIFICATION 44 facts · tap for all External W × D × H2020 x 920 x 790 mmWidth2020 mmDepth920 mmGross / net weight168 / 127 kgGross weight168 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181705459site
Product code 32182site
Sub title High Vision Supermarket Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 920 mmsite
External (W×D×H) 2020 × 920 × 790 mmcatalogue
External W × D × H 2020 x 920 x 790 mmsite
Gross / net weight 168 / 127 kgsite
Gross weight 168 kgcatalogue
Height 790 mmsite
Internal (W×D×H) 1862 × 773 × 490 mmcatalogue
Internal W × D × H 1862 x 773 x 490 mmsite
Packed (W×D×H) 2110 × 1020 × 850 mmcatalogue
Packed W × D × H 2110 x 1020 x 850 mmsite
Width 2020 mmsite

Capacity2

Display area 1.29 m²site
Gross volume 800 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 60 gsite
Temperature range -24 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 2357 kWh/yearsite
Energy consumption 6.46 kWh/24hsite
Energy efficiency index 33 %site
Input power 662 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Dividers 2site
Exterior finish Anthracite RAL7016site
Feet / legs 4 adjustable legssite
Interior light LEDsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The Super 200DE is a high-vision supermarket freezer built to display frozen retail stock. The anthracite RAL7016 exterior and white interior frame a 1.29 m² display area, giving convenience stores and supermarkets an open, glass-topped format that lets shoppers see and reach frozen lines directly. It offers 800 litres gross and 580 litres net capacity.

It holds -24 to -18 °C for frozen storage and display, with static cooling, automatic defrost and an electronic controller running the cabinet. It sits at climate class 3, is rated at 48 dB and uses R290, a natural hydrocarbon refrigerant with a 60 g charge. At energy class C it is rated at 2357.9 kWh a year, about £589 a year at 25p/kWh.

The freezer runs on 220–240 V through a standard 13 A supply, so no special electrics are needed. Internally it measures 1862 × 773 × 490 mm (W×D×H), and it ships packed at 2110 × 1020 × 850 mm (W×D×H) with a gross weight of 168 kg, so check the delivery route and access before it arrives.

BEFORE YOU BUY

Questions, answered straight

It holds -24 to -18 °C, suitable for frozen retail storage and display. It uses static cooling with automatic defrost, managed by an electronic controller.

It offers 800 litres gross and 580 litres net, across a 1.29 m² high-vision display area for open, reach-in frozen merchandising.

It is rated at 2357.9 kWh a year, about £589 a year at 25p/kWh. That is energy class C, with an energy efficiency index of 33.0.

It ships packed at 2110 × 1020 × 850 mm (W×D×H) at 168 kg gross, so measure the delivery route first. The internal space measures 1862 × 773 × 490 mm (W×D×H).

It runs on R290, a natural hydrocarbon refrigerant with a 60 g charge, from a standard 13 A supply at 220–240 V. No dedicated electrics are required.

Yes. The team can arrange servicing and breakdown support — call 01792 732702 to book it in.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1862 x 773 x 490 mm
External Dimension (WxDxH): 2020 x 920 x 790 mm
Packed Dimension (WxDxH): 2110 x 1020 x 850 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 2 x 60 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 6.46 kWh/24h
Temperature Range: -24 to -18 °C
Annual Energy Consumption: 2357 kWh/year m³
EEI: 33 %
Input Power: 662 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Temperature Range: -24 to -18 °C
Climate Class: 3
Gross / Net Weight: 168 / 127 kg
Gross / Net Volume: 800 / 580 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.29 m² m²

Design and Material

Number of dividers: 2 pcs
Feet / Legs: 4 adjustable legs
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD SUPER 200DE RAL7016 High Vision Supermarket Freezer then please get in touch.
