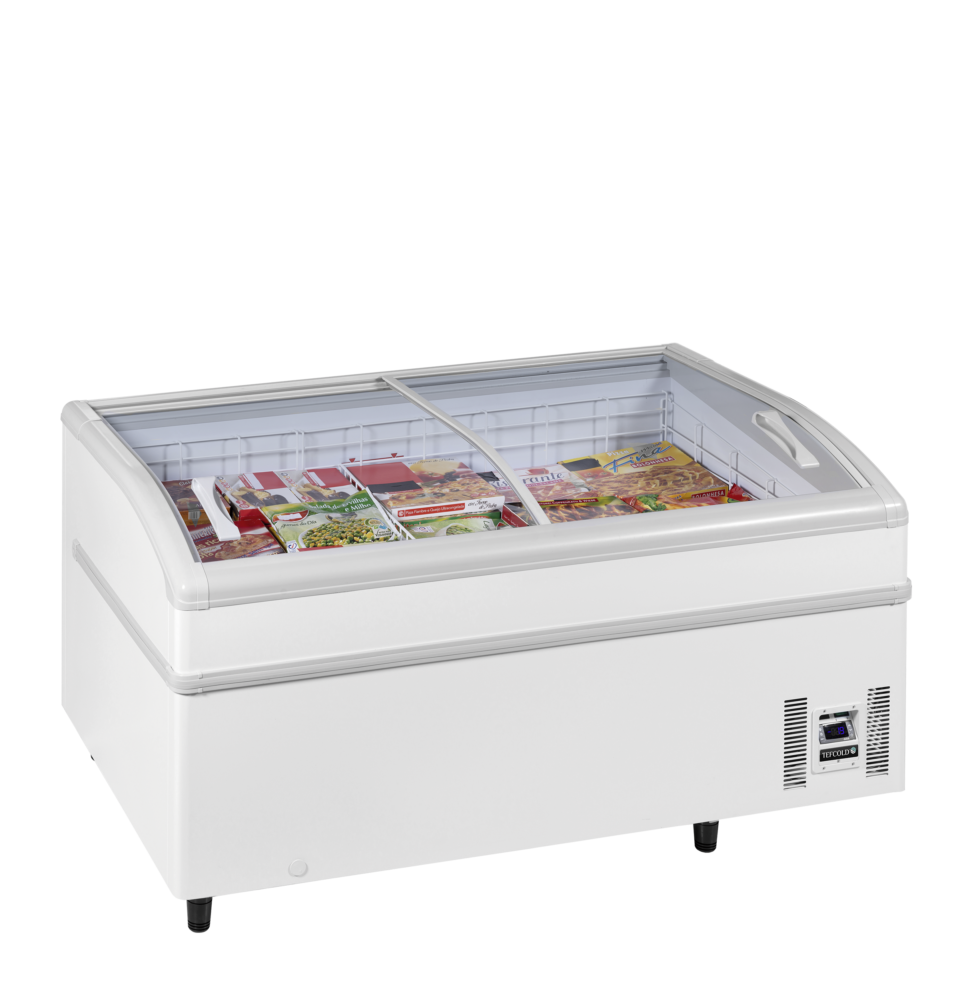

TEFCOLD SUPER 150DE White High Vision Supermarket Freezer

£1,714.00

+vat

Brand:

SKU: 32341

Energy Arrow

Product summary

  • Curved sliding lids
  • Static cooling
  • Automatic defrost
  • Dual temp options available
  • LED interior light with switch
  • Digital controller and temperature display
  • Low maintenance condensor
  • Bumper bars
  • 2 Dividers supplied as standard

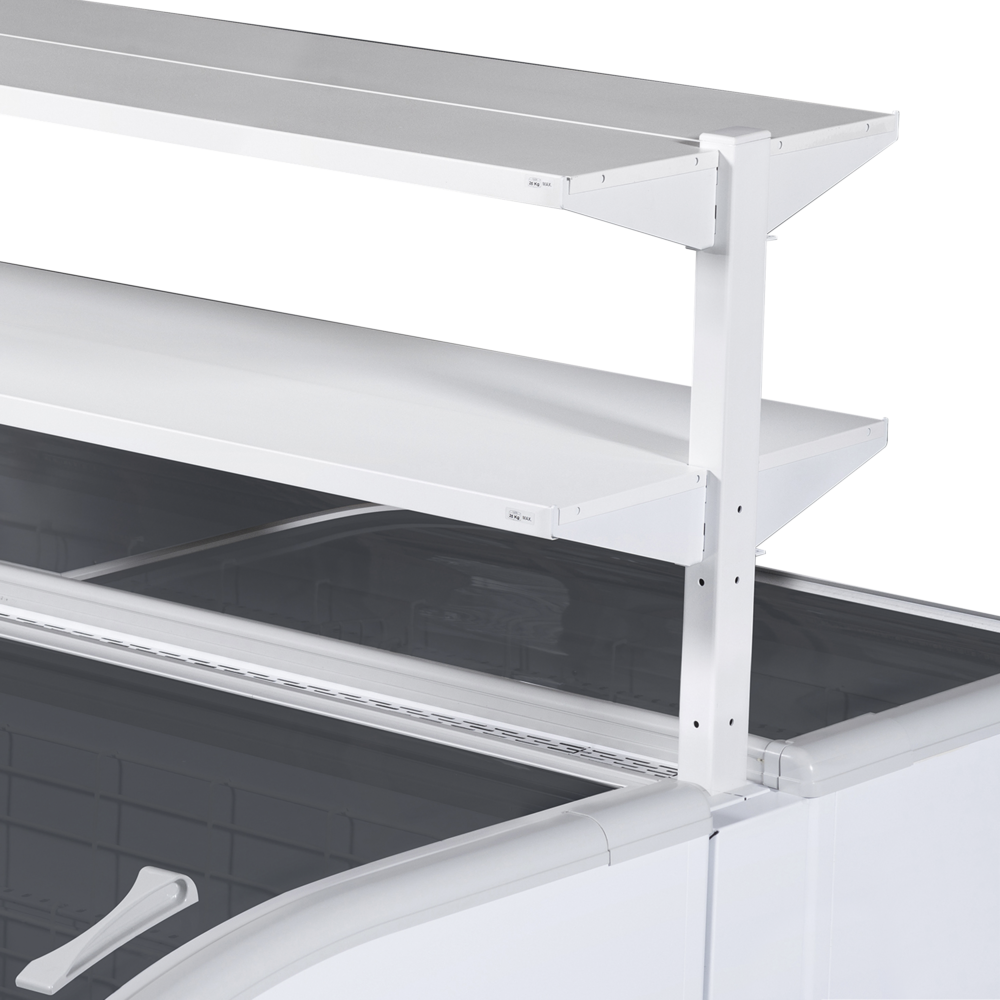

  • Multiplexable,shelving kit options
  • EPOS ticket strip option
  • Defrost drain

Product description

The Arcaboa Super range of freezers is perfect for supermarkets and convenience stores. These units feature large panoramic glass lids and LED lighting to provide an excellent display of products. They can be arranged into islands with head case units (Super 200HCDE) on the ends, and multiplex kits are available to join them together. For added sales potential, shelving kits can be added. The cabinet has an auto defrost function to reduce maintenance costs and prevent ice formation. With very low energy consumption, this freezer is one of the most efficient on the market.

The TEFCOLD SUPER 150DE is a white supermarket display freezer that holds −24 to −18 °C, offering 590 litres gross and 400 litres net across 0.92 m² of display, rated energy class D at 2117 kWh a year on R290 refrigerant and a 13 A supply.

SPECIFICATION 44 facts · tap for all External W × D × H1520 x 920 x 790 mmWidth1520 mmDepth920 mmGross / net weight141 / 98 kgGross weight141 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181221799site
Product code 32341site
Sub title High Vision Supermarket Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 920 mmsite
External (W×D×H) 1520 × 920 × 790 mmcatalogue
External W × D × H 1520 x 920 x 790 mmsite
Gross / net weight 141 / 98 kgsite
Gross weight 141 kgcatalogue
Height 790 mmsite
Internal (W×D×H) 1364 × 774 × 490 mmcatalogue
Internal W × D × H 1364 x 774 x 490 mmsite
Packed (W×D×H) 1610 × 1020 × 850 mmcatalogue
Packed W × D × H 1610 x 1020 x 850 mmsite
Width 1520 mmsite

Capacity2

Display area 0.92 m²site
Gross volume 590 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 60 gsite
Temperature range -24 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 2248 kWh/yearsite
Energy consumption 5.8 kWh/24hsite
Energy efficiency index 41 %site
Input power 644 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Dividers 2site
Exterior finish Whitesite
Feet / legs 4 adjustable legssite
Interior light LEDsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The SUPER 150DE is a compact supermarket display freezer for frozen retail merchandising. It carries 590 litres gross and 400 litres net across 0.92 m² of display area, finished in white inside and out, in a 1520 mm-wide footprint that suits a mid-store frozen point rather than a full aisle.

Day to day it holds a frozen band of −24 to −18 °C using static cooling with automatic defrost, managed by an electronic controller, and it carries climate class 3. Noise is rated at 48 dB. Energy class D works out at 2117 kWh a year, roughly £529 a year to run at 25p/kWh, with an energy efficiency index of 41%.

The cabinet measures 1520 × 920 × 790 mm (W × D × H) and weighs 98 kg net, 141 kg gross. Packed for delivery it is 1610 × 1020 × 850 mm, so check access routes against that before it arrives. It runs from a standard 13 A supply at 220–240 V, drawing 644 W, and uses R290 refrigerant with a 60 g charge.

BEFORE YOU BUY

Questions, answered straight

It offers 590 litres gross and 400 litres net, with 0.92 m² of frozen display area.

The cabinet is 1520 × 920 × 790 mm (W × D × H) and packs to 1610 × 1020 × 850 mm for delivery. Measure your access route against the packed size before it arrives.

It holds a frozen band of −24 to −18 °C using static cooling with automatic defrost, managed by an electronic controller.

It is energy class D, using 2117 kWh a year. At 25p/kWh that is about £529 a year, with an energy efficiency index of 41%.

It runs from a standard 13 A supply at 220–240 V and draws 644 W input power, so it plugs into an ordinary commercial socket.

Yes. Craven Cooling offers servicing and can advise on maintenance — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1364 x 774 x 490 mm
External Dimension (WxDxH): 1520 x 920 x 790 mm
Packed Dimension (WxDxH): 1610 x 1020 x 850 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 2 x 60 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 5.8 kWh/24h
Temperature Range: -24 to -18 °C
Annual Energy Consumption: 2248 kWh/year m³
EEI: 41 %
Input Power: 644 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Temperature Range: -24 to -18 °C
Climate Class: 3
Gross / Net Weight: 141 / 98 kg
Gross / Net Volume: 590 / 400 l
Max Ambient: +25°C, 60% RH
Total Display Area: 0.92 m² m²

Design and Material

Number of dividers: 2 pcs
Feet / Legs: 4 adjustable legs
Exterior Finish: White
Interior Finish: White
Interior Light: LED
If you have any questions about the TEFCOLD SUPER 150DE White High Vision Supermarket Freezer then please get in touch.
