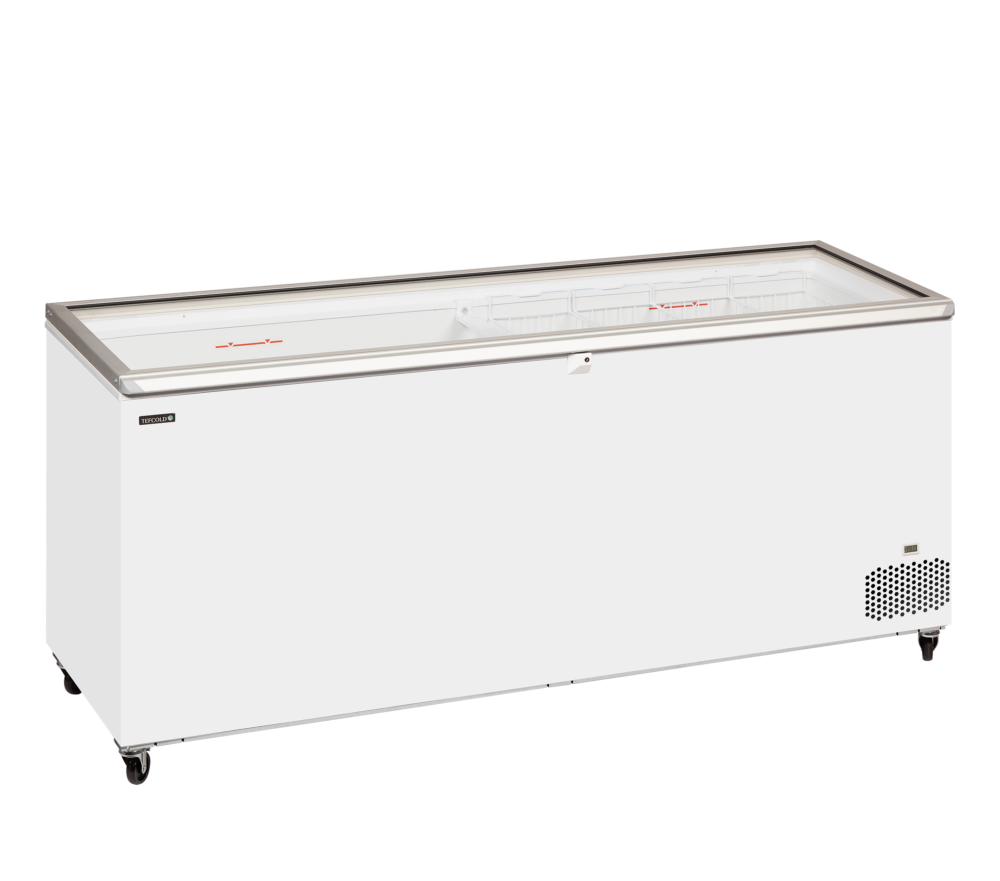

TEFCOLD ST701 Hinged Glass Lid Chest Freezer

£779.00

+vat

Brand:

SKU: 48869

Energy Arrow

Product summary

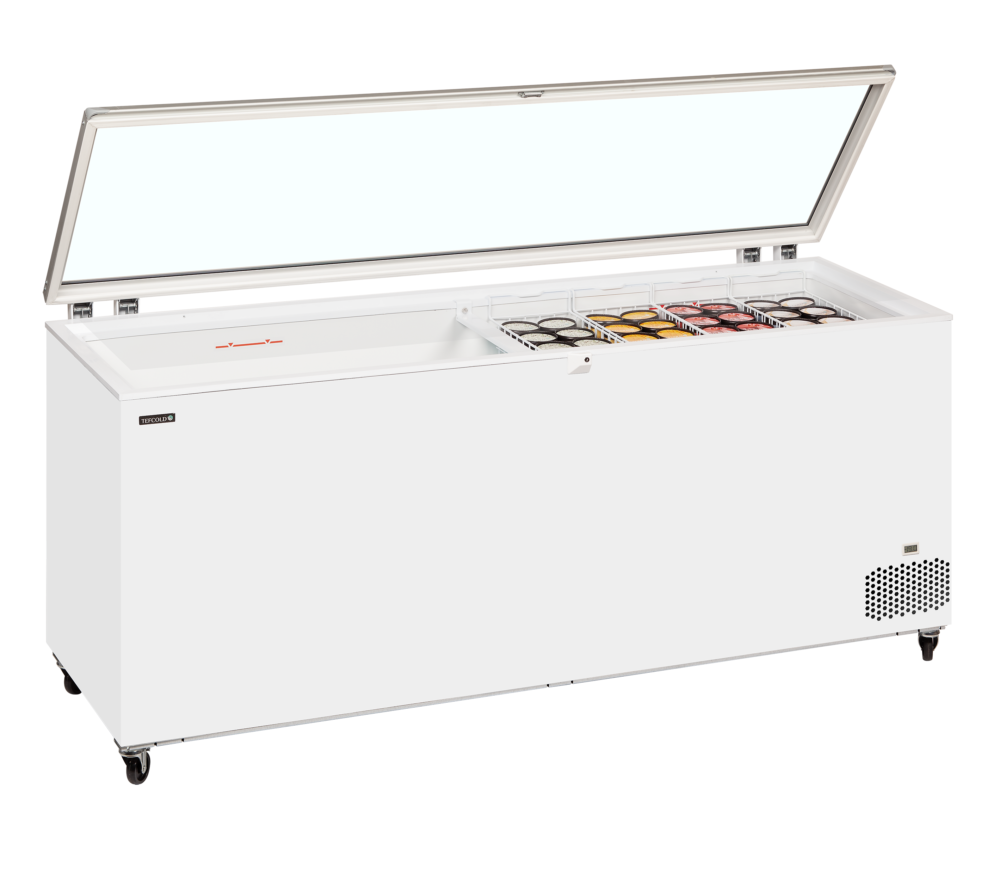

  • Flat hinged glass lid
  • Static cooling
  • Castors
  • Lock
  • Digital temperature display
  • Defrost drain

Product description

A quality solidly built commercial display chest freezer from TEFCOLD. The ST range comes with a flat double glazed glass hinged lid with a robust aluminium frame. A hinged lid is often preferred as customers are less likely to leave a hinged lid open compared to a sliding lid, reducing energy consumption and helping to stop ice forming in the freezer. The cabinet comes with castors fitted as standard. Available in 4 sizes to suit all situations. Ideal for smaller convenience stores, corner shops for storage of ice cream and frozen foods.

The Tefcold ST701 is a white hinged glass-lid chest freezer holding stock at -24 to -14 °C, with 670 litres gross and 620 litres net capacity, static cooling, a mechanical controller and natural R290 refrigerant, running from a 13-amp supply at about £334 a year at 25p/kWh.

SPECIFICATION 42 facts · tap for all External W × D × H2055 x 720 x 920 mmWidth2055 mmDepth720 mmGross / net weight109 / 103 kgGross weight109 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181731212site
Product code 48869site
Sub title Hinged Glass Lid Chest Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 720 mmsite
External (W×D×H) 2055 × 720 × 920 mmcatalogue
External W × D × H 2055 x 720 x 920 mmsite
Gross / net weight 109 / 103 kgsite
Gross weight 109 kgcatalogue
Height 920 mmsite
Internal (W×D×H) 1930 × 510 × 655 mmcatalogue
Internal W × D × H 1930 x 510 x 655 mmsite
Packed (W×D×H) 2145 × 750 × 1000 mmcatalogue
Packed W × D × H 2145 x 750 x 1000 mmsite
Width 2055 mmsite

Capacity1

Gross volume 670 litrescatalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 125 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 1336 kWh/yearsite
Energy consumption 3.66 kWh/24hsite
Energy efficiency index 48.6 %site
Input power 292 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 double castorssite
Exterior finish Whitesite
Lock Nosite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The Tefcold ST701 is a white hinged glass-lid chest freezer that shows frozen stock through the top while keeping it sealed, so customers can see the product without a member of staff opening it. With 670 litres of gross capacity and 620 litres of usable net volume, it suits impulse frozen lines at the end of an aisle or by the till.

It holds product at -24 to -14 °C with static cooling and a mechanical controller, a simple set-up with few electronics to fail, and it is rated climate class 4. Defrost is manual, so budget for a periodic clear-out, and at a measured 45 dB it is quiet on a shop floor. Rated energy class D with a 48.6% efficiency index, it uses 1,335.9 kWh a year — about £334 to run at 25p/kWh.

The freezer measures 2055 × 720 × 920 mm (W×D×H) externally and ships packed at 2145 × 750 × 1000 mm, so check doorway width along the delivery route. It runs on a standard 220–240 V 13-amp supply drawing 292 W, uses natural R290 refrigerant with a 125 g charge, and weighs 109 kg gross, making it lighter to position than an upright.

BEFORE YOU BUY

Questions, answered straight

It runs at -24 to -14 °C, giving flexibility from firm frozen storage to general frozen retail. It uses static cooling and a mechanical controller.

No, defrost is manual on this model, so plan a periodic manual defrost and clean. The trade-off is a simple, robust mechanical set-up with little to go wrong.

It is energy class D and uses 1,335.9 kWh a year, about £334 at 25p/kWh. The efficiency index is 48.6%.

It is 2055 mm wide and ships packed at 2145 × 750 × 1000 mm. Measure the narrowest point on the delivery route; at 109 kg it is lighter to move than an upright.

A standard 220–240 V single-phase 13-amp supply. It draws just 292 W, low for a cabinet of this size.

Yes, we cover delivery, siting and servicing across the Tefcold range; call 01792 732702 to arrange.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1930 x 510 x 655 mm
External Dimension (WxDxH): 2055 x 720 x 920 mm
Packed Dimension (WxDxH): 2145 x 750 x 1000 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 125 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.66 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 1336 kWh/year m³
EEI: 48.6 %
Input Power: 292 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 4
Gross / Net Weight: 109 / 103 kg
Gross / Net Volume: 670 / 620 l
Max Ambient: +30°C, 55% RH

Design and Material

Castors: 4 double castors
Exterior Finish: White
Interior Finish: White
Lock: No
If you have any questions about the TEFCOLD ST701 Hinged Glass Lid Chest Freezer then please get in touch.
