TEFCOLD ST501 Hinged Glass Lid Chest Freezer

£678.00

+vat

Brand:

SKU: 48867

Energy Arrow

Product summary

  • Flat hinged glass lid
  • Static cooling
  • Castors

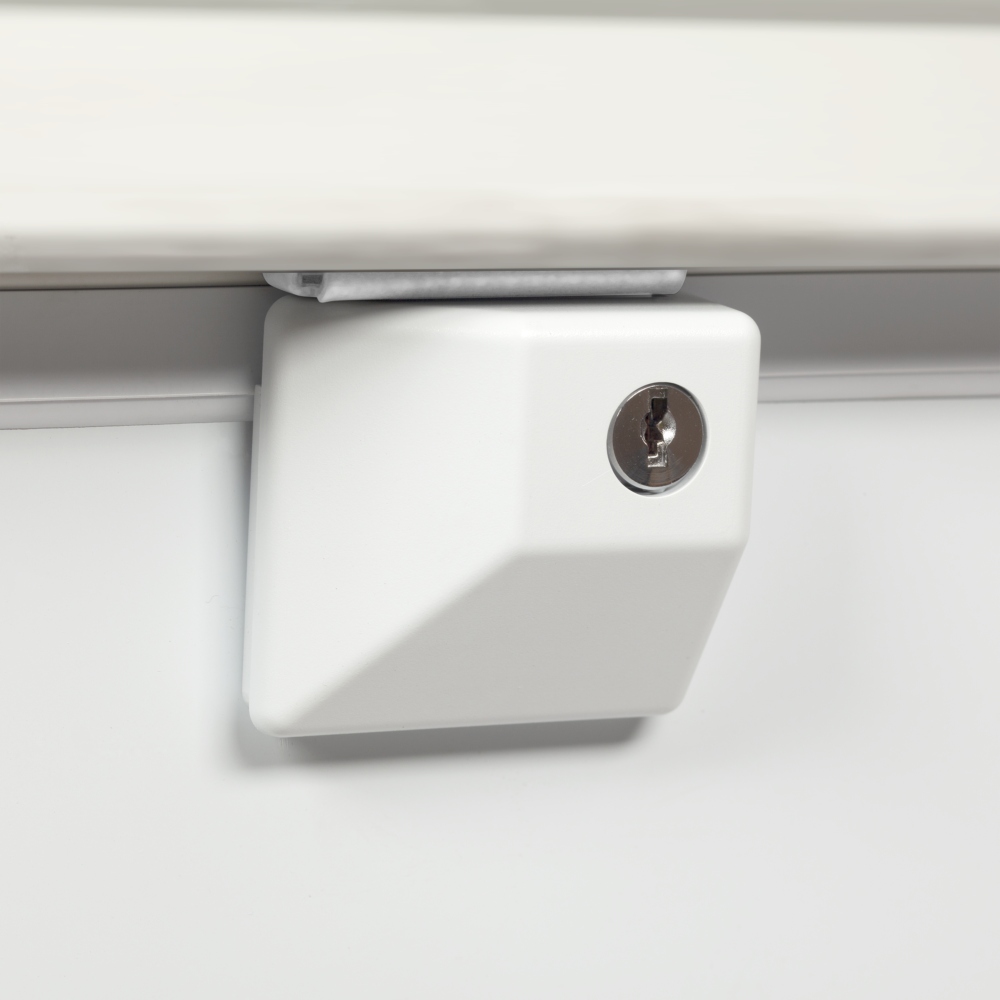

  • Lock
  • Digital temperature display
  • Defrost drain

Product description

A quality solidly built commercial display chest freezer from TEFCOLD. The ST range comes with a flat double glazed glass hinged lid with a robust aluminium frame. A hinged lid is often preferred as customers are less likely to leave a hinged lid open compared to a sliding lid, reducing energy consumption and helping to stop ice forming in the freezer. The cabinet comes with castors fitted as standard. Available in 4 sizes to suit all situations. Ideal for smaller convenience stores, corner shops for storage of ice cream and frozen foods.

The TEFCOLD ST501 is a glass-lid chest freezer for frozen retail display, holding 430 litres net at -24 to -14 °C in a 1550 mm-wide white cabinet.

SPECIFICATION 42 facts · tap for all External W × D × H1550 x 720 x 878 mmWidth1550 mmDepth720 mmGross / net weight88 / 78 kgGross weight88 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181731199site
Product code 48867site
Sub title Hinged Glass Lid Chest Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 720 mmsite
External (W×D×H) 1550 × 720 × 878 mmcatalogue
External W × D × H 1550 x 720 x 878 mmsite
Gross / net weight 88 / 78 kgsite
Gross weight 88 kgcatalogue
Height 878 mmsite
Internal (W×D×H) 1430 × 510 × 655 mmcatalogue
Internal W × D × H 1430 x 510 x 655 mmsite
Packed (W×D×H) 1640 × 750 × 1000 mmcatalogue
Packed W × D × H 1640 x 750 x 1000 mmsite
Width 1550 mmsite

Capacity1

Gross volume 491 litrescatalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 110 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 951 kWh/yearsite
Energy consumption 2.61 kWh/24hsite
Energy efficiency index 42 %site
Input power 191 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 double castorssite
Exterior finish Whitesite
Lock Nosite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The ST501 is a glass-lid chest freezer built for frozen retail display, letting customers see the product through the lid before they reach in. It holds 430 litres of net volume from a 491-litre gross cabinet, in a white finish with a white painted-steel interior — a straightforward format for merchandising bagged and boxed frozen lines at the point of sale.

It runs -24 to -14 °C through static cooling with a mechanical controller and manual defrost, so build a periodic defrost into your routine to keep it working efficiently. It carries an energy class D rating with an energy efficiency index of 42%, drawing 952.6 kWh a year — about £238 a year at 25p/kWh, depending on your tariff, ambient and lid use. Noise is rated at 45 dB and it is built to climate class 4.

The cabinet measures 1550 × 720 × 878 mm externally and ships packed at 1640 × 750 × 1000 mm, with a gross weight of 88 kg (78 kg net). It runs from a standard 13 A supply at 220-240 V with an input power of 191 W, and uses R290 refrigerant with a 110 g charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 1550 mm wide externally and ships packed at 1640 × 750 × 1000 mm, weighing 88 kg gross. It is wider than a standard single doorway, so measure your delivery route and installed position first.

It is rated energy class D at 952.6 kWh a year, roughly £238 a year at 25p/kWh. Your actual cost depends on your tariff, ambient temperature and how often the lid is opened.

It runs -24 to -14 °C through static cooling with a mechanical controller, suited to frozen product. It is a freezer, not a chiller.

430 litres net from a 491-litre gross cabinet, viewed through the glass lid for display.

Yes. It uses static cooling with manual defrost, so schedule a periodic defrost to keep it running efficiently. For servicing or a maintenance plan, call Craven Cooling on 01792 732702.

A standard 13 A supply at 220-240 V, with an input power of 191 W. It uses R290 refrigerant with a 110 g charge.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1430 x 510 x 655 mm
External Dimension (WxDxH): 1550 x 720 x 878 mm
Packed Dimension (WxDxH): 1640 x 750 x 1000 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.61 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 951 kWh/year m³
EEI: 42 %
Input Power: 191 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 4
Gross / Net Weight: 88 / 78 kg
Gross / Net Volume: 491 / 430 l
Max Ambient: +30°C, 55% RH

Design and Material

Castors: 4 double castors
Exterior Finish: White
Interior Finish: White
Lock: No
If you have any questions about the TEFCOLD ST501 Hinged Glass Lid Chest Freezer then please get in touch.
