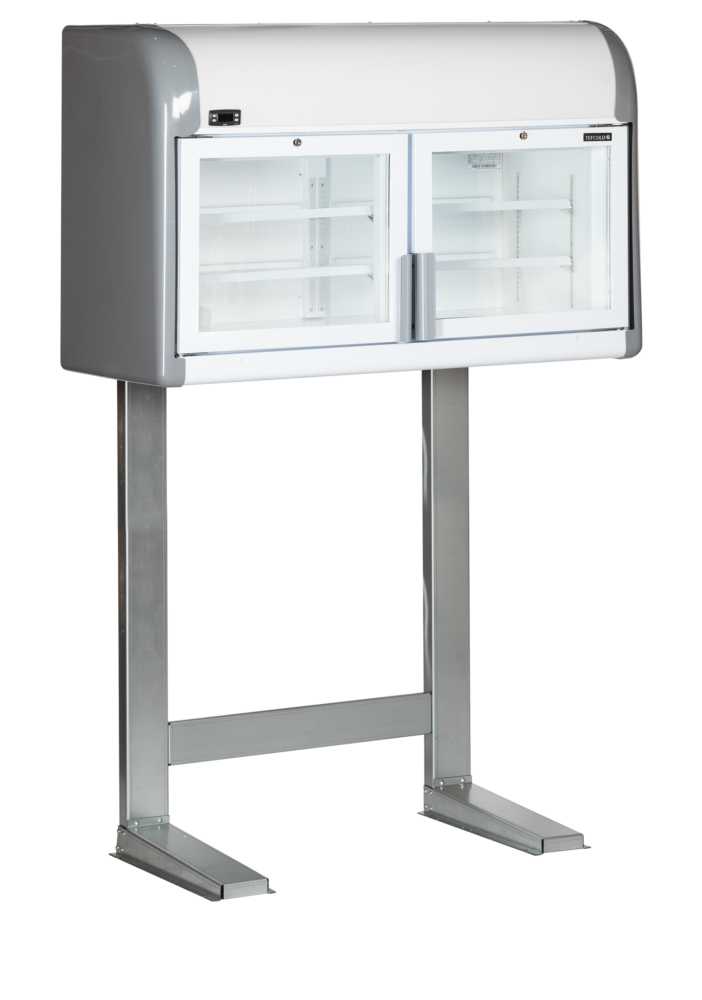

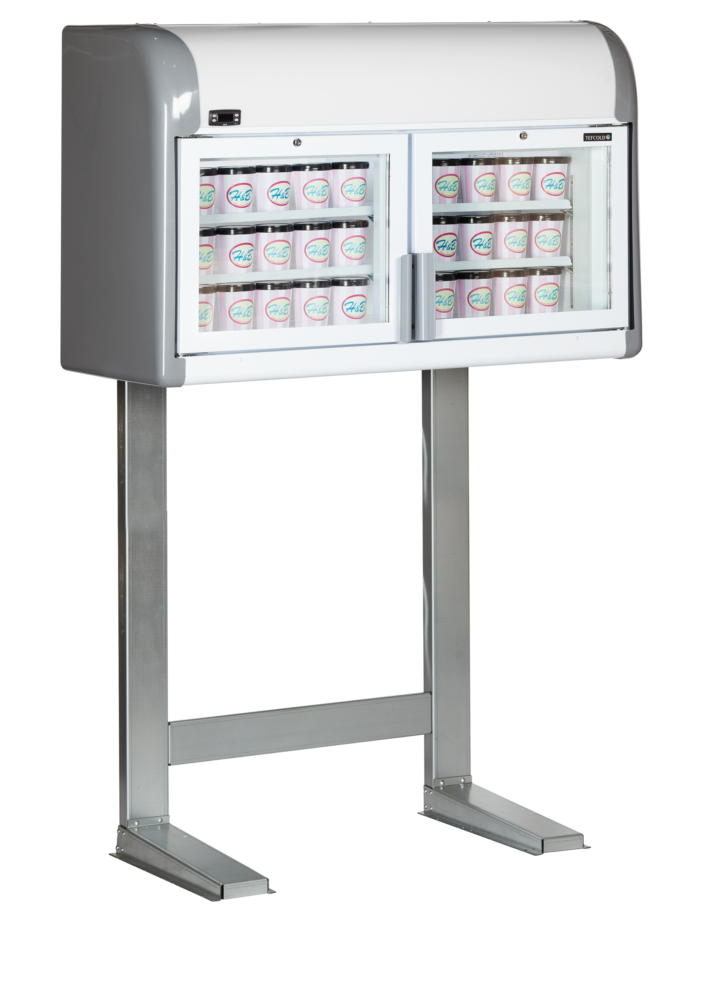

TEFCOLD MTF Mini Top Case Freezer

£1,414.00

+vat

- +

Brand:

SKU: 45313

Energy Arrow

Product summary

  • Adjustable shelves
  • Vertical LED interior light with switch

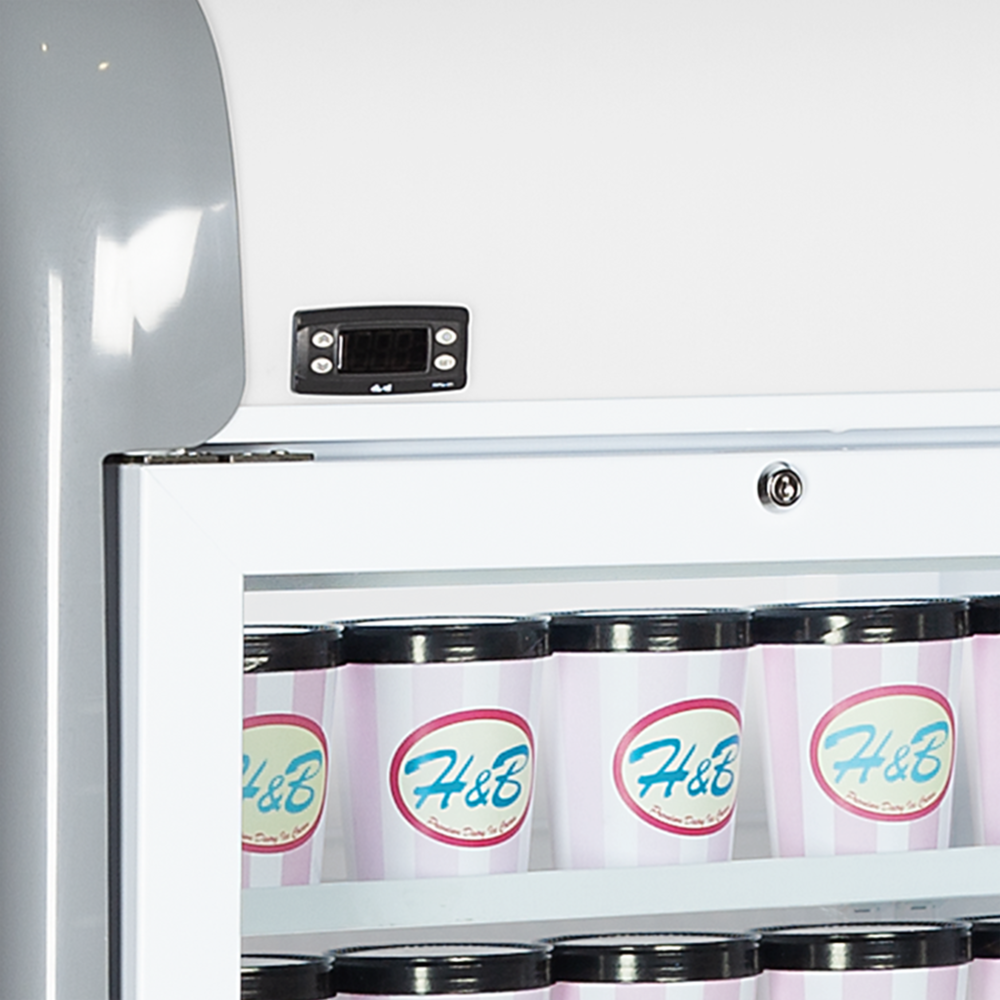

  • Digital controller and temperature display
  • Ticket strip and acrylic front riser as standard
  • Heated Self-closing glass doors
  • Requires display chiller/freezer to sit underneath
  • Requires stand building and cabinet lifting onto stand
  • Static cooling

Product description

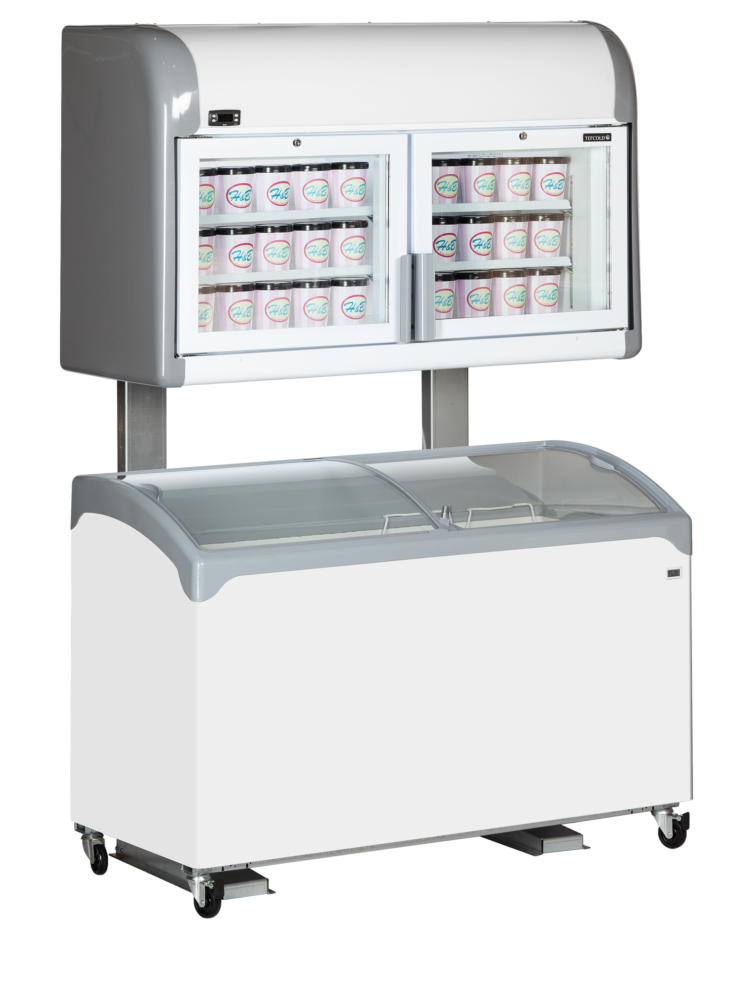

The MTF MINI is designed to create an eye-catching frozen display to draw customers in. With an illuminated top canopy plus areas for side branding and great internal lighting, this is the perfect unit to get your product noticed. The MTF is designed to be used in conjunction with the TEFCOLD NIC402SCEB glass sliding lid chest freezer which sites underneath.

The TEFCOLD MTF is a mini top-case display freezer holding -23 to -18 °C with 170 litres of net capacity under two hinged self-closing glass doors, running on R290 refrigerant with static cooling and an energy class of C.

SPECIFICATION 45 facts · tap for all External W × D × H1275 x 636 x 1965 mmWidth1275 mmDepth636 mmGross / net weight170.1 / 113.6 kgGross weight170.1 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181720407site
Product code 45313site
Sub title Top Case Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 636 mmsite
External (W×D×H) 1275 × 636 × 1965 mmcatalogue
External W × D × H 1275 x 636 x 1965 mmsite
Gross / net weight 170.1 / 113.6 kgsite
Gross weight 170.1 kgcatalogue
Height 1965 mmsite
Internal (W×D×H) 1080 × 438 × 401 mmcatalogue
Internal W × D × H 1080 x 438 x 401 mmsite
Packed (W×D×H) 1380 × 675 × 1010 mmcatalogue
Packed W × D × H 1380 x 675 x 1010 mmsite
Width 1275 mmsite

Capacity3

Display area 0.38 m²site
Doors 2catalogue
Gross volume 200 litrescatalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 65 gsite
Temperature range -23 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 1518 kWh/yearsite
Energy consumption 4.16 kWh/24hsite
Energy efficiency index 25.5 %site
Input power 212 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max load per shelf 196site
Shelf dimensions 530x316mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The MTF Mini is a compact top-case display freezer for frozen impulse lines — ice cream, novelties and small packs — in stores where floor space is limited. Product sits under two hinged, self-closing glass doors on four adjustable white wire shelves, in a white cabinet that reads clean on the shop floor.

It holds a frozen -23 to -18 °C band under an electronic controller, using static cooling with manual defrost, so plan a defrost routine into the week. Rated to climate class 4, it runs at 58 dB. Net capacity is 170 litres, 200 litres gross. At 1518.4 kWh a year that is about £380 a year at 25p/kWh, at energy class C with an EEI of 25.5%.

Cooling is by R290 refrigerant with a 65 g charge, from a standard 13A supply drawing 212W, so it connects to an ordinary commercial socket. Internal usable space measures 1080 × 438 × 401 mm (W×D×H). The self-closing glass doors help hold temperature between customers and cut wasted cold air.

BEFORE YOU BUY

Questions, answered straight

It holds a frozen -23 to -18 °C band under electronic control. Cooling is static with manual defrost, so factor a regular defrost into your routine.

Net capacity is 170 litres, 200 litres gross, across four adjustable white wire shelves under two hinged glass doors.

At 1518.4 kWh a year it works out at about £380 a year at 25p/kWh, at energy class C with an EEI of 25.5%.

No. It runs from a standard 13A supply and draws 212W, connecting to an ordinary commercial socket.

Yes — the two glass doors are self-closing, which helps hold the frozen temperature between customers and cuts wasted cold air.

Yes — call the service team on 01792 732702 for servicing or spares. It uses R290 refrigerant with an electronic controller and manual defrost.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1080 x 438 x 401 mm
External Dimension (WxDxH): 1275 x 636 x 1965 mm
Packed Dimension (WxDxH): 1380 x 675 x 1010 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 65 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 4.16 kWh/24h
Temperature Range: -23 to -18 °C
Annual Energy Consumption: 1518 kWh/year m³
EEI: 25.5 %
Input Power: 212 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Temperature Range: -23 to -18 °C
Climate Class: 4
Gross / Net Weight: 170.1 / 113.6 kg
Gross / Net Volume: 200 / 170 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.38 m² m²

Design and Material

Shelf Dimensions: 530x316mm
Max load on Shelves: 196 kg/m²
Exterior Finish: White
Interior Finish: White
Interior Light: LED
If you have any questions about the TEFCOLD MTF Mini Top Case Freezer then please get in touch.
