TEFCOLD DUPLA 2.2DE RAL7016 Supermarket Freezer

£3,272.00

+vat

Brand:

SKU: 32420

Energy Arrow

Product summary

  • Curved sliding lids
  • Static cooling
  • Automatic defrost
  • LED interior light with switch
  • Digital controller and temperature display
  • Fan assisted self cleaning condenser
  • Defrost drain
  • Bumper bars
  • Low energy consumption
  • High internal volume with small footprint

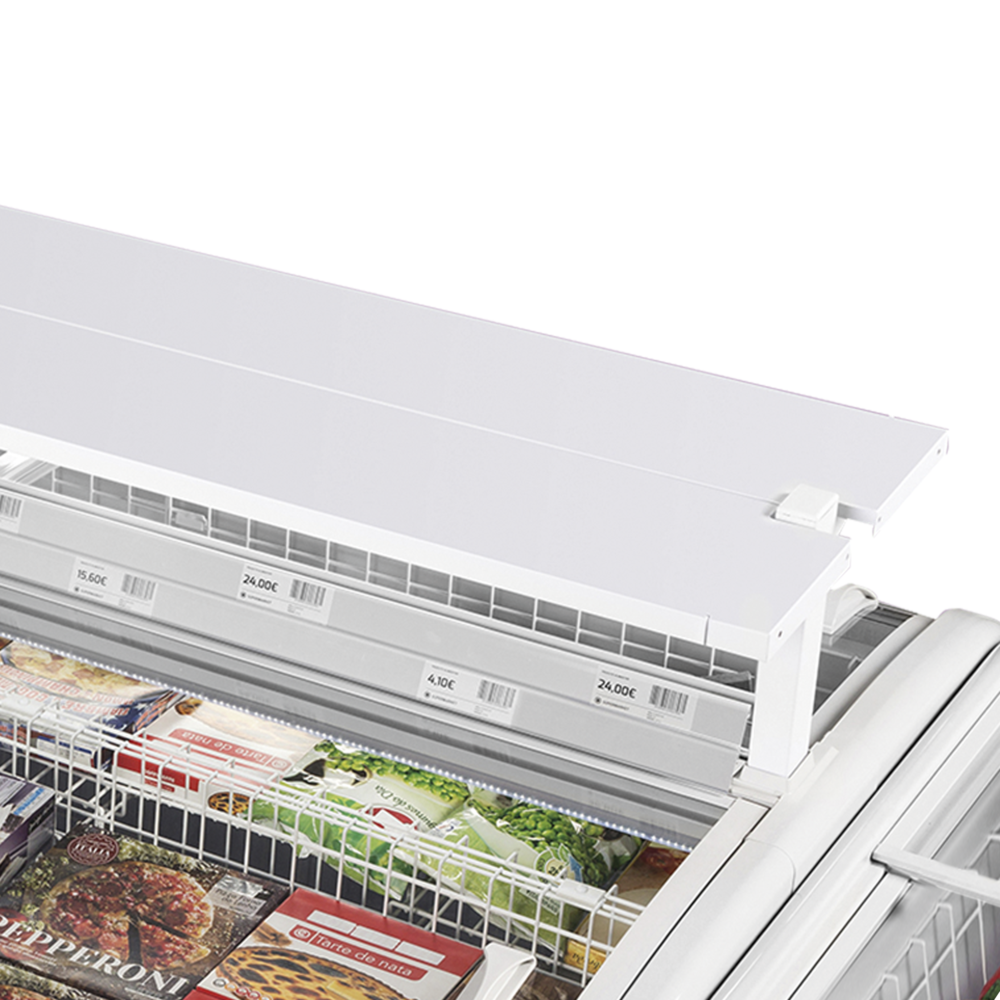

  • Shelving and ticket strips are optional extra – POA

Product description

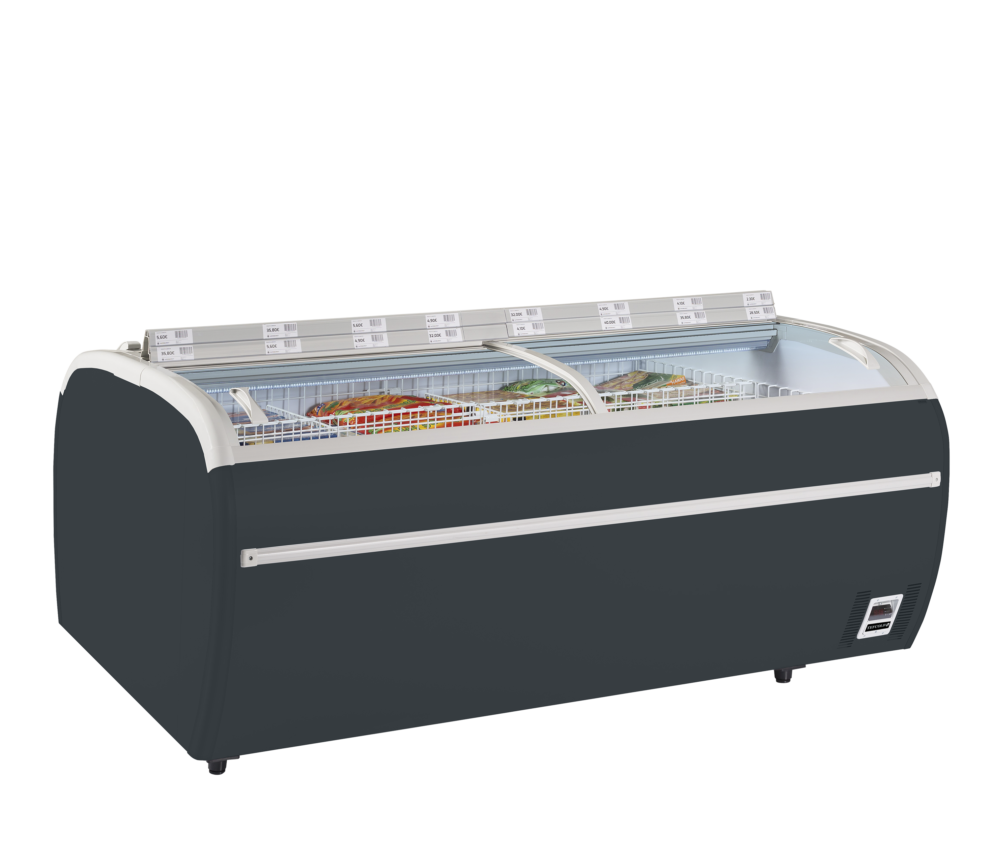

The Dupla is an innovative solution, designed to create maximum storage and display area in a small footprint. Instead of having two freezers back to back, the Dupla is built as a single “back to back” island site freezer. By removing the dividing wall that would normally be between the 2 units a significant amount of space is created. Using an advanced refrigeration system, the cabinet uses significantly less energy rather than two traditional back to back systems. Save space, increase display area and reduce running costs.

The TEFCOLD DUPLA 2.2DE is a 1697-litre supermarket display freezer that holds −24 to −18 °C, rated energy class C at 3358 kWh a year, using R290 refrigerant on a 13 A supply and finished in anthracite RAL7016.

SPECIFICATION 43 facts · tap for all External W × D × H2150 x 1465 x 930 mmWidth2150 mmDepth1465 mmGross / net weight251 / 198 kgGross weight251 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181212568site
Product code 32420site
Sub title Supermarket Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1465 mmsite
External (W×D×H) 2150 × 1465 × 930 mmcatalogue
External W × D × H 2150 x 1465 x 930 mmsite
Gross / net weight 251 / 198 kgsite
Gross weight 251 kgcatalogue
Height 930 mmsite
Internal (W×D×H) 2000 × 1175 × 700 mmcatalogue
Internal W × D × H 2000 x 1175 x 700 mmsite
Packed (W×D×H) 2240 × 1550 × 1050 mmcatalogue
Packed W × D × H 2240 x 1550 x 1050 mmsite
Width 2150 mmsite

Capacity2

Display area 2.65 m²site
Gross volume 1697 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 85 gsite
Temperature range -24 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 3358 kWh/yearsite
Energy consumption 9.2 kWh/24hsite
Energy efficiency index 26 %site
Input power 522 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Anthracite RAL7016site
Feet / legs 4 adjustable legssite
Interior light LEDsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The DUPLA 2.2DE is a large-format supermarket display freezer built for frozen retail. It offers 1697 litres gross and 1255 litres net across 2.65 m² of display area, so a single cabinet carries a full frozen range. The exterior is finished in anthracite RAL7016 with a white interior, and at 2150 mm wide it anchors a frozen aisle in one run.

Day to day it holds a frozen band of −24 to −18 °C using static cooling and automatic defrost, with an electronic controller managing temperature. Noise is rated at 48 dB and it carries climate class 3. Energy class C works out at 3358 kWh a year, roughly £840 a year to run at 25p/kWh, with an energy efficiency index of 26%.

The cabinet measures 2150 × 1465 × 930 mm (W × D × H) and weighs 198 kg net, 251 kg gross. Packed for delivery it is 2240 × 1550 × 1050 mm, so access routes and doorways are worth measuring before it arrives. It runs from a standard 13 A supply at 220–240 V, drawing 522 W, and uses R290 refrigerant with an 85 g charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 2150 × 1465 × 930 mm (W × D × H). Packed for delivery it measures 2240 × 1550 × 1050 mm, so measure your access route and doorways against that before it arrives.

It holds a frozen band of −24 to −18 °C using static cooling with automatic defrost, managed by an electronic controller.

It is energy class C, using 3358 kWh a year. At 25p/kWh that is about £840 a year, with an energy efficiency index of 26%.

It runs from a standard 13 A supply at 220–240 V and draws 522 W input power, so it plugs into an ordinary commercial socket.

It uses R290 with an 85 g charge, a low-GWP hydrocarbon refrigerant.

Yes. Craven Cooling offers servicing and can advise on maintenance — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 2000 x 1175 x 700 mm
External Dimension (WxDxH): 2150 x 1465 x 930 mm
Packed Dimension (WxDxH): 2240 x 1550 x 1050 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 2 x 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 9.2 kWh/24h
Temperature Range: -24 to -18 °C
Annual Energy Consumption: 3358 kWh/year m³
EEI: 26 %
Input Power: 522 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Temperature Range: -24 to -18 °C
Climate Class: 3
Gross / Net Weight: 251 / 198 kg
Gross / Net Volume: 1697 / 1255 l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.65 m² m²

Design and Material

Feet / Legs: 4 adjustable legs
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD DUPLA 2.2DE RAL7016 Supermarket Freezer then please get in touch.
