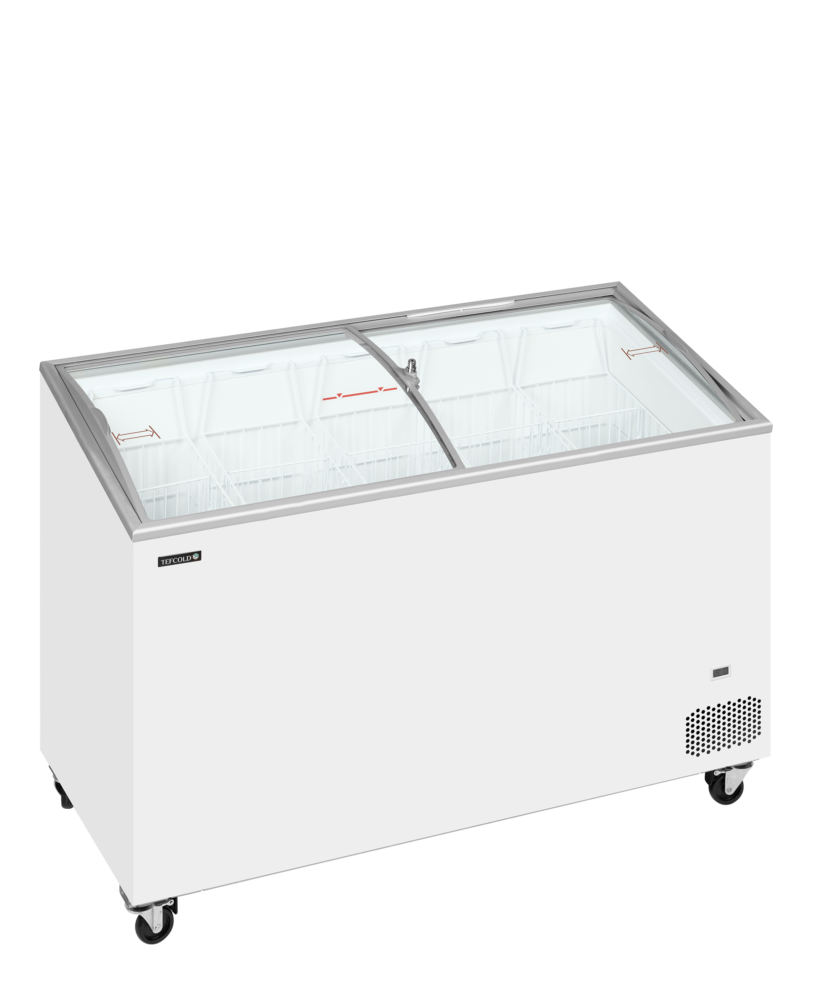

TEFCOLD IC401SCEB Sliding Curved Glass Lid Chest Freezer

£604.00

+vat

Brand:

SKU: 48842

Energy Arrow

Product summary

  • Sloping display for excellent presentation

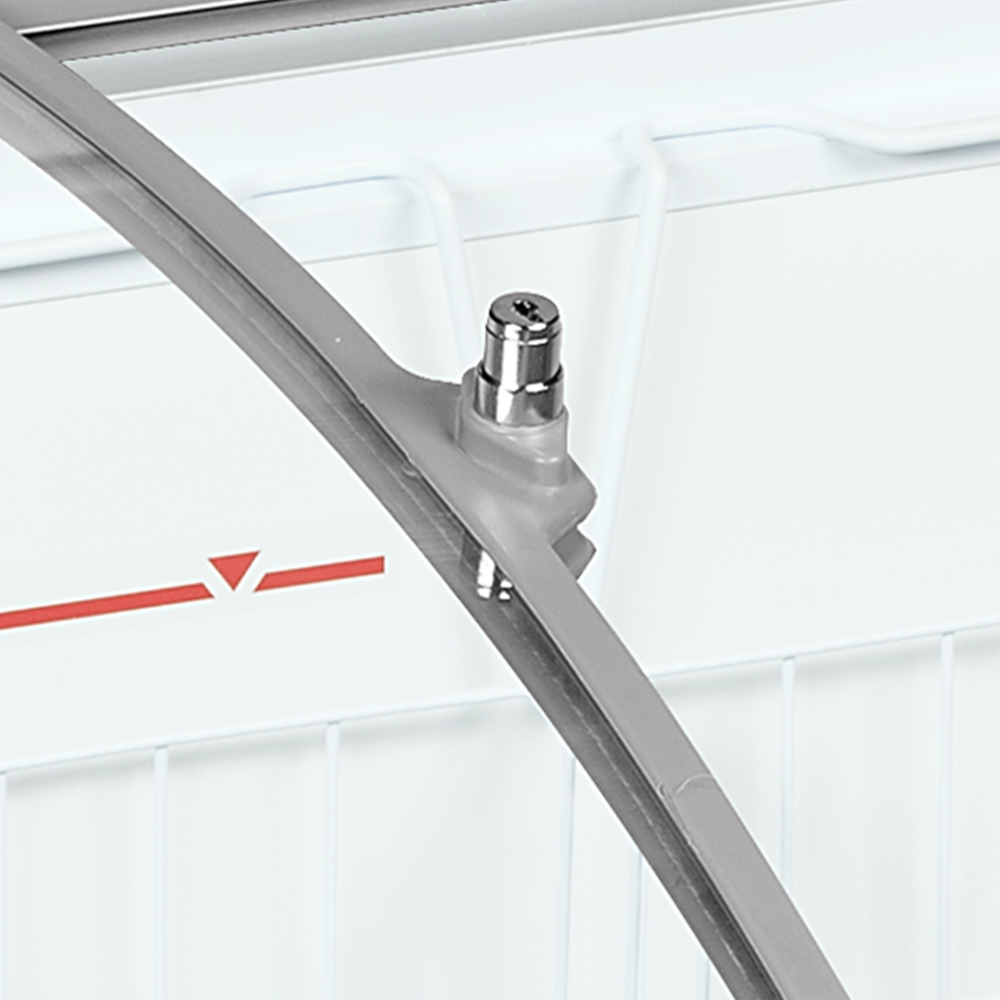

  • Curved sliding lids with lock
  • Includes full set of baskets
  • Ideal for branding
  • Digital thermometer
  • Castors with brake
  • Climate class 5 for high performance in warm surroundings

Product description

An excellent choice of sliding glass lid chest freezers, similar to the IC-SC range but with a sloping top for a better visual display and curved lids which always look better. Ideal for display of frozen food including ice cream and lollies. Sturdy heavy duty castors are fitted to enable easy movement of the cabinet, two of the four castors are lockable. Excellent adjustment of the temperature means you can hold a temperature around -14°C, ready to serve ice cream, or down to -24°C for other frozen food. The unit comes with a lock as standard and a defrost drain for easy cleaning. The unit also has a fan assisted condenser for efficient operation. A full set of baskets with dividers supplied as standard (except IC101SCEB which does not come with dividers). A firm favourite with many ice cream companies. (A glass canopy version for scooping ice cream is also available).

The TEFCOLD IC401SCEB is a sliding curved glass lid display chest freezer holding 325 litres at -24 to -14 °C, with static cooling, manual defrost, R290 refrigerant and a white cabinet with an 1180 × 495 × 710 mm interior, running from a standard 13-amp supply.

SPECIFICATION 41 facts · tap for all External W × D × H1300 x 615 x 949 mmWidth1300 mmDepth615 mmGross / net weight76 / 66 kgGross weight76 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181730994site
Product code 48842site
Sub title Sliding Curved Glass Lid Chest Freezercatalogue
Type Sliding Lid Ice Cream Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 615 mmsite
External (W×D×H) 1300 × 615 × 949 mmcatalogue
External W × D × H 1300 x 615 x 949 mmsite
Gross / net weight 76 / 66 kgsite
Gross weight 76 kgcatalogue
Height 949 mmsite
Internal (W×D×H) 1180 × 495 × 710 mmcatalogue
Internal W × D × H 1180 x 495 x 710 mmsite
Packed (W×D×H) 1400 × 750 × 1010 mmcatalogue
Packed W × D × H 1400 x 750 x 1010 mmsite
Width 1300 mmsite

Capacity1

Gross volume 352 litrescatalogue

Performance10

Climate class 5site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Refrigerant charge 105 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 799 kWh/yearsite
Energy consumption 2.19 kWh/24hsite
Energy efficiency index 43.2 %site
Input power 141 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Castors 4 wheels, 2 with brakesite
Exterior finish Whitesite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this sliding lid ice cream freezer earns its place

The TEFCOLD IC401SCEB is a display chest freezer with a sliding curved glass lid that merchandises frozen stock from above while keeping it covered. The interior measures 1180 mm wide by 495 mm deep and holds 325 litres net (352 litres gross), giving a long display run for ice cream, frozen desserts and pre-packed frozen lines. It suits impulse, self-serve frozen selling.

Cooling is static and the cabinet holds -24 to -14 °C under a mechanical thermostat, with manual defrost when the store is cleared down. It is rated to climate class 5 and runs at 45 dB. At energy class D it draws 799 kWh a year — about £200 a year at 25p/kWh — from a 141-watt input.

The cabinet has a white exterior and white painted steel interior and weighs 66 kg. It ships in a 1400 × 750 × 1010 mm crate, so plan delivery access for that width. Power is a 220–240 V, 50 Hz supply on a standard 13-amp socket, and cooling uses R290 refrigerant with a 105-gram charge.

BEFORE YOU BUY

Questions, answered straight

-24 to -14 °C using static cooling and a mechanical thermostat, rated to climate class 5.

At energy class D it uses 799 kWh a year, about £200 a year at 25p/kWh, from a 141-watt input.

325 litres net and 352 litres gross, across an interior 1180 mm wide by 495 mm deep by 710 mm high.

Defrost is manual, done when the cabinet is cleared of stock. There is no automatic cycle.

It ships in a 1400 × 750 × 1010 mm crate and weighs 66 kg net, so check door widths and the route in before delivery.

No — it runs from a standard 13-amp, 220–240 V, 50 Hz supply. Craven Cooling services TEFCOLD refrigeration on 01792 732702; the cabinet uses R290 refrigerant with a 105-gram charge.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1180 x 495 x 710 mm
External Dimension (WxDxH): 1300 x 615 x 949 mm
Packed Dimension (WxDxH): 1400 x 750 x 1010 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 105 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.19 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 799 kWh/year m³
EEI: 43.2 %
Input Power: 141 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 5
Gross / Net Weight: 76 / 66 kg
Gross / Net Volume: 352 / 325 l
Max Ambient: +40°C, 40% RH

Design and Material

Castors: 4 wheels, 2 with brake
Exterior Finish: White
Interior Finish: White
Lock: Yes
If you have any questions about the TEFCOLD IC401SCEB Sliding Curved Glass Lid Chest Freezer then please get in touch.
