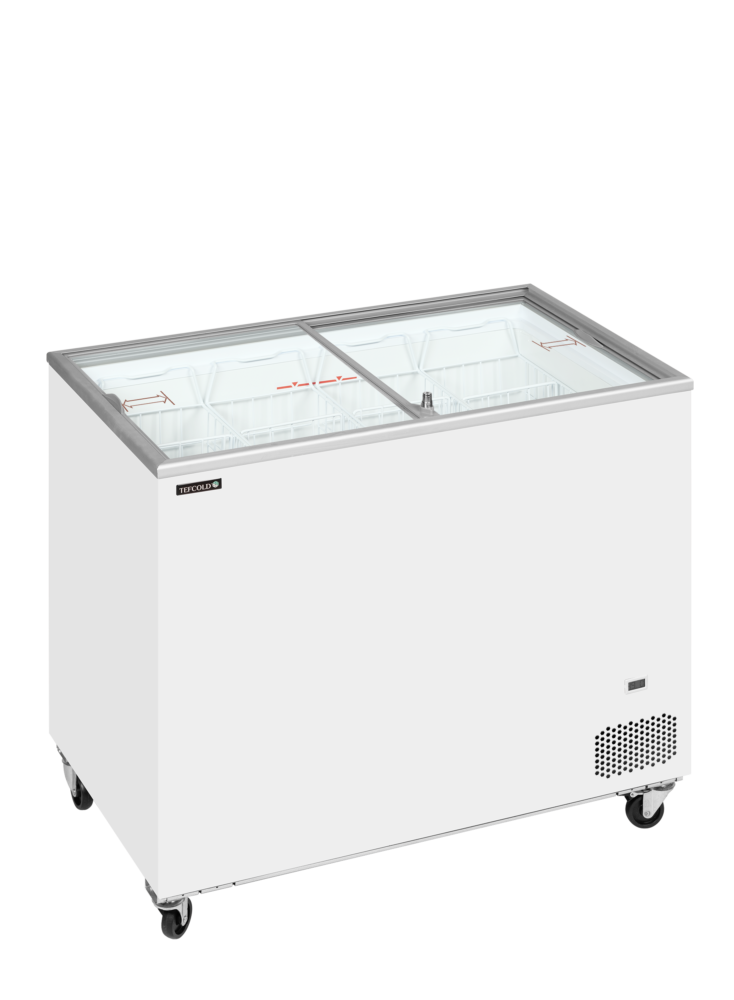

TEFCOLD IC301SC Sliding Flat Glass Lid Chest Freezer

£520.00

+vat

Brand:

SKU: 49740

Energy Arrow

Product summary

  • Includes full set of baskets

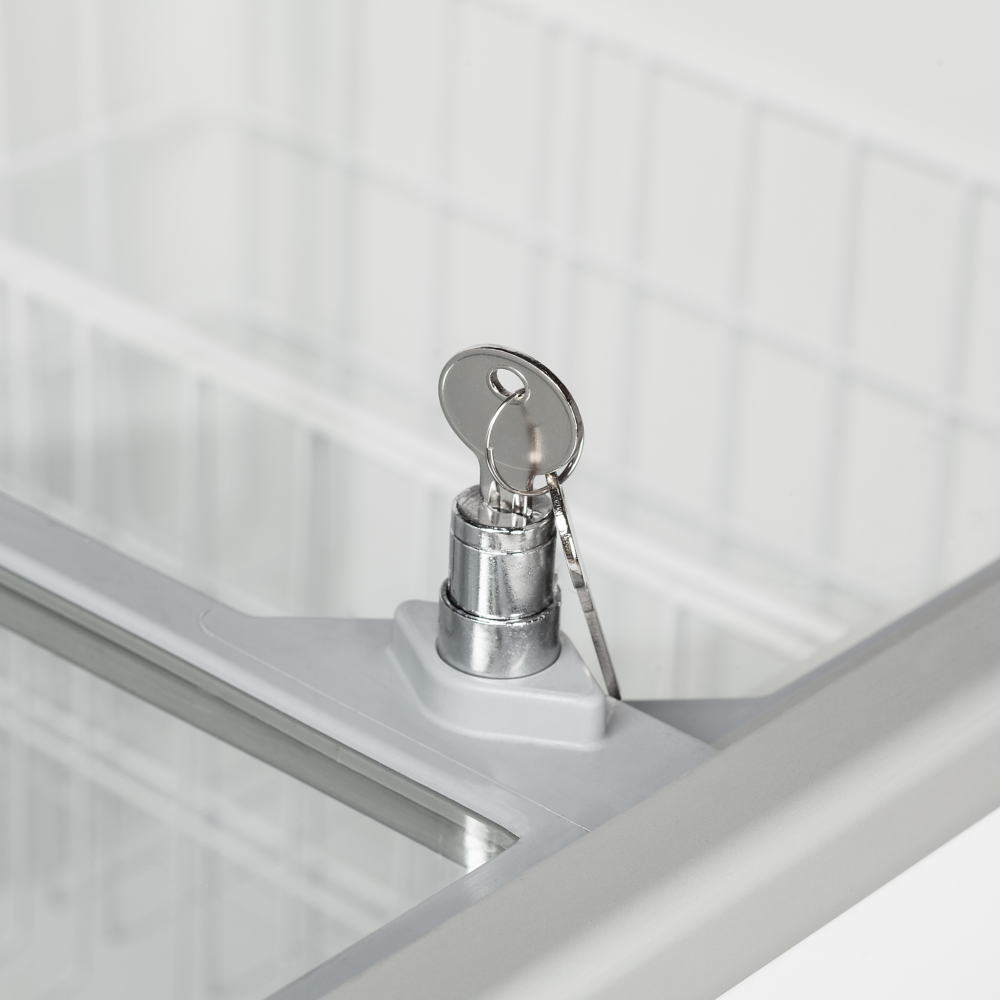

  • Flat sliding glass lids with lock
  • Great branding possibilities
  • Digital thermometer
  • Powder coated white steel inner liner
  • Castors with brake
  • Climate class 5 for high performance in warm surroundings

Product description

the IC-SC range of sliding glass lid chest freezers is ideal for display of ice creams, lollies, or other frozen goods. The units come with a full set of baskets with ample storage underneath. Units come fitted with castors. There are 5 different sizes to suit a range of requirements. Ideal for convenience stores, cafés and small shops.

The TEFCOLD IC301SC is a 1010 mm sliding flat-glass-lid display chest freezer holding 255 litres net at -24 to -14 °C, running on R290 refrigerant with static cooling, a mechanical controller and a 45 dB noise rating.

SPECIFICATION 41 facts · tap for all External W × D × H1010 x 630 x 892 mmWidth1010 mmDepth630 mmGross / net weight65 / 55 kgGross weight65 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181733193site
Product code 49740site
Sub title Sliding Flat Glass Lid Chest Freezercatalogue
Type Sliding Lid Ice Cream Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 630 mmsite
External (W×D×H) 1010 × 630 × 892 mmcatalogue
External W × D × H 1010 x 630 x 892 mmsite
Gross / net weight 65 / 55 kgsite
Gross weight 65 kgcatalogue
Height 892 mmsite
Internal (W×D×H) 890 × 510 × 655 mmcatalogue
Internal W × D × H 890 x 510 x 655 mmsite
Packed (W×D×H) 1100 × 750 × 940 mmcatalogue
Packed W × D × H 1100 x 750 x 940 mmsite
Width 1010 mmsite

Capacity1

Gross volume 296 litrescatalogue

Performance10

Climate class 5site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Refrigerant charge 85 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 648 kWh/yearsite
Energy consumption 1.78 kWh/24hsite
Energy efficiency index 40.3 %site
Input power 141 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Castors 4 wheels, 2 with brakesite
Exterior finish Whitesite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this sliding lid ice cream freezer earns its place

The TEFCOLD IC301SC is a compact glass-lid display chest freezer for selling frozen stock at the point of sale. The flat sliding glass lid gives a clear view into 255 litres of net capacity — ice cream tubs, wrapped novelties and frozen pre-pack — and the white cabinet drops neatly into a serving area or shop floor at just 1010 mm wide.

It runs at -24 to -14 °C, cold enough for ice cream and frozen goods, using static cooling with a mechanical controller. Defrost is manual, so you will switch it off periodically and clear the ice rather than rely on an automatic cycle. At 45 dB it is quiet at the counter, and climate class 5 rates it to hold temperature in warm ambient conditions — useful for a summer kiosk.

The freezer measures 1010 × 630 × 892 mm externally and needs a standard 13 A supply on 220–240 V. At 65 kg gross it is manageable for two people to position. It runs on R290 hydrocarbon refrigerant with an 85 g charge; gross volume is 296 litres, 255 litres net. Running cost works out at about £162 a year at 25p/kWh.

BEFORE YOU BUY

Questions, answered straight

255 litres net (296 litres gross) in a cabinet just 1010 mm wide. Enough for a focused range of ice cream tubs, wrapped novelties or frozen pre-pack behind a full sliding glass lid.

-24 to -14 °C, cold enough for ice cream and frozen goods, using static cooling with a mechanical controller.

No — defrost is manual, so you periodically switch it off and clear the ice. That keeps the design simple and the running cost low, at 649.7 kWh a year, about £162 at 25p/kWh.

Yes — it is rated at 45 dB. Climate class 5 also means it holds temperature in warm ambient conditions, which suits a summer kiosk or hot serving area.

A standard 13 A supply on 220–240 V, 50 Hz — it plugs into a normal socket. For servicing questions, call the team on 01792 732702.

R290, a natural hydrocarbon refrigerant with low global warming potential, with an 85 g charge.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 890 x 510 x 655 mm
External Dimension (WxDxH): 1010 x 630 x 892 mm
Packed Dimension (WxDxH): 1100 x 750 x 940 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.78 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 648 kWh/year m³
EEI: 40.3 %
Input Power: 141 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 5
Gross / Net Weight: 65 / 55 kg
Gross / Net Volume: 296 / 255 l
Max Ambient: +40°C, 40% RH

Design and Material

Castors: 4 wheels, 2 with brake
Exterior Finish: White
Interior Finish: White
Lock: Yes
If you have any questions about the TEFCOLD IC301SC Sliding Flat Glass Lid Chest Freezer then please get in touch.
