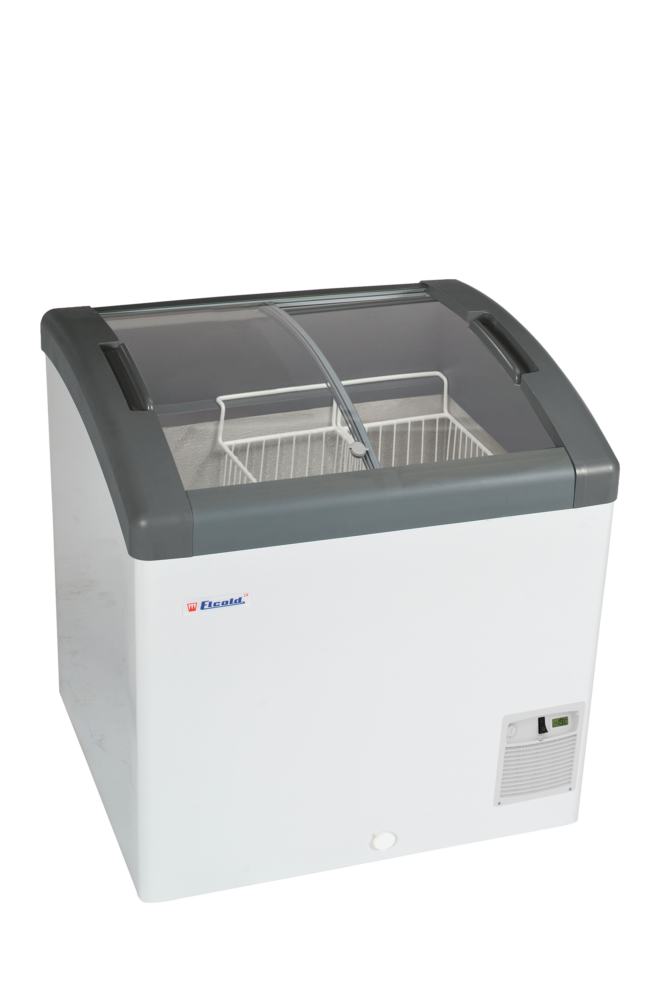

Elcold FOCUS 73 Sliding Curved Glass Lid Chest Freezer

£621.00

+vat

Brand:

SKU: 33526

Energy Arrow

Product summary

  • Frameless curved sliding lids
  • Static cooling
  • Castors
  • Defrost drain
  • Fan assisted condenser for energy efficiency
  • Red and blue trim options to order

Product description

Sliding Curved Glass Lid Chest Freezer

Elcold’s premium chest freezer, the Focus, is a top choice for leading ice cream and frozen food companies due to its stunning design, energy efficiency, and durability. The frameless curved sliding lids and internal LED lighting offer an excellent display, and castors come as standard. This high-quality chest freezer is one of the best on the market, supplied as standard with grey trim, with the option to order in red or blue trim.

The Elcold FOCUS 73 is a curved sliding-glass-lid chest freezer holding -23 to -16 °C with 113 litres of usable space, rated energy class D at 664.3 kWh a year, in a 726 × 656 × 850 mm White or Grey cabinet on a 13-amp supply.

SPECIFICATION 42 facts · tap for all External W × D × H726 x 656 x 850 mmWidth726 mmDepth656 mmGross / net weight47 / 44 kgGross weight47 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Elcoldsite
GTIN / EAN 5708181993276site
Product code 33526site
Sub title Sliding Curved Glass Lid Chest Freezercatalogue
Type Display Chest Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 656 mmsite
External (W×D×H) 726 × 656 × 850 mmcatalogue
External W × D × H 726 x 656 x 850 mmsite
Gross / net weight 47 / 44 kgsite
Gross weight 47 kgcatalogue
Height 850 mmsite
Internal (W×D×H) 570 × 500 × 670 mmcatalogue
Internal W × D × H 570 x 500 x 670 mmsite
Packed (W×D×H) 765 × 760 × 880 mmcatalogue
Packed W × D × H 765 x 760 x 880 mmsite
Width 726 mmsite

Capacity1

Gross volume 161 litrescatalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 55 gsite
Temperature range -23 to -16site
Thermometer Factory Optionsite

Power & energy6

Annual energy consumption 665 kWh/yearsite
Energy consumption 1.82 kWh/24hsite
Energy efficiency index 55 %site
Input power 141 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Castors Castorssite
Exterior finish White, Greysite
Interior light LED as optionsite
Lock Yessite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this display chest freezer earns its place

The FOCUS 73 is a compact display chest freezer with a curved sliding glass lid, built to show frozen stock at the point of sale. It gives 113 litres of usable space (161 litres gross) inside a 726 mm-wide cabinet, so it slots onto a counter end, a shop aisle or a forecourt without taking a full chest-freezer footprint. The glass lid lets customers see the product while it stays frozen.

It holds a -23 to -16 °C band with static cooling and a mechanical controller — simple to set and robust in day-to-day use. Defrost is manual, so build a periodic clear-out into your routine. Running noise is 40 dB, and climate class 4 rates it for warm, busy environments. It draws 141 W, about £166 a year at 25p/kWh.

The cabinet measures 726 × 656 × 850 mm (W×D×H) and weighs 44 kg empty, light enough to reposition, and packs to 765 × 760 × 880 mm for delivery. It runs off a standard 13-amp socket at 220–240 V / 50 Hz and uses R600a refrigerant with a 55 g charge. The interior is hammered aluminium; the cabinet comes in White or Grey.

BEFORE YOU BUY

Questions, answered straight

It holds a -23 to -16 °C band, cold enough for long-term frozen storage and display of ice cream and frozen food. Cooling is static with a mechanical controller.

No, defrost is manual, so plan a periodic switch-off and clear-out to keep it running efficiently. The interior is hammered aluminium, which wipes down easily.

Rated energy class D at 664.3 kWh a year, it works out around £166 a year at 25p/kWh. Real-world cost varies with tariff, ambient temperature and lid openings.

Usable capacity is 113 litres (161 litres gross). The cabinet is 726 mm wide and 656 mm deep, so it fits an aisle end or counter without a full chest-freezer footprint.

White or Grey, with a hammered aluminium interior. The curved sliding glass lid gives customers a clear view of the stock inside.

Yes — call 01792 732702 to arrange servicing or repair. It uses R600a refrigerant with a 55 g charge and a mechanical controller.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 570 x 500 x 670 mm
External Dimension (WxDxH): 726 x 656 x 850 mm
Packed Dimension (WxDxH): 765 x 760 x 880 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 55 g
Thermometer: Factory Option

Power and Consumption

Energy Consumption: 1.82 kWh/24h
Temperature Range: -23 to -16 °C
Annual Energy Consumption: 665 kWh/year m³
EEI: 55 %
Input Power: 141 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Temperature Range: -23 to -16 °C
Climate Class: 4
Gross / Net Weight: 47 / 44 kg
Gross / Net Volume: 161 / 113 l
Max Ambient: +30°C, 55% RH

Design and Material

Castors: Castors
Exterior Finish: White, Grey
Interior Finish: White, Grey
Interior Light: LED as option
Lock: Yes
If you have any questions about the Elcold FOCUS 73 Sliding Curved Glass Lid Chest Freezer then please get in touch.
