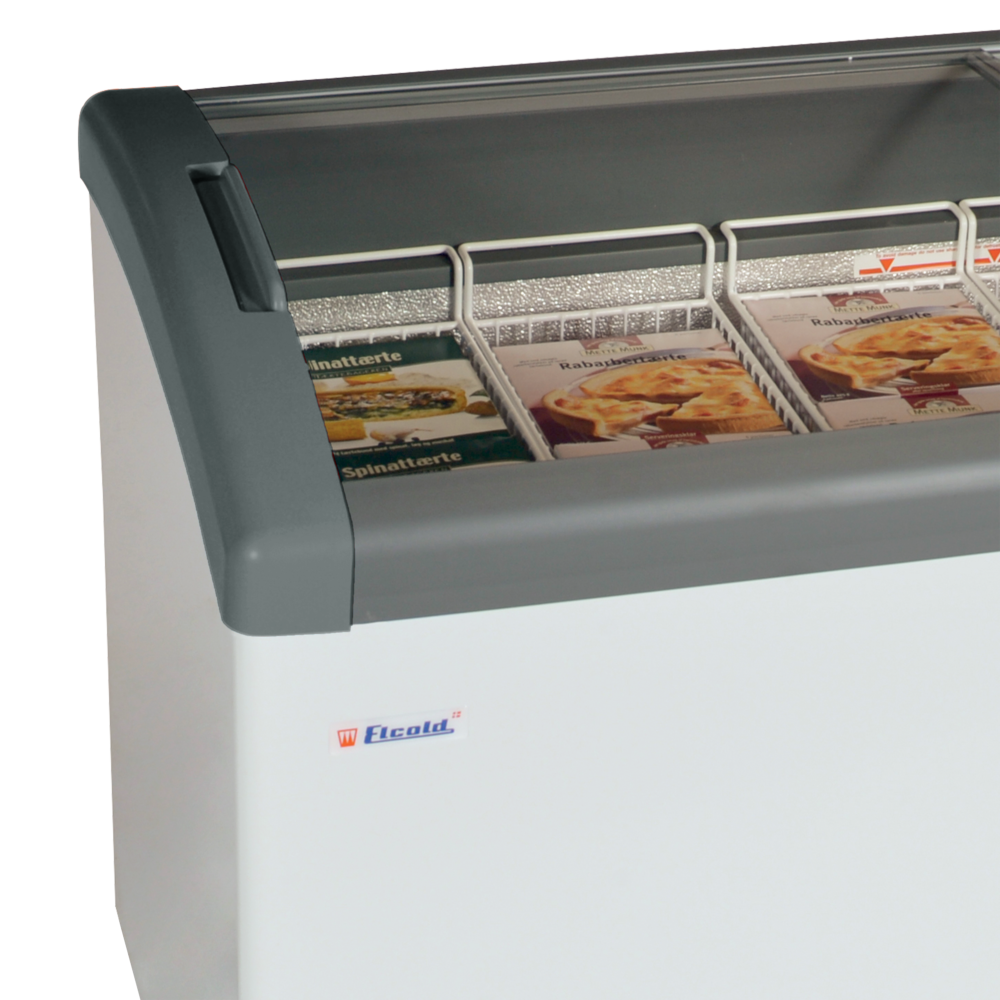

Elcold FOCUS 73 GREY Sliding Curved Glass Lid Chest Freezer

£621.00

+vat

Brand:

SKU: 53300

Energy Arrow

Product summary

  • Defrost drain
  • Static cooling
  • LED interior light with switch
  • Castors
  • Frameless curved sliding lids
  • Fan assisted condenser for energy efficiency
  • Includes full set of baskets

Product description

Sliding Curved Glass Lid Chest Freezer

Elcold’s Focus premium chest freezer is the preferred choice for leading ice cream and frozen food companies. With its sleek design, energy efficiency, and durability, it stands out. The frameless curved sliding lids and internal LED lighting provide an excellent display. Castors come standard, making it easy to move.

The Elcold FOCUS 73 is a sliding curved glass lid display chest freezer holding -23 to -16 °C, with 161 litres gross and 113 litres net, static cooling, manual defrost, a mechanical controller and a hammered aluminium interior.

SPECIFICATION 43 facts · tap for all External W × D × H720 x 650 x 850 mmWidth720 mmDepth650 mmGross / net weight47 / 44 kgGross weight47 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Elcoldsite
GTIN / EAN 5708181737276site
Product code 53300site
Sub title Sliding Curved Glass Lid Chest Freezercatalogue
Type Display Chest Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 650 mmsite
External (W×D×H) 720 × 650 × 850 mmcatalogue
External W × D × H 720 x 650 x 850 mmsite
Gross / net weight 47 / 44 kgsite
Gross weight 47 kgcatalogue
Height 850 mmsite
Internal (W×D×H) 570 × 500 × 699 mmcatalogue
Internal W × D × H 570 x 500 x 699 mmsite
Packed (W×D×H) 770 × 760 × 880 mmcatalogue
Packed W × D × H 770 x 760 x 880 mmsite
Width 720 mmsite

Capacity1

Gross volume 161 litrescatalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 67 gsite
Temperature range -23 to -16site
Thermometer Yessite

Power & energy6

Annual energy consumption 431 kWh/yearsite
Energy consumption 1.18 kWh/24hsite
Energy efficiency index 37.9 %site
Input power 84 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Castors Castorssite
Exterior finish White, Greysite
Interior light LEDsite
Lock Nosite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this display chest freezer earns its place

The Elcold FOCUS 73 is a compact display chest freezer with a sliding curved glass lid, finished in grey with a white option and a hammered aluminium interior. Its 161 litres of gross capacity, 113 litres net, are built to merchandise frozen impulse lines — the curved glass lid keeps the product visible and within reach for self-service.

It runs a -23 to -16 °C band with static cooling, manual defrost and a mechanical controller, so it holds frozen stock steady and you clear frost down as part of a cleaning routine rather than on an auto cycle. Rated to climate class 4 and running at a quiet 40 dB, it suits a shop-floor or counter position. On its 430.7 kWh rating it costs about £108 a year at 25p/kWh, at energy class D.

It ships packed at 770 × 760 × 880 mm (W×D×H) and is light to handle at 47 kg gross, 44 kg net, so siting and repositioning are straightforward. It runs from a standard 13 A supply.

BEFORE YOU BUY

Questions, answered straight

It offers 161 litres gross and 113 litres net, sized for merchandising frozen impulse lines. The sliding curved glass lid keeps the product visible and within reach.

It holds a -23 to -16 °C band with static cooling and a mechanical controller. Defrost is manual, so build a regular defrost into your cleaning routine.

On its rated 430.7 kWh a year it works out at about £108 a year at 25p/kWh, at energy class D.

No, it is light at 47 kg gross and 44 kg net, and ships packed at 770 × 760 × 880 mm, so it is straightforward to site and reposition.

It runs at 40 dB, quiet enough for a shop-floor or counter position near customers.

Yes. Craven Cooling can arrange servicing and support on 01792 732702. It runs from a standard 13 A supply.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 570 x 500 x 699 mm
External Dimension (WxDxH): 720 x 650 x 850 mm
Packed Dimension (WxDxH): 770 x 760 x 880 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 67 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.18 kWh/24h
Temperature Range: -23 to -16 °C
Annual Energy Consumption: 431 kWh/year m³
EEI: 37.9 %
Input Power: 84 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Temperature Range: -23 to -16 °C
Climate Class: 4
Gross / Net Weight: 47 / 44 kg
Gross / Net Volume: 161 / 113 l
Max Ambient: +30°C, 55% RH

Design and Material

Castors: Castors
Exterior Finish: White, Grey
Interior Finish: White, Grey
Interior Light: LED
Lock: No
